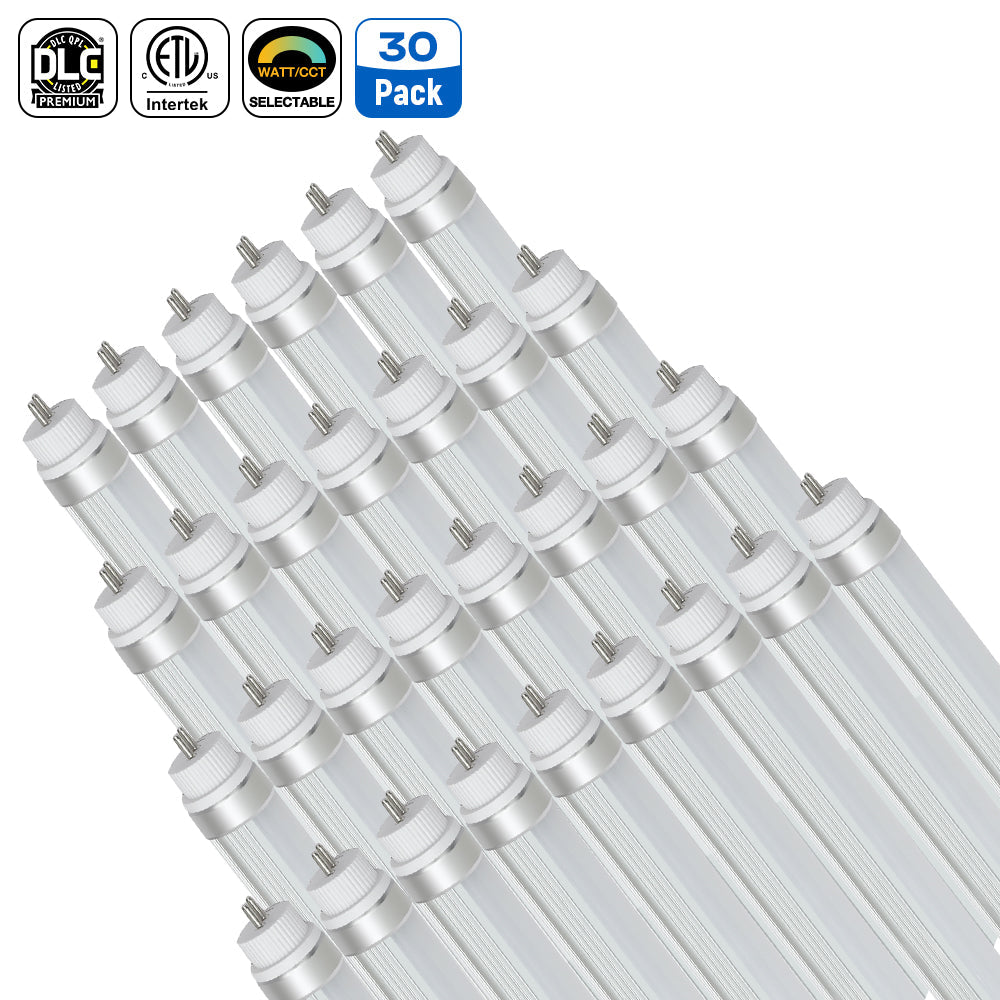

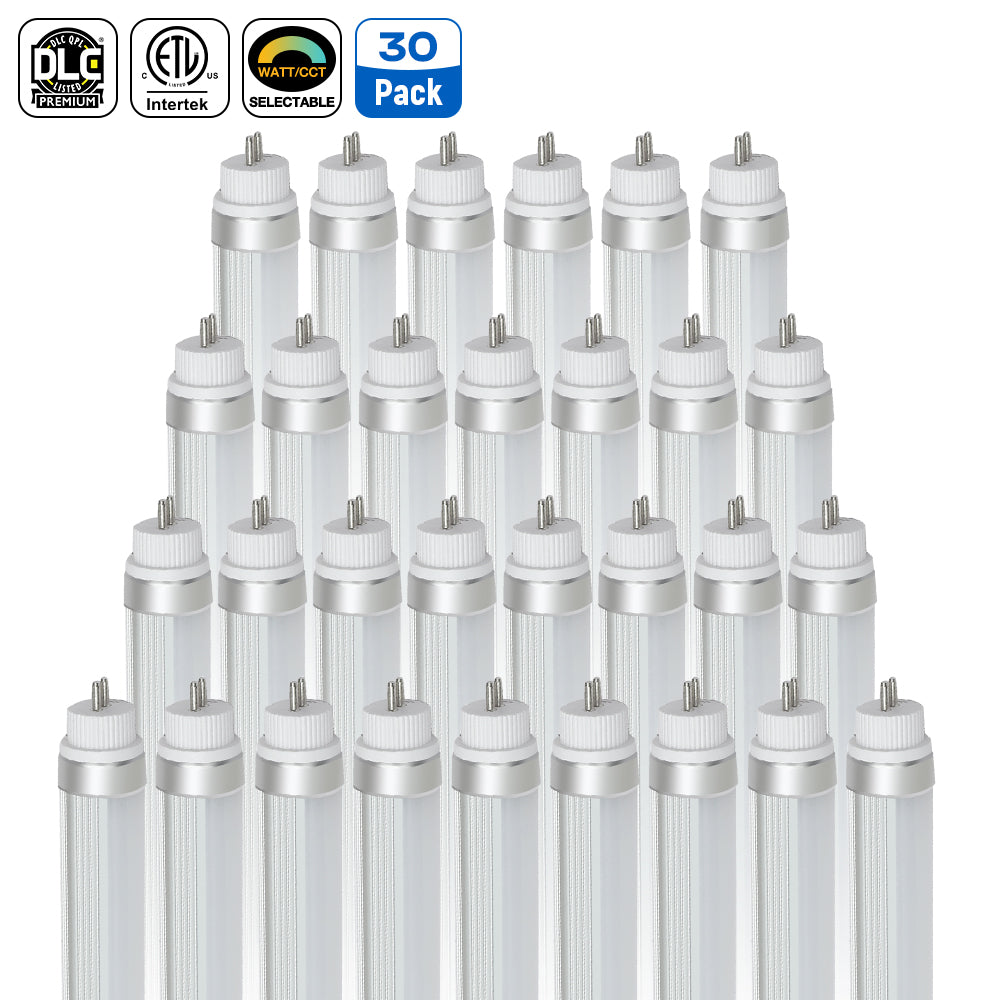

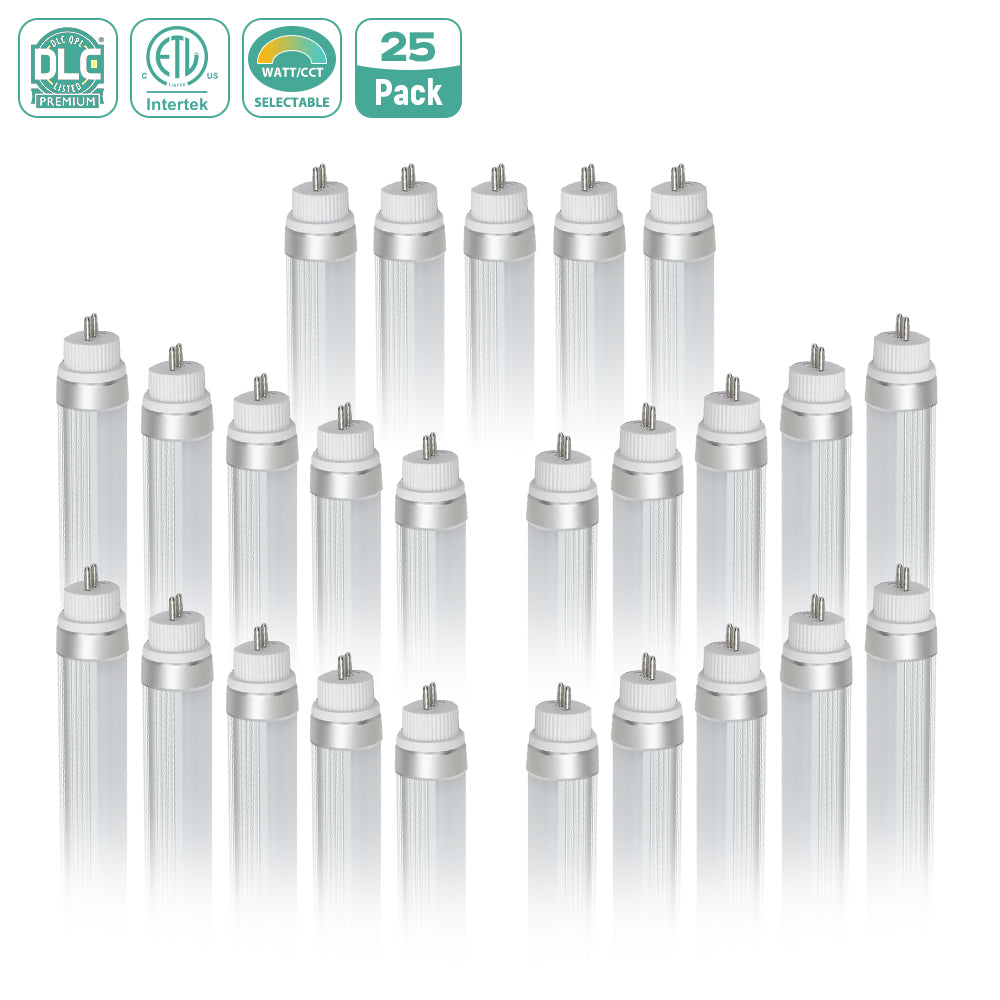

JEE 4ft T5 LED Tube 24W 5000K
- ETL Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per tube. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more tubes and your cost per tube goes down.
- Packed tight for the trip. A sealed factory case keeps tubes snug and protected from the warehouse to your job site.
- Extras on hand. A few extra tubes cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | ORM-TF24-YY-5K |
| Fixture type | LED Tubes |
| Family | T5 Tube |
| Size | 4ft |
| Color temperature (CCT) | 5000K |
| Input voltage | 120-277V |
| Certifications | ETL |
| Product dimensions | 45.79 in long (with pins) |
| Case pack quantity | 25 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 46.86 x 6.3 x 6.5 in |
| Case pack weight | 17.42 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
4ft T5 LED tube with a milky cover, bypass ballast direct wire, double-ended. Medium bi-pin G5 lamp holder.
Specifications
Construction
- Aluminium + PC housing
- Milky cover
- Medium bi-pin (G5) lamp holder
Electrical
- Input voltage 120-277Vac 50/60Hz
- 150 lumens per watt
Installation
- Bypass ballast (direct wire)
- Double-end wiring
- Damp or dry locations only
- Operating temperature -20°C to 45°C
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
Downloads
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 24 W. Color temperature: 5000K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls.
What certifications does it have?
Listed by the manufacturer as: ETL.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
