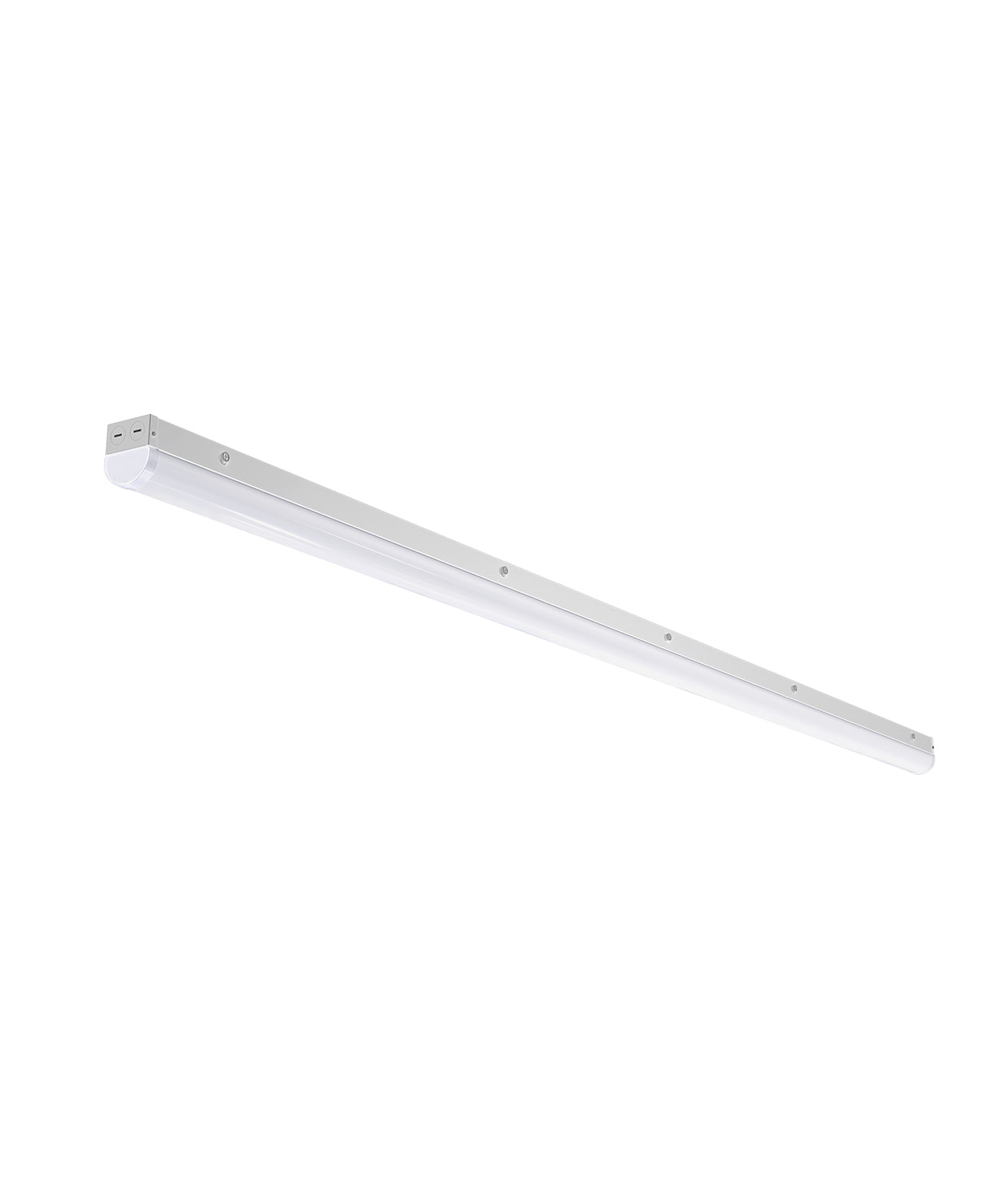

JEE 8ft LED Linear Strip ST02 70-90W with Emergency Battery
Product Number:JEN-ST02-8FT-90PDBC
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
JEE linear strip light with field-adjustable wattage and CCT, 0-10V dimming and seamless linking for continuous rows.
Specifications

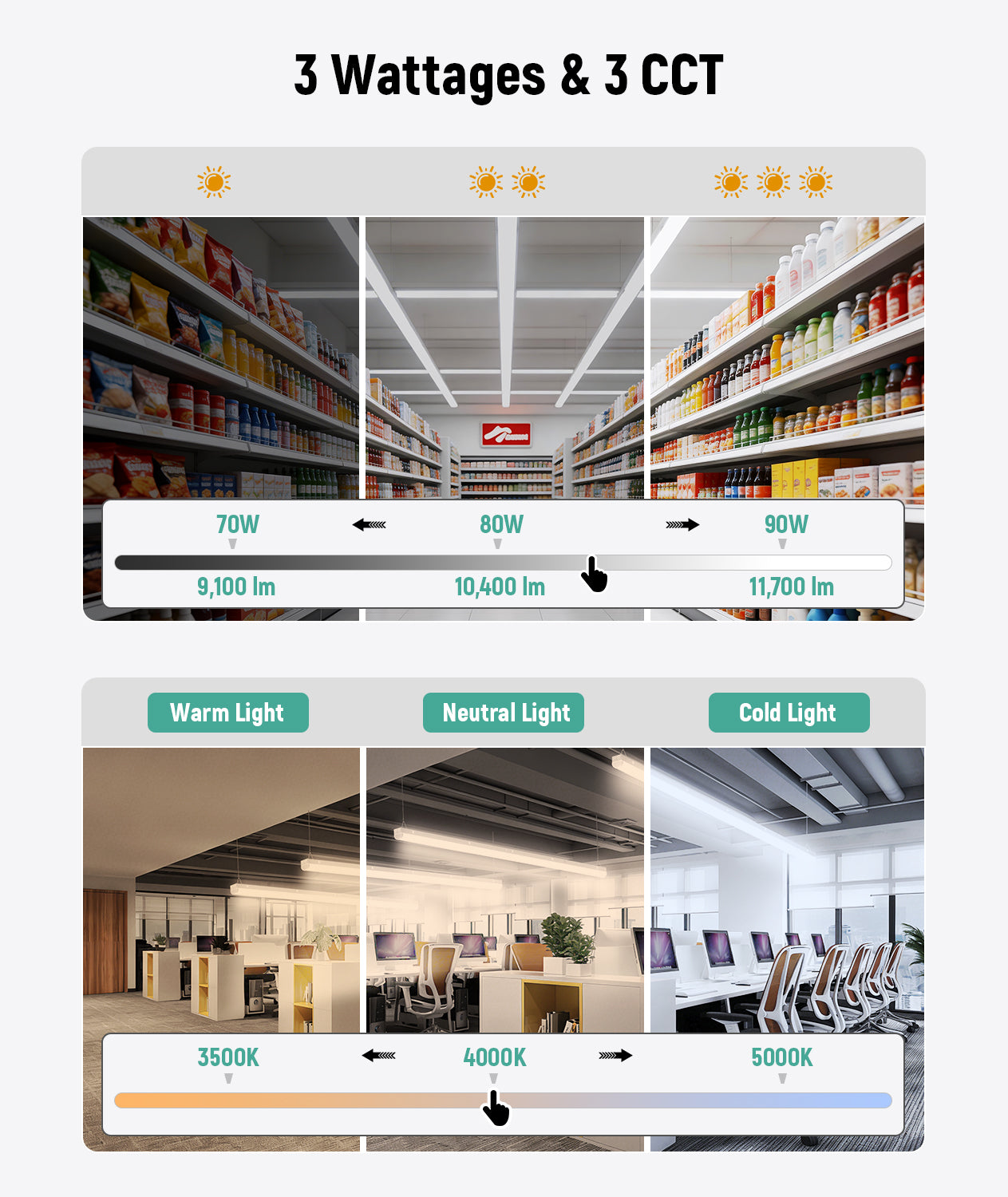

Wattage
70 / 80 / 90 W
Lumens
10,400 – 11,700 lm
Efficacy
130 lm/W average
Colour temperature
3500K / 4000K / 5000K / 5700K / 6500K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
> 80
Operating temp
-20°C to 45°C

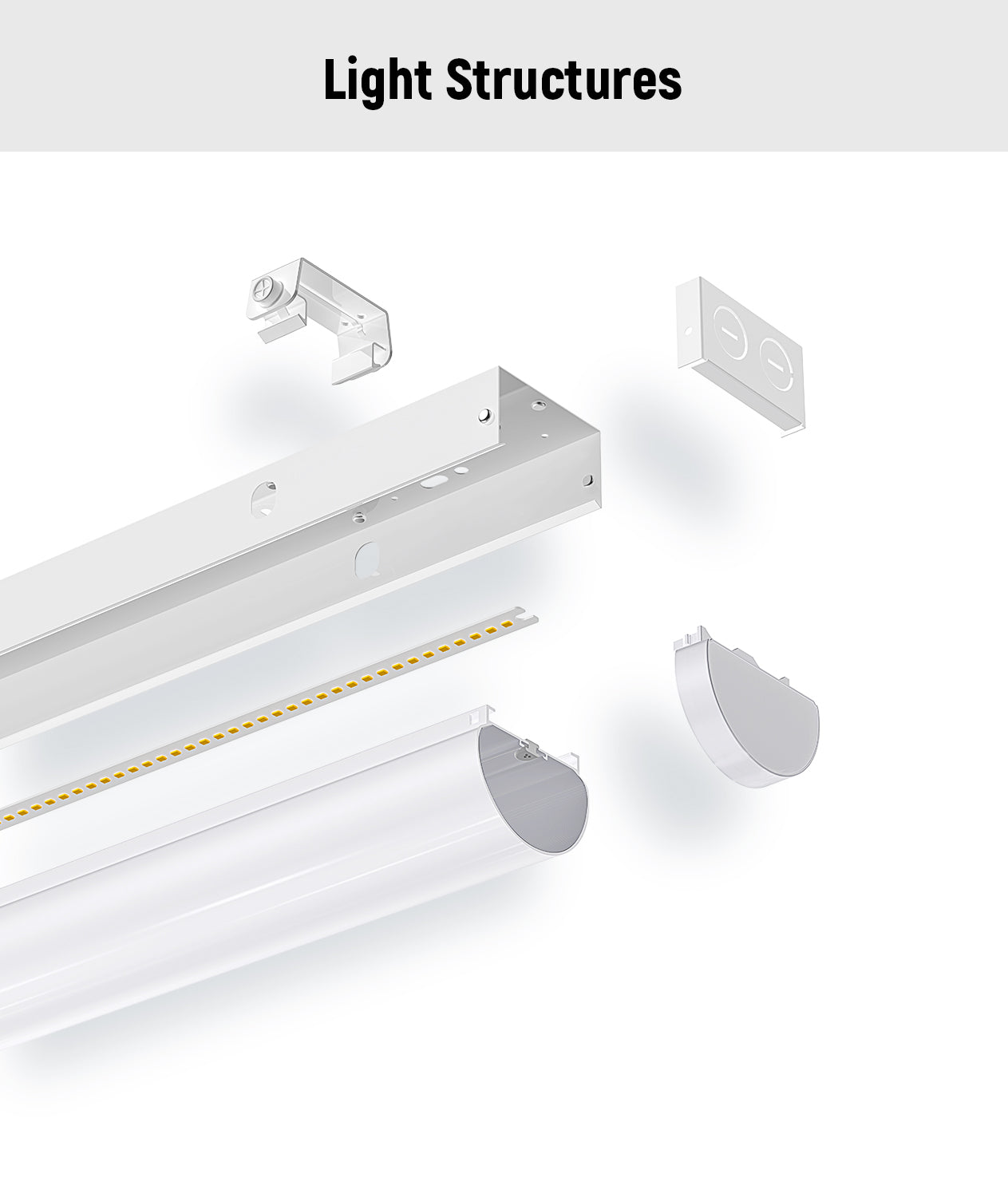

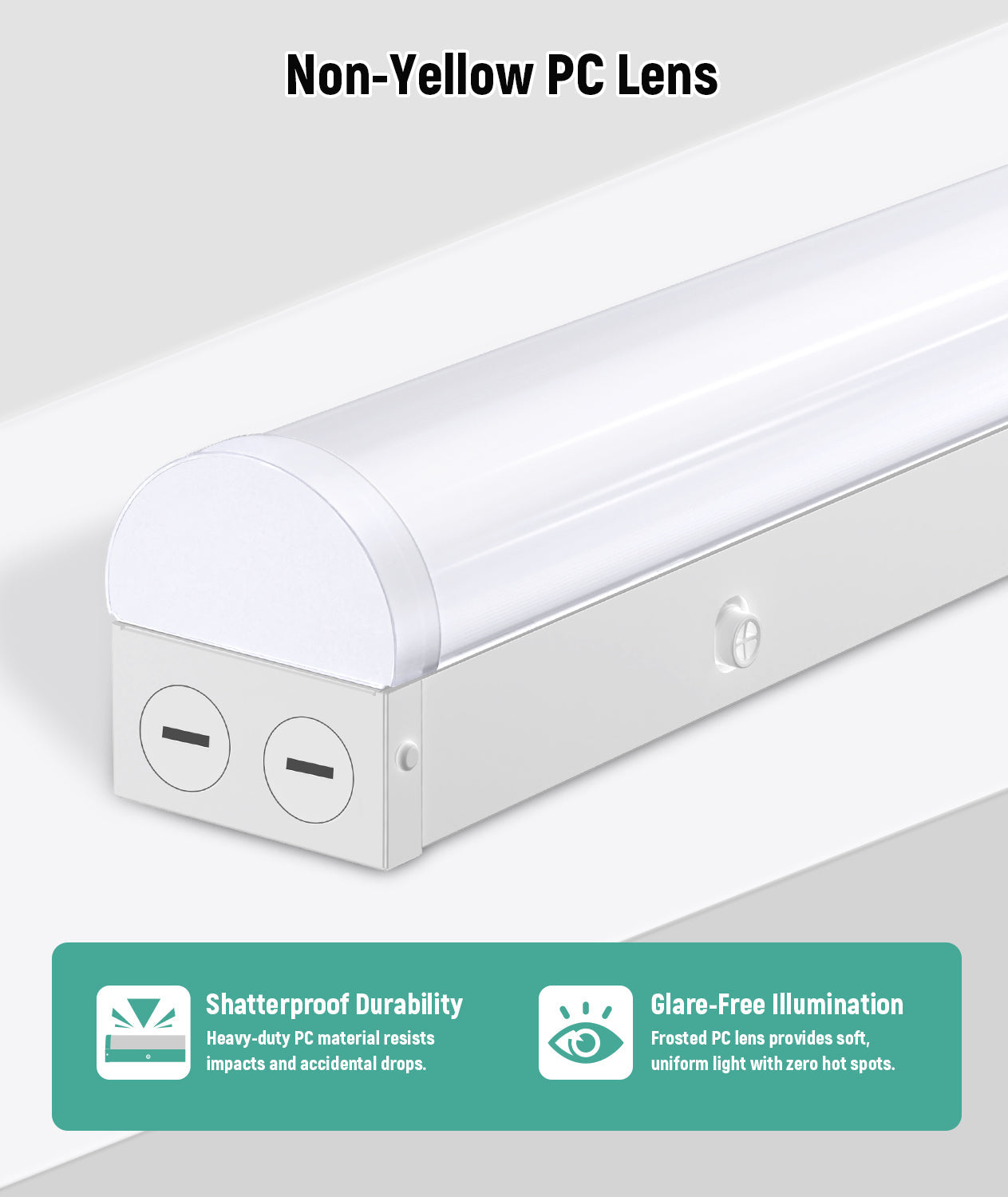

Construction
- Luminous part integrated and fastened to the body by snap locks
- End caps use an integrated bending technique
- Seamless linkable

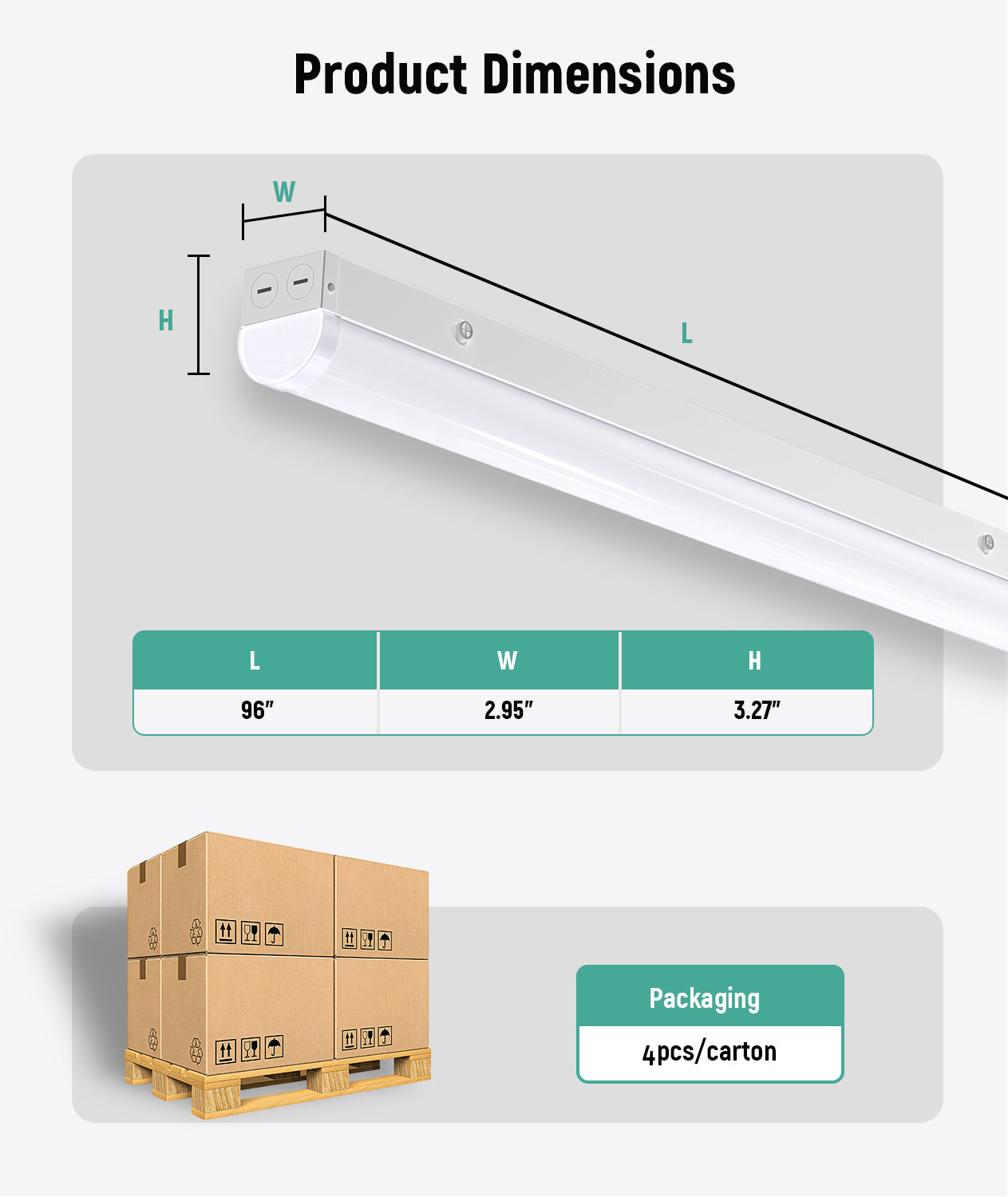

- 4ft and 8ft options
Electrical
- 120-277VAC, or 120-347VAC optional
- 0-10V dimmable
- THD ≤ 10%, PF ≥ 0.95
- Field-adjustable power and CCT
- Low voltage bi-level motion sensor available

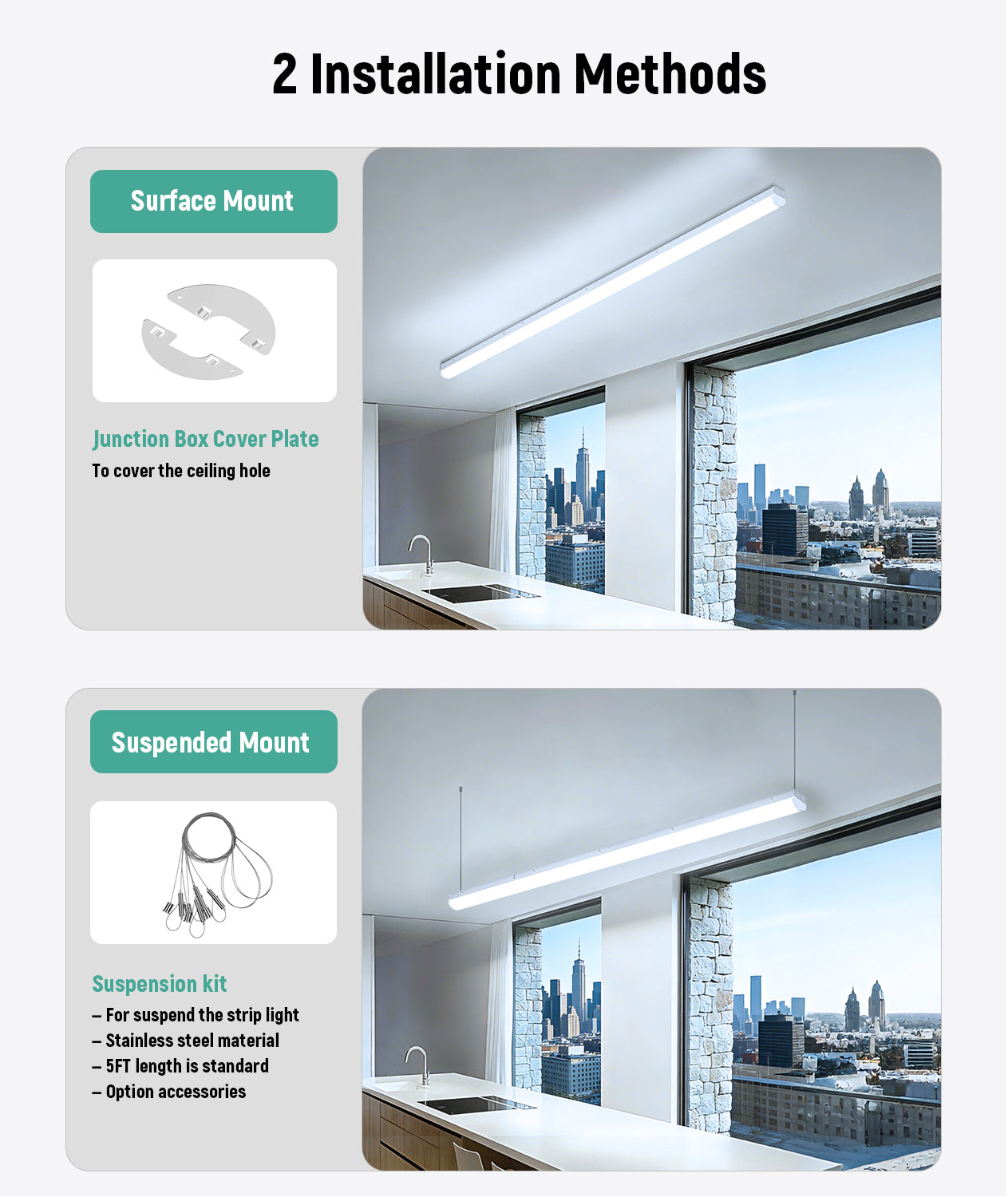

Installation

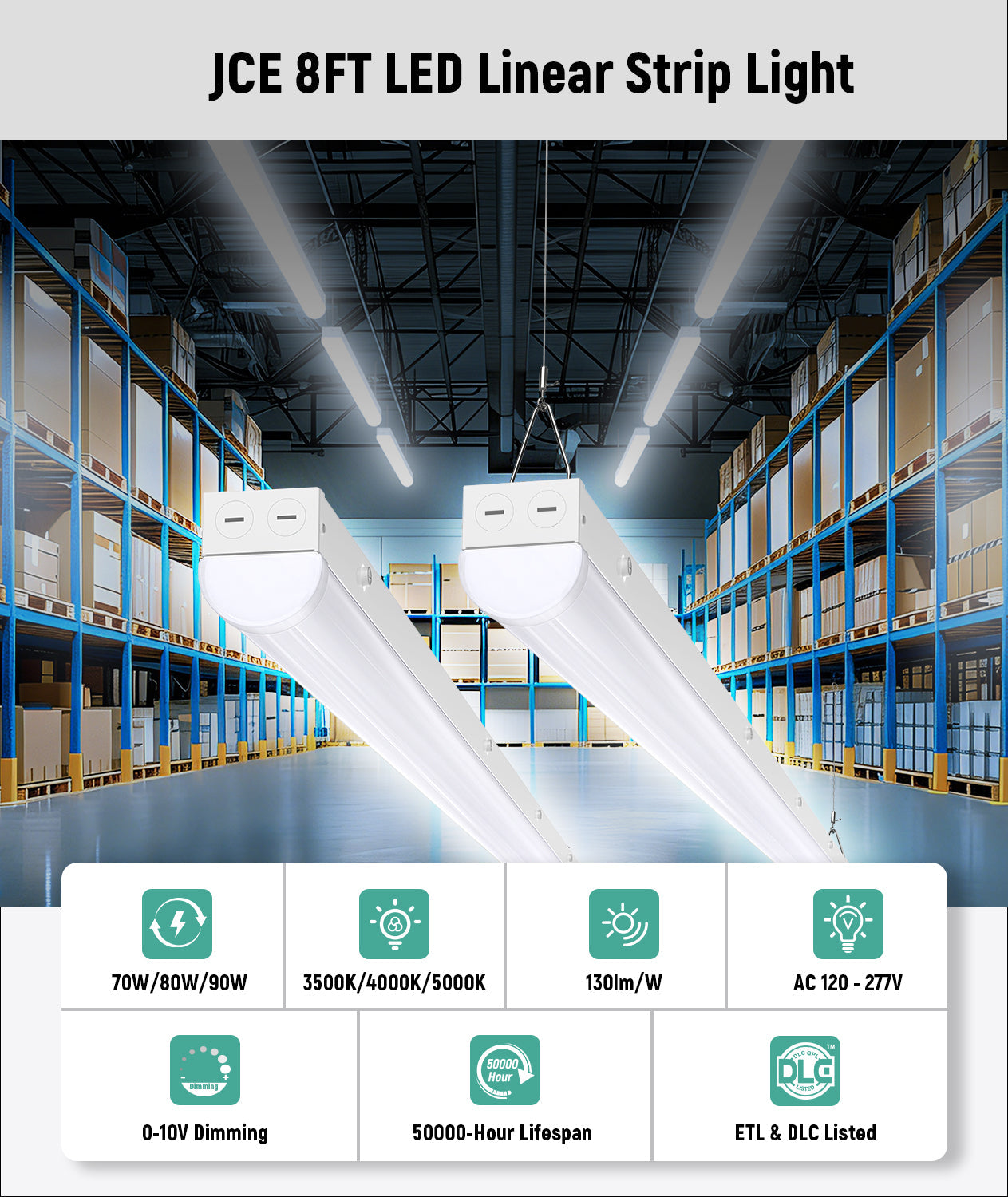

- Surface mounted
- Suspended

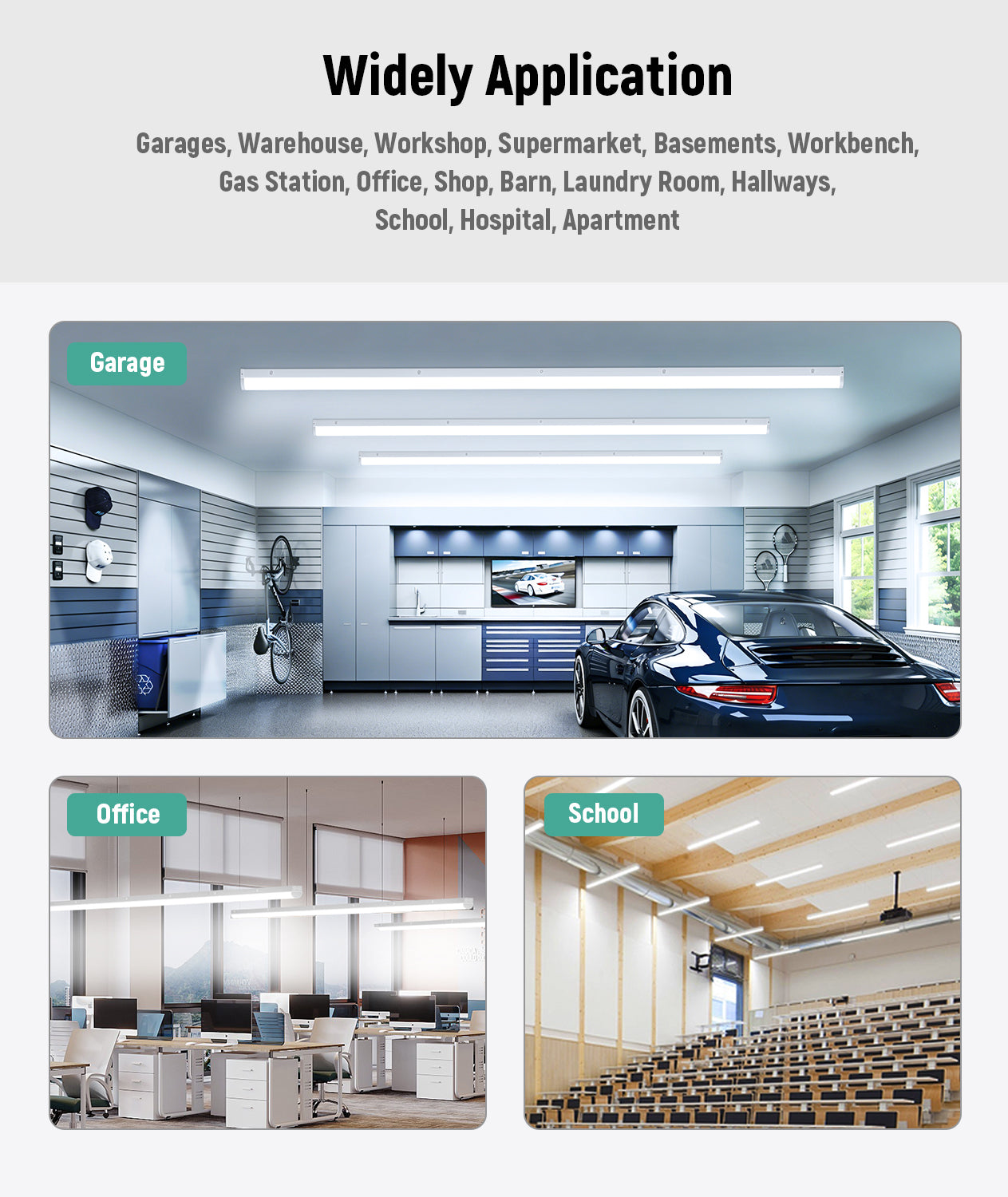

Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
