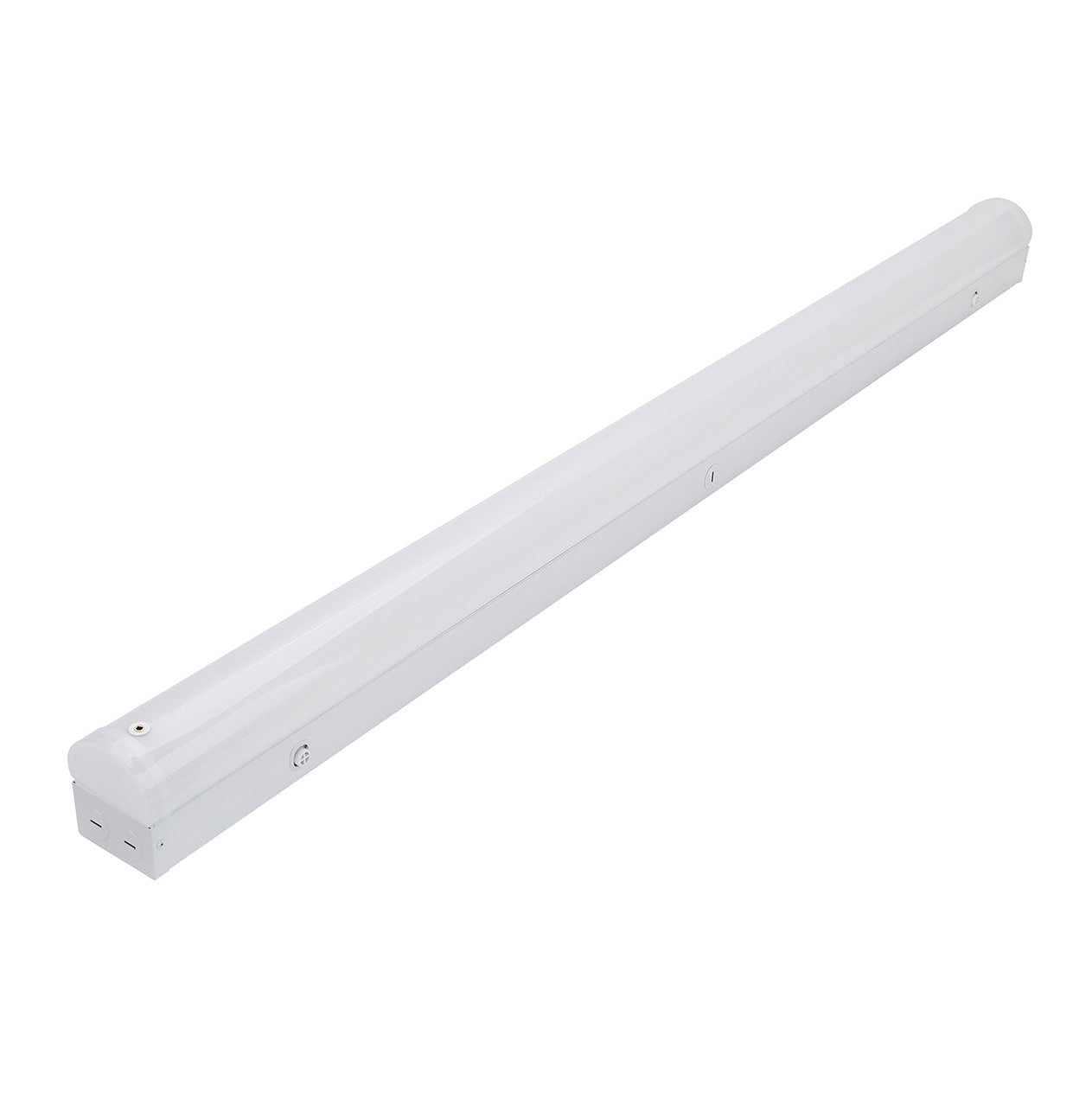

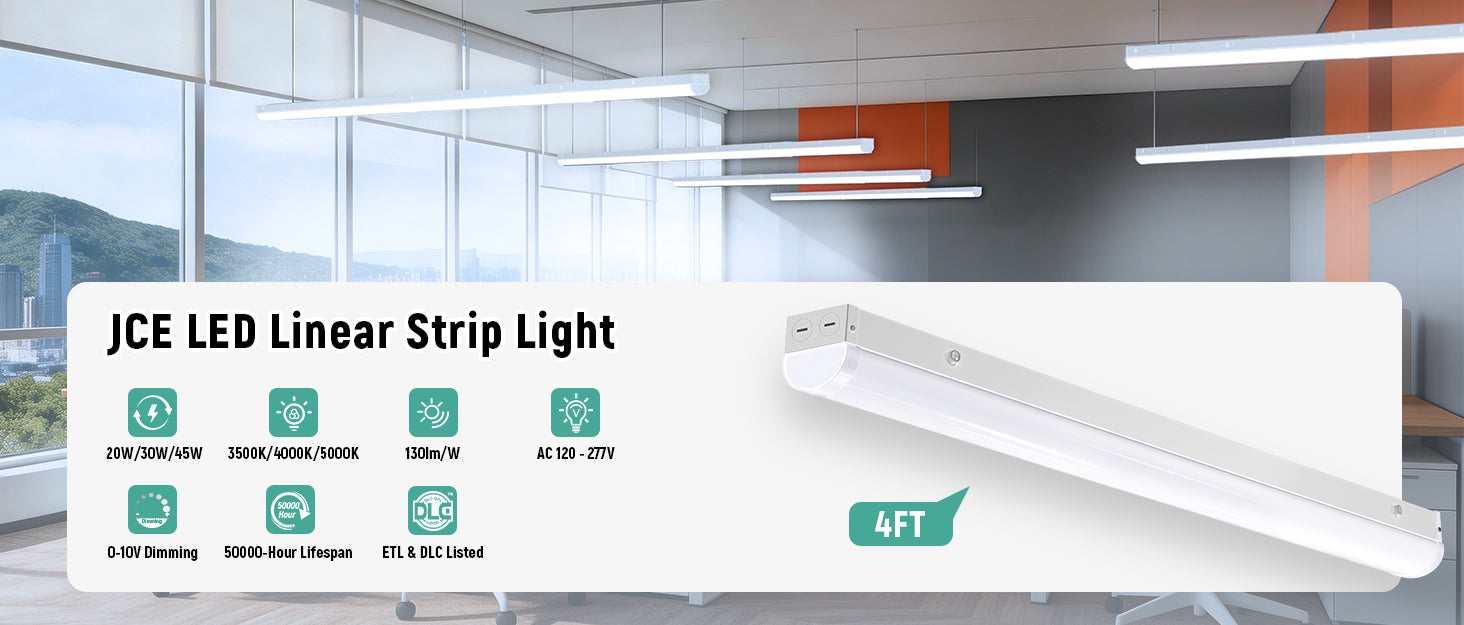

JEE 4ft LED Linear Strip ST02 20-45W with Emergency Battery
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | JEN-ST02-4FT-45PDBC |
| Fixture type | Strip Lights |
| Family | Linear Strip – ST02 |
| Size | 4ft |
| Color temperature (CCT) | 3500K, 4000K, 5000K, 5700K, 6500K |
| Input voltage | 120-277V |
| Controls | Emergency battery |
| Certifications | ETL, DLC |

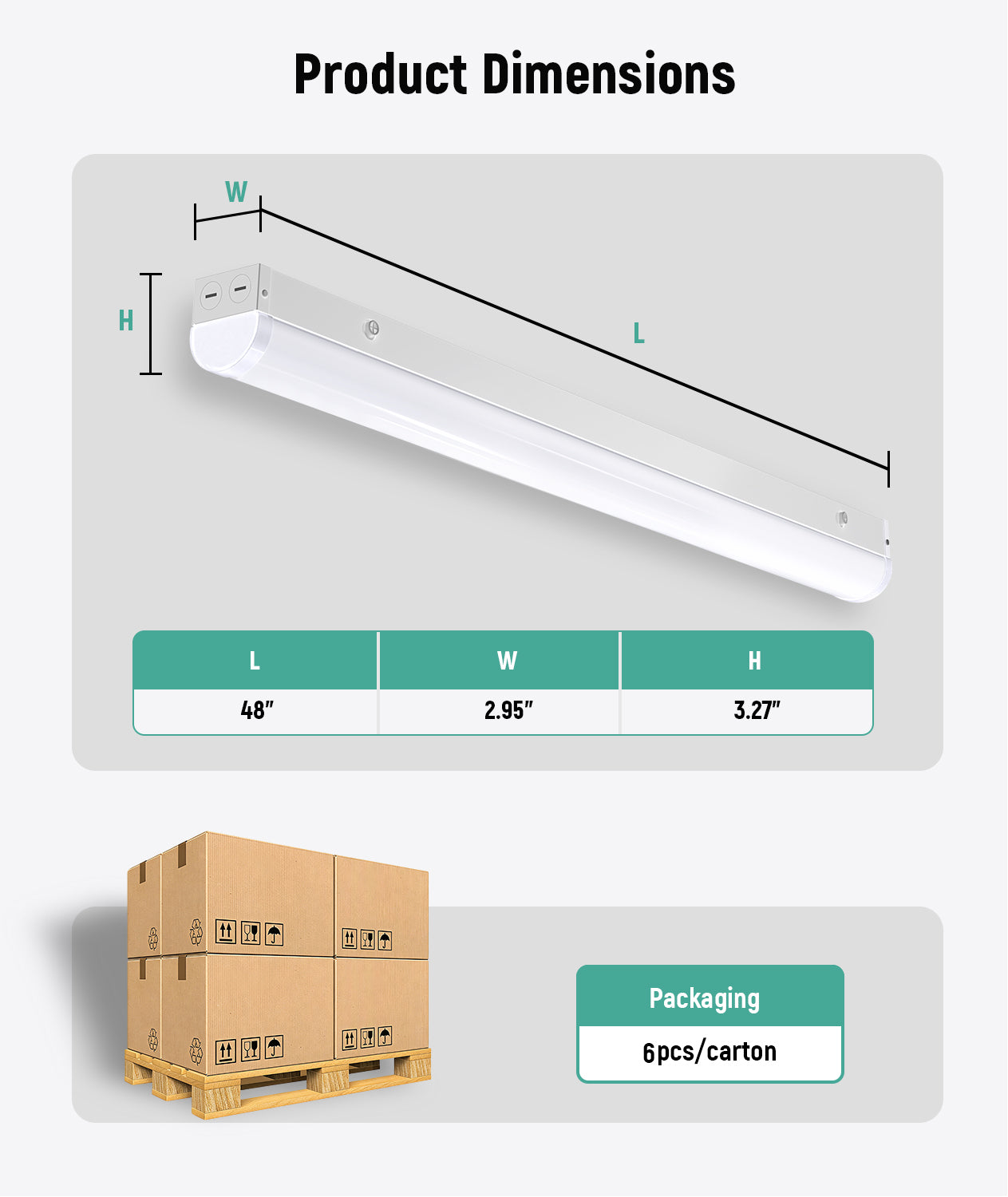

| Product dimensions | 48 x 2.95 x 3.27 in (L x W x H) |

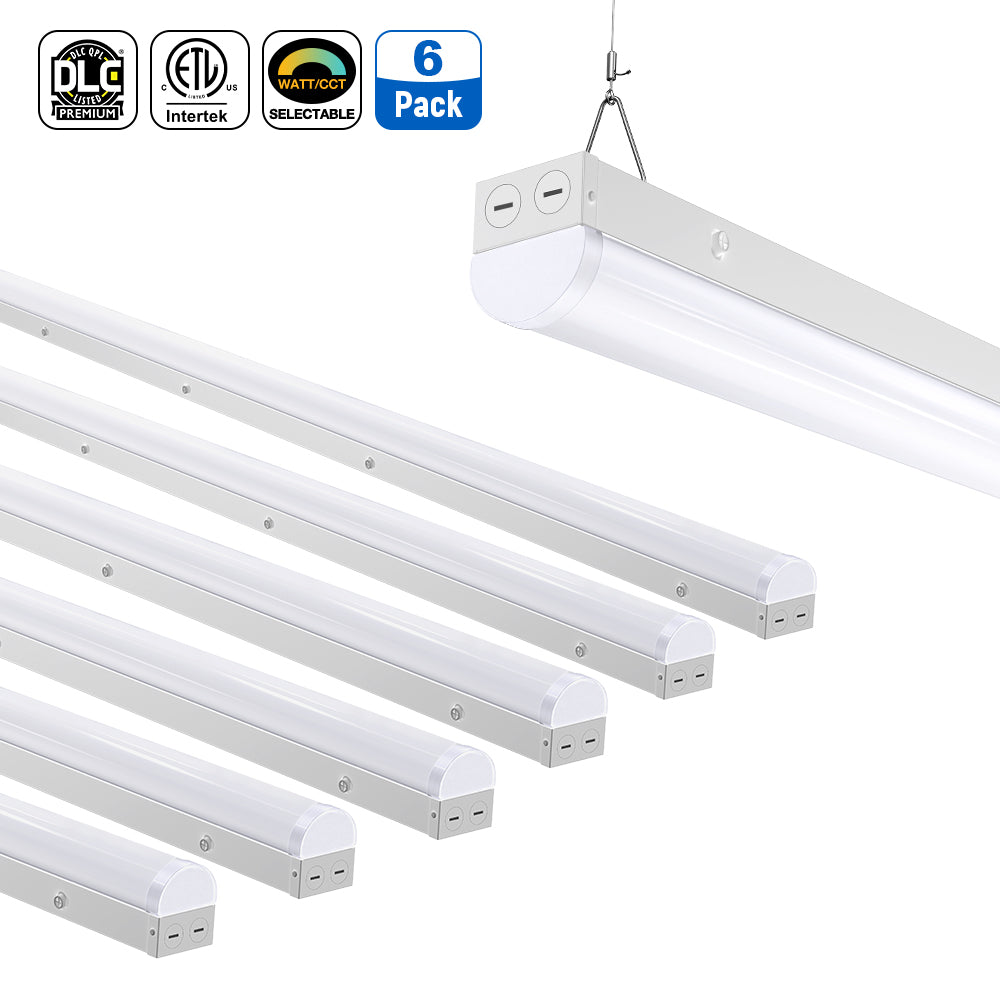

| Case pack quantity | 6 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 49.61 x 12.01 x 8.67 in |
| Case pack weight | 28.22 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

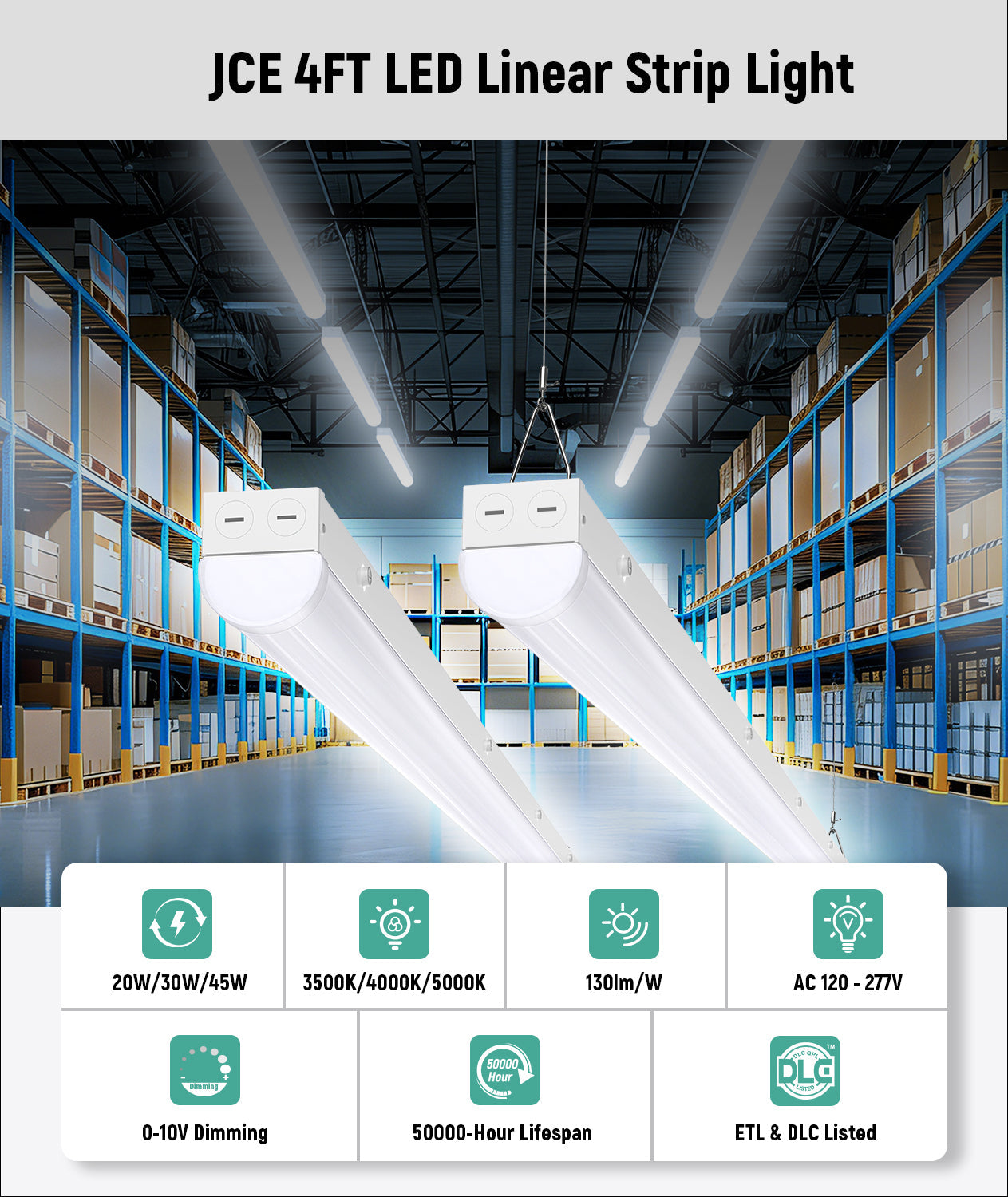

JEE linear strip light with field-adjustable wattage and CCT, 0-10V dimming and seamless linking for continuous rows.
Specifications

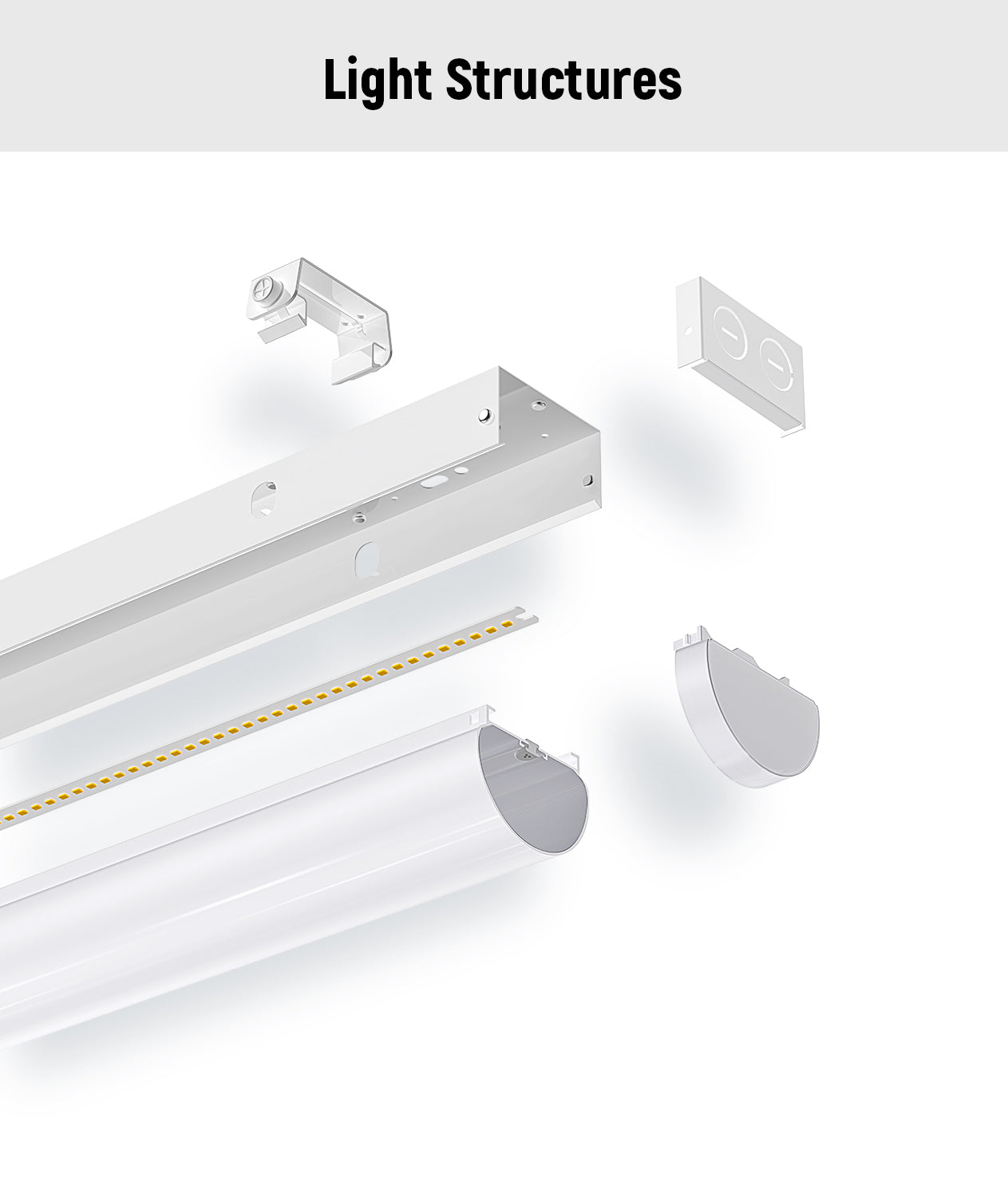

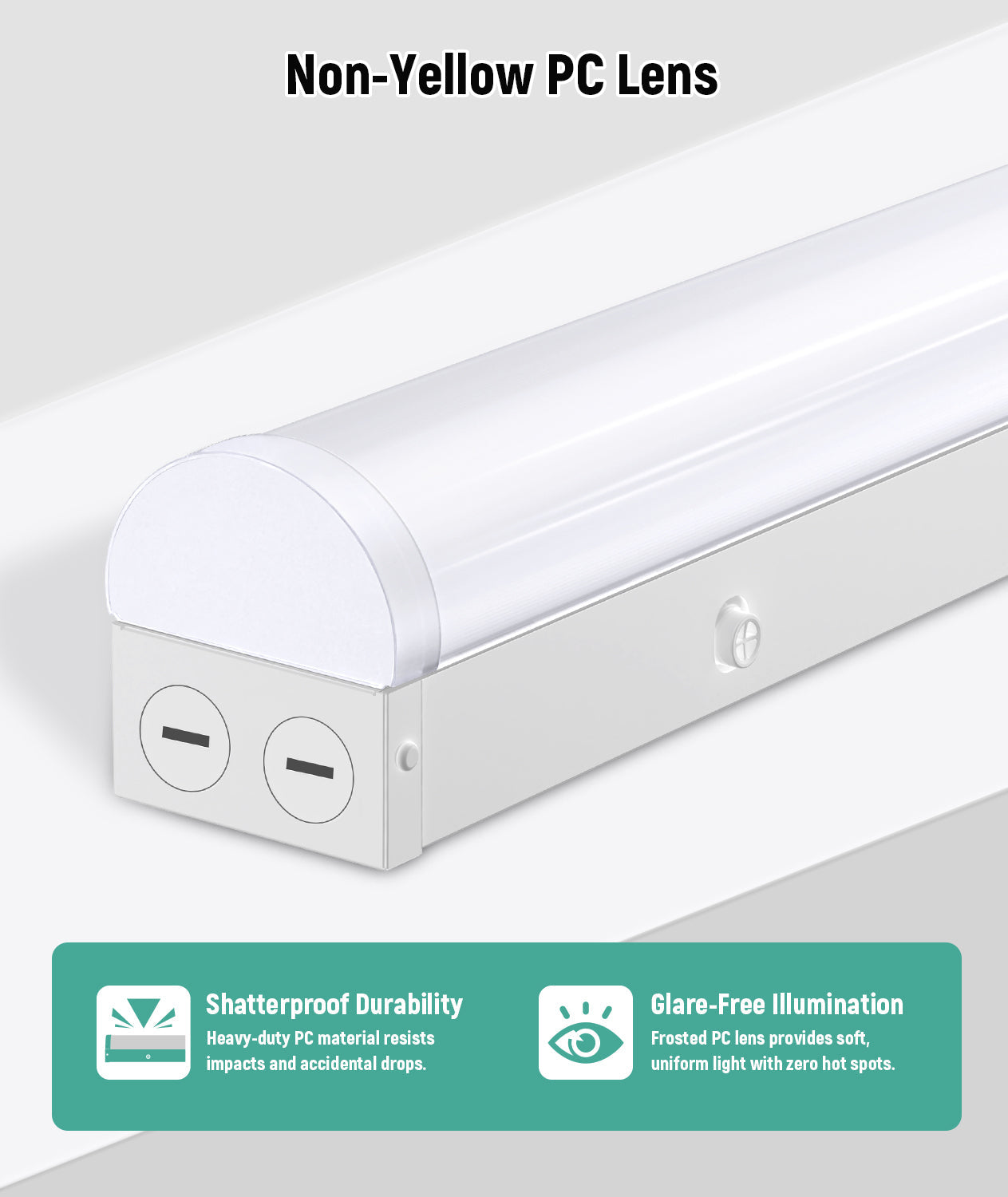

Construction
- Luminous part integrated and fastened to the body by snap locks
- End caps use an integrated bending technique
- Seamless linkable
- 4ft and 8ft options
Electrical
- 120-277VAC, or 120-347VAC optional
- 0-10V dimmable
- THD ≤ 10%, PF ≥ 0.95
- Field-adjustable power and CCT
- Low voltage bi-level motion sensor available

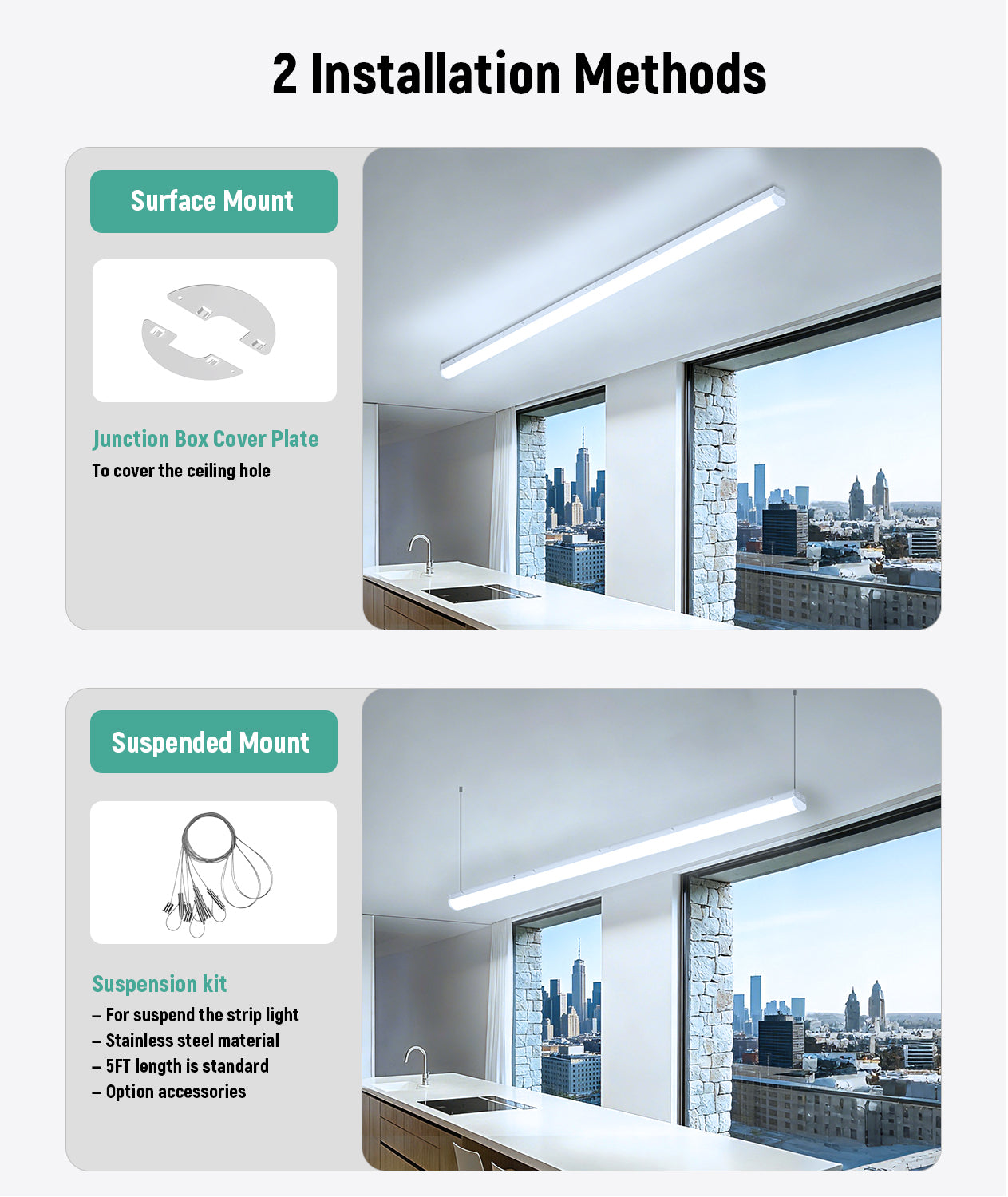

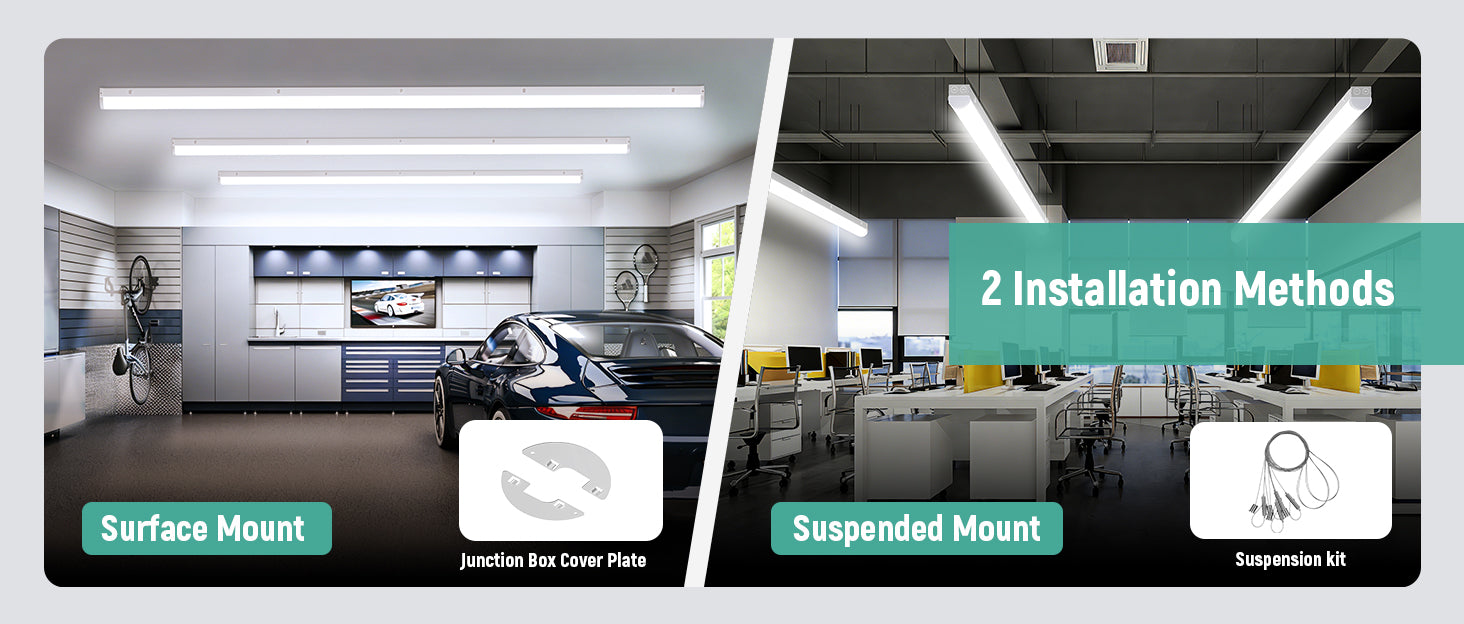

Installation
- Surface mounted
- Suspended
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
Downloads
Spec sheet (PDF): JEE-Spec-ST02-Linear-Strip.pdf
Best uses
- Offices, retail, schools, restaurants, healthcare, residential and hospitality spaces
- Continuous rows: up to 10 x 4ft or 5 x 8ft fixtures on one daisy chain (450W maximum)
- Surface mounted or suspended installs
What's in the box
- One 4ft ST02 linear strip with emergency battery backup
Accessories you may need
- Linkable plate to join fixtures in a row (sold separately)
- Wire rope for suspended installs, or ceiling accessories
- ANT-5-4T sensor, listed as accessories on the spec sheet
Product FAQs
Can I set the wattage and colour on site?
Yes. Wattage selects 20, 30 or 45W, and colour selects 3500K, 4000K, 5000K, 5700K or 6500K.
How many can I link together?
Up to 10 of the 4ft or 5 of the 8ft, 450W maximum per run.
Does it dim?
Yes, 0-10V.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 20 / 30 / 45 W. Color temperature: 3500K, 4000K, 5000K, 5700K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Emergency battery. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
