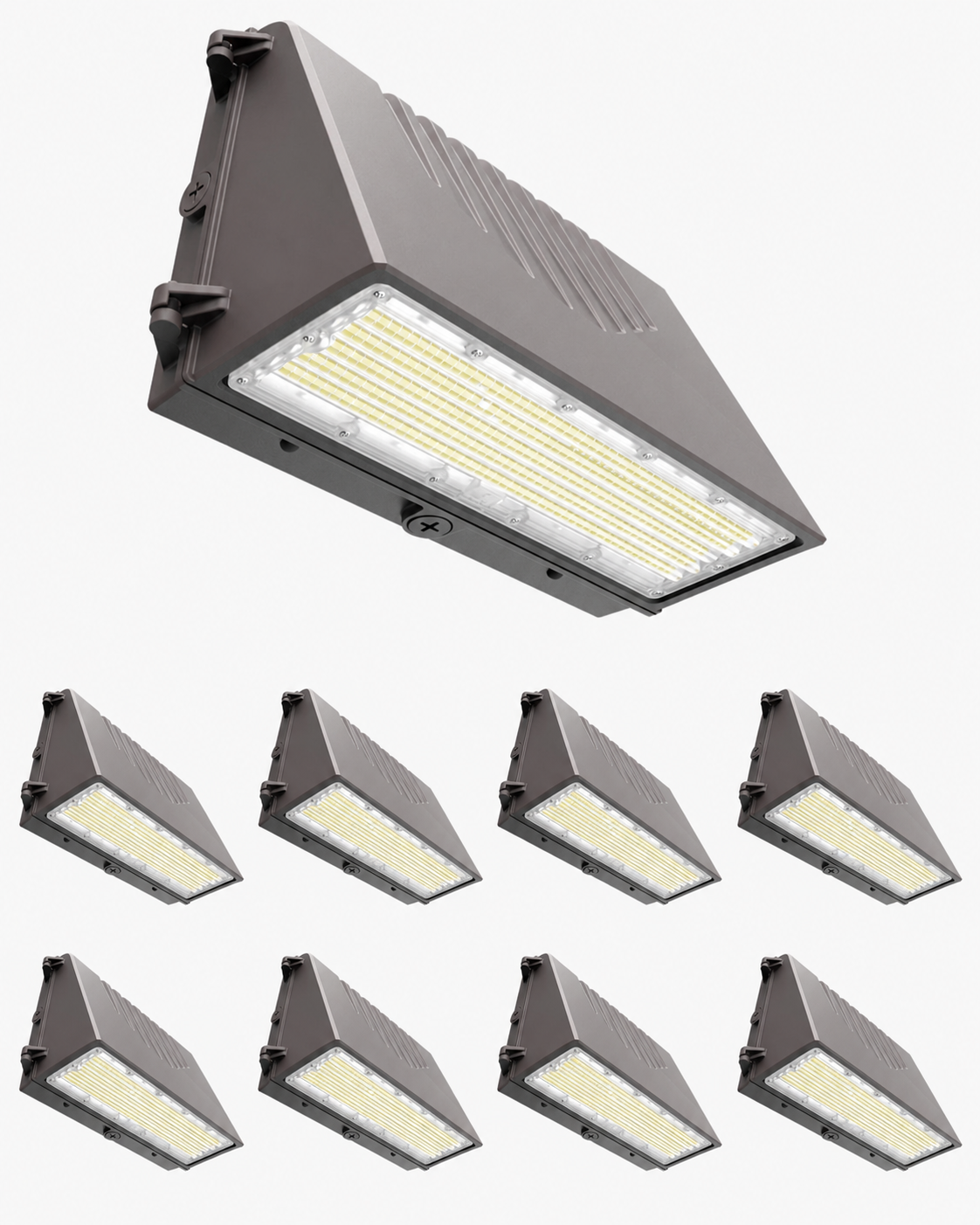

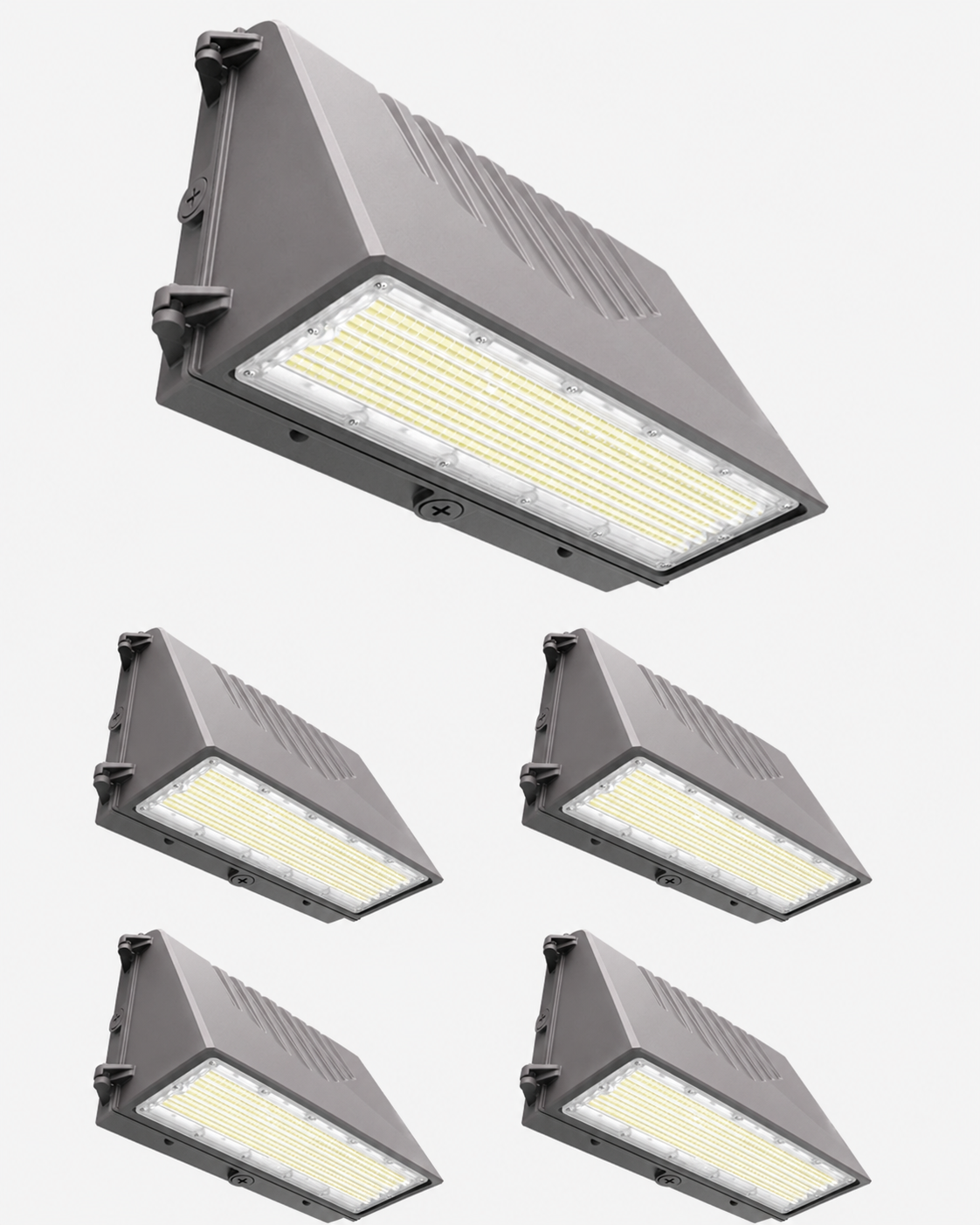

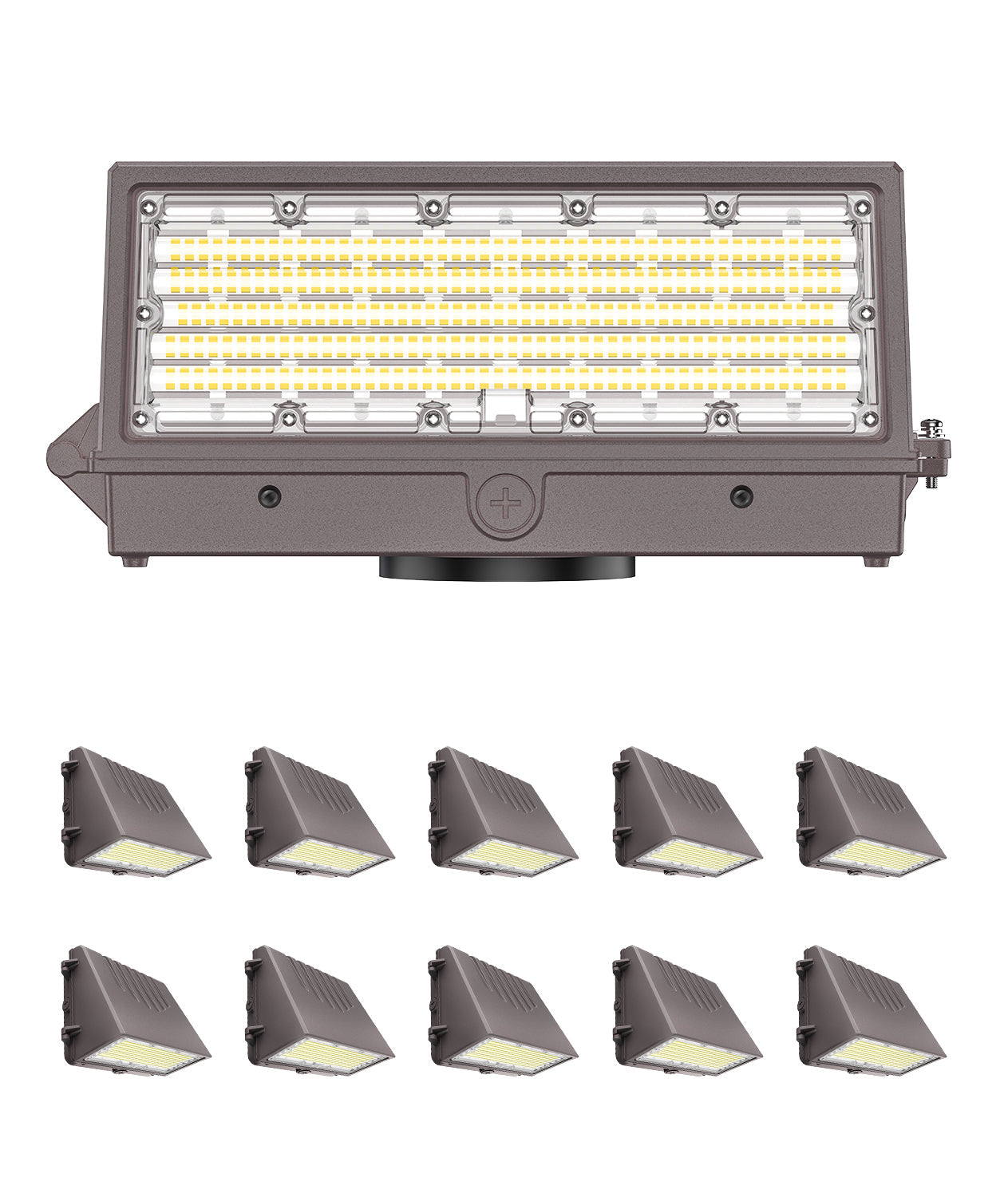

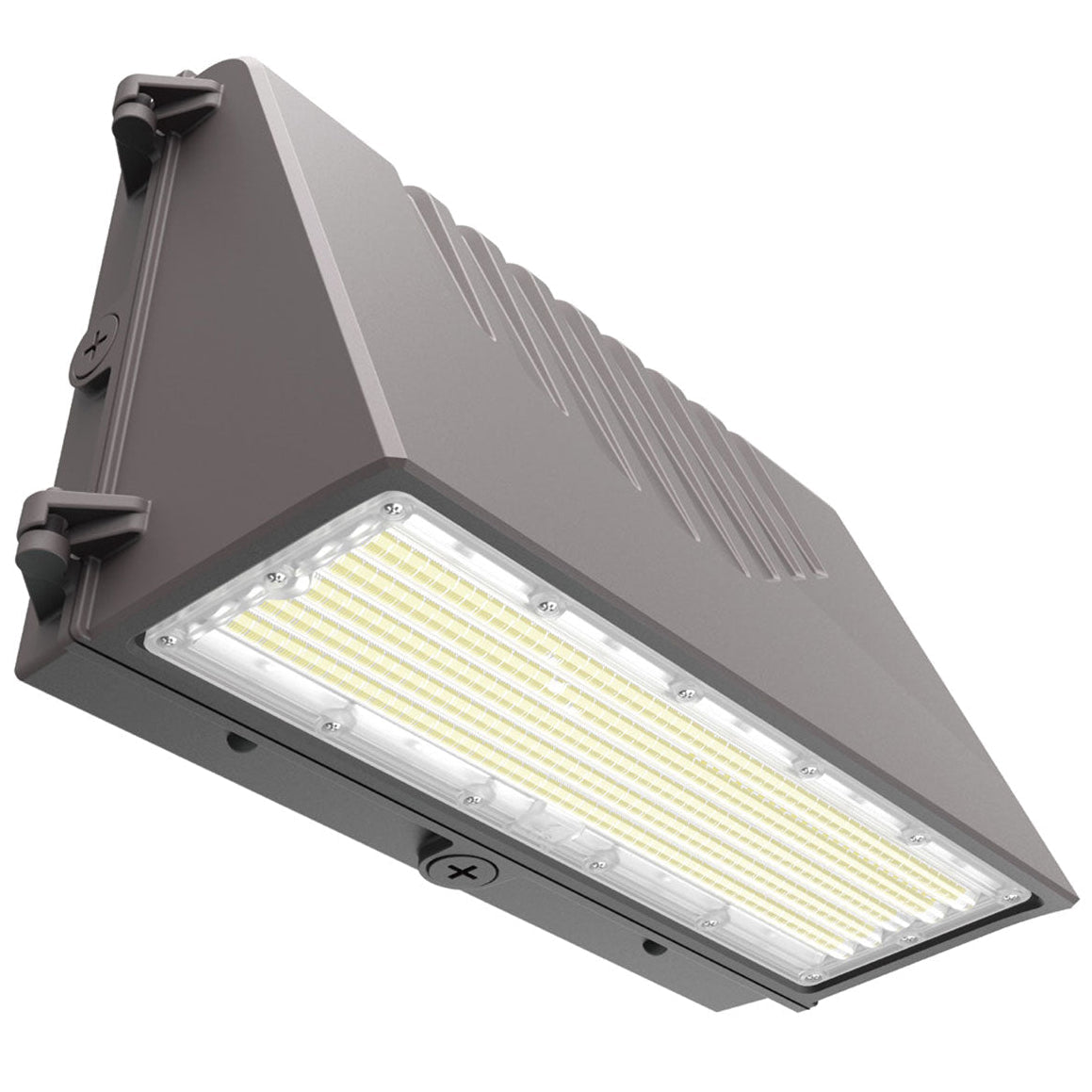

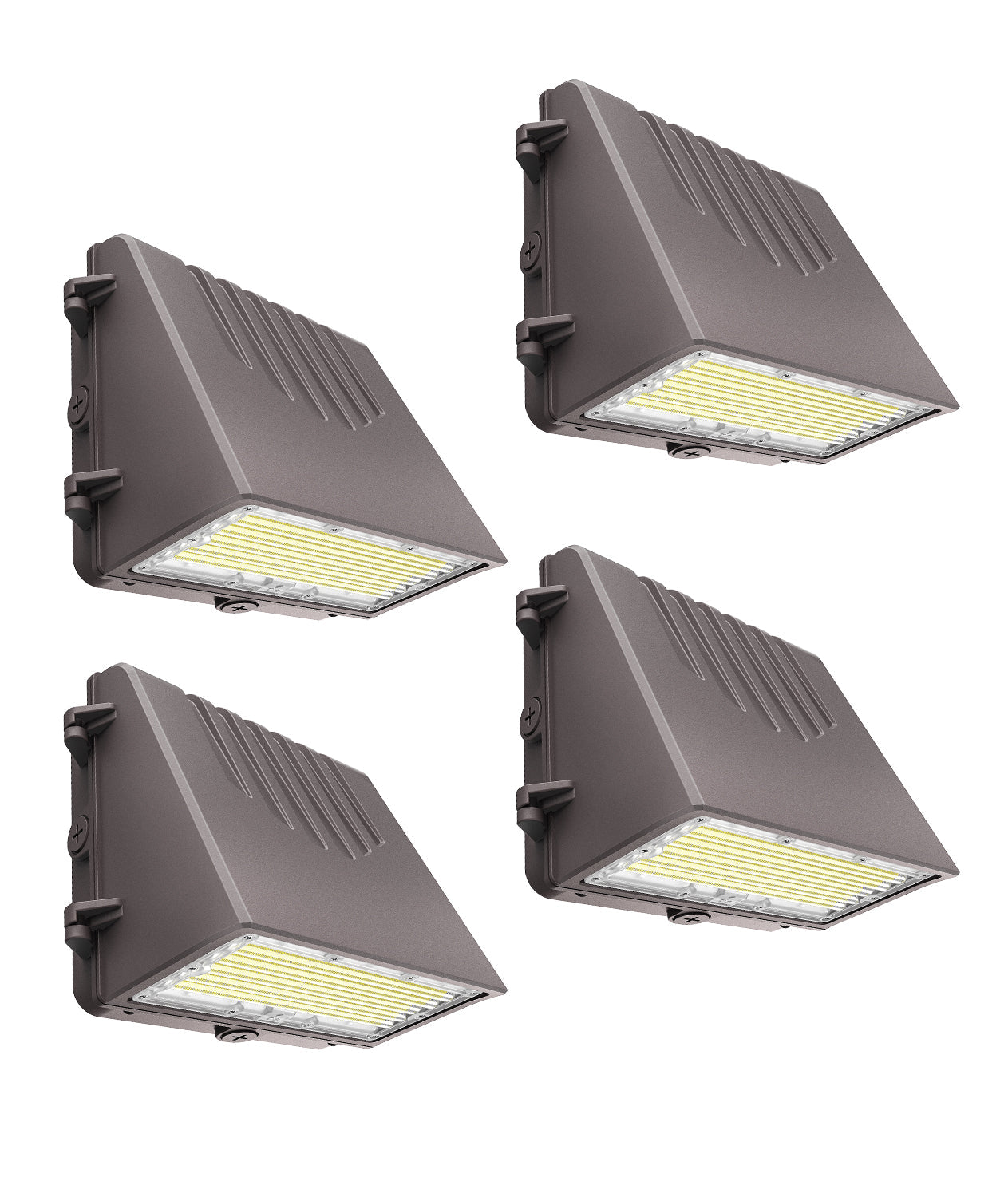

JEE WP11F Full-Cutoff LED Wall Pack 60-120W
Product Number:J-WP11F-120W-S4W3C

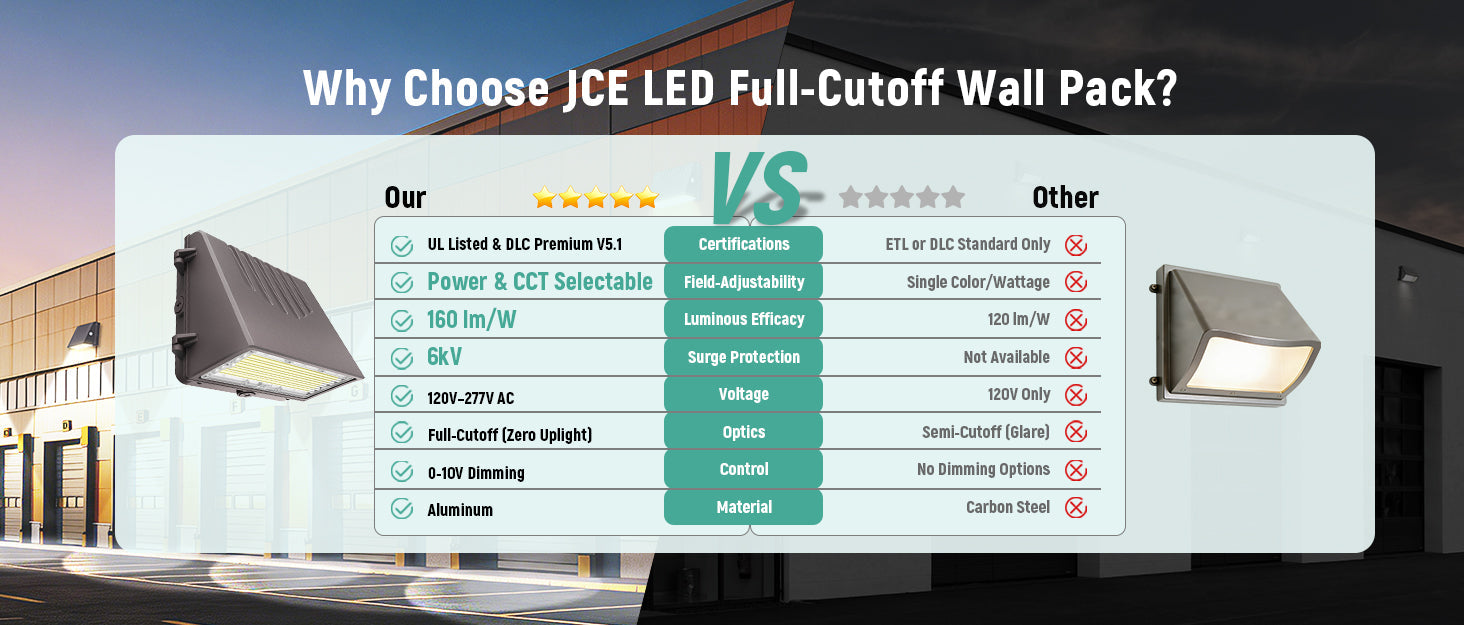

Full-cutoff wall pack in die-cast aluminium with a polycarbonate lens and Type III distribution. Four switchable wattages, three switchable CCTs, 6kV surge protection.

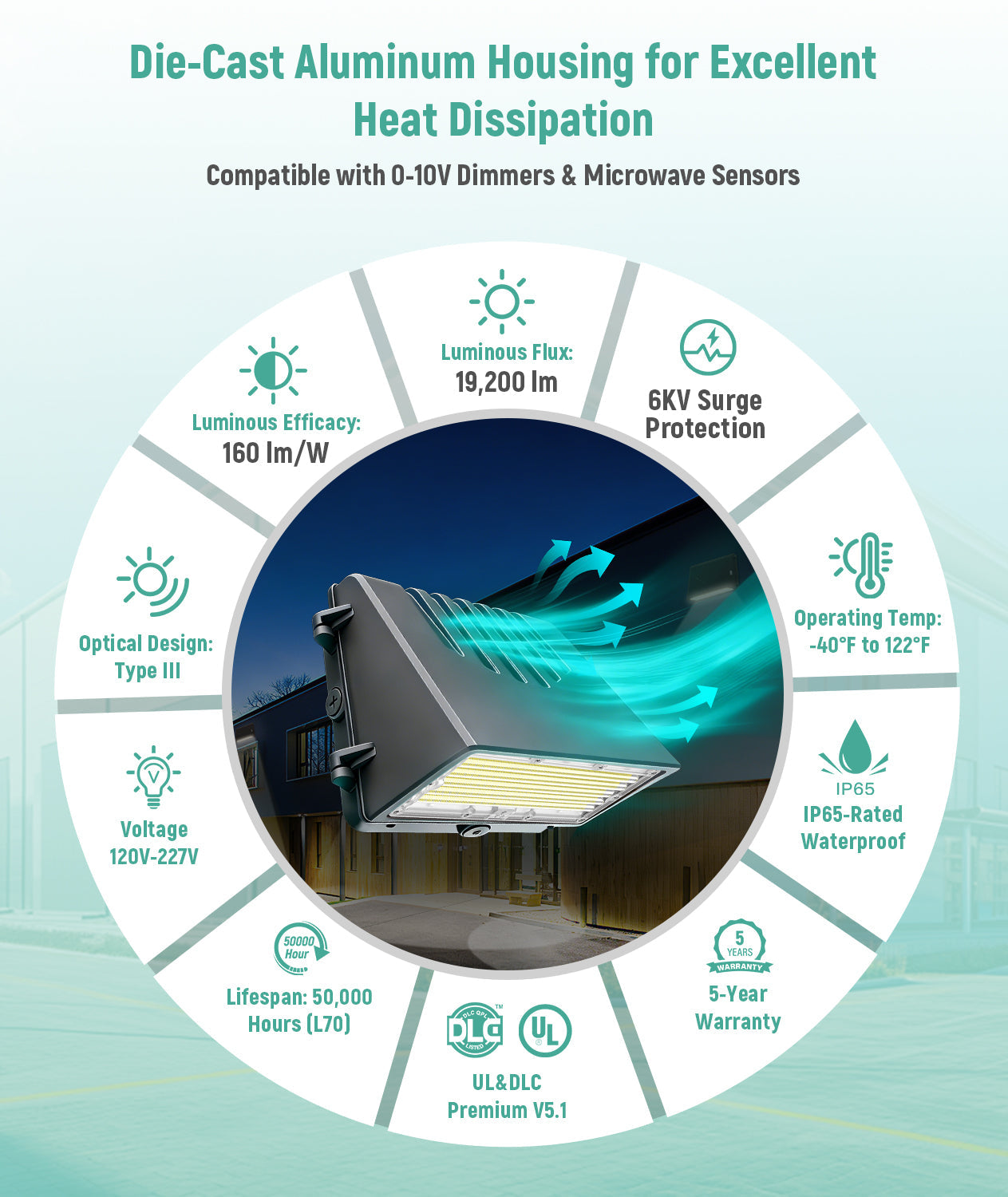

Specifications
Wattage
60 / 90 / 100 / 120 W
Lumens
max. 19,200 lm
Efficacy
up to 160 lm/W
Colour temperature
3000K / 4000K / 5000K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
> 80
Distribution
Type III
Ingress rating
IP65
Surge protection
6kV
Operating temp
-40°C to +50°C
Construction

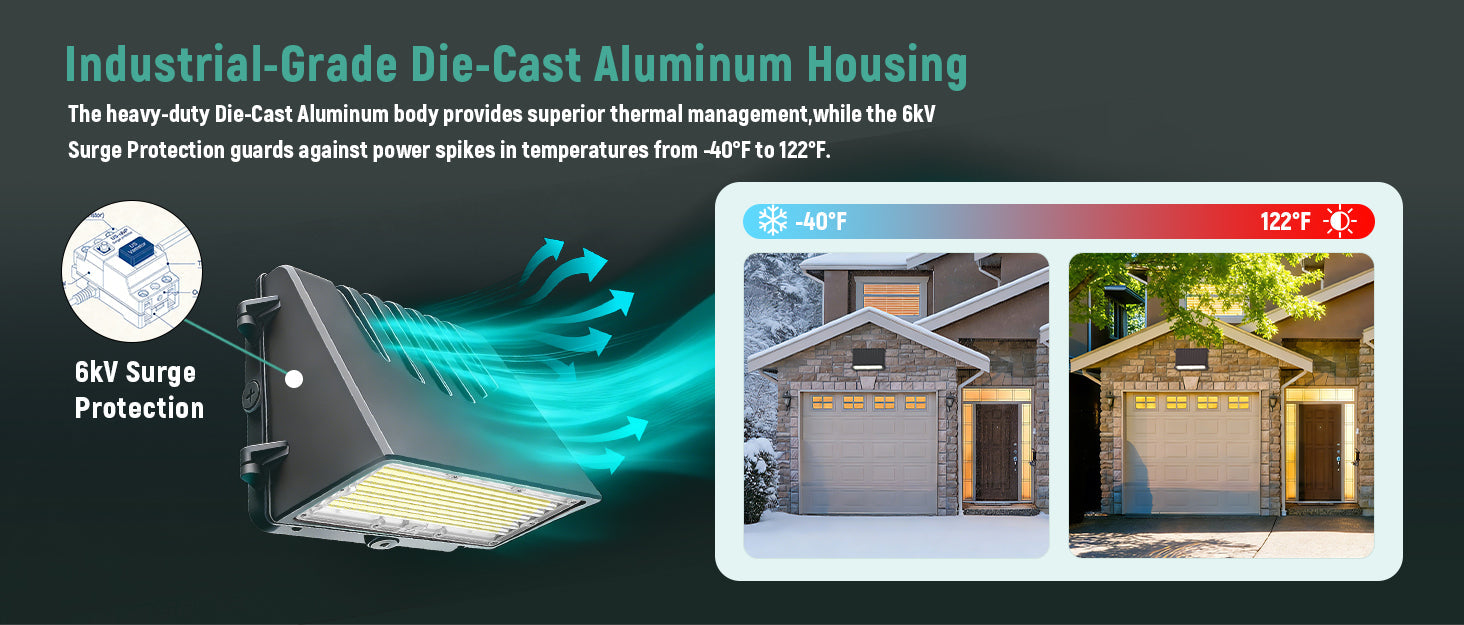

- Die-cast aluminium housing
- Polycarbonate lens
- IP65 rated
Electrical
- AC120-277V, 0-10V dimming
- Surge protection 6kV

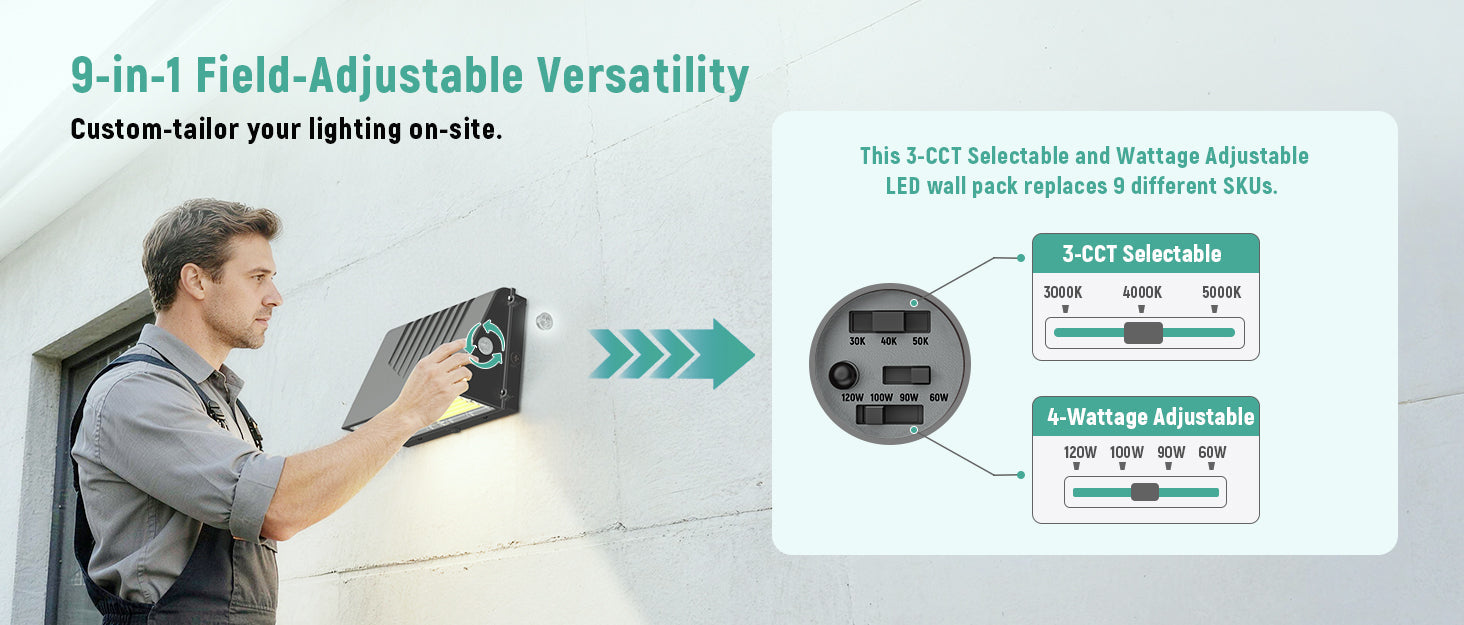

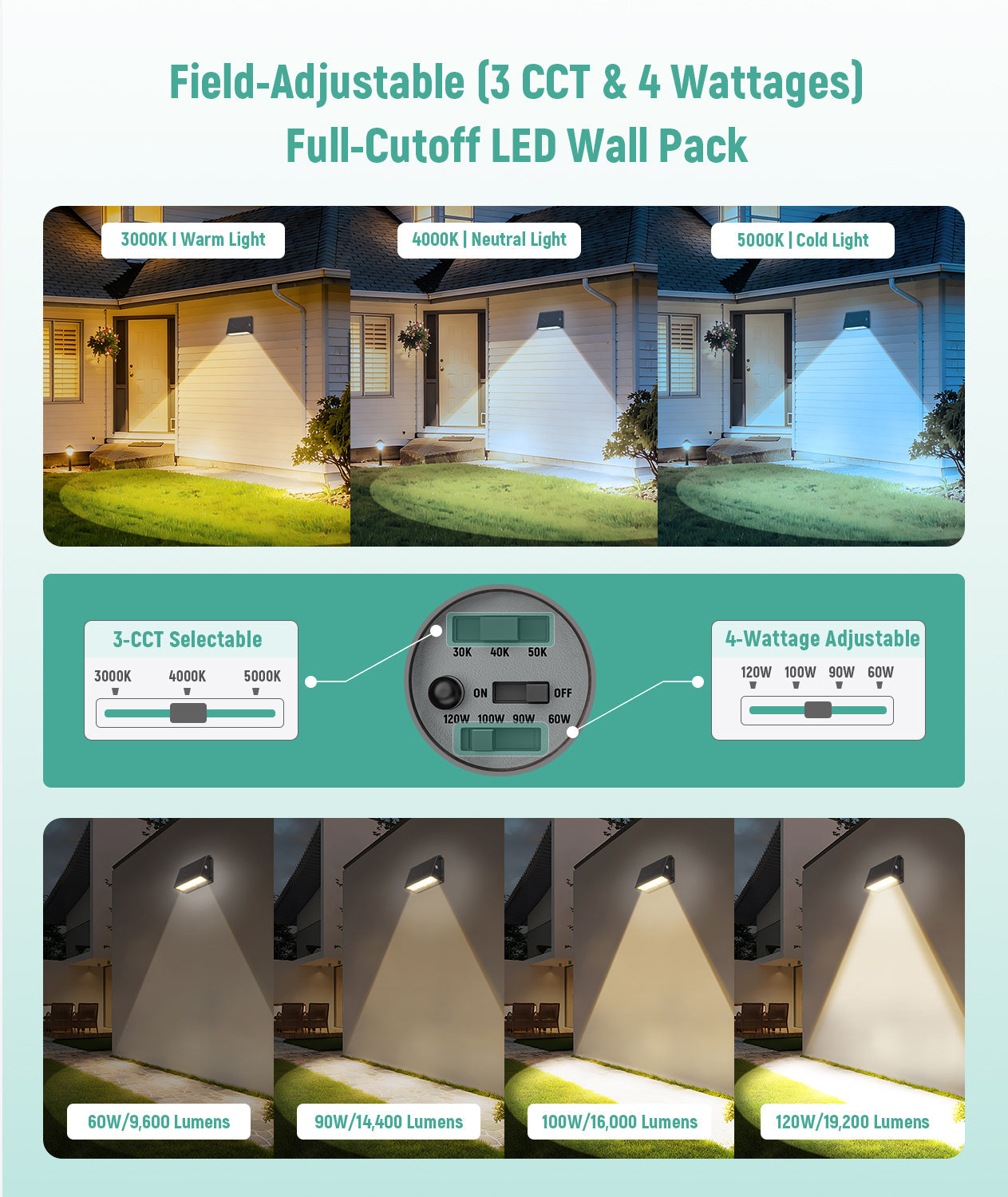

- CCT and wattage selectable
Optics
- Type III light distribution
Installation

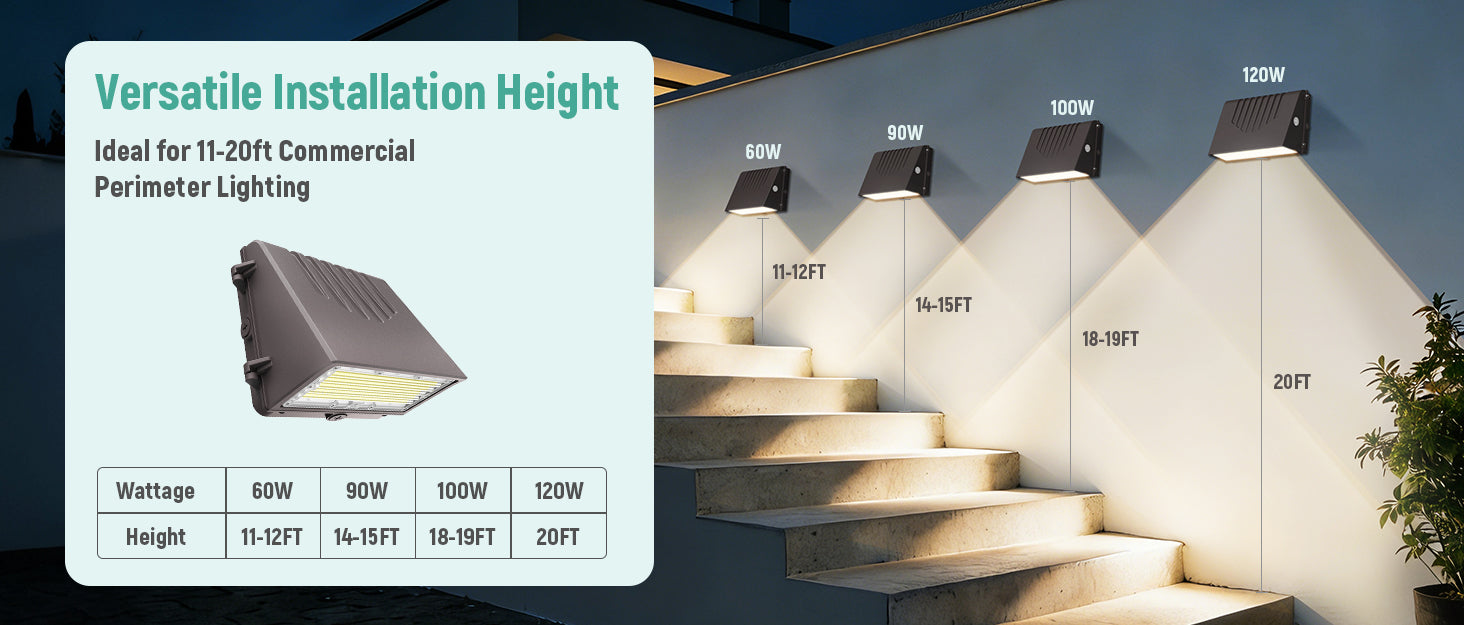

- Wall mount
- Microwave motion sensor and emergency driver available
- Automated dusk-to-dawn photocell
- Five 1/2" knockouts, one on each side

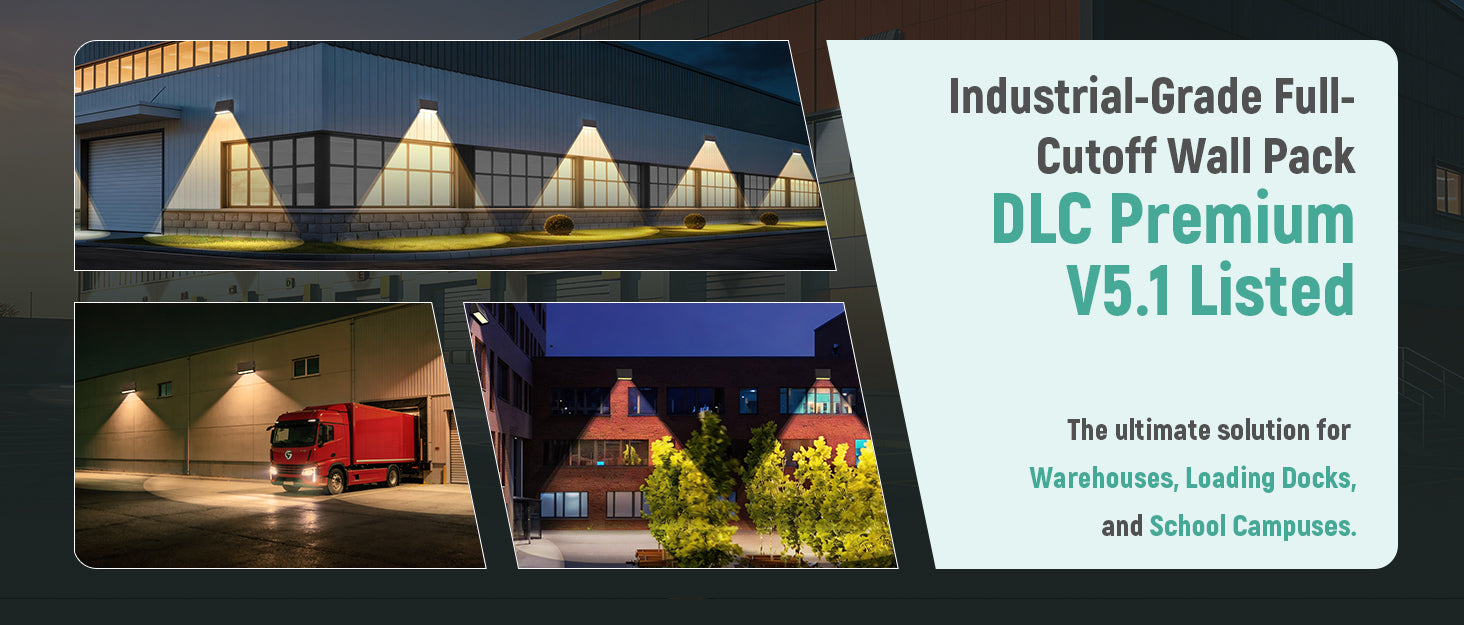

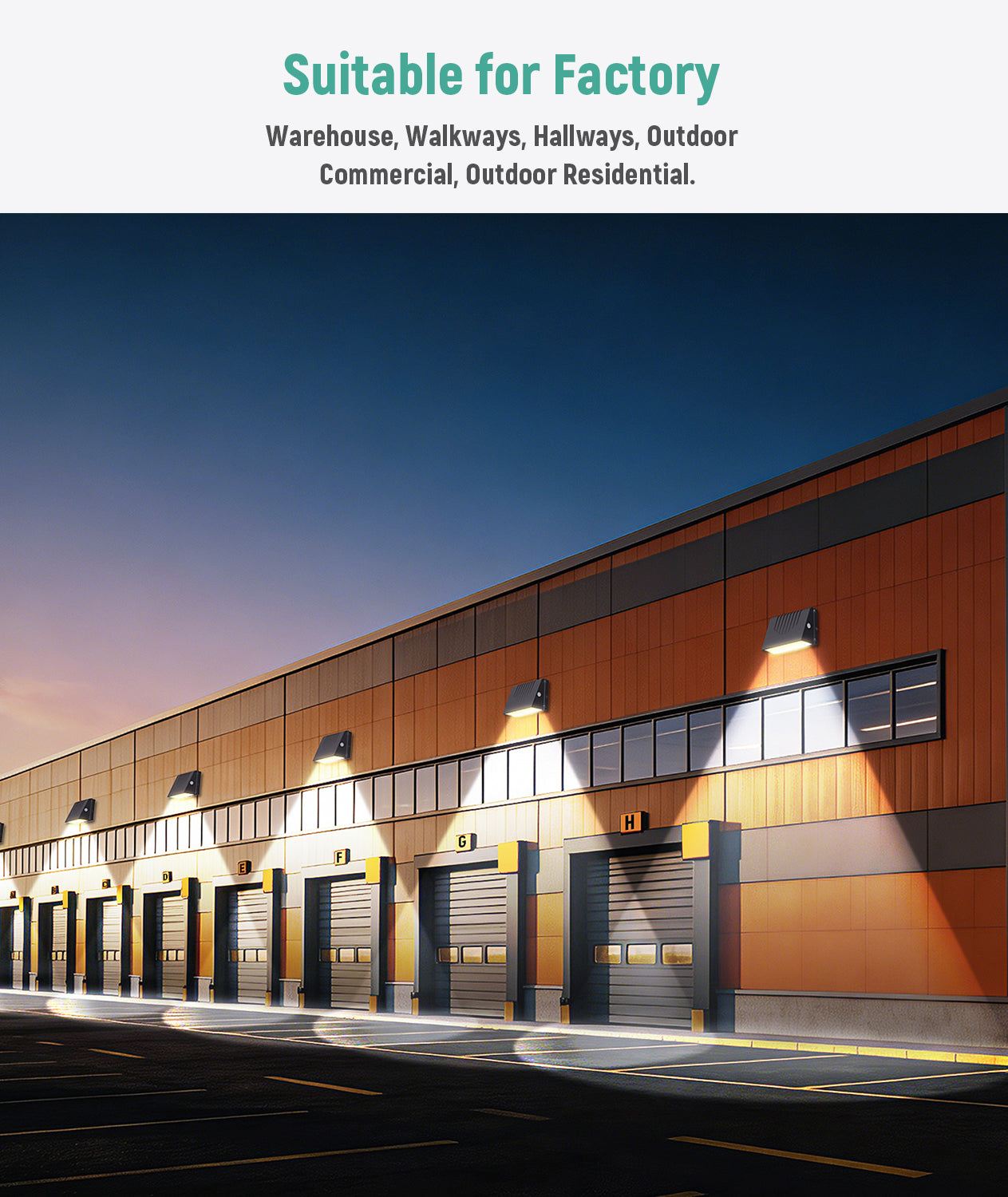

Ideal applications
- Factories
- Warehouses
- Walkways
- Hallways
- Outdoor commercial
- Outdoor residential
