JEE WP10 Mini LED Wall Pack 15-30W
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-WP10-30W-PCP-3CCT |
| Fixture type | Wall Packs |
| Family | Wall Pack – Mini |
| Color temperature (CCT) | 3000K, 4000K, 5000K |
| Input voltage | 120-277V |
| Certifications | ETL, DLC |
| Product dimensions | 5.9 x 9.1 x 2.9 in (W x H x D) |
| Case pack quantity | 12 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 20.08 x 14.18 x 12.21 in |
| Case pack weight | 23.81 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

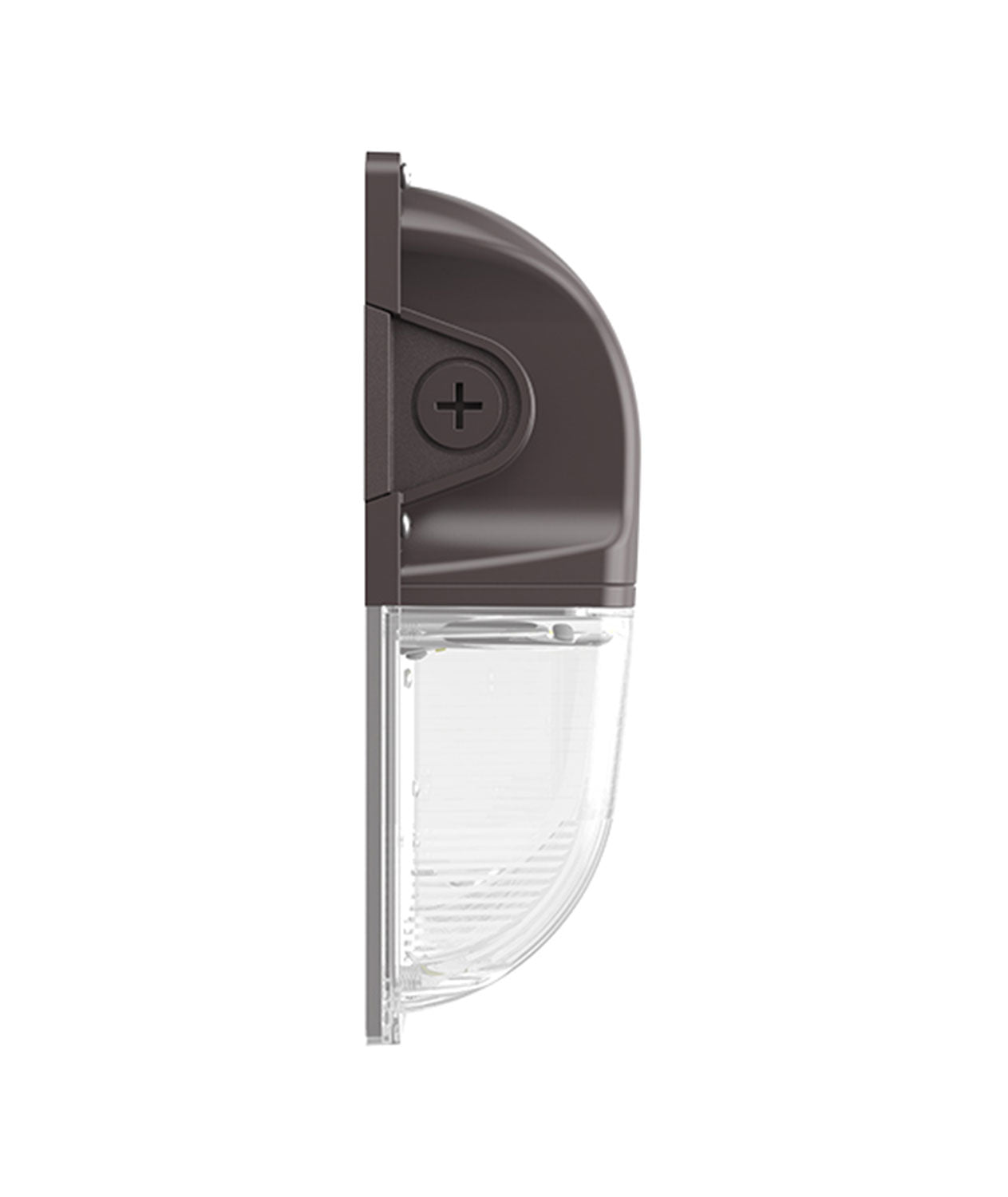

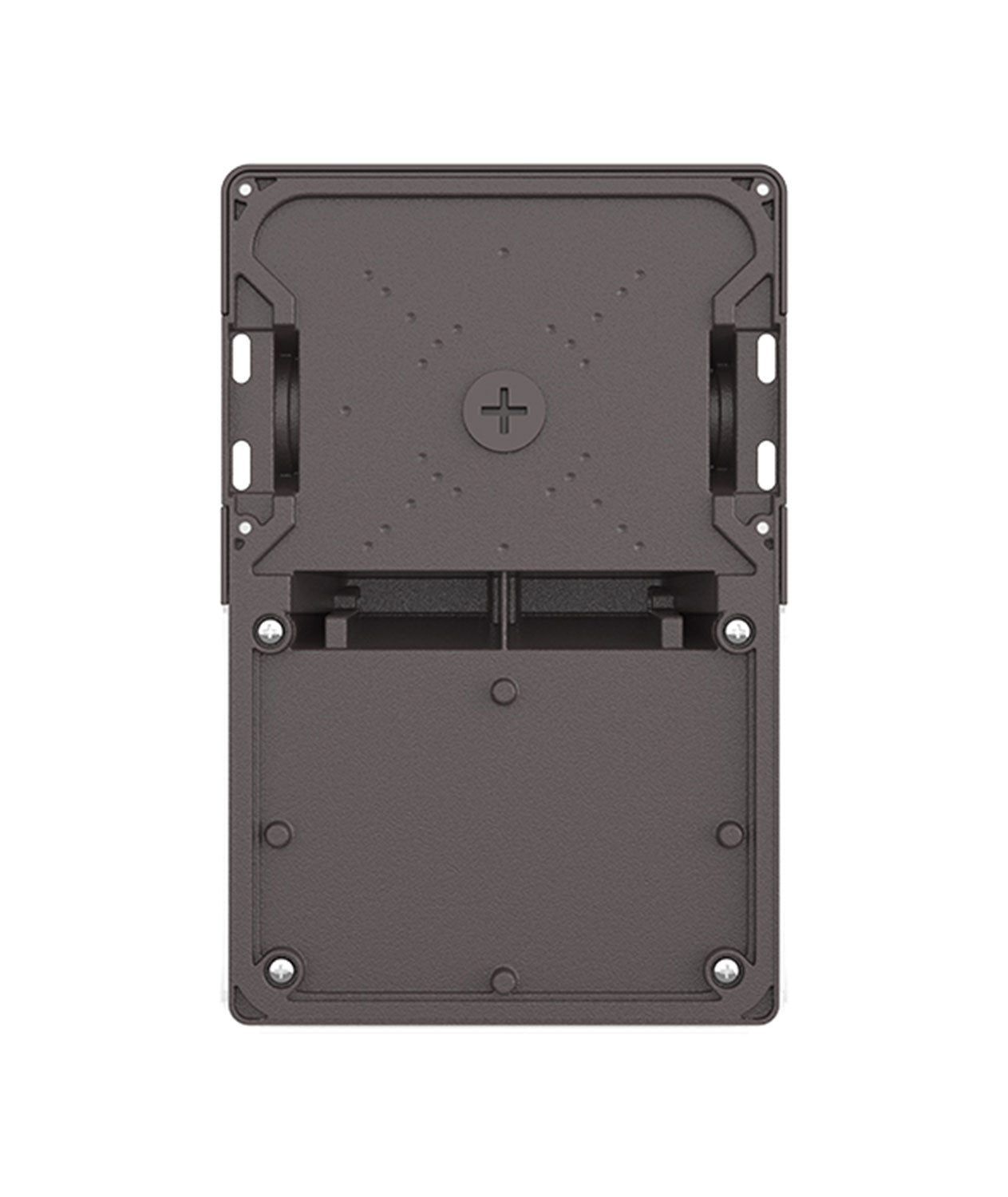

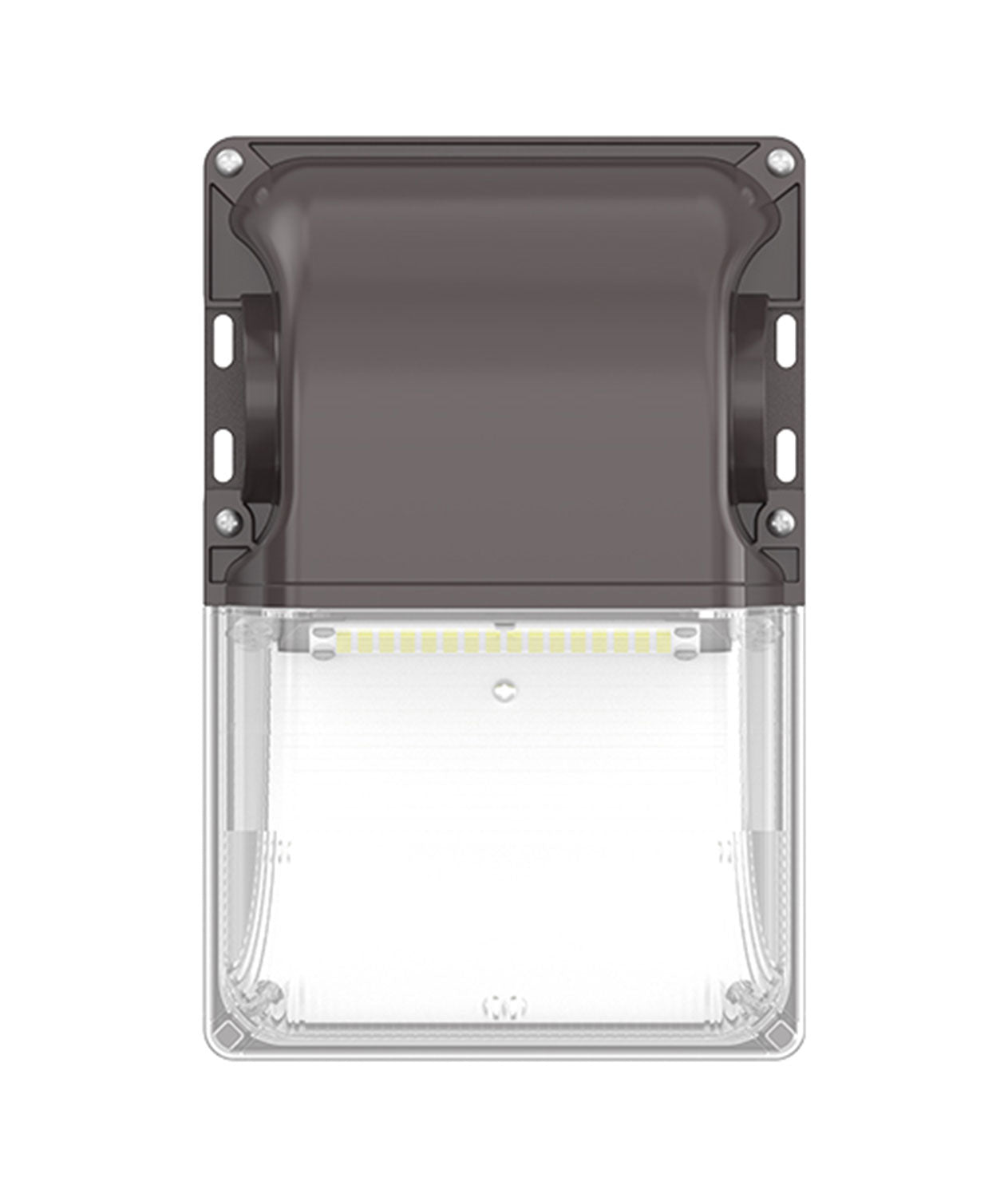

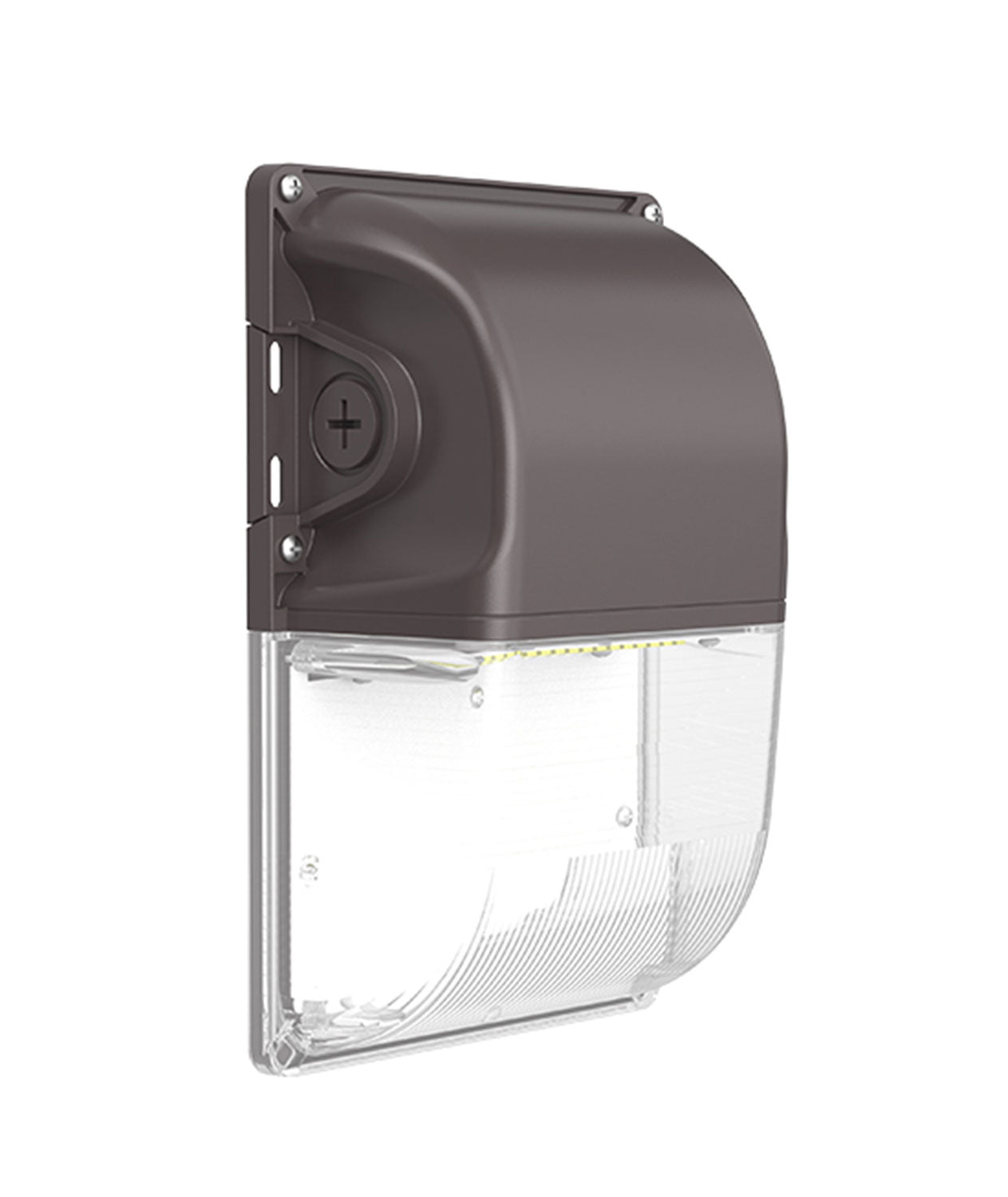

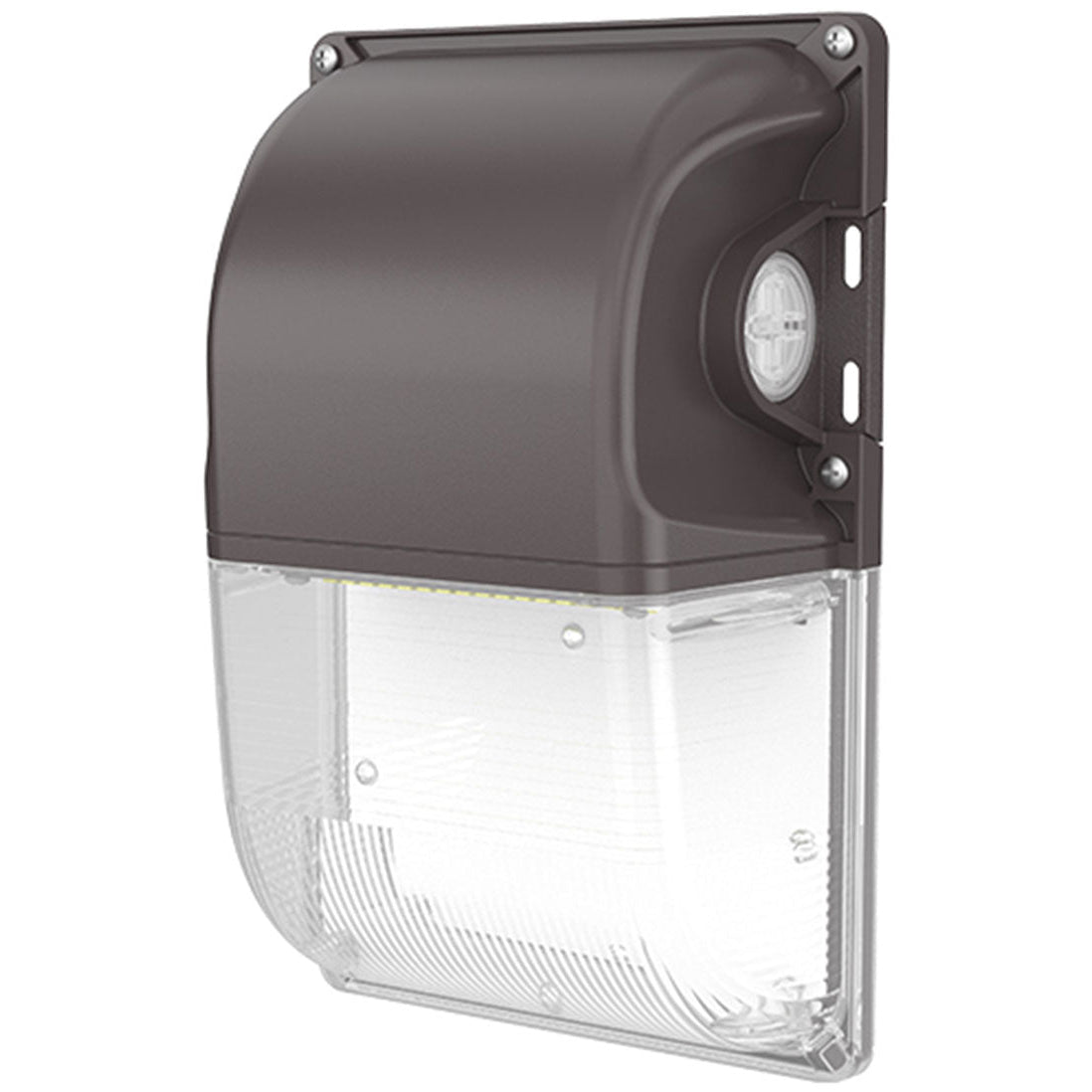

Mini wall pack in ADC12 die-cast aluminium with a polycarbonate lens. Three switchable wattages, three switchable CCTs, dusk-to-dawn photocell.
Specifications
Construction
- ADC12 aluminium die casting
- Polycarbonate lens
- IP65 rated
Electrical
- AC120-277V, 0-10V dimming
- Surge protection L/N 2kV
- CCT and wattage selectable
Installation
- Photocell dusk-to-dawn function available
Ideal applications
- Security lighting
- Entryways
- Stairwells
- Hallways
- Outdoor commercial
- Outdoor residential
Downloads
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 15 / 20 / 30 W. Color temperature: 3000K, 4000K, 5000K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
