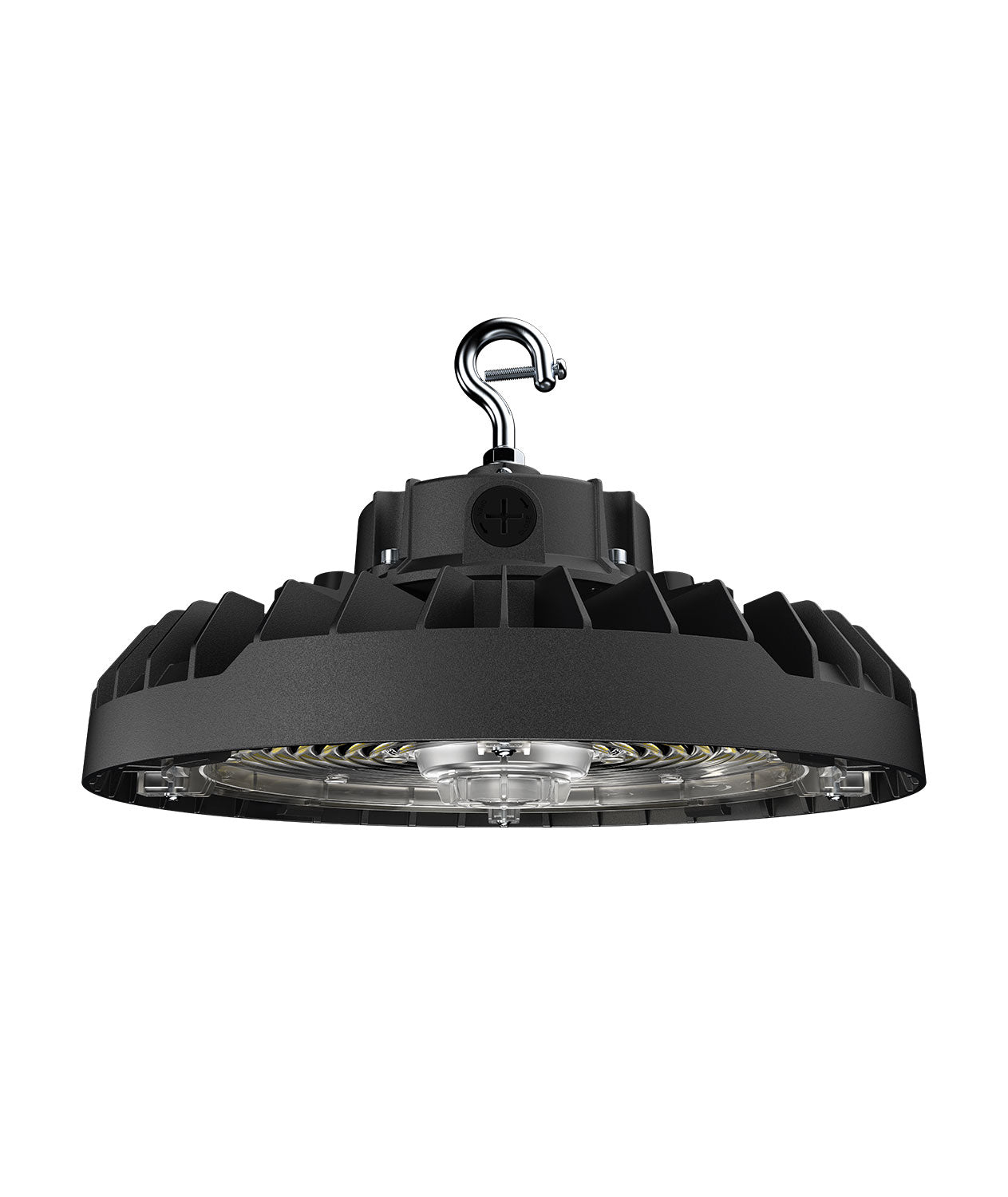

JEE LED UFO High Bay 100-150W 277-480V
- ETL Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-UFO12-150W/120W/100W-H |
| Fixture type | High Bays |
| Family | UFO High Bay |
| Color temperature (CCT) | 3000K, 4000K, 5000K |
| Input voltage | 277-480V |
| Certifications | ETL |
| Product dimensions | 9.45 in dia, 5.08 in tall |
| Case pack quantity | 1 per case |
| Case pack dimensions (L x W x H) | 9.85 x 9.85 x 5.91 in |
| Case pack weight | 5.08 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

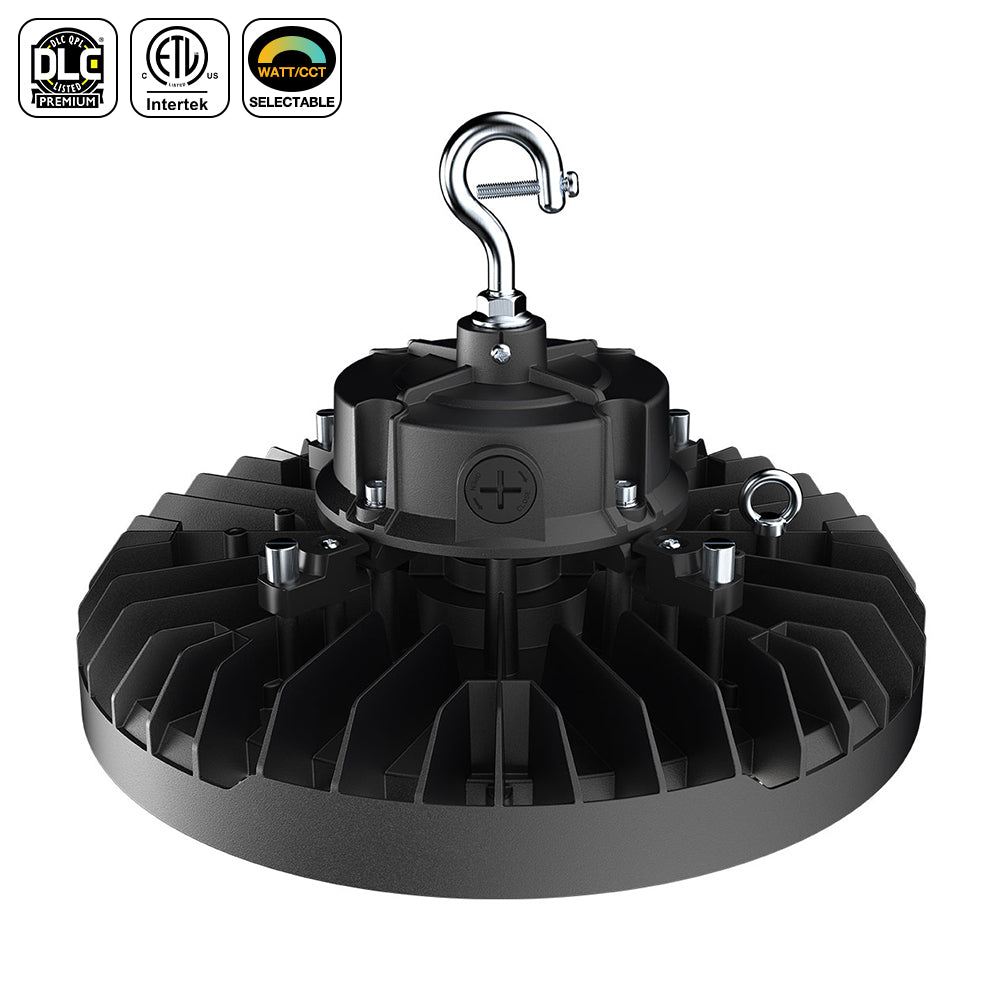

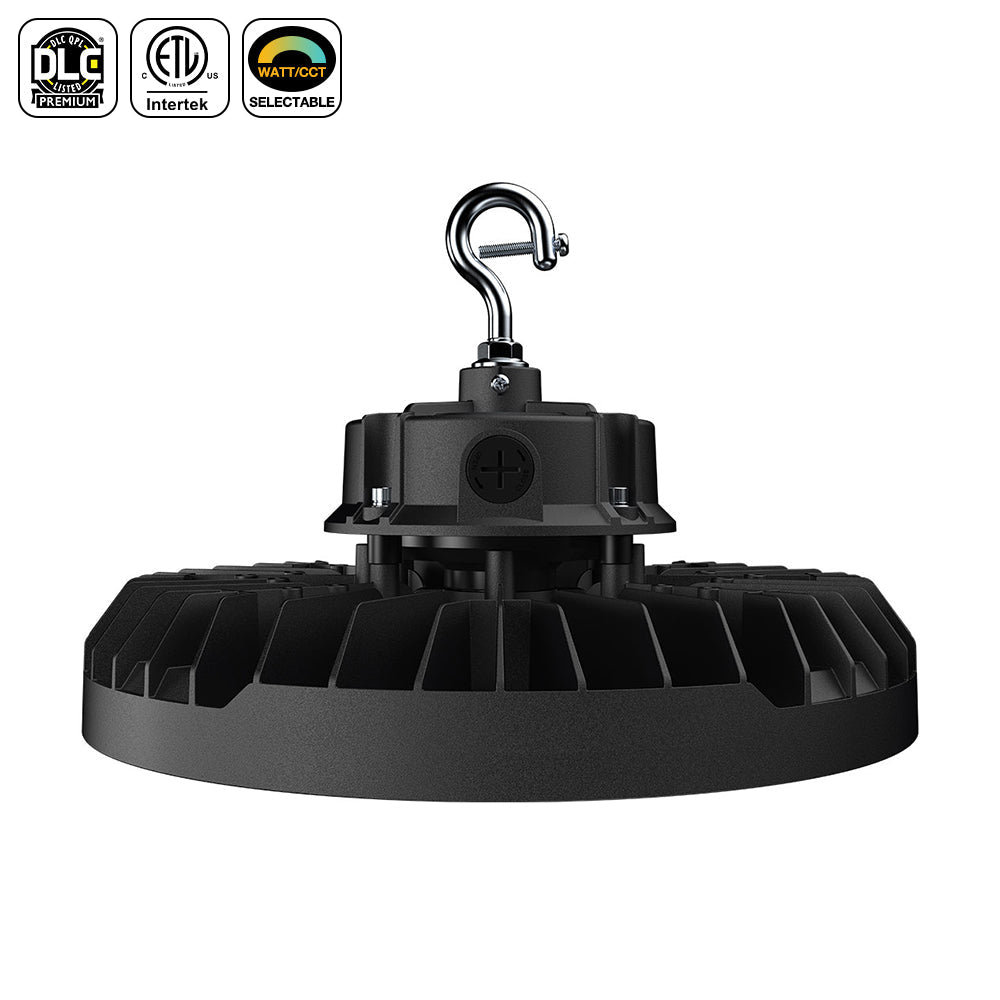

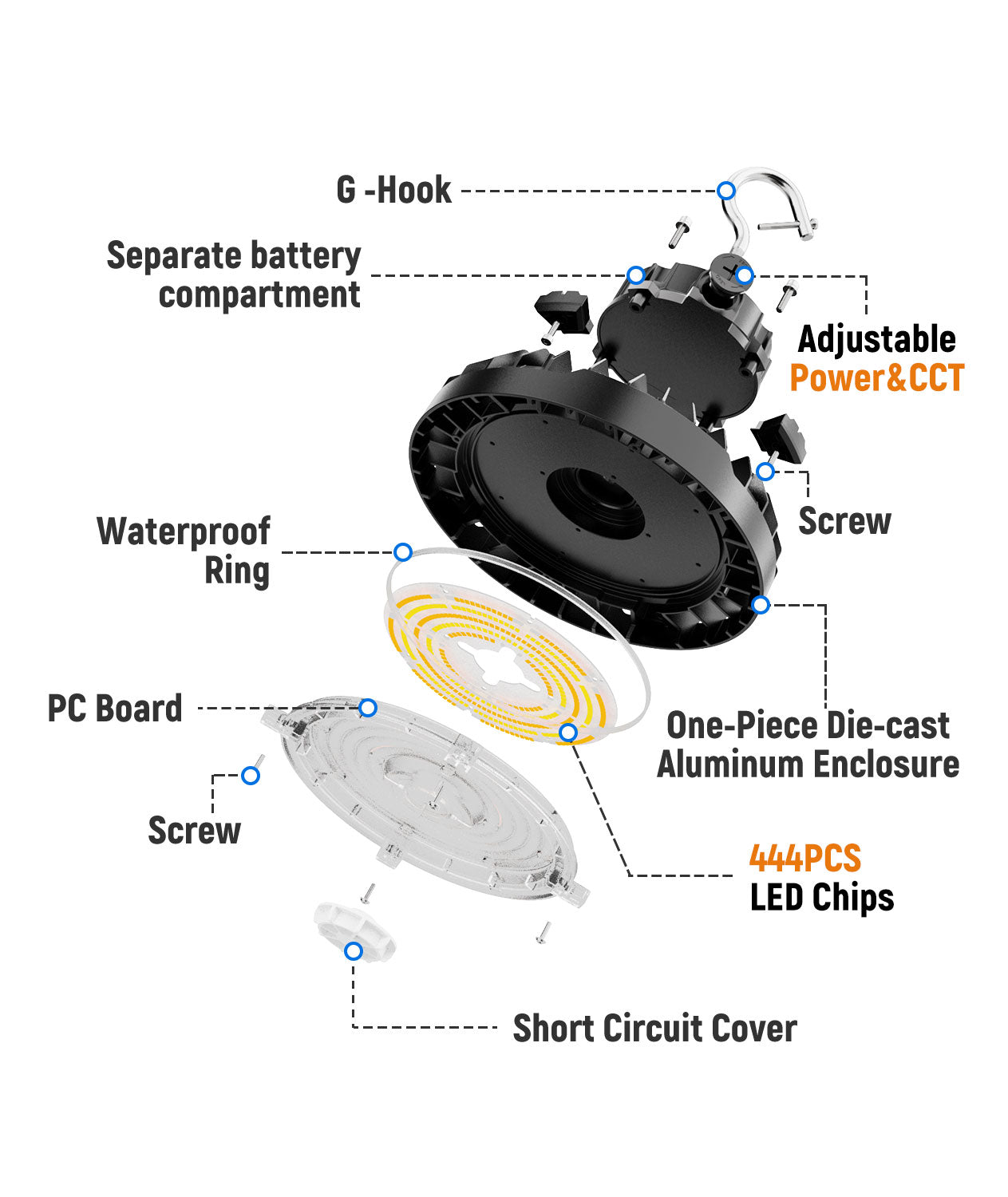

JEE UFO high bay in die-cast aluminium with a UV-stabilised polycarbonate lens, Lumileds LEDs, and switchable wattage and CCT.
- 3 switchable wattages and 3 switchable CCTs on one SKU
- Lumileds LEDs, up to 140 lm/W
- IK08 polycarbonate lens

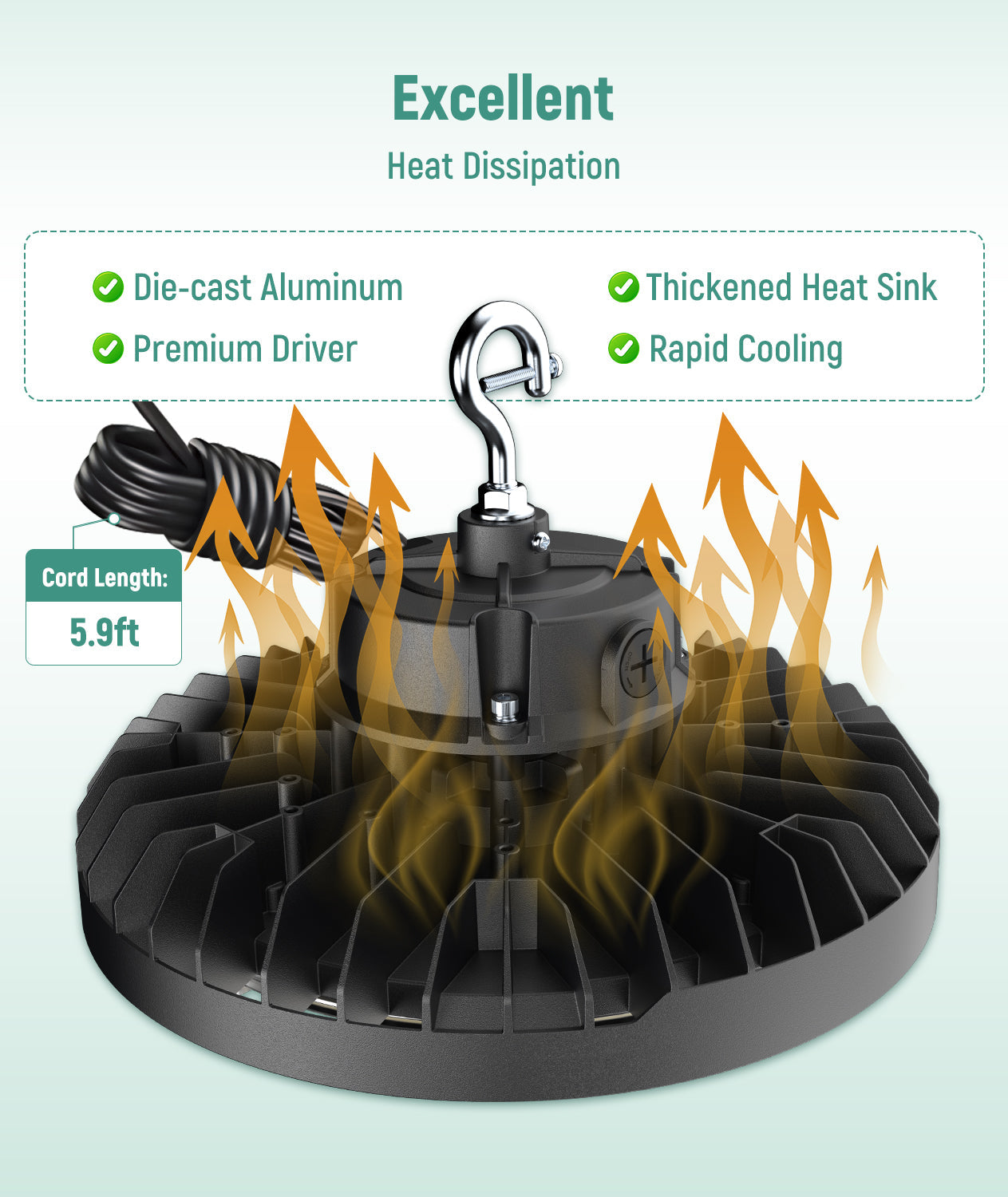

- Die-cast aluminium housing
- Hook or yoke mount
- 5-year warranty
Specifications

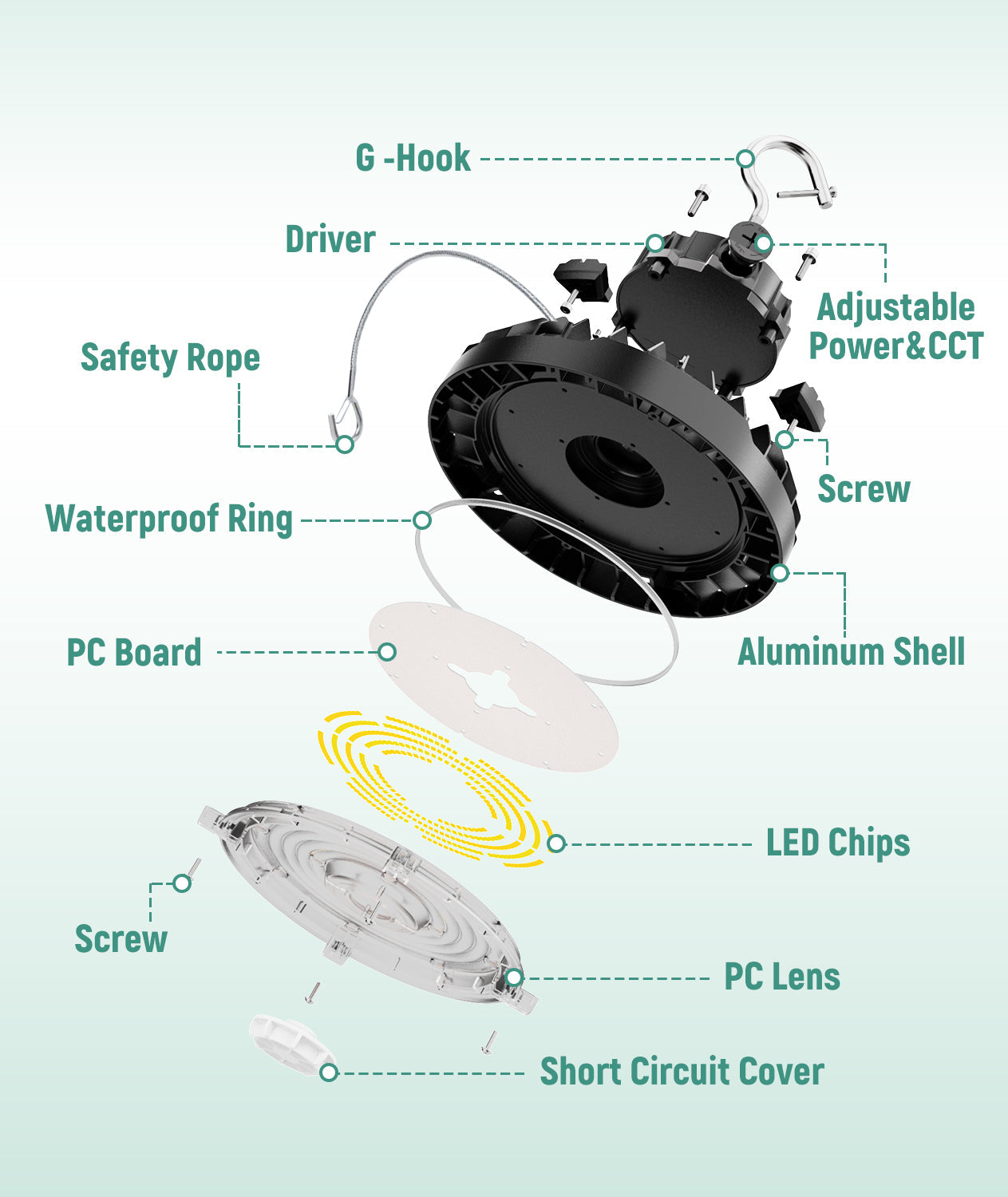

Construction
- Die-cast aluminium housing with powder coat finish
- UV stabilised polycarbonate lens
- Lens IK grade IK08
- Wattage and CCT selectable
Electrical
- 120-277V or 277-480V
- Lumileds LED source
Optics
- 90° lens cover
- 90° distribution
Installation
- Hook or yoke mount

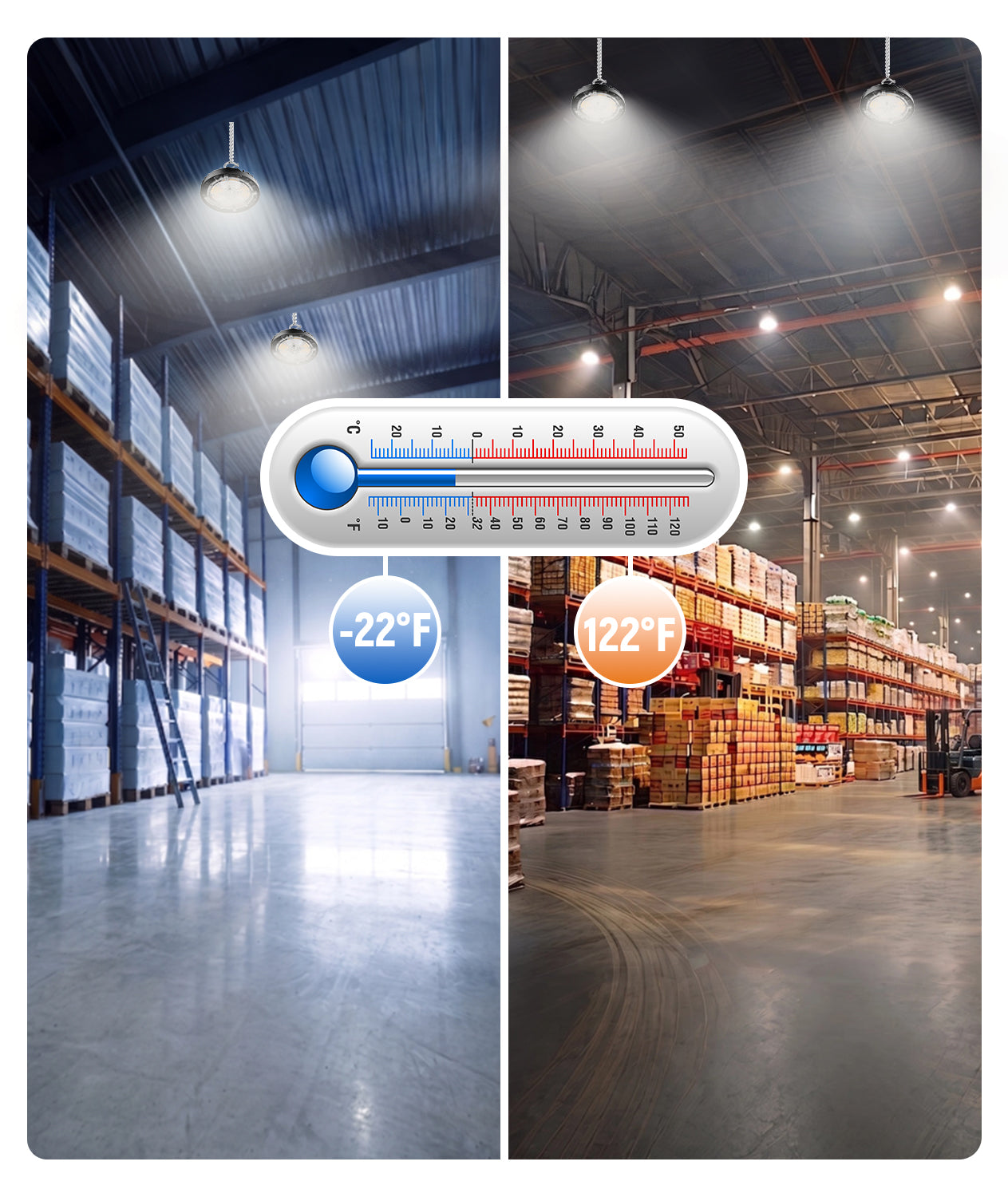

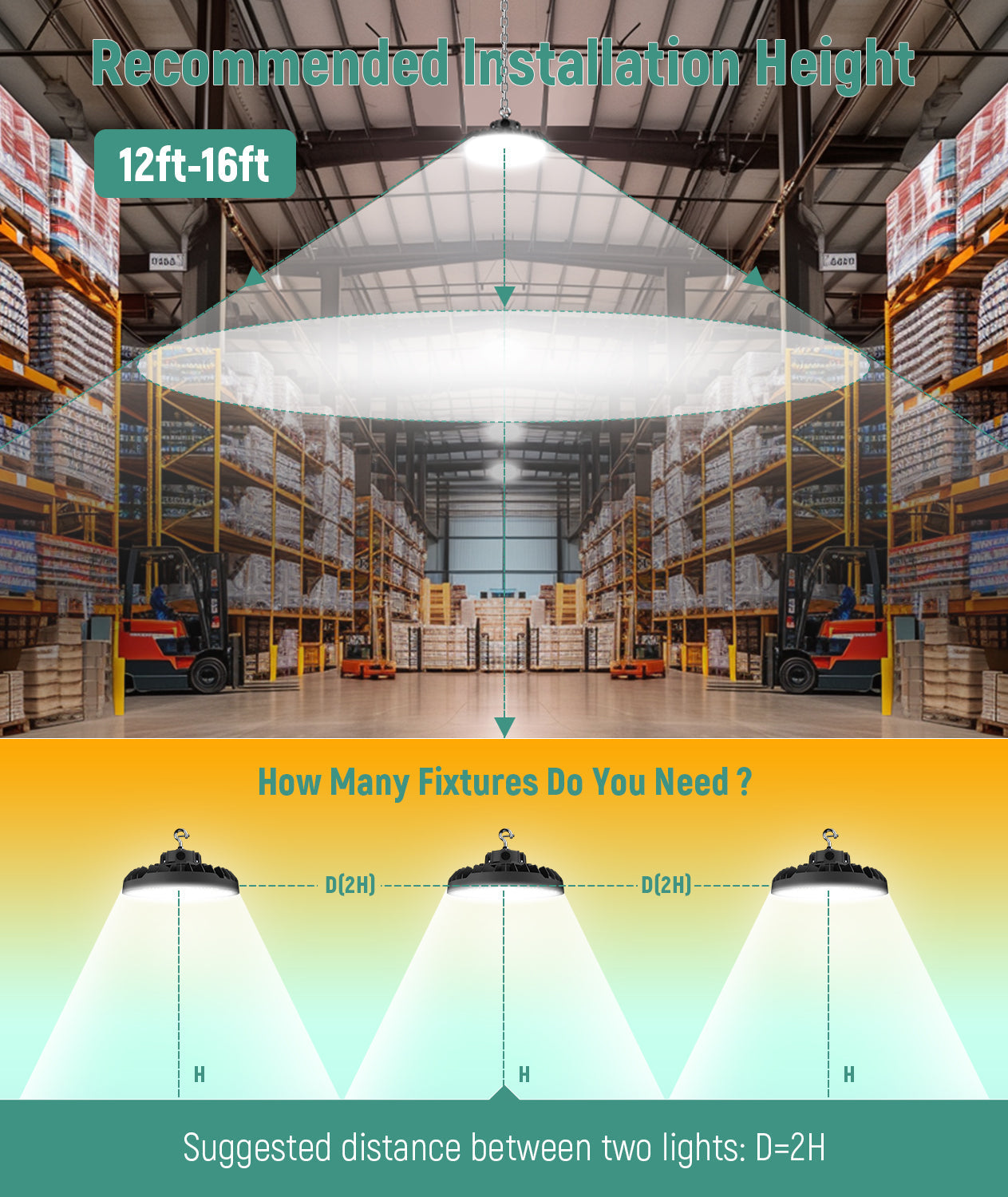

Ideal applications
- Warehouses
- Factories
- Airports
- High bay applications
Downloads
Spec sheet (PDF): JEE-Spec-LED-UFO12-Highbay.pdf
Best uses
- Warehouses, factories, airports and other high bay spaces
- Sites with a 277-480V supply
What's in the box
- One UFO high bay with tin-plated bare-wire AC and control leads (0.3m exposed length)
Accessories you may need
- 150W PC reflector
- Safety rope
- U bracket for yoke mounting
- Plug and play sensor or emergency backup, both listed as accessories on the spec sheet
- A ceiling hook or chain for suspended installs
Product FAQs
Can I change the wattage and colour on site?

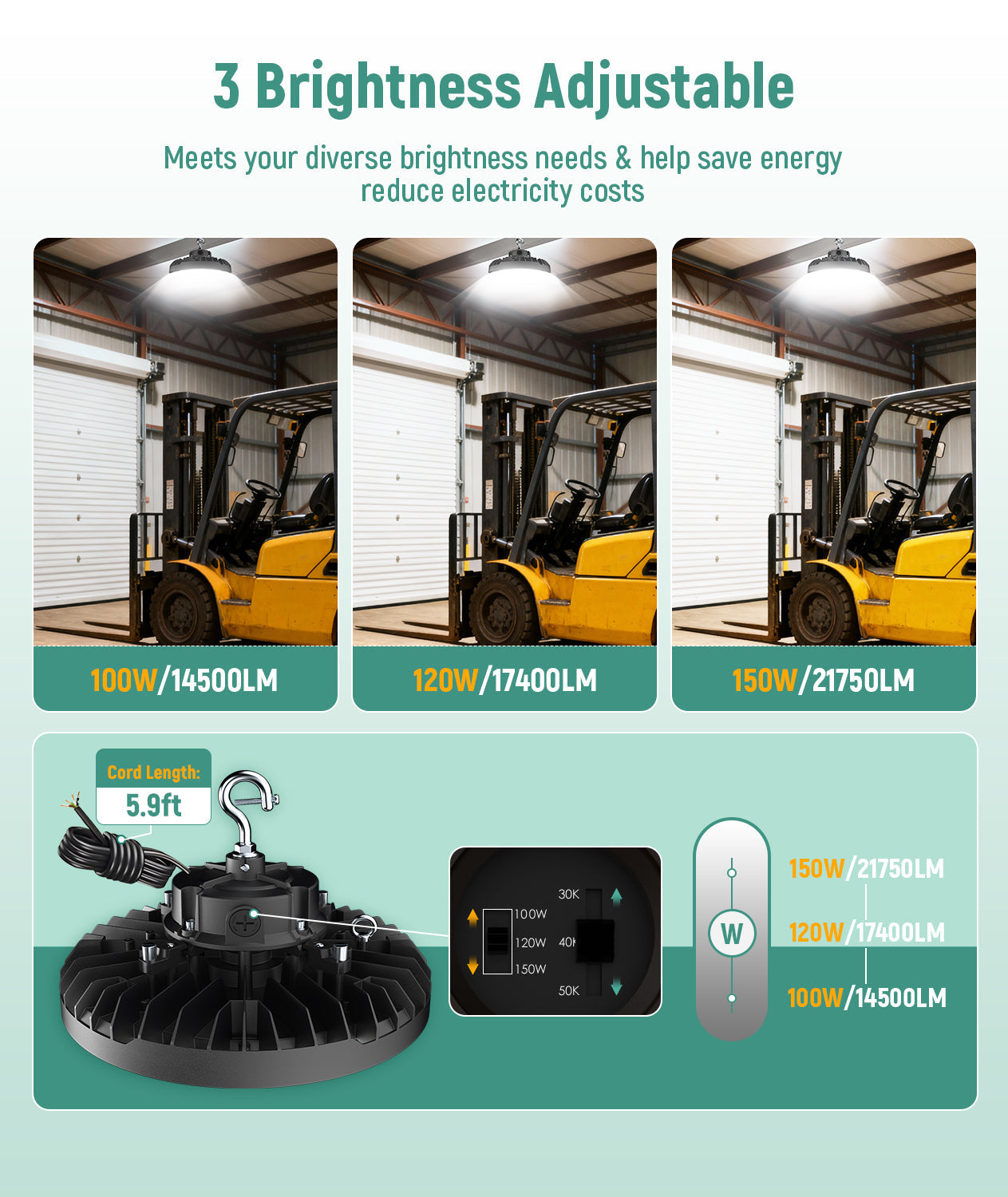

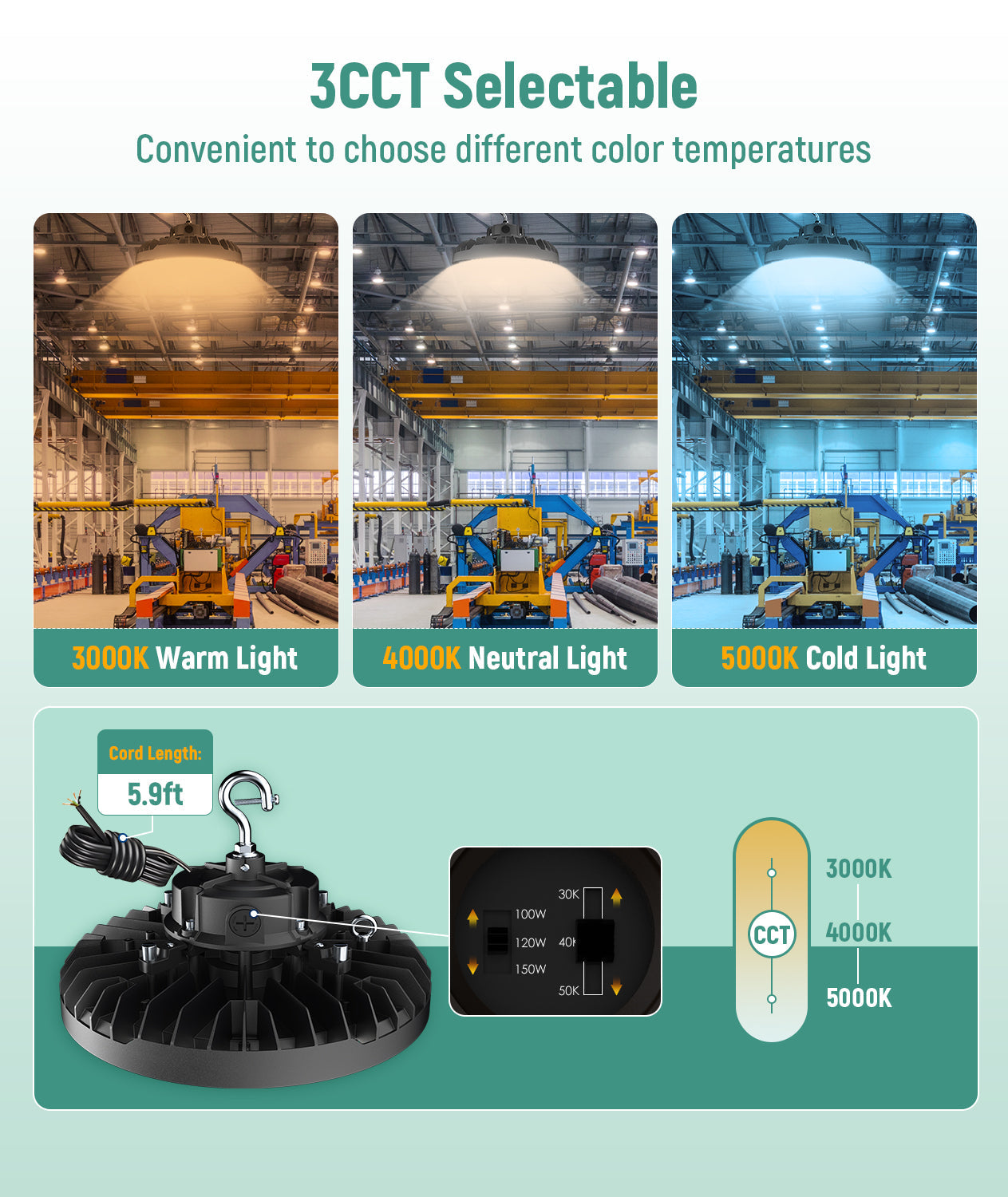

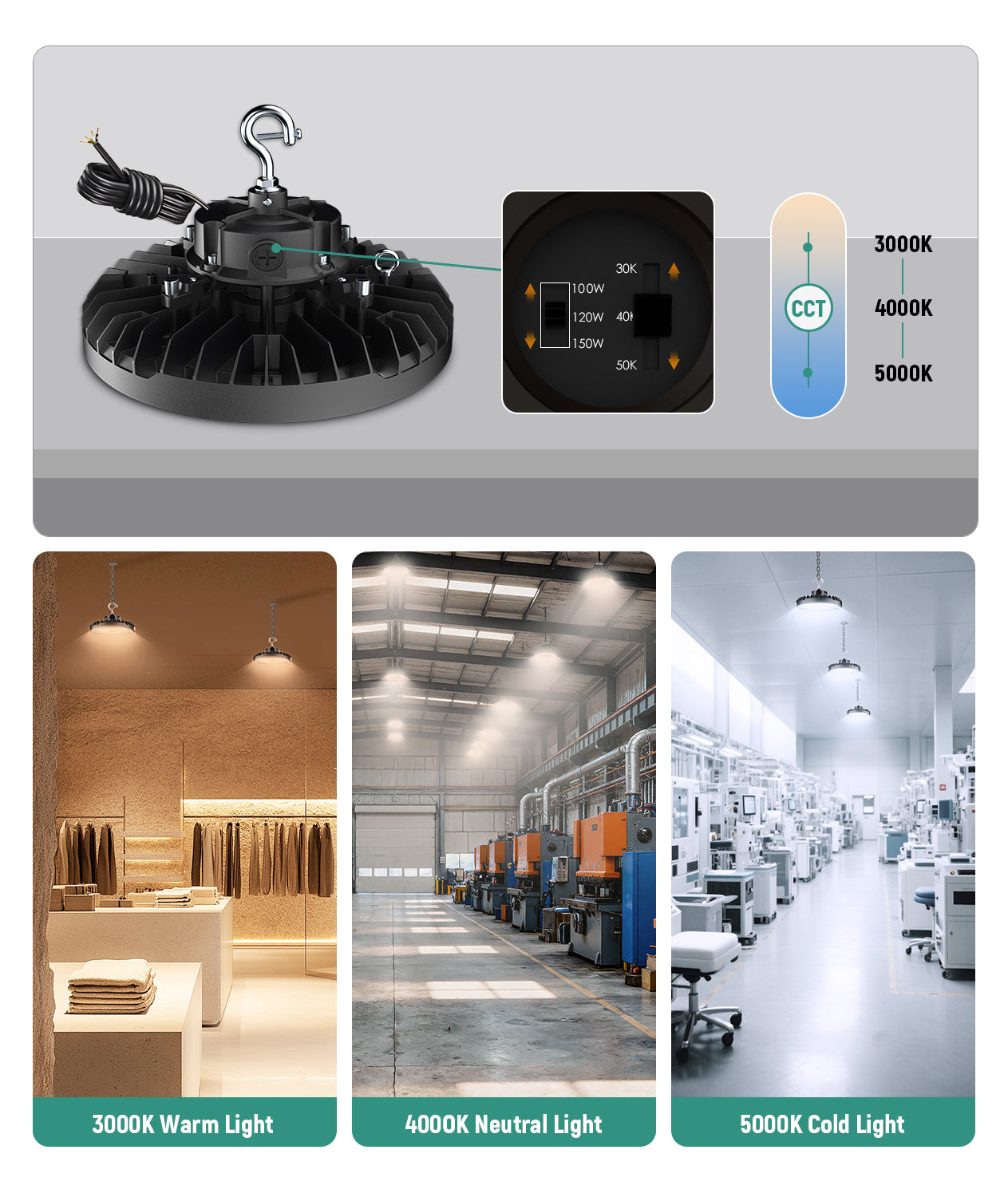

Yes. A double switch selects 100, 120 or 150W (14,000, 16,800 or 21,000 lm) and 3000K, 4000K or 5000K.
How does it mount?
Hook (suspended) or yoke with the U bracket.
Which voltage is this one?
277-480V.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 100 / 120 / 150 W. Color temperature: 3000K, 4000K, 5000K. Voltage: 277-480V.
Does it come with a sensor or controls?
It ships without built in controls. Compatible sensors and accessories are listed under Complete your setup on this page.
What certifications does it have?
Listed by the manufacturer as: ETL.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
