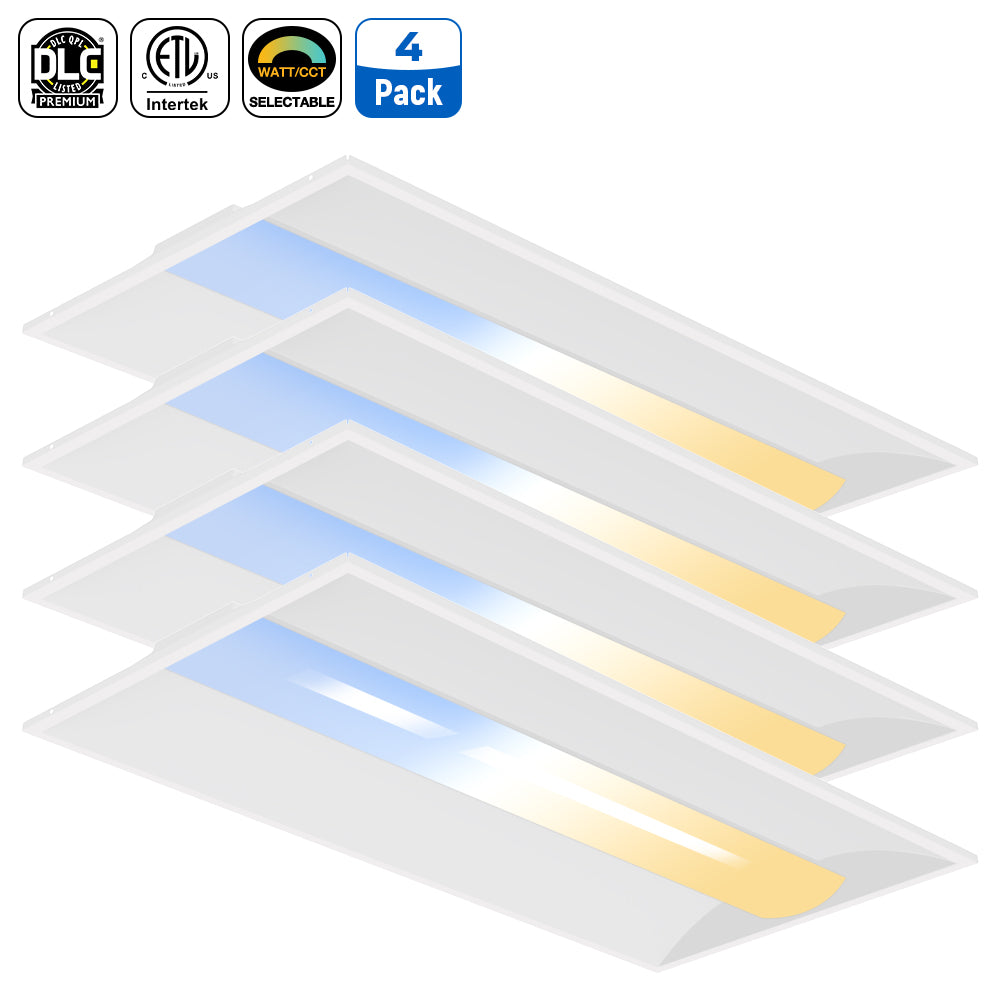

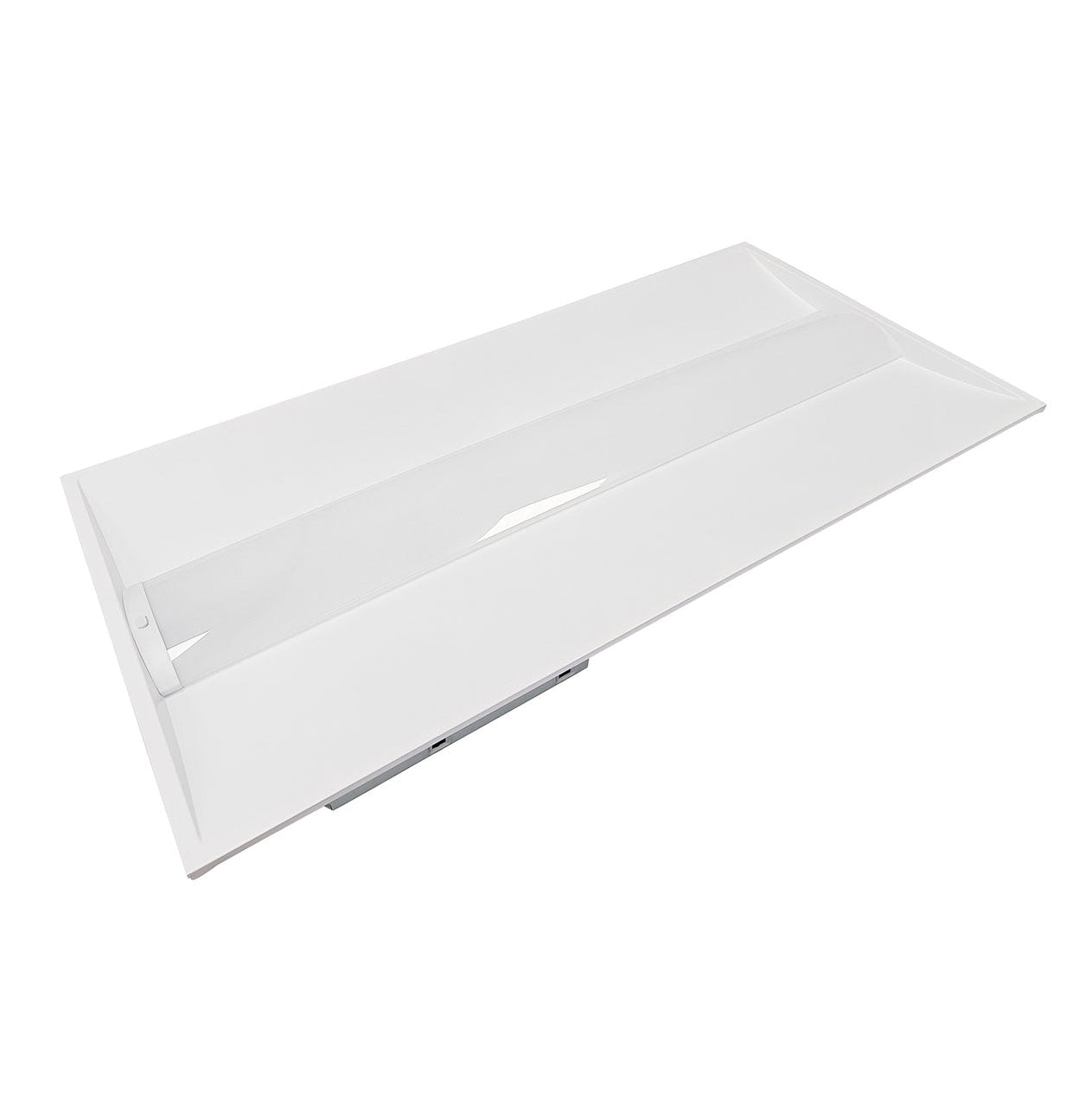

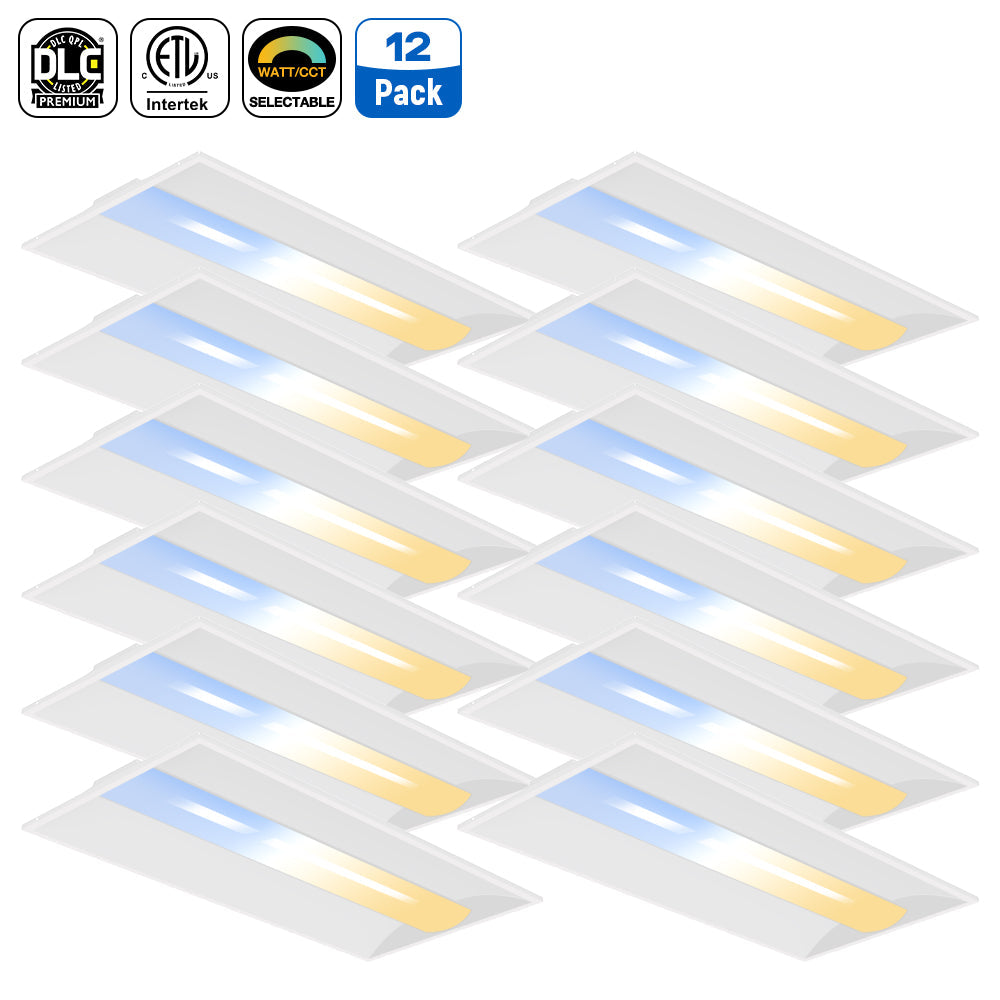

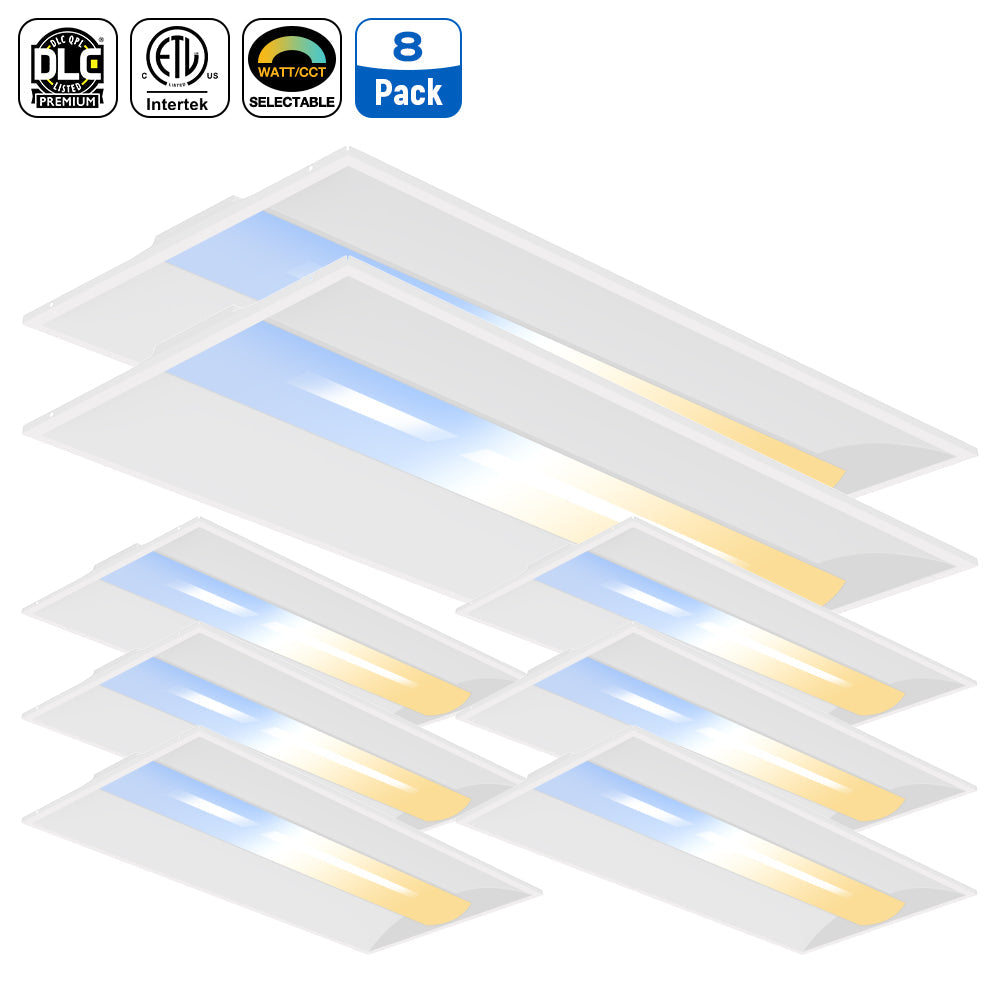

JEE 2x4 LED Center Basket 30-72W with Sensor Base
Product Number:J-T4-S72-3565-S
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
JEE 2x4 recessed LED centre basket troffer, five selectable wattages and five selectable CCTs set from switches on the driver box. Fitted with a sensor base.
- 5 selectable wattages and 5 selectable CCTs on one SKU
- Over 50% energy saving against fluorescent
- 0-10V dimming standard
- 130 lm/W
- Rated for 50,000 hours
- ETL, DLC 5.1 Premium, FCC, RoHS
- 5-year limited warranty
Specifications
Wattage
30 / 40 / 50 / 60 / 72 W
Lumens
3,900 – 9,000 lm
Efficacy
up to 130 lm/W
Colour temperature

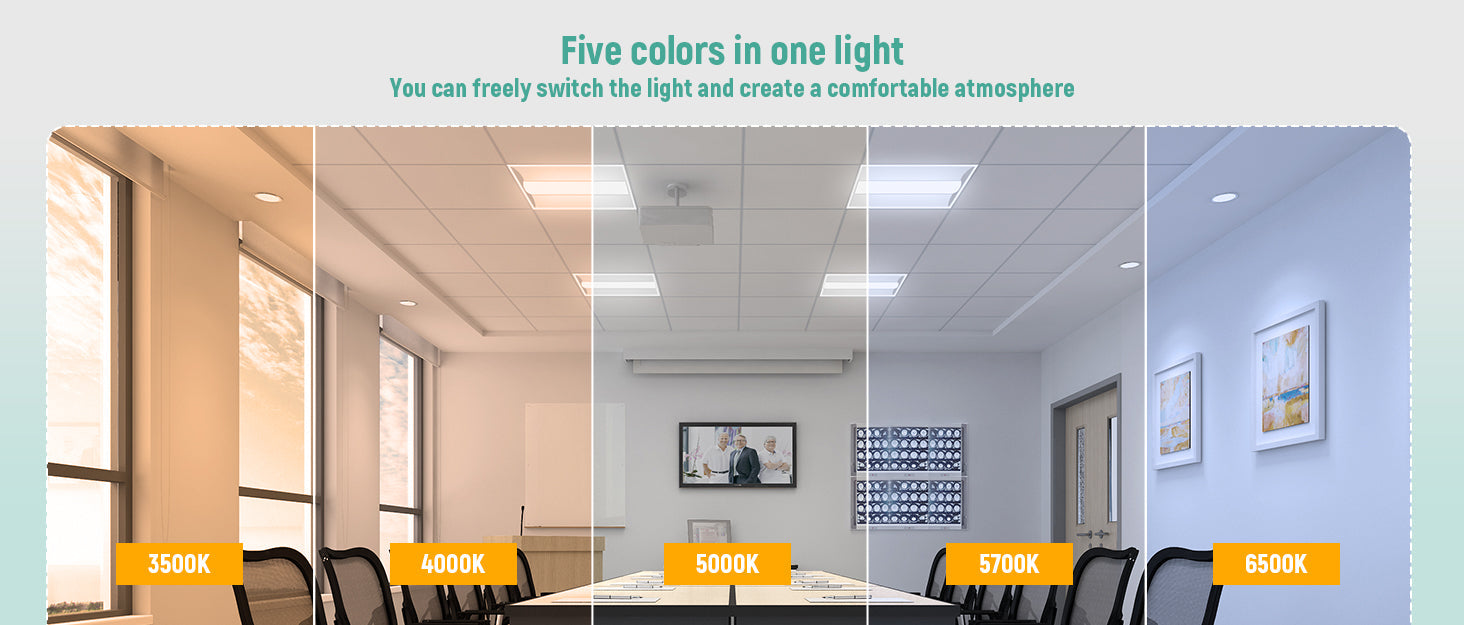

3500K / 4000K / 5000K / 5700K / 6500K
Voltage
120–277V
Dimming
47.72" L x 23.74" W x 2.12" H
Warranty
5-year limited warranty
CRI
≥ 80
Rated life
50,000 hours
THD / PF
≤ 20%
Operating temp
-20°C to 45°C
Dimensions
47.72" L x 23.74" W x 2.12" H

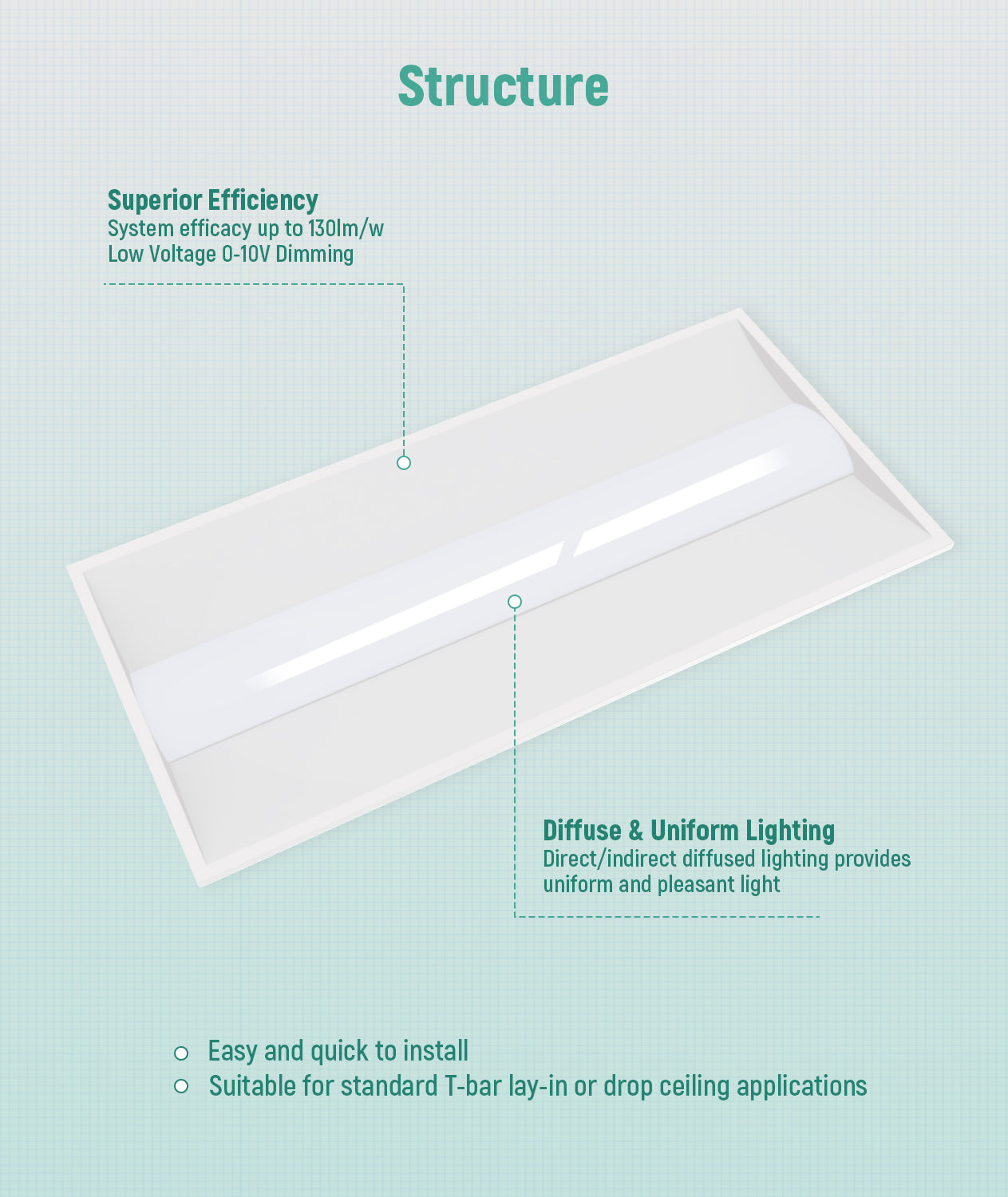

Construction
- One-piece ribbed unitized housing with interlocking corners
- All sides and corners turned in and hemmed — no sharp edges
- Driver fixed to the back of the panel to survive shipping
Electrical
- Universal voltage driver, 120-277V
- 0-10V continuous dimming standard
- THD ≤ 20%
Optics
- Precision-formed optical system designed to reduce glare and improve distribution
Installation

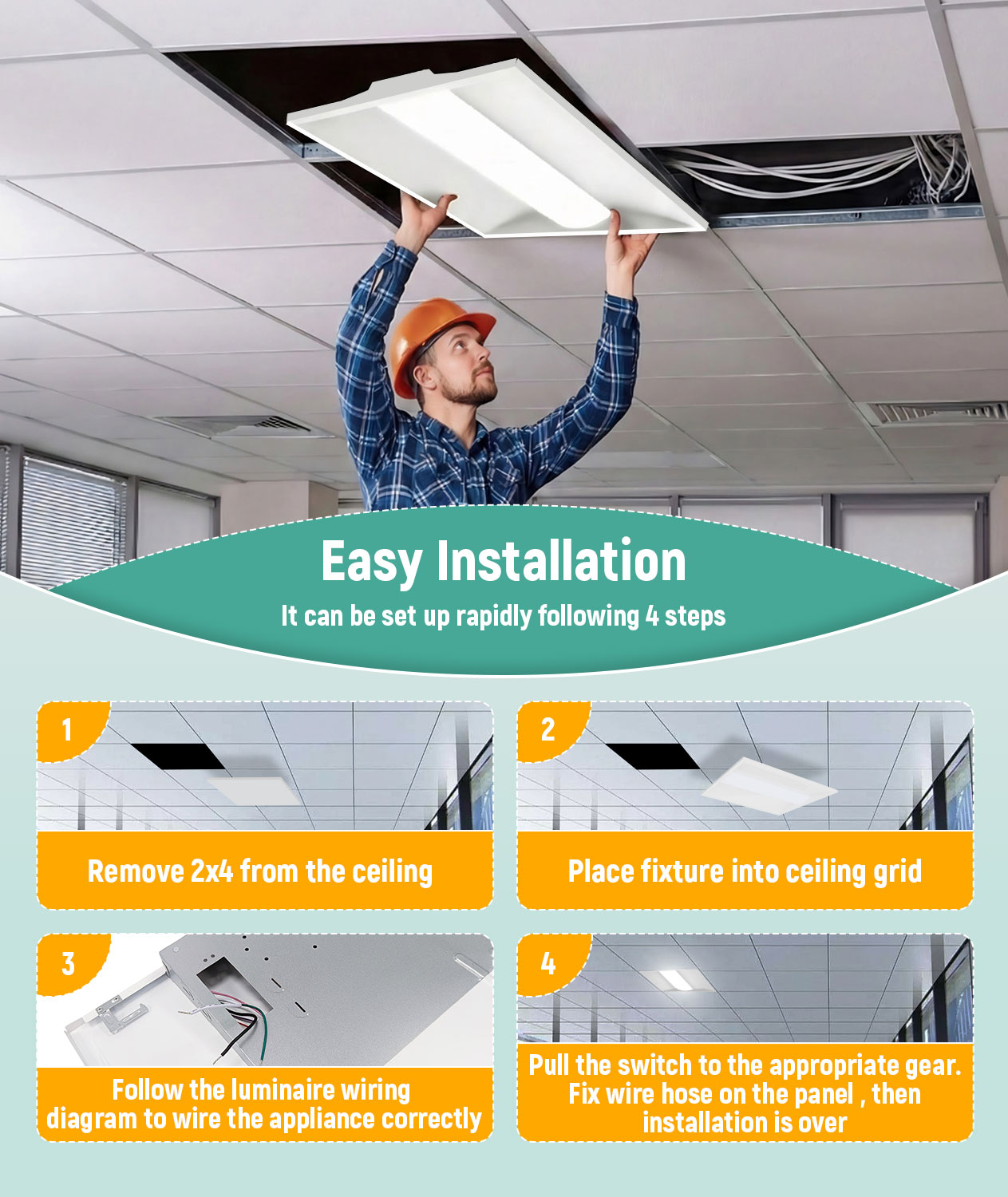

- Recessed into standard T-bar grid ceilings

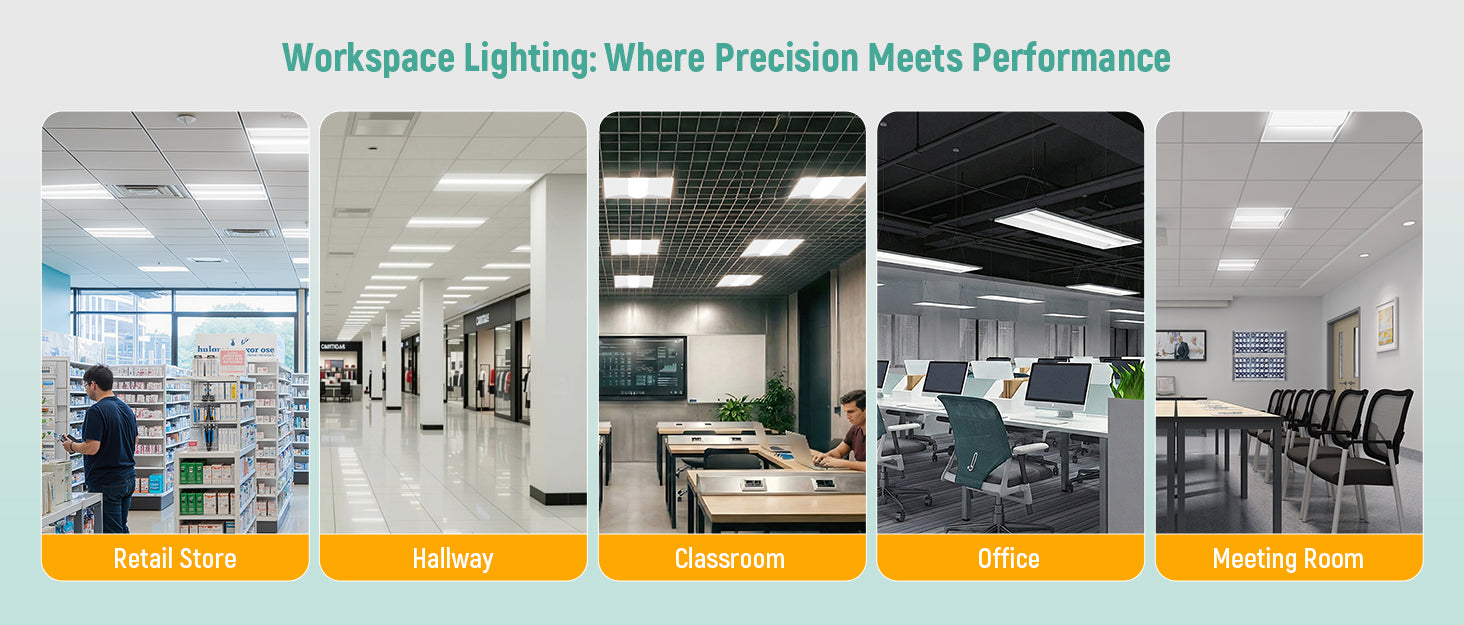

Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Residential
Downloads
Spec sheet (PDF) — JEE-Spec-LED-Troffer-with-sensor-base.pdf
