JEE 2x2 LED Center Basket 15-40W with Sensor Base
Product Number:J-T2-S40-3565-S
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.

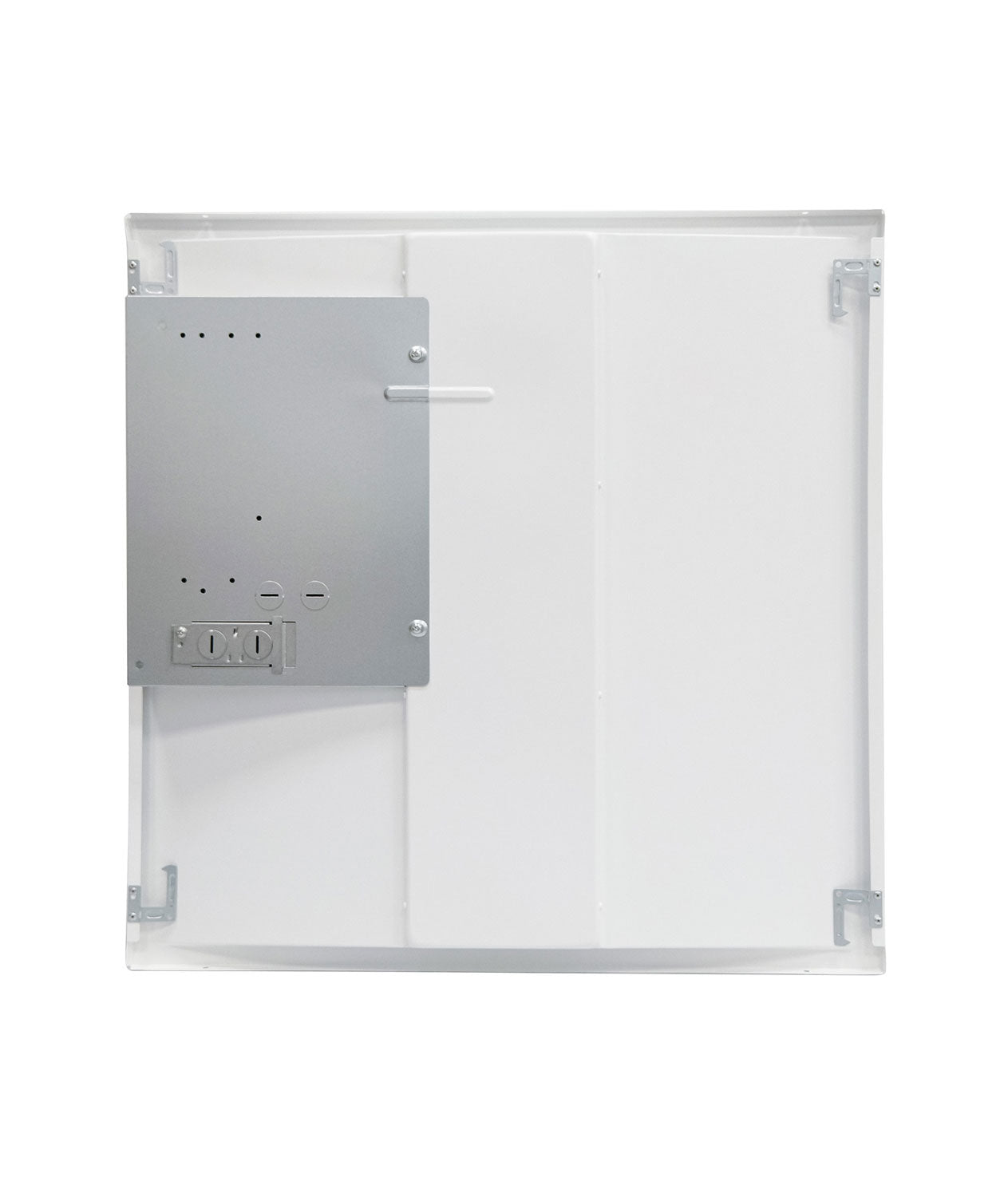

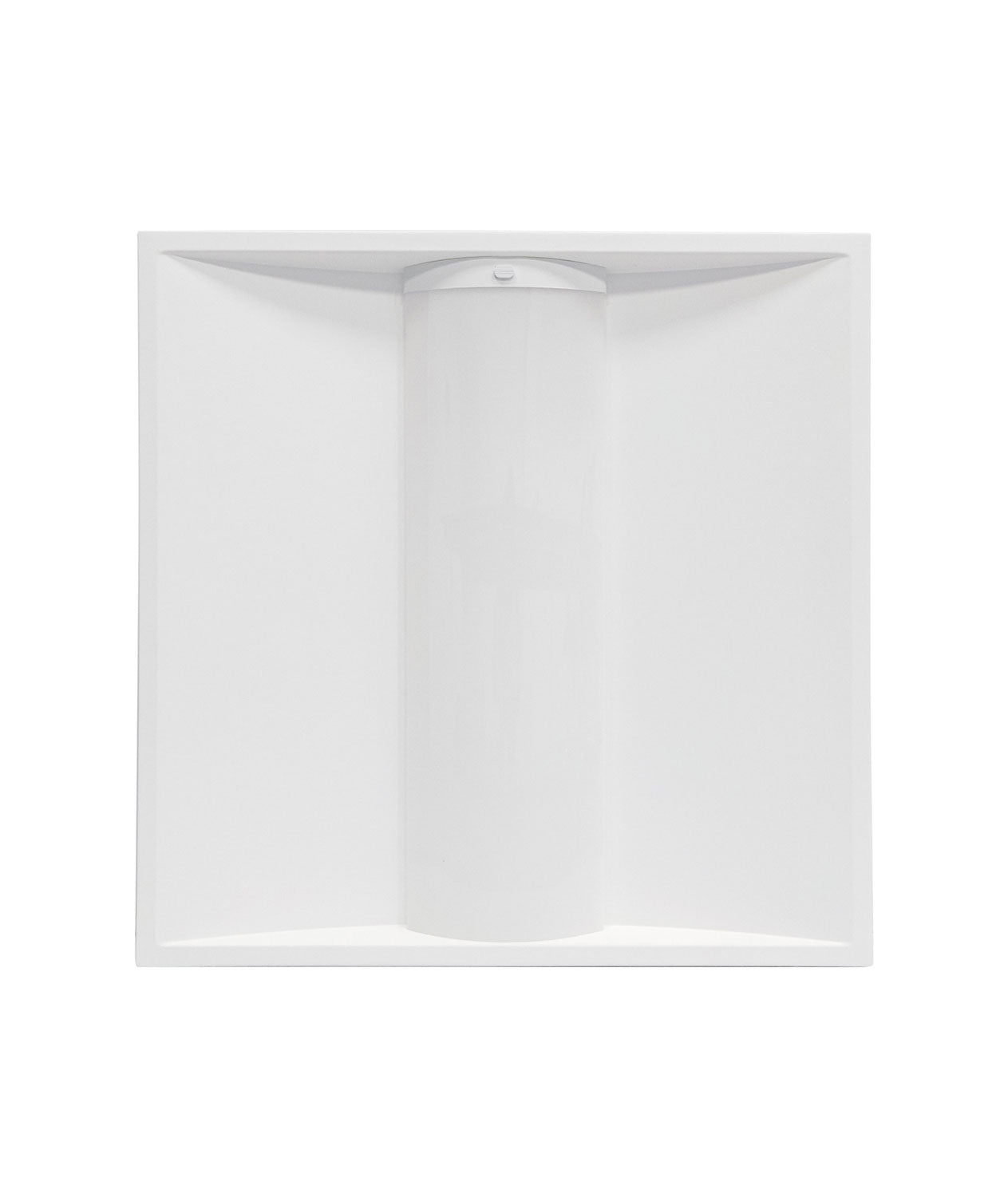

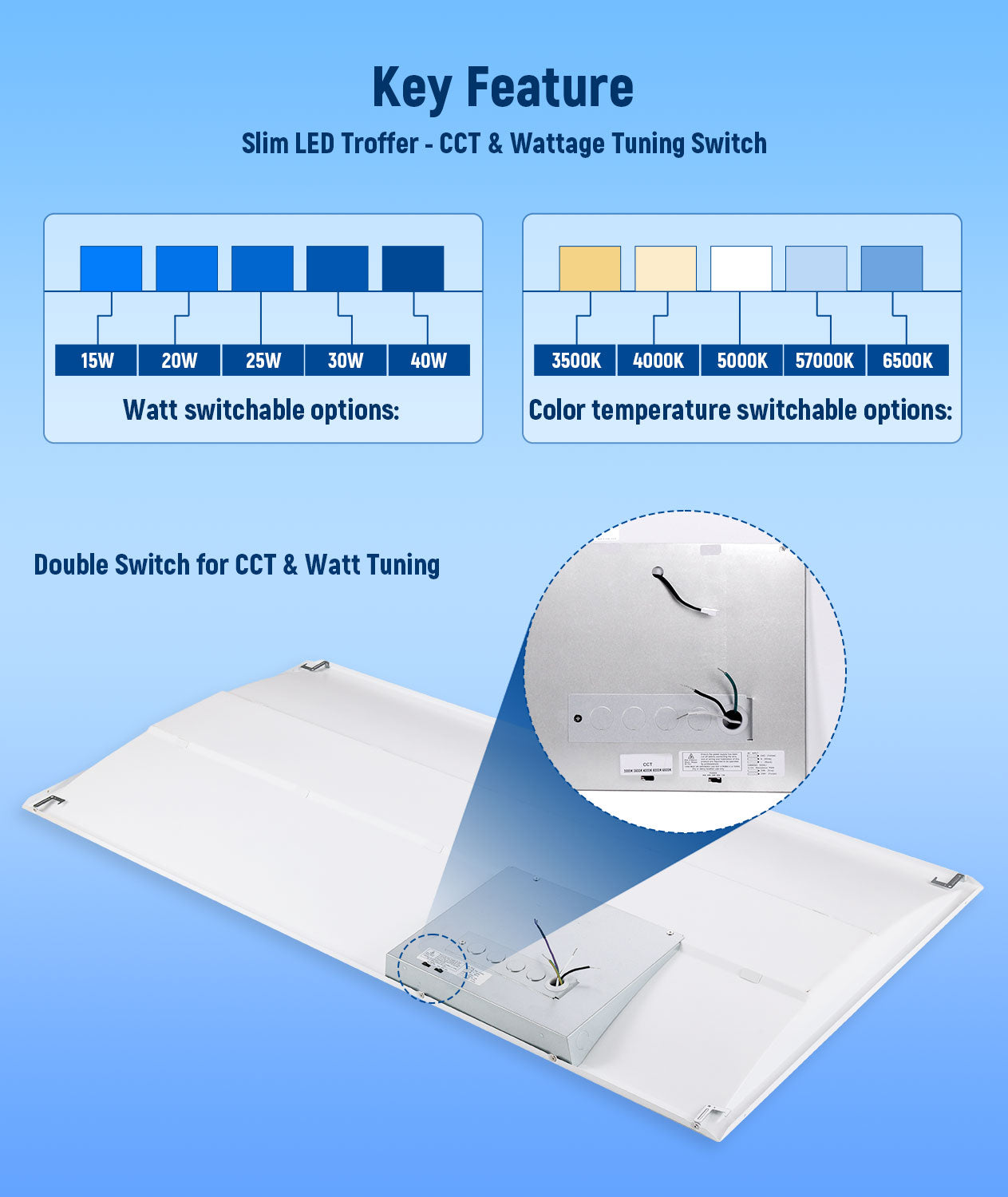

JEE 2x2 recessed LED centre basket troffer, five selectable wattages and five selectable CCTs set from switches on the driver box. Fitted with a sensor base.
- 5 selectable wattages and 5 selectable CCTs on one SKU
- Over 50% energy saving against fluorescent
- 0-10V dimming standard
- 130 lm/W
- Rated for 50,000 hours
- ETL, DLC 5.1 Premium, FCC, RoHS
- 5-year limited warranty
Specifications
Wattage
15 / 20 / 25 / 30 / 40 W
Lumens
1,950 – 5,000 lm
Efficacy
up to 130 lm/W
Colour temperature
3500K / 4000K / 5000K / 5700K / 6500K
Voltage
120–277V
Dimming
23.74" L x 23.74" W x 2.12" H
Warranty
5-year limited warranty
CRI
≥ 80
Rated life
50,000 hours
THD / PF
≤ 20%
Operating temp
-20°C to 45°C
Dimensions
23.74" L x 23.74" W x 2.12" H
Construction

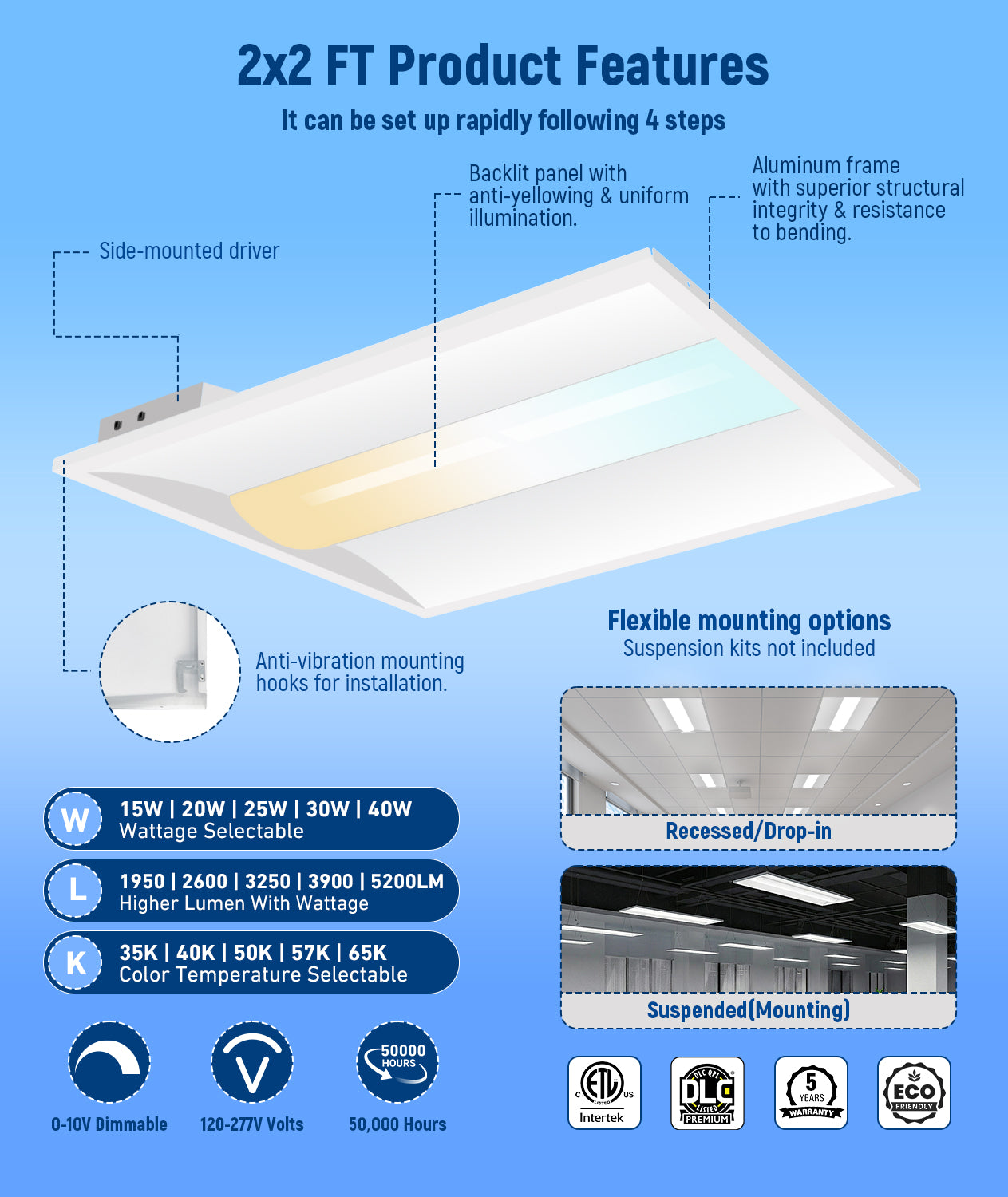

- One-piece ribbed unitized housing with interlocking corners
- All sides and corners turned in and hemmed — no sharp edges
- Driver fixed to the back of the panel to survive shipping
Electrical
- Universal voltage driver, 120-277V
- 0-10V continuous dimming standard
- THD ≤ 20%
Optics
- Precision-formed optical system designed to reduce glare and improve distribution
Installation
- Recessed into standard T-bar grid ceilings
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Residential
Downloads
Spec sheet (PDF) — JEE-Spec-LED-Troffer-with-sensor-base.pdf
