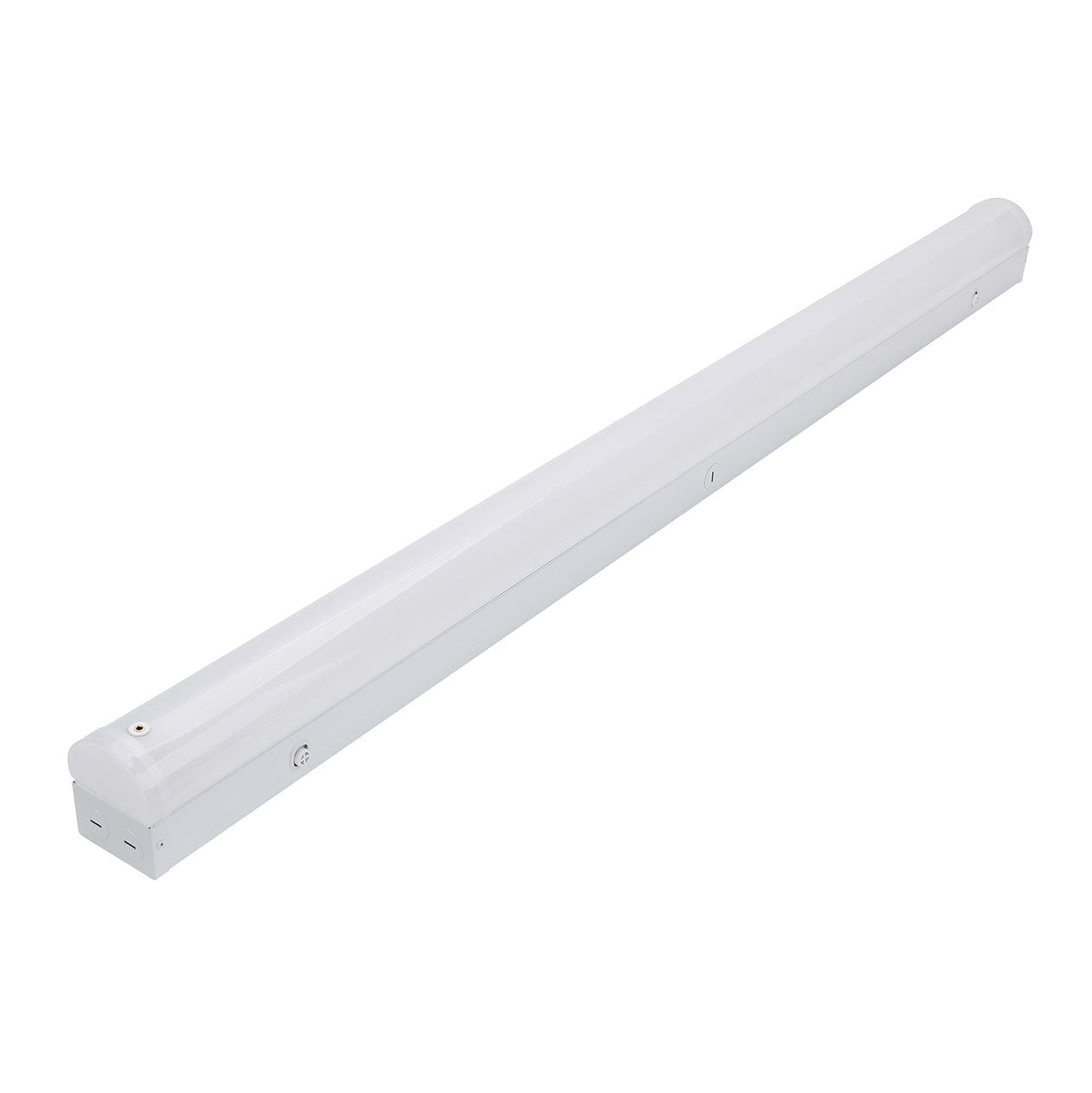

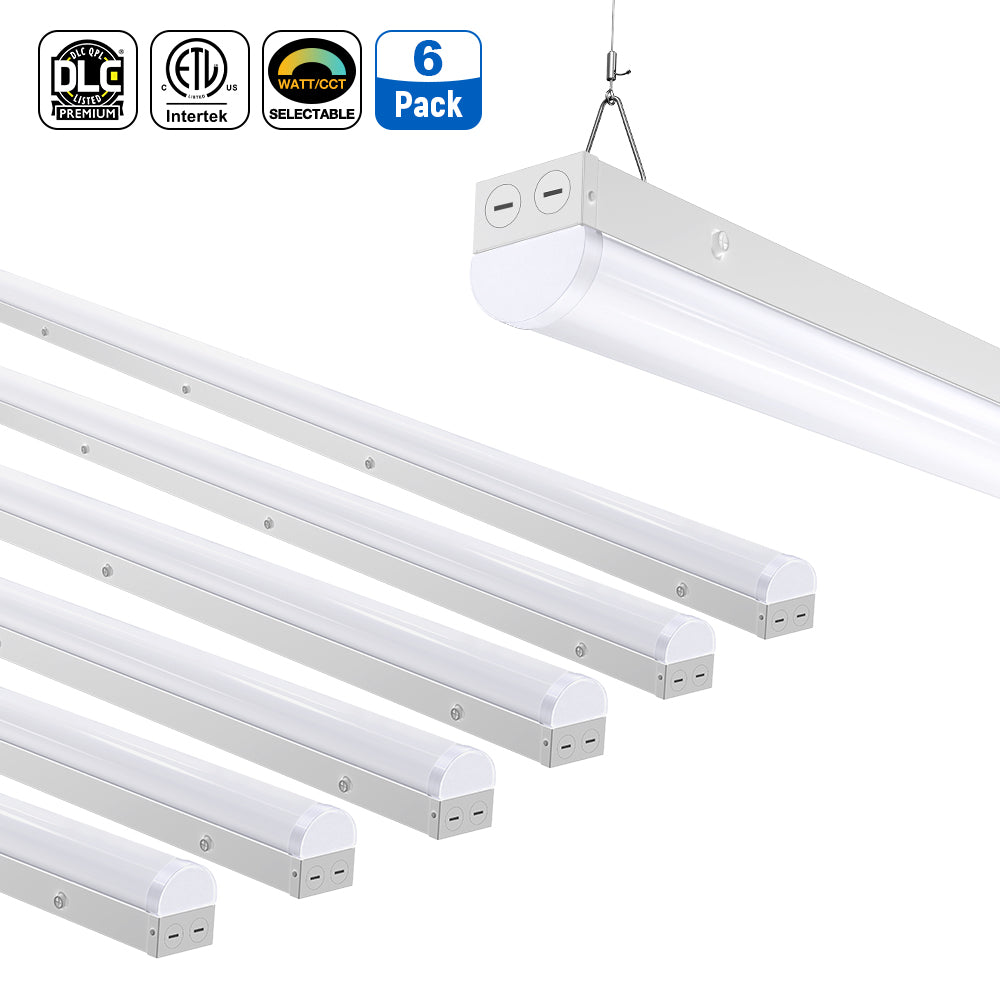

JEE 4ft LED Linear Strip ST 20-45W with Sensor Base
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
This item is priced on quote. Add any priced item to your quote and mention this part in the notes, or contact us and we will price it for you.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-ST-4FT-45MDNC |
| Fixture type | Strip Lights |
| Family | Linear Strip – ST |
| Size | 4ft |
| Color temperature (CCT) | 3500K, 4000K, 5000K |
| Input voltage | 120-277V |
| Controls | Sensor base |
| Certifications | ETL, DLC |

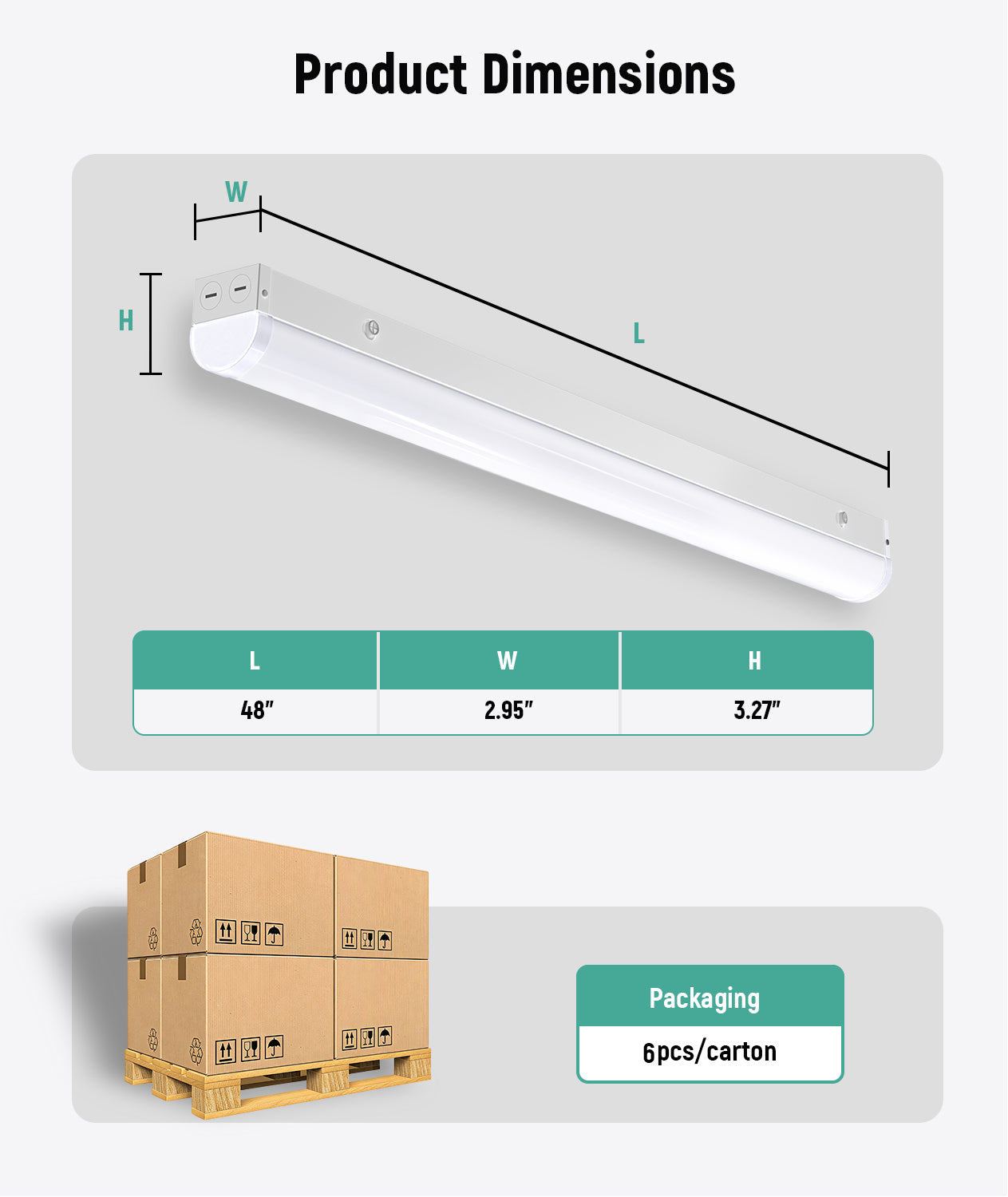

| Product dimensions | 48 x 2.95 x 3.27 in (L x W x H) |
| Case pack quantity | 6 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 49.81 x 12.21 x 8.59 in |
| Case pack weight | 22.14 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

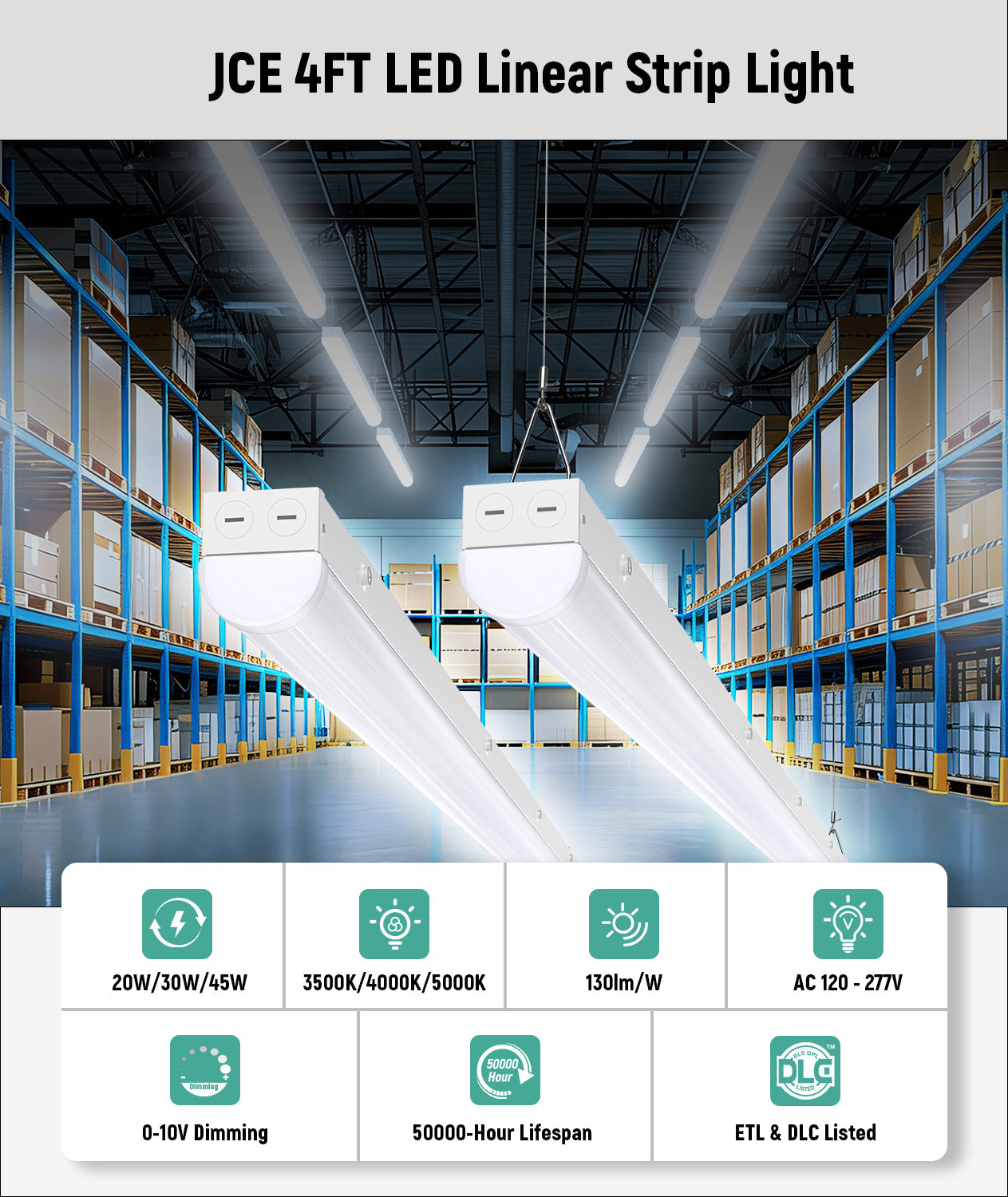

JEE linear strip light with field-adjustable wattage and CCT, 0-10V dimming and seamless linking for continuous rows.
Specifications

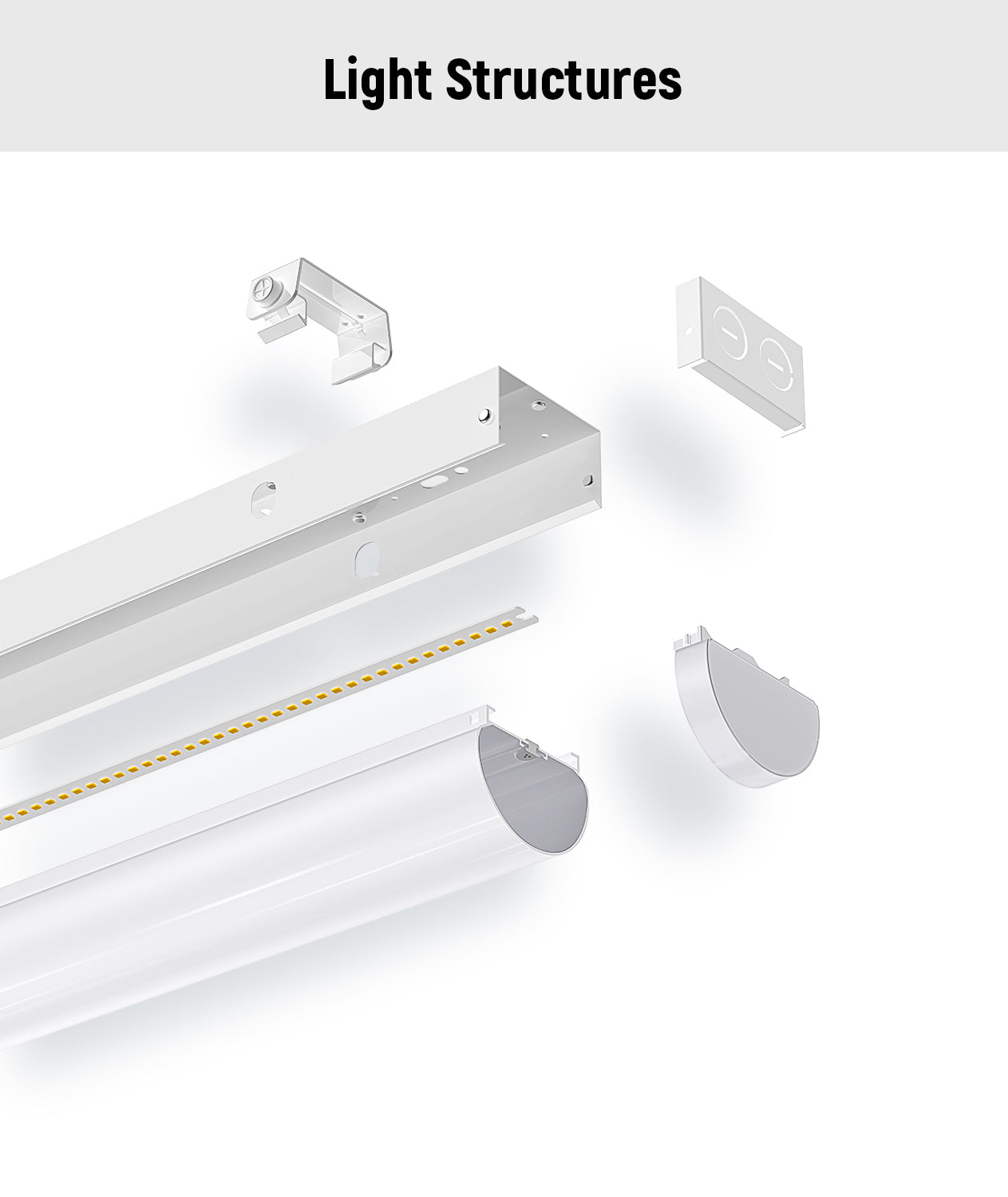

Construction
- Sensor base available
- Opens easily for quick installation

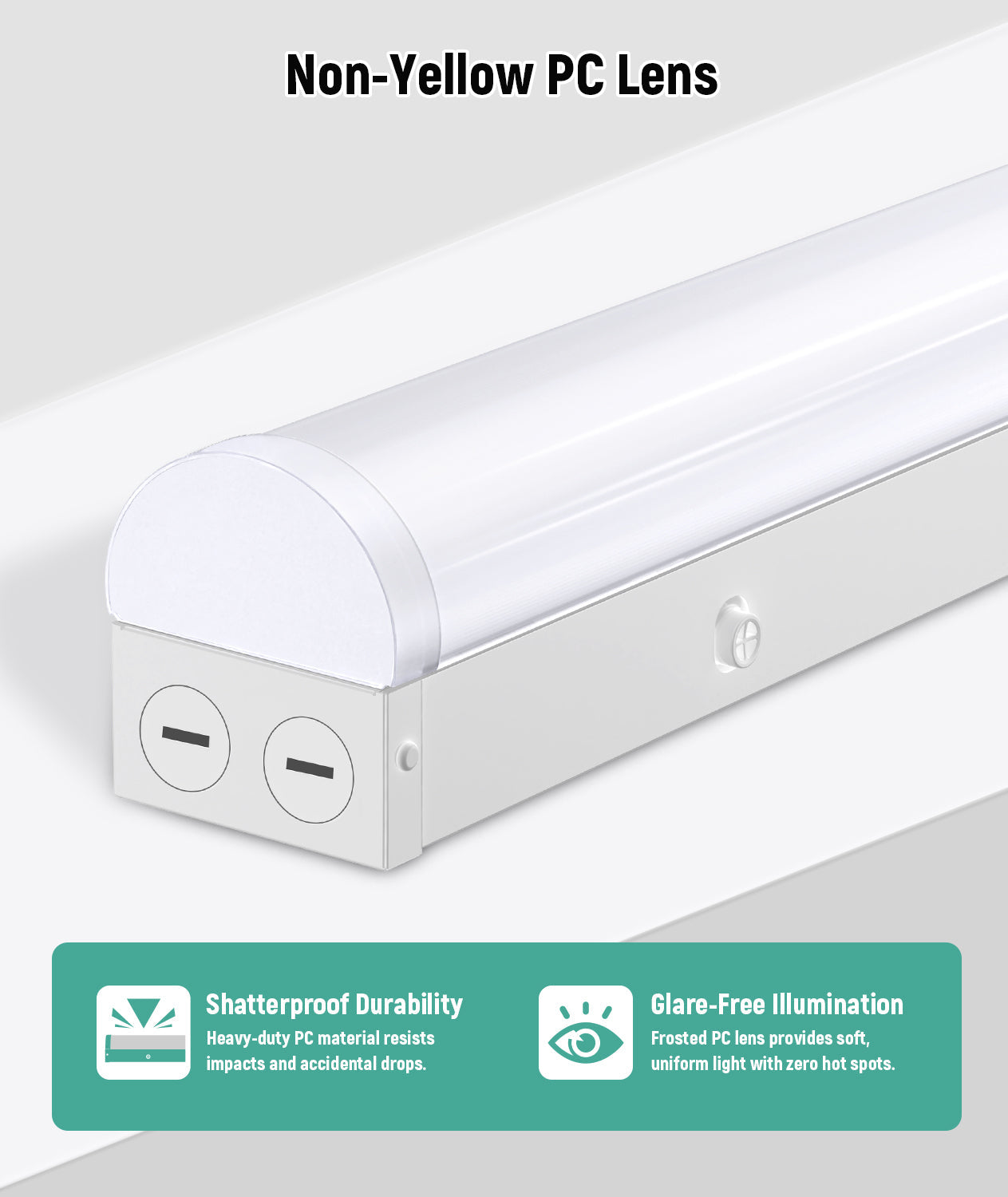

- Non-yellowing PC lens
- Seamless electronic linkable
- 4ft and 8ft options
Electrical
- 120-277Vac
- 0-10V dimmable as standard
- 3 wattage and 3 CCT selectable
- 140 lm/W on average
Installation

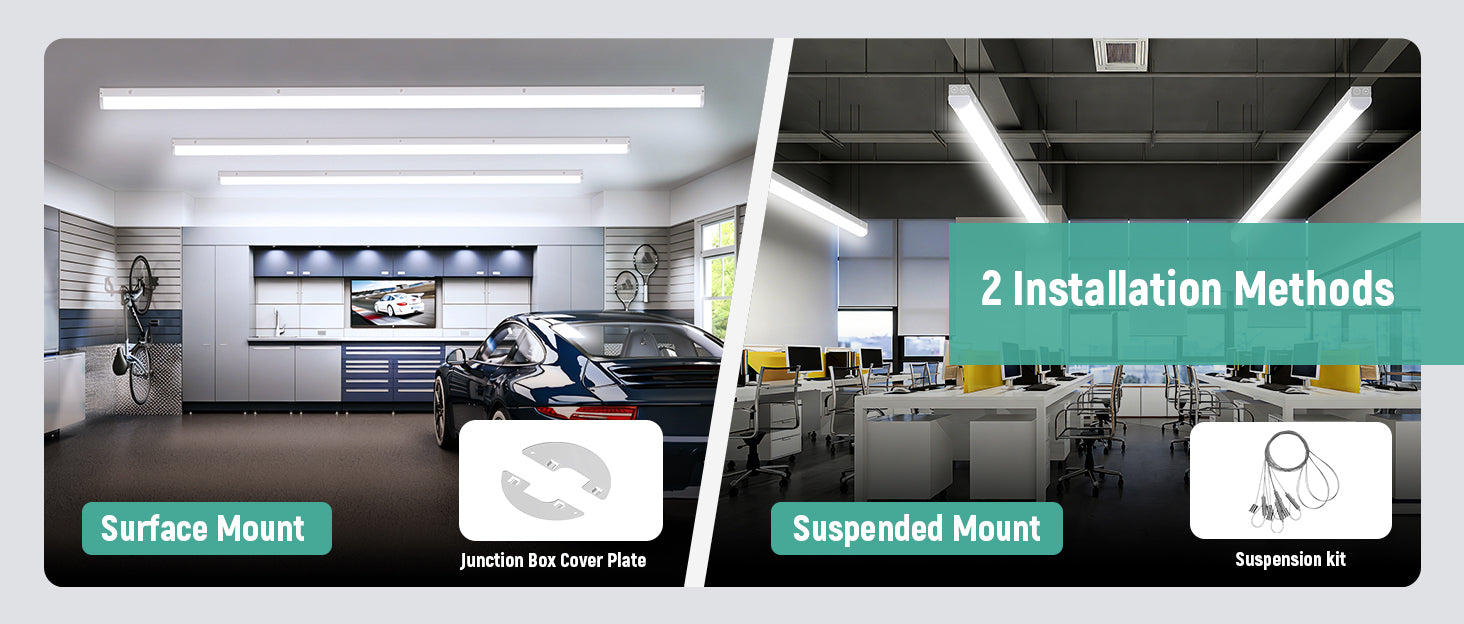

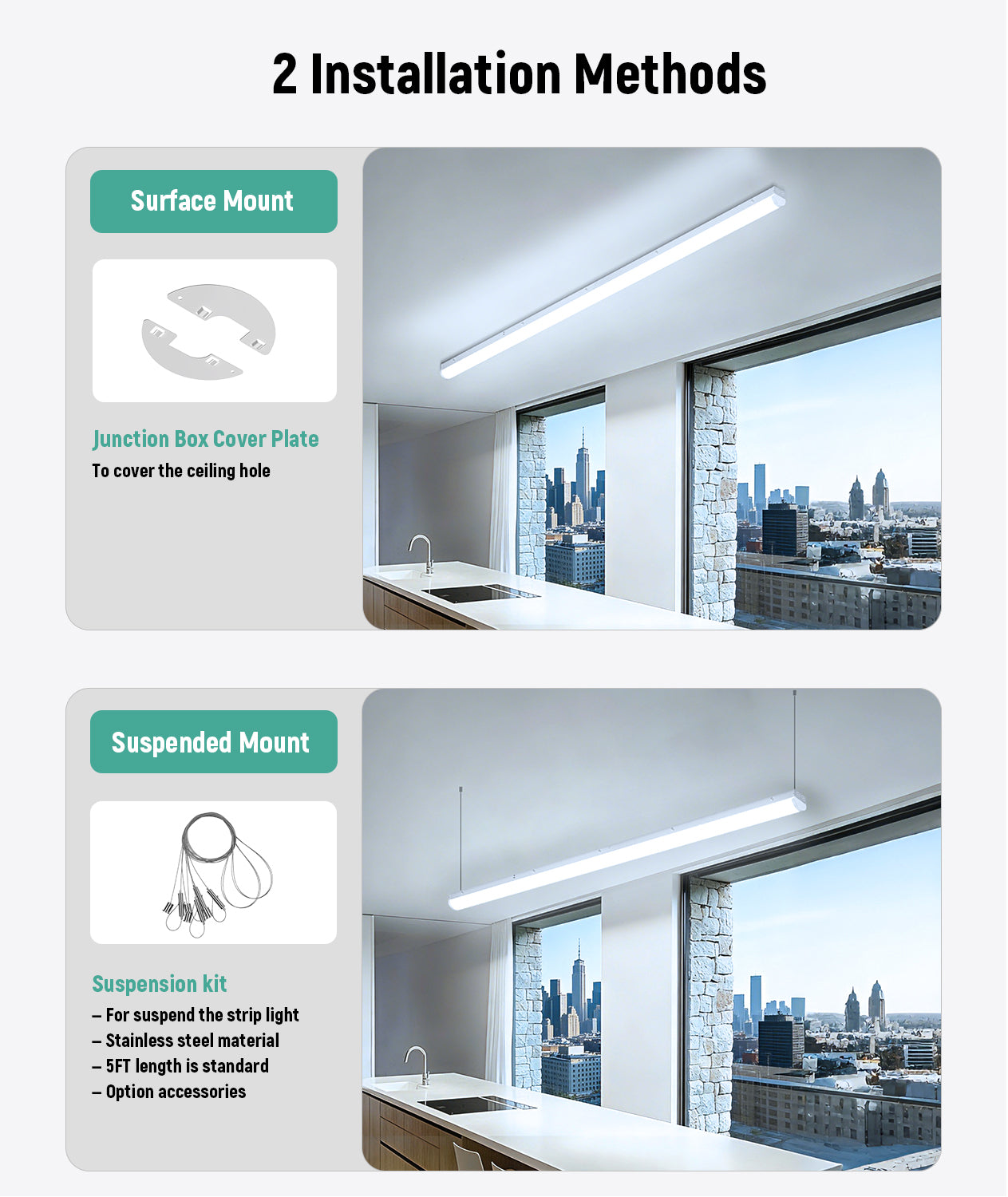

- Embedded and suspended mounting
- Sensor controls and emergency versions optional
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
Downloads
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 20 / 30 / 45 W. Color temperature: 3500K, 4000K, 5000K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Sensor base. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
