JEE 2ft LED Linear High Bay LHB10 110-160W
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-LHB10-2FT-110/130/160W-4057K |
| Fixture type | High Bays |
| Family | Linear High Bay – LHB10 |
| Size | 2ft |
| Color temperature (CCT) | 4000K, 5000K, 5700K |
| Input voltage | 120-277V |
| Certifications | ETL, DLC |

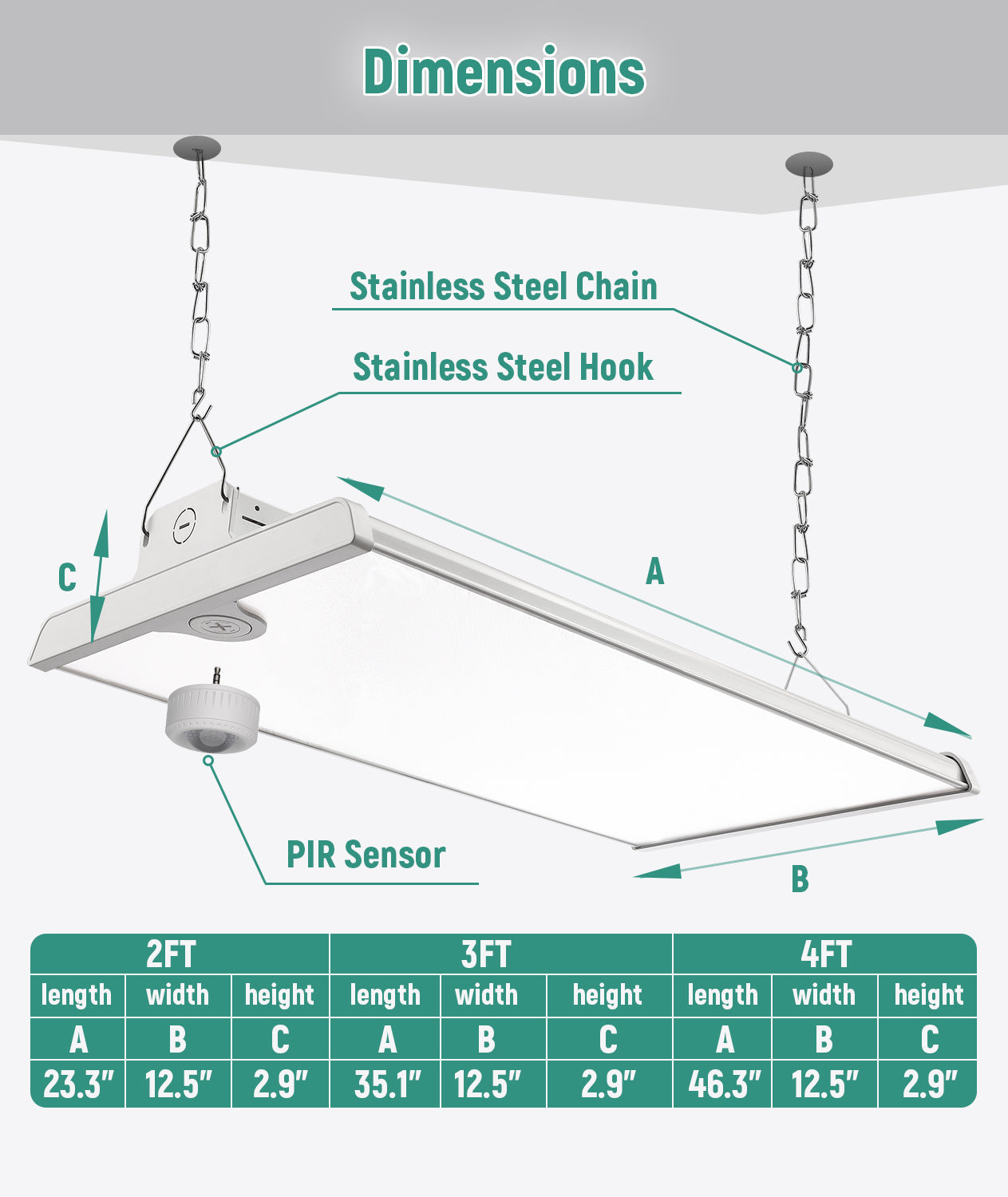

| Product dimensions | 23.3 x 12.5 x 2.9 in (L x W x H) |
| Case pack quantity | 2 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 24.8 x 6.8 x 14.2 in |
| Case pack weight | 12.6 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
JEE linear high bay with switchable wattage and switchable CCT, 0-10V dimming and a choice of suspension or pendant mounting.
Specifications

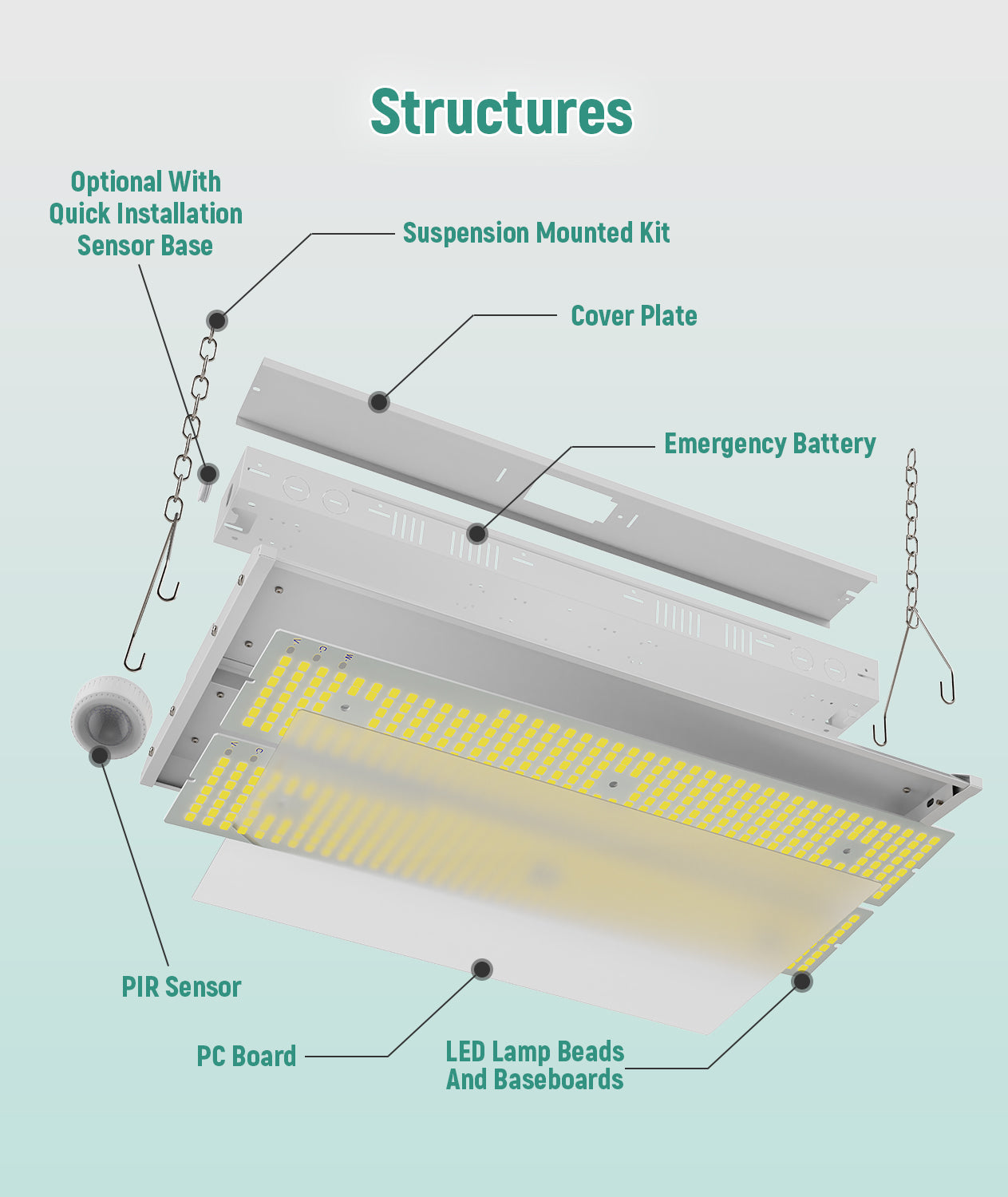

Construction
- Robust durable housing
- High quality driver for stable, reliable operation

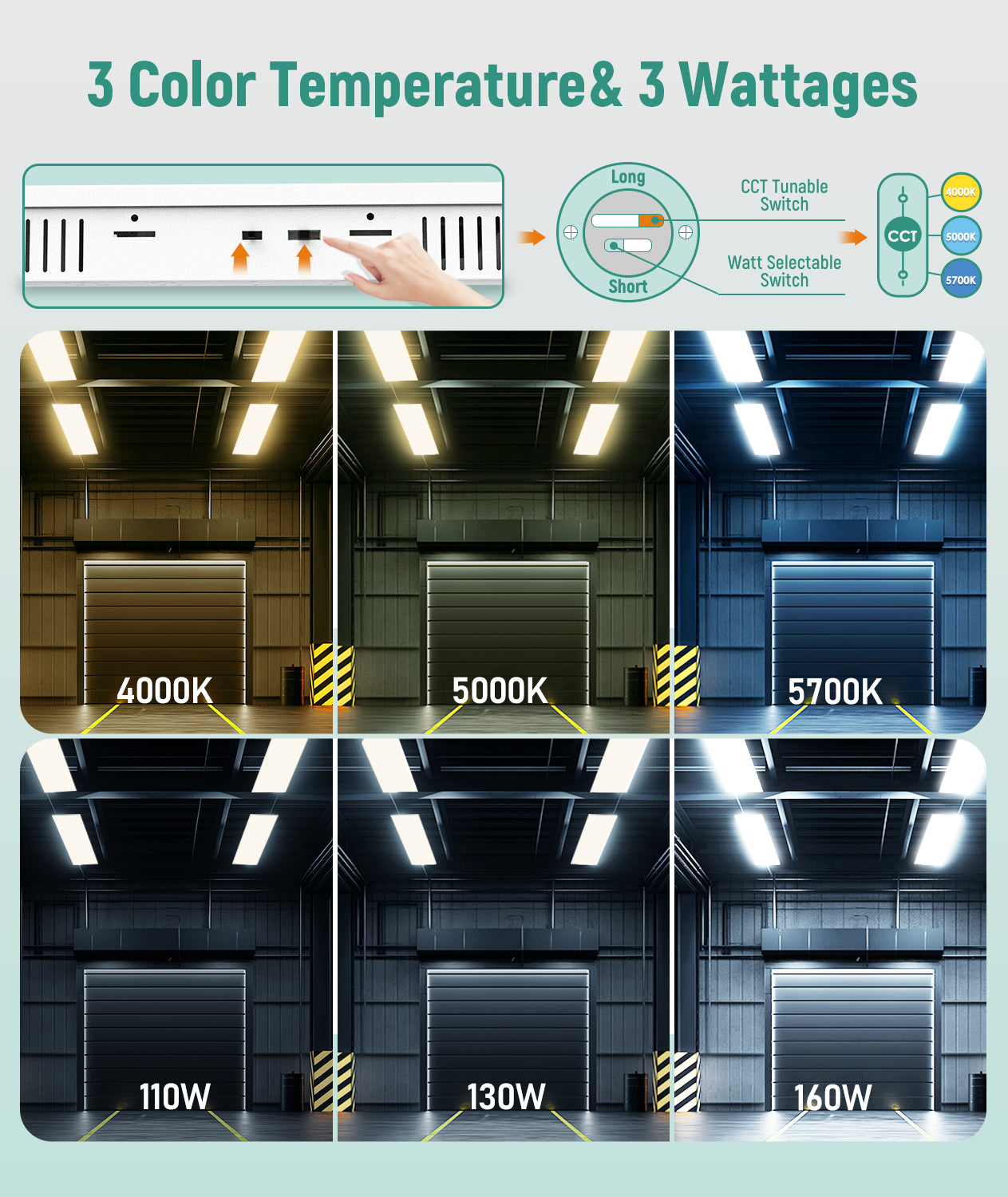

- CCT and wattage switchable through DIP switches or controller

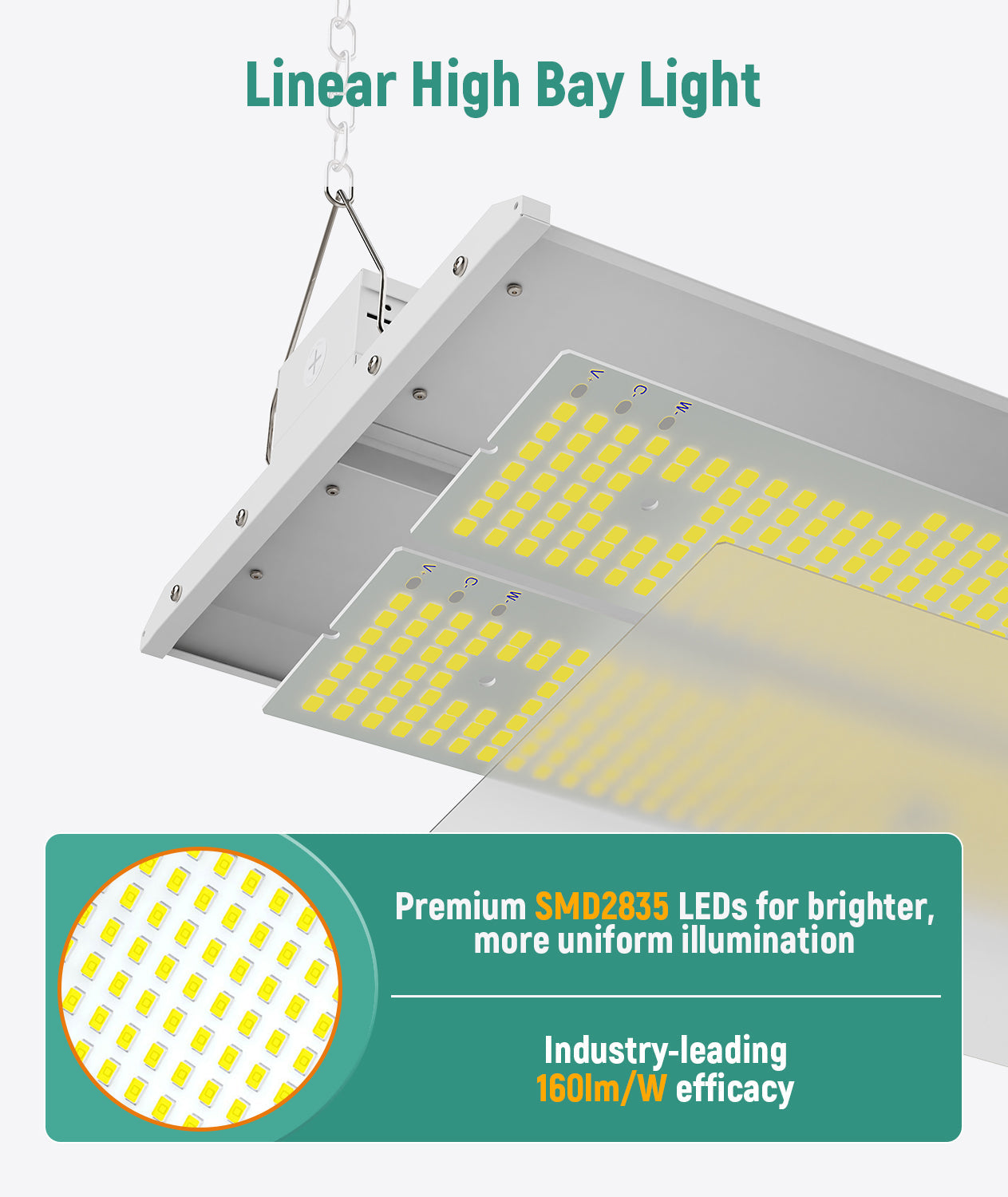

- High-quality LEDs for bright, uniform lighting
Electrical
- AC120-277V
- Compatible with a standard 0-10V dimmer
- PF > 0.9, CRI > 80
- Working temperature -4°F to 113°F
Installation
- Suspend the fixture on a suspension chain
- Pendant on a stem through a junction box
- Emergency battery, motion sensor and surface mount kits optional
Ideal applications
- Warehouses
- Supermarkets
- Covered courts
- Utility areas
- Industrial
- Commercial
Downloads
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 110 / 130 / 160 W. Color temperature: 4000K, 5000K, 5700K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls. Compatible sensors and accessories are listed under Complete your setup on this page.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
