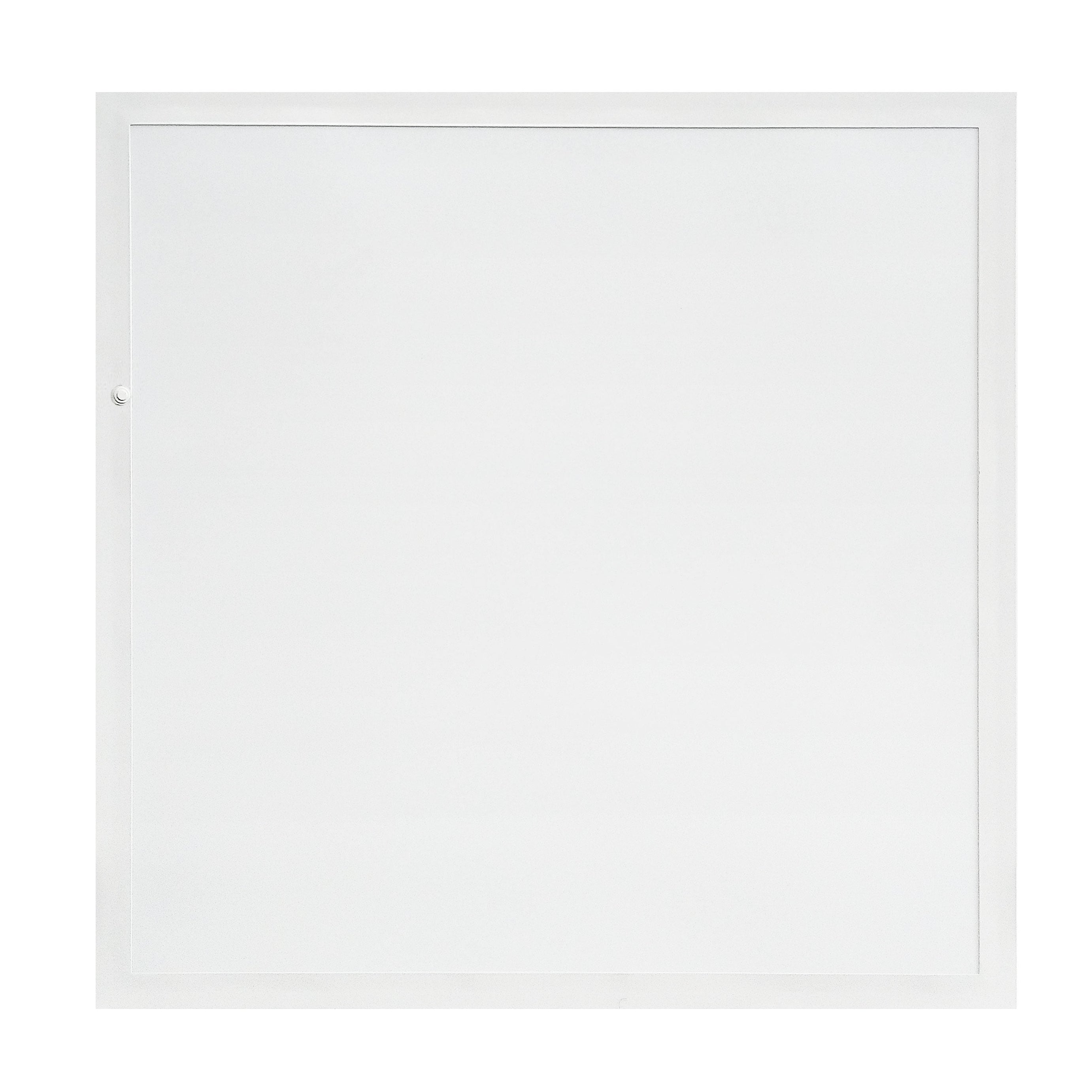

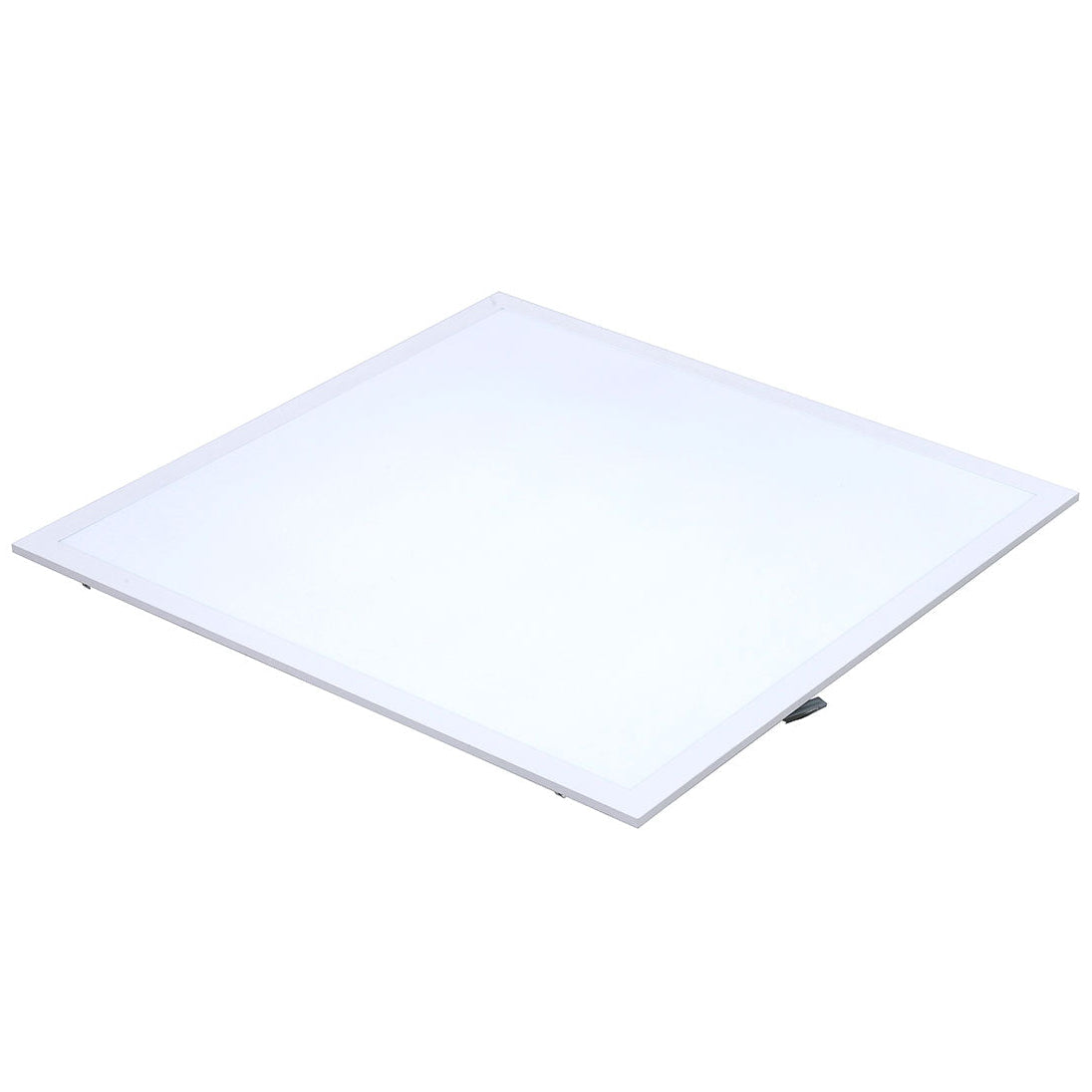

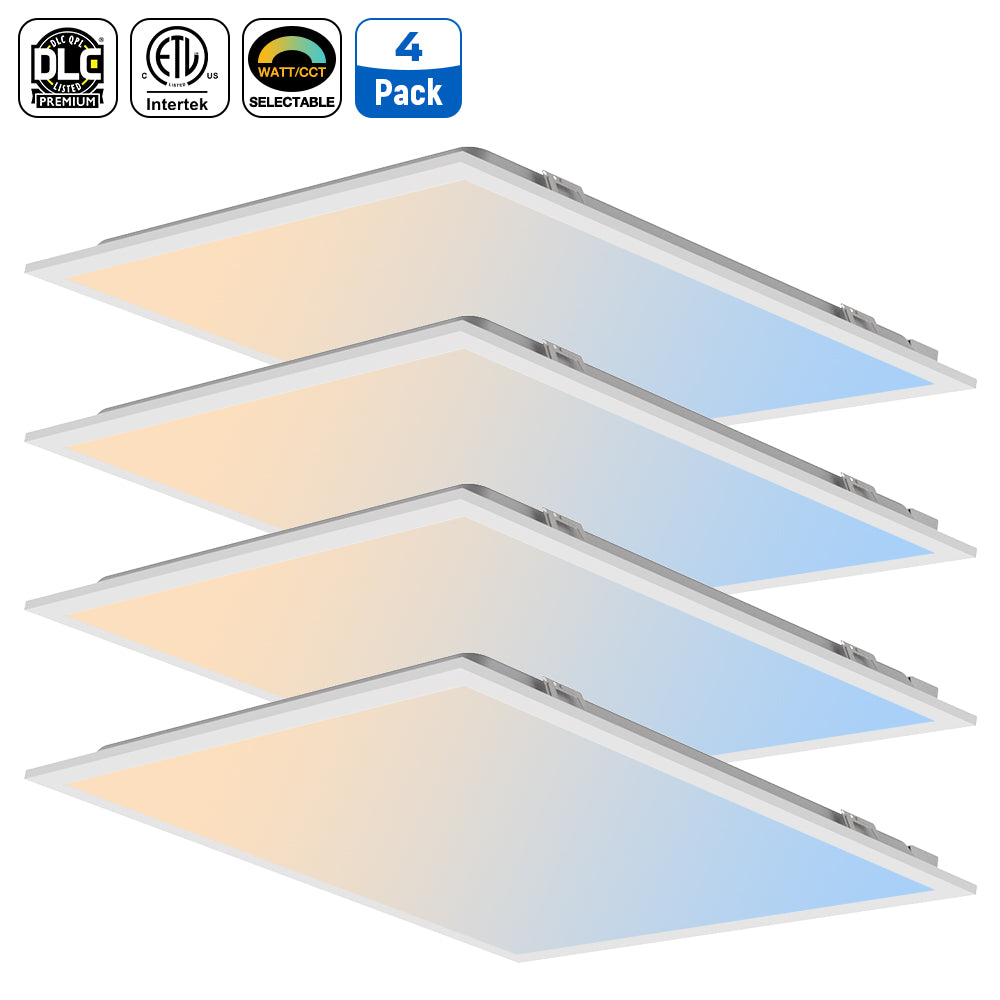

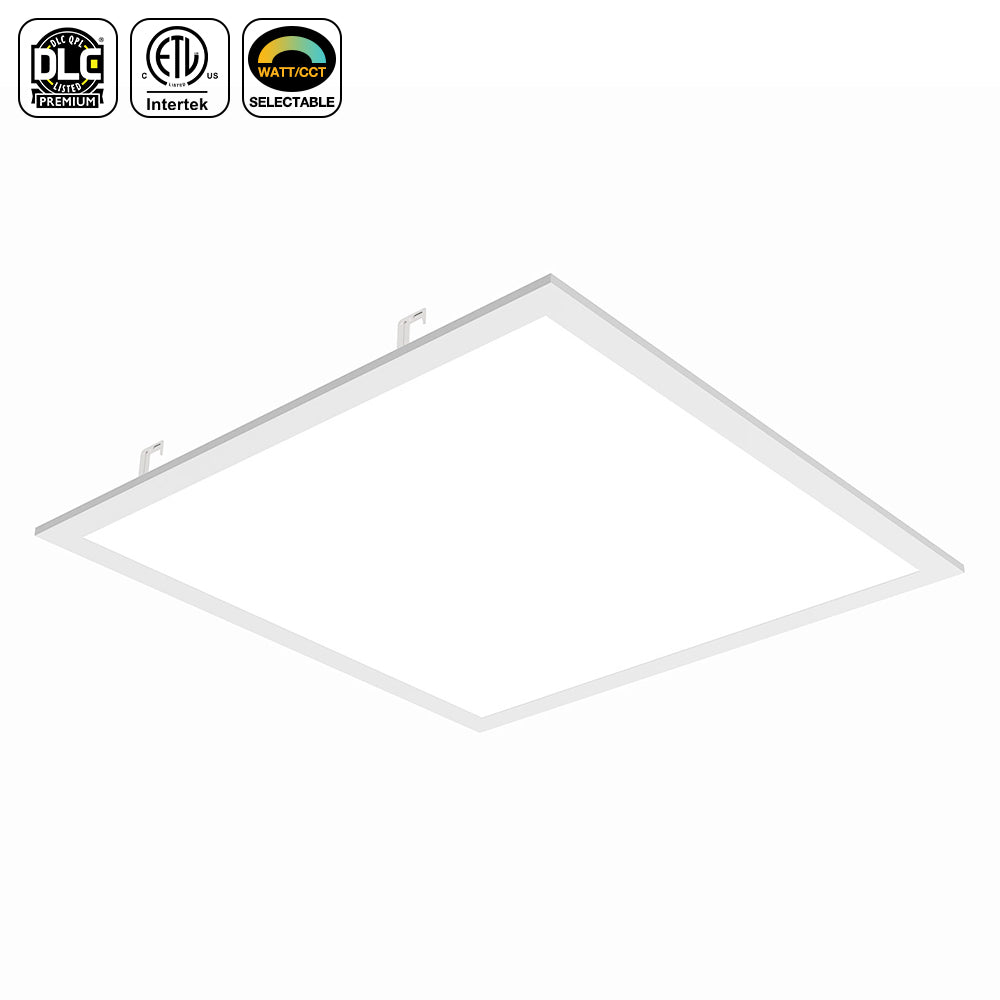

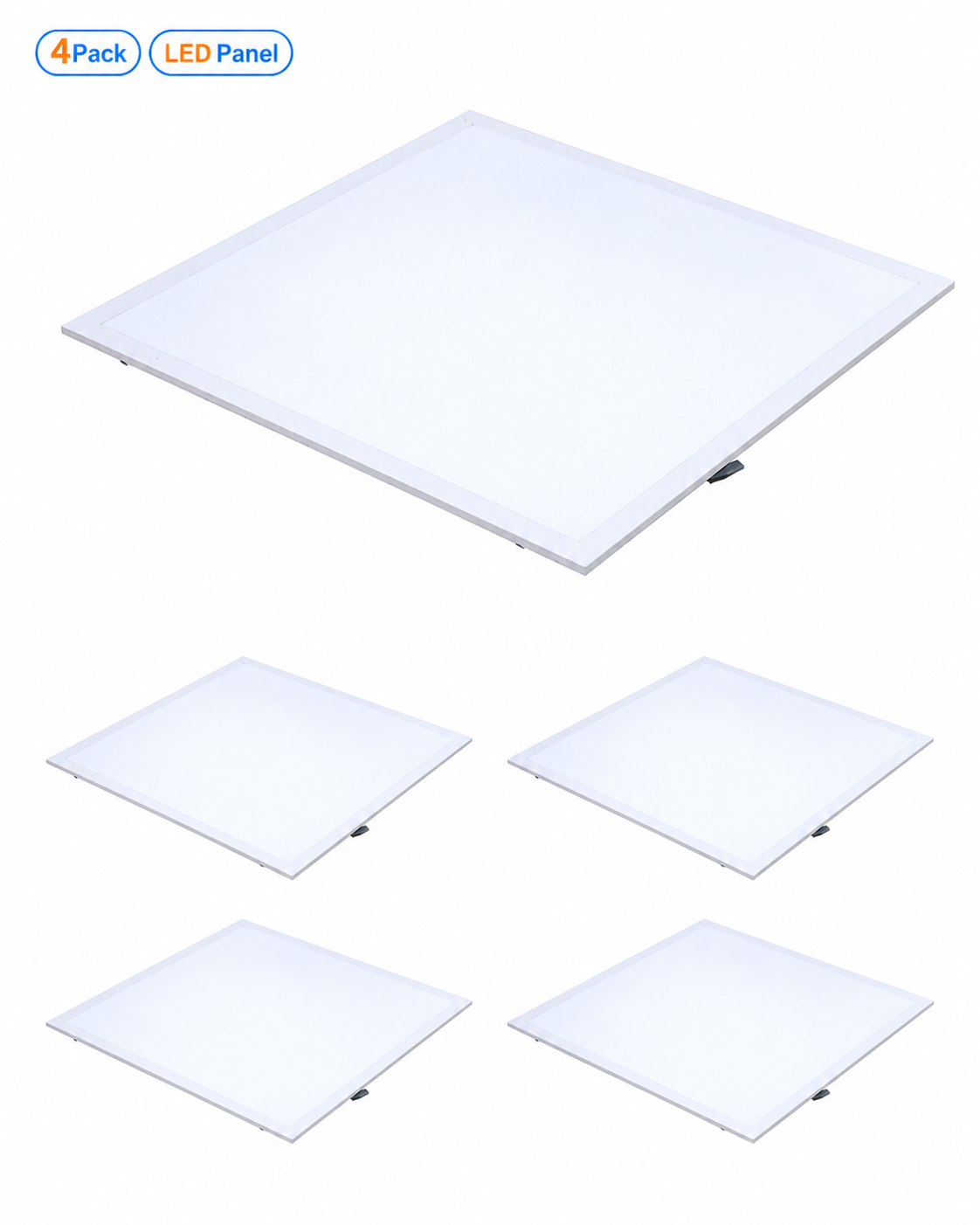

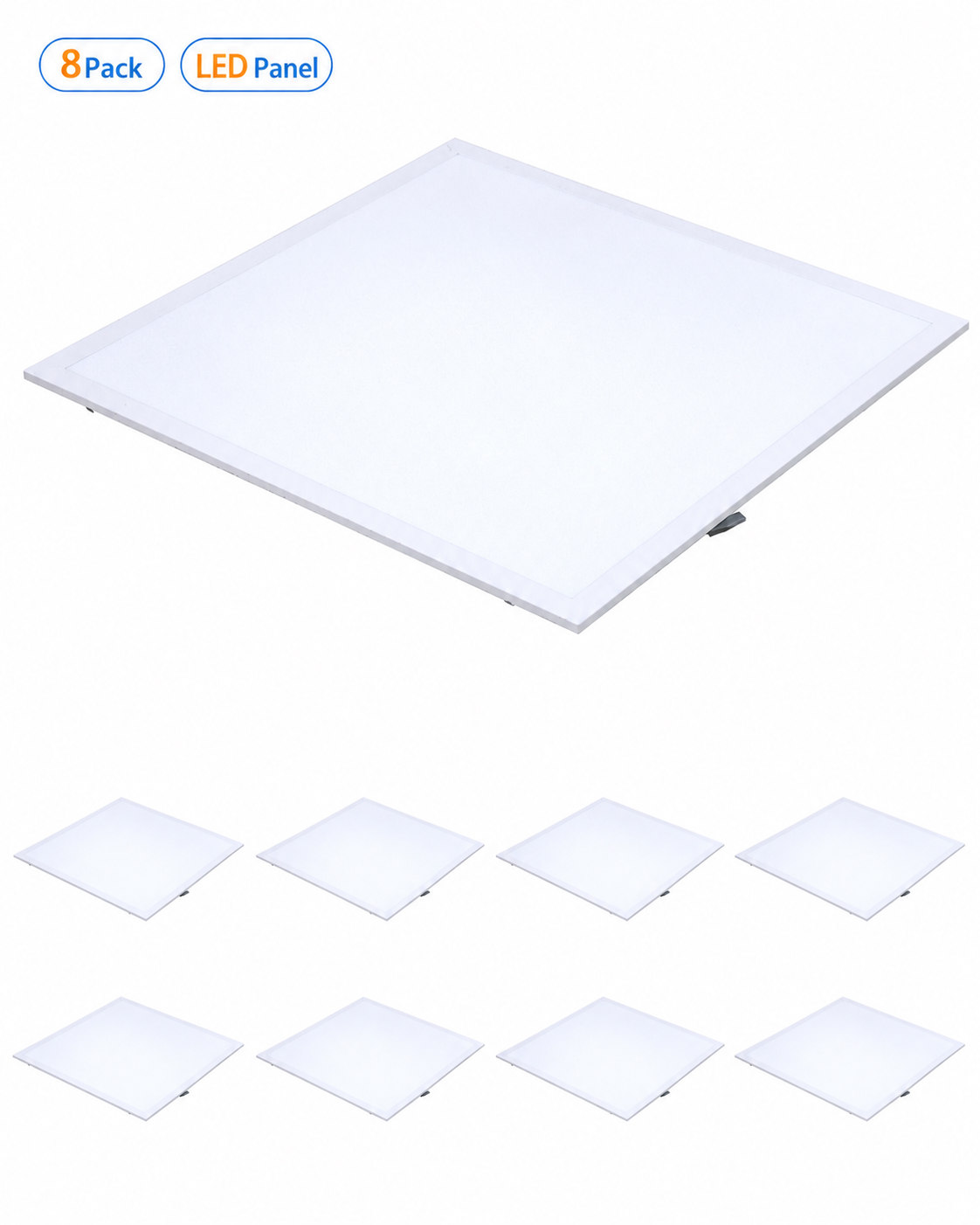

JEE 2x2 LED Panel 15-40W with Sensor Base
Product Number:J-B2-S40-3565-S
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.

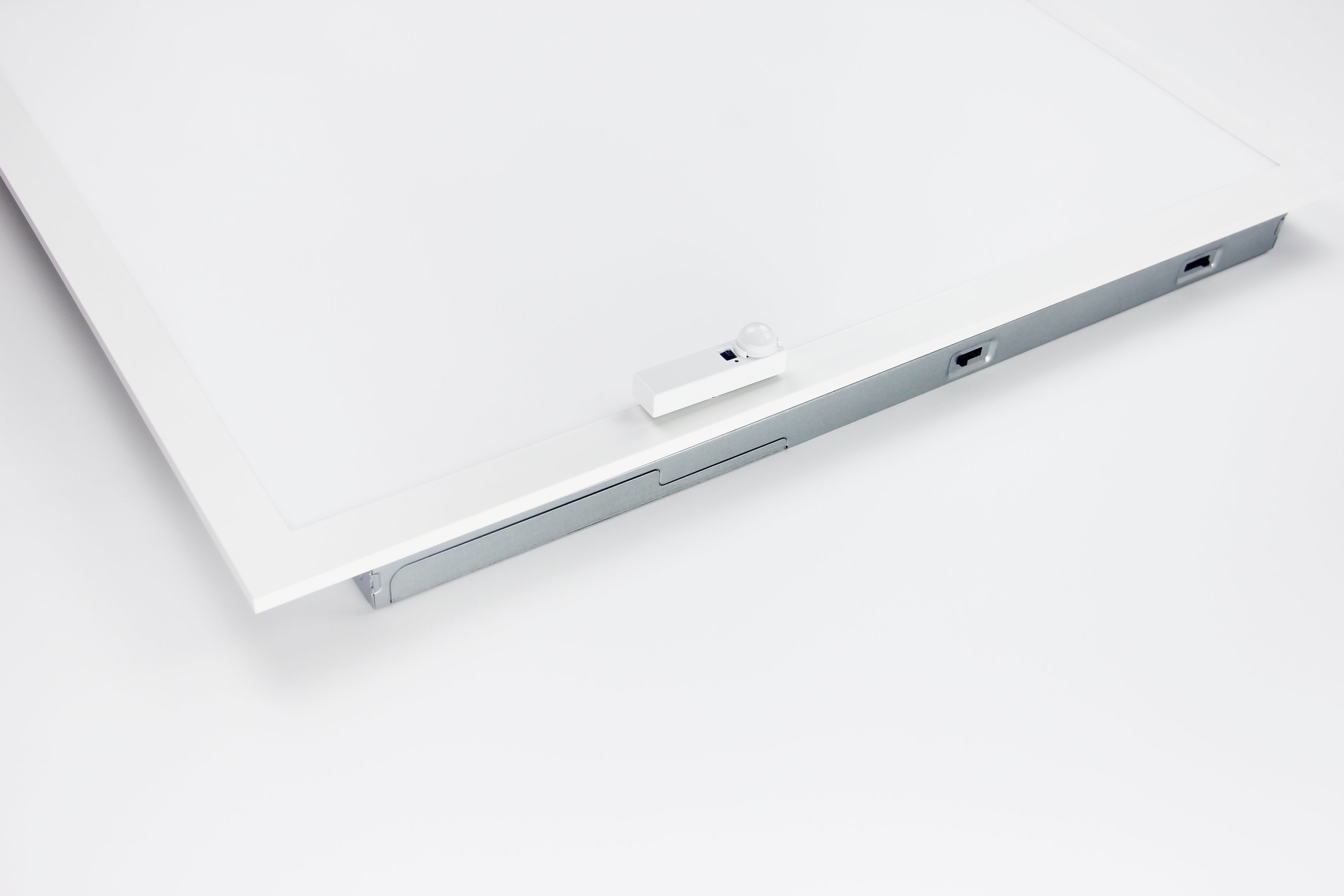

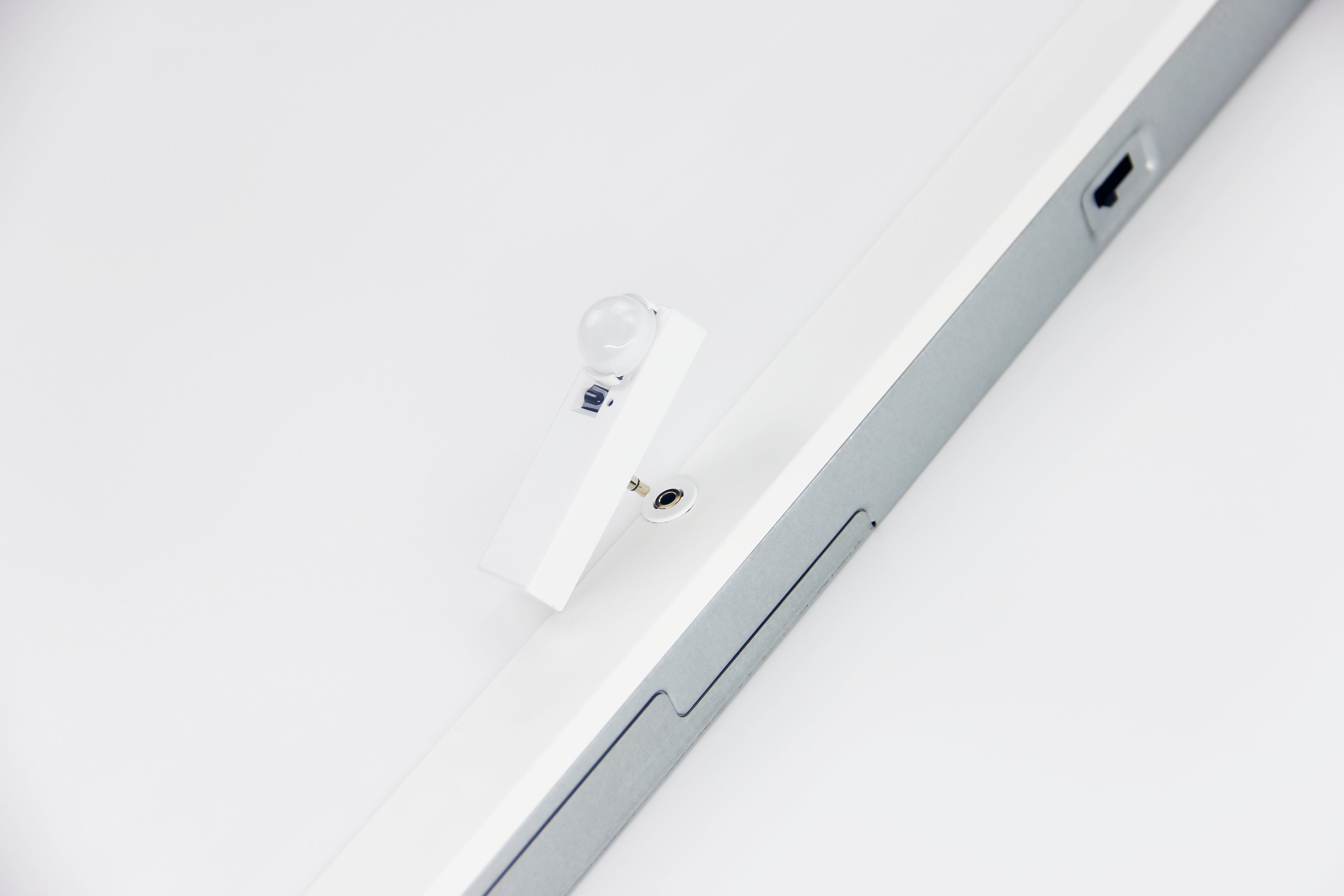

JEE 2x2 backlit LED panel, five selectable wattages and five selectable CCTs on one SKU. Fitted with a sensor base — 3.5mm audio jack sensors plug straight in.
- 5 selectable wattages and 5 selectable CCTs on one SKU
- Backlit technology for even, uniform output
- 0-10V dimming as standard
- ETL listed and suitable for damp location
- DLC 5.1 Premium
- 5-year limited warranty
Specifications
Wattage
15 / 20 / 25 / 30 / 40 W
Lumens
1,950 – 5,000 lm
Efficacy
up to 130 lm/W
Colour temperature
3500K / 4000K / 5000K / 5700K / 6500K
Voltage
120–277V
Dimming
25.2" x 25.2" x 6.1" carton
Warranty
5-year limited warranty
CRI
≥ 80
Operating temp
-20°C to 45°C
THD / PF
≤ 20% / ≥ 0.9
Dimensions
25.2" x 25.2" x 6.1" carton
Construction
- Integrative aluminium frame provides a durable structure
- 5 wattage and 5 CCT selectable switches integrated on the driver
- Minimise stock — 1 SKU covers a maximum of 25 models
Electrical
- Input voltage 120-277Vac 50/60Hz
- 0-10V dimming
- THD ≤ 20%, PF ≥ 0.9
Installation
- Suitable for recessed mounting with T-bar
- Suspension and surface mounting accessories available
- Ambient temperature range -20°C to 45°C

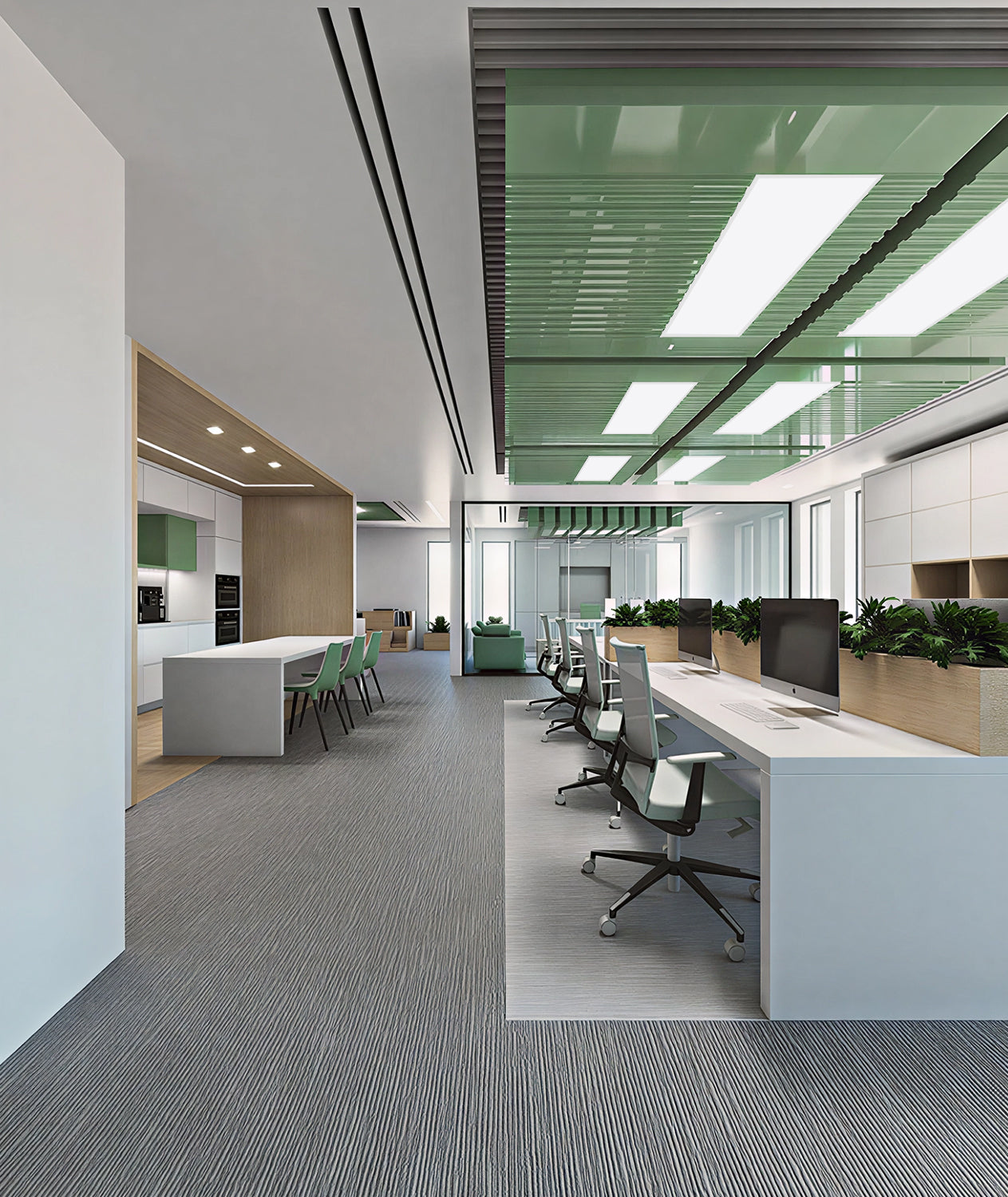

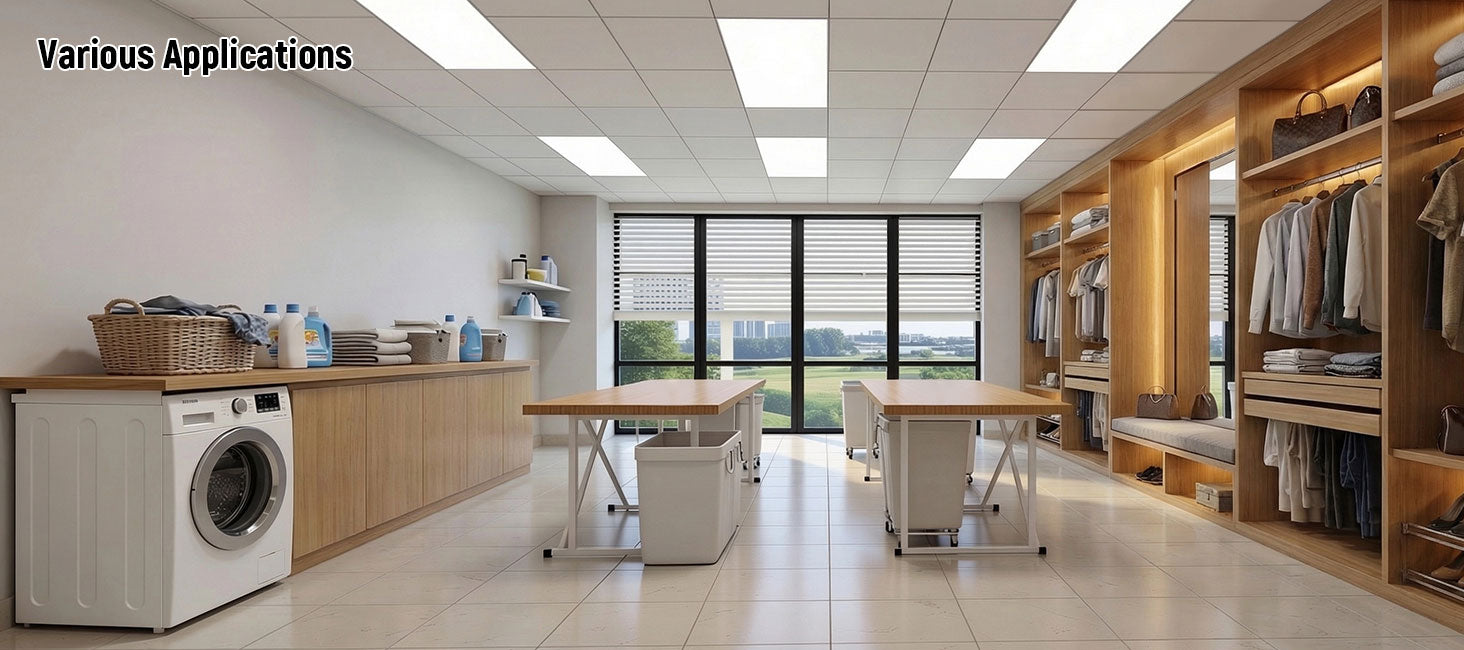

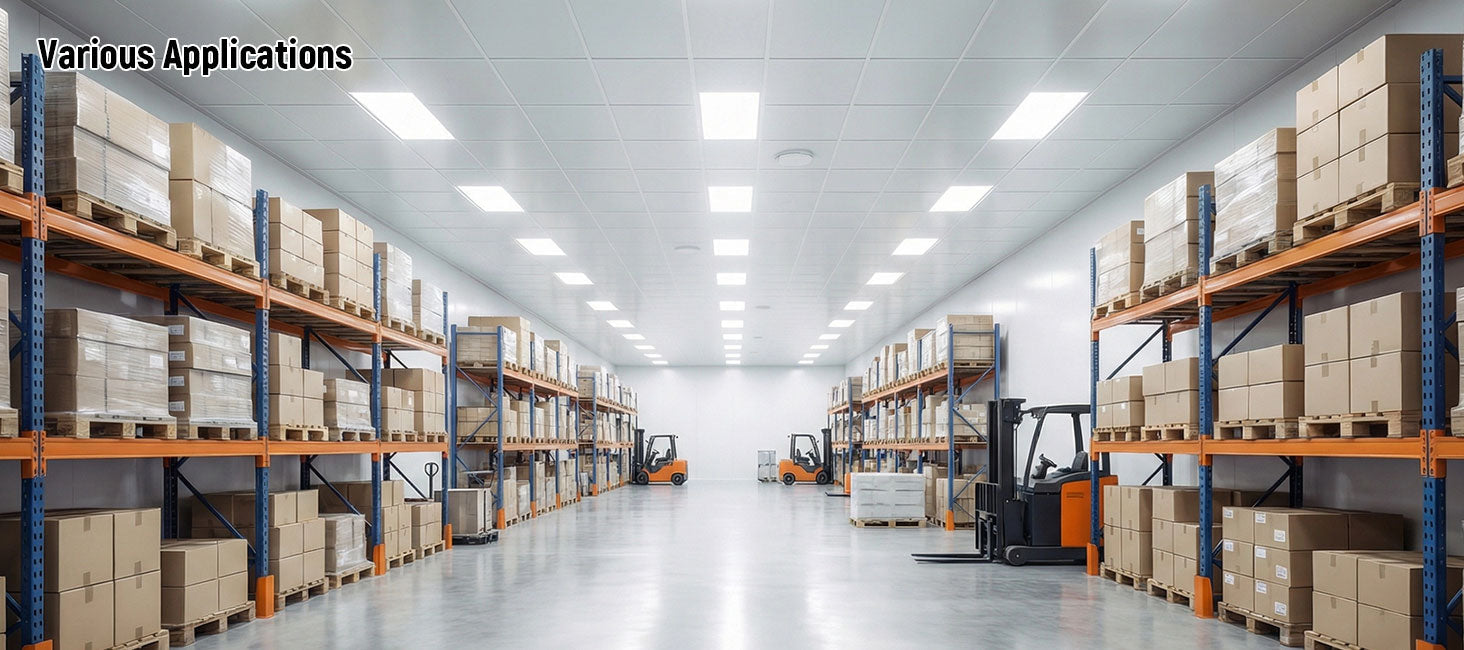

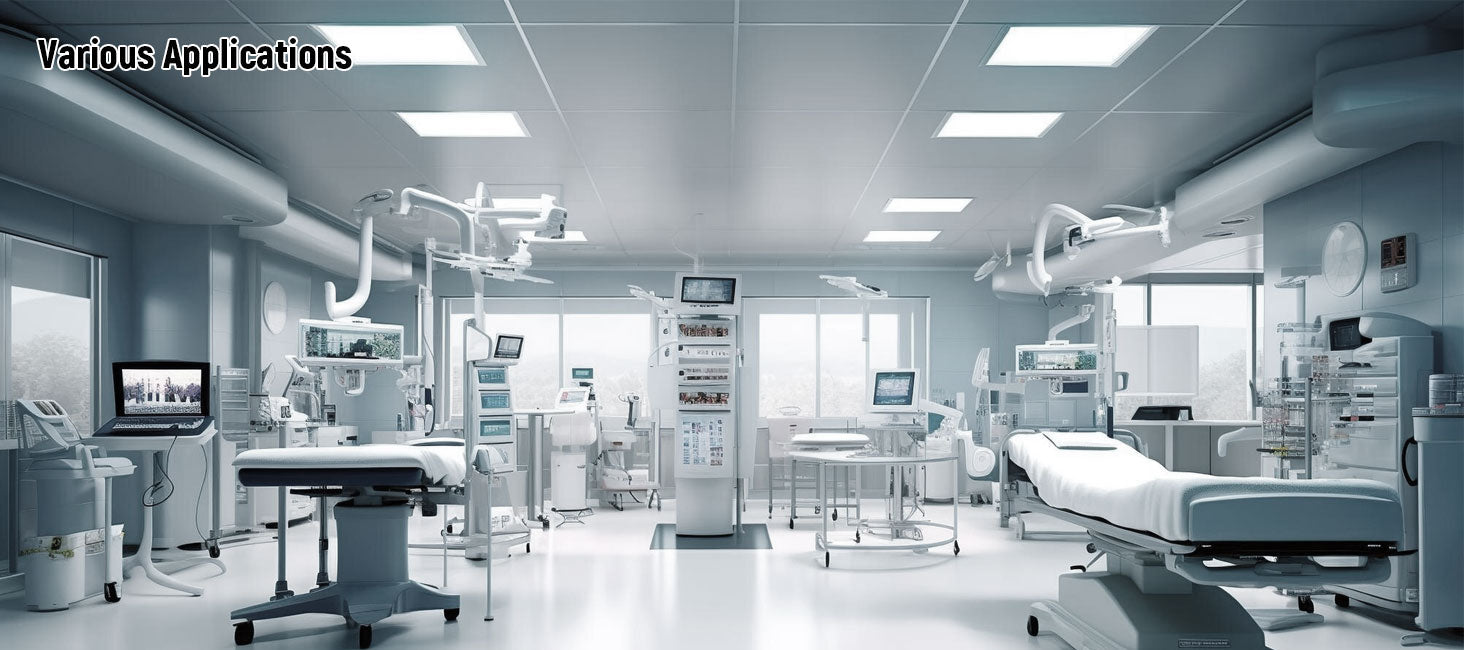

Ideal applications

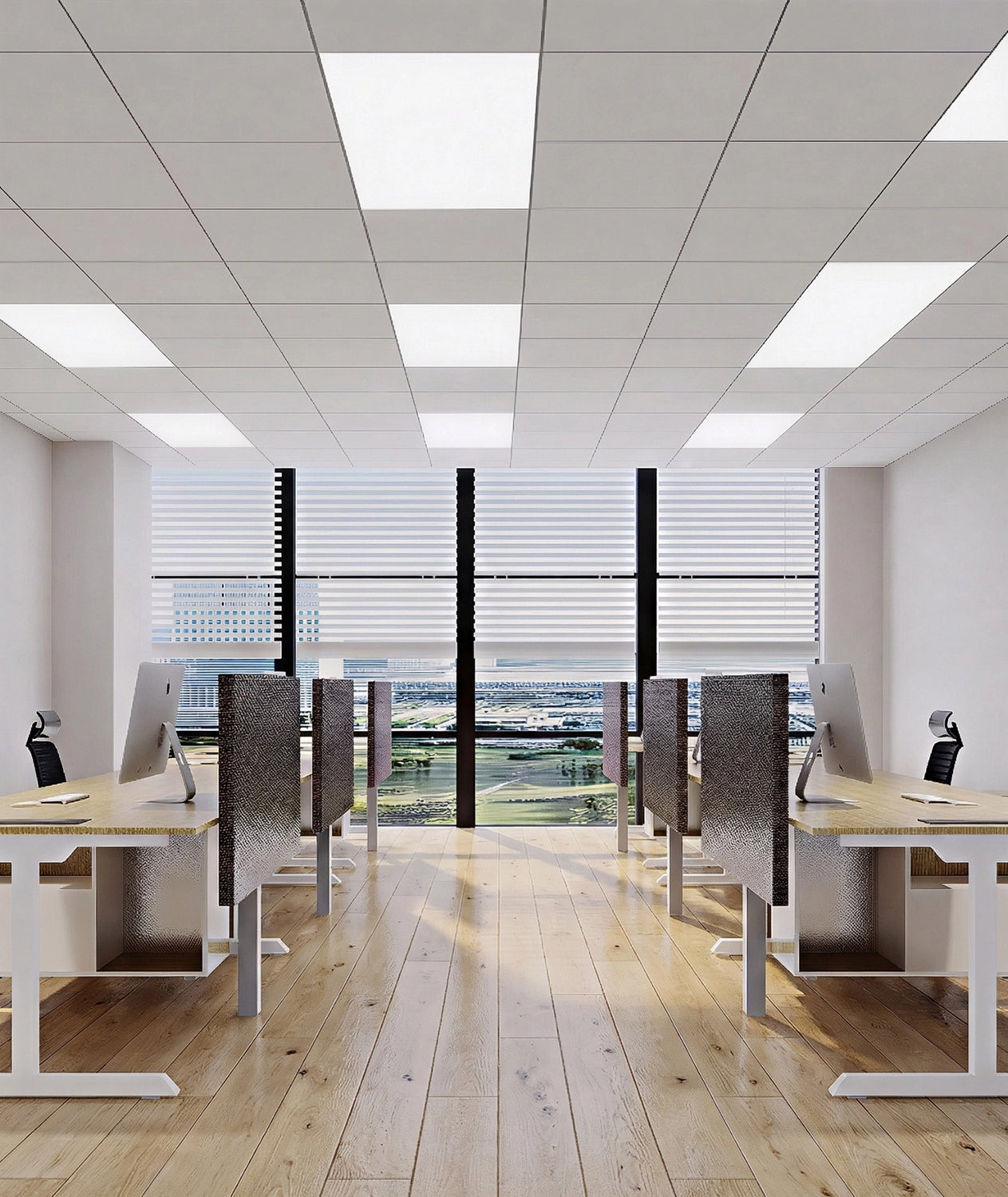

- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
