JEE 4ft LED Up/Down Linear Light LS02 15-50W
JEE 4ft LED Up/Down Linear Light LS02 15-50W

JEE 4ft LED Up/Down Linear Light LS02 15-50W

Product Number:DB77E-4-50W-A5C3
$63.00

Compatible accessories

Sensors, mounts, drivers and controls that fit this fixture.

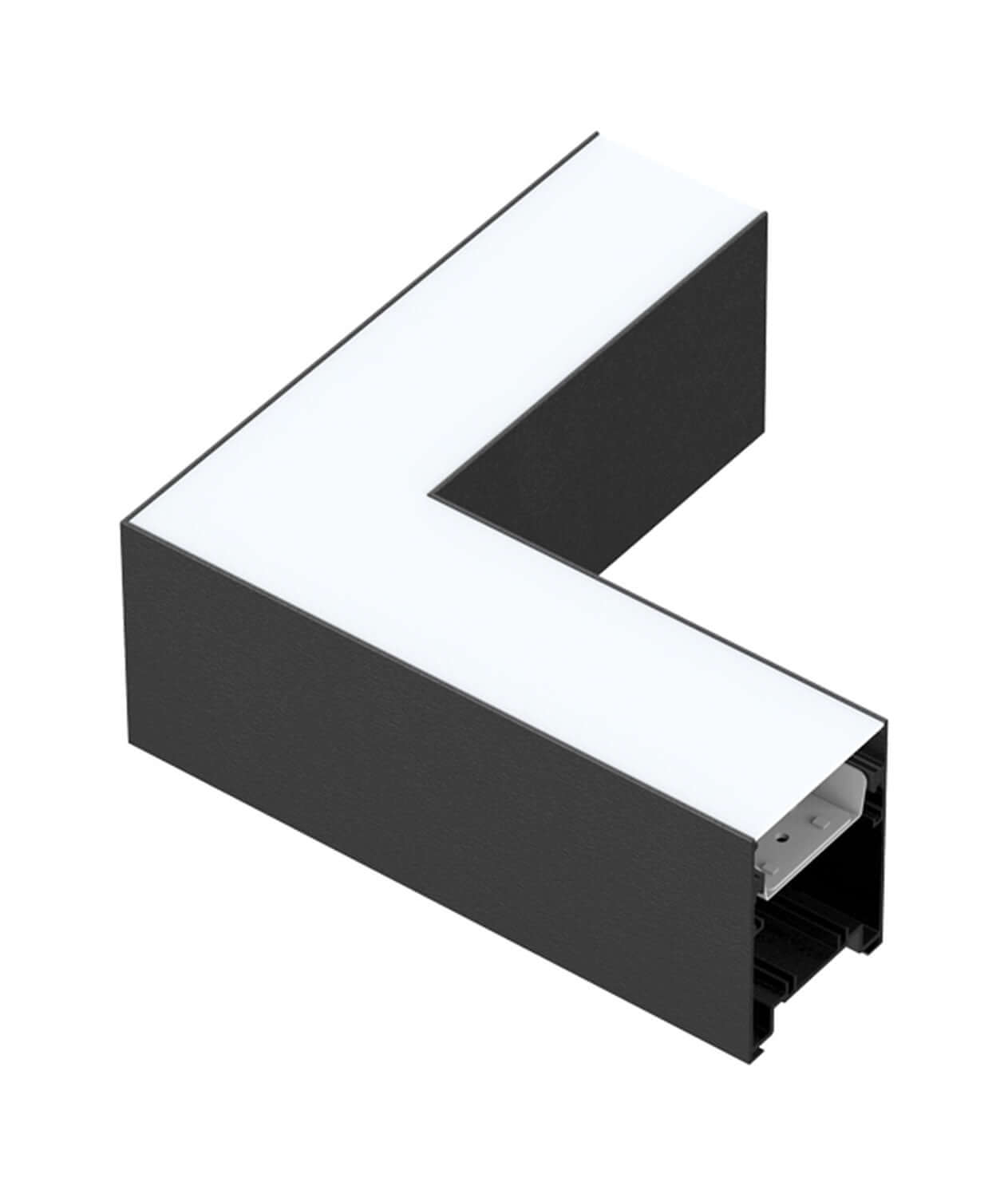

L-Shape Connector for Architectural Linear Fixture L-Shape Connector $24.00

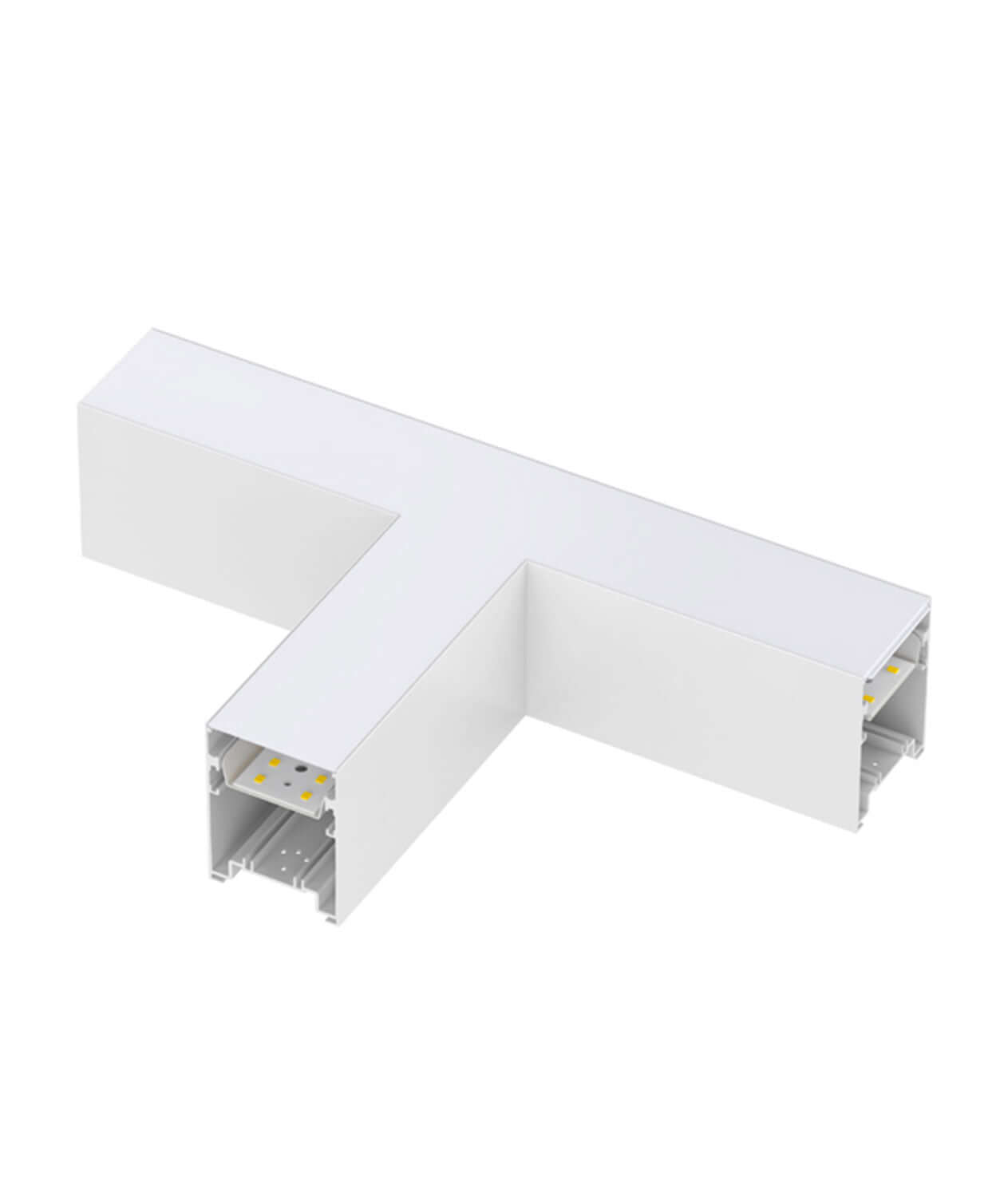

T-Shape Connector for Architectural Linear Fixture T-Shape Connector $29.75
X-Shape Connector for Architectural Linear Fixture X-Shape Connector $37.00
Linkable Kit for Linkable Runs Linkable Kit $2.50
Wall Mount Accessories Kit Wall Mount Kit $9.75
Product family Up/Down Linear – LS02
Factory controls No controls
Certifications ULDLC

JEE architectural up/down linear light. Four selectable wattages and three selectable CCTs, linkable with L, T and X connectors for continuous runs.

Specifications

Wattage
15 / 25 / 35 / 50 W
Lumens
1,950 / 3,250 / 4,550 / 6,500 lm
Efficacy
130 lm/W
Colour temperature
3500K / 4000K / 5000K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
> 80
Length
4ft

Electrical

  • AC120-277V
  • 0-10V dimming

Installation

  • Suspended or surface mount
  • Linkable for continuous rows

Ideal applications

  • Offices
  • Retail
  • Schools
  • Restaurants
  • Healthcare
  • Residential
  • Hospitality
