JEE 8in LED Slim Down Light 18W
- ETL Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | 8EJCT18SR05 |
| Fixture type | Down Lights |
| Family | 8in Downlight |
| Size | 8in |
| Color temperature (CCT) | 2700K, 3000K, 3500K, 4000K, 5000K |
| Input voltage | 120V |
| Certifications | ETL |
| Product dimensions | 8.82 in dia trim, 0.39 in thick, remote junction box driver |
| Case pack quantity | 24 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 17.92 x 12.52 x 18.9 in |
| Case pack weight | 34.4 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

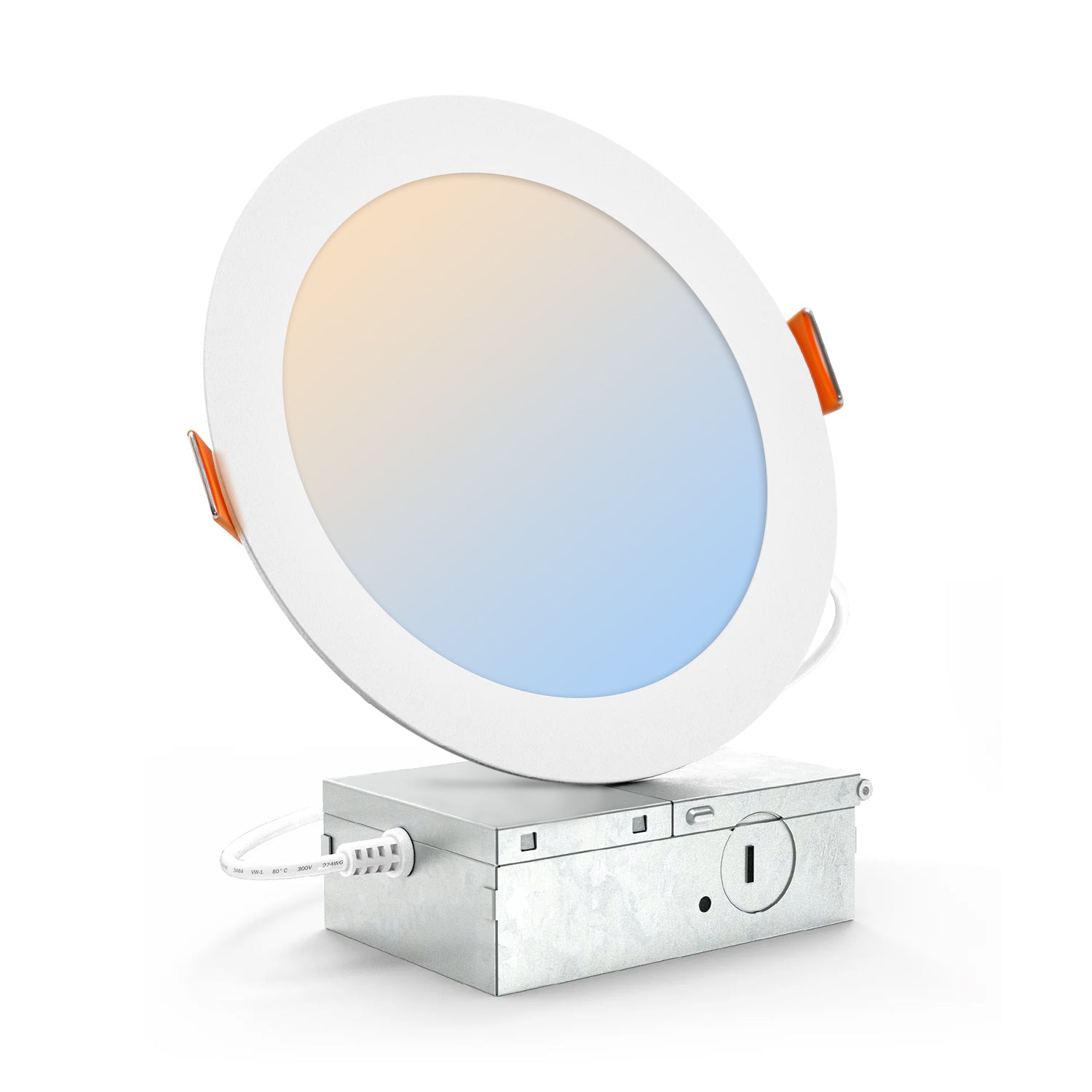

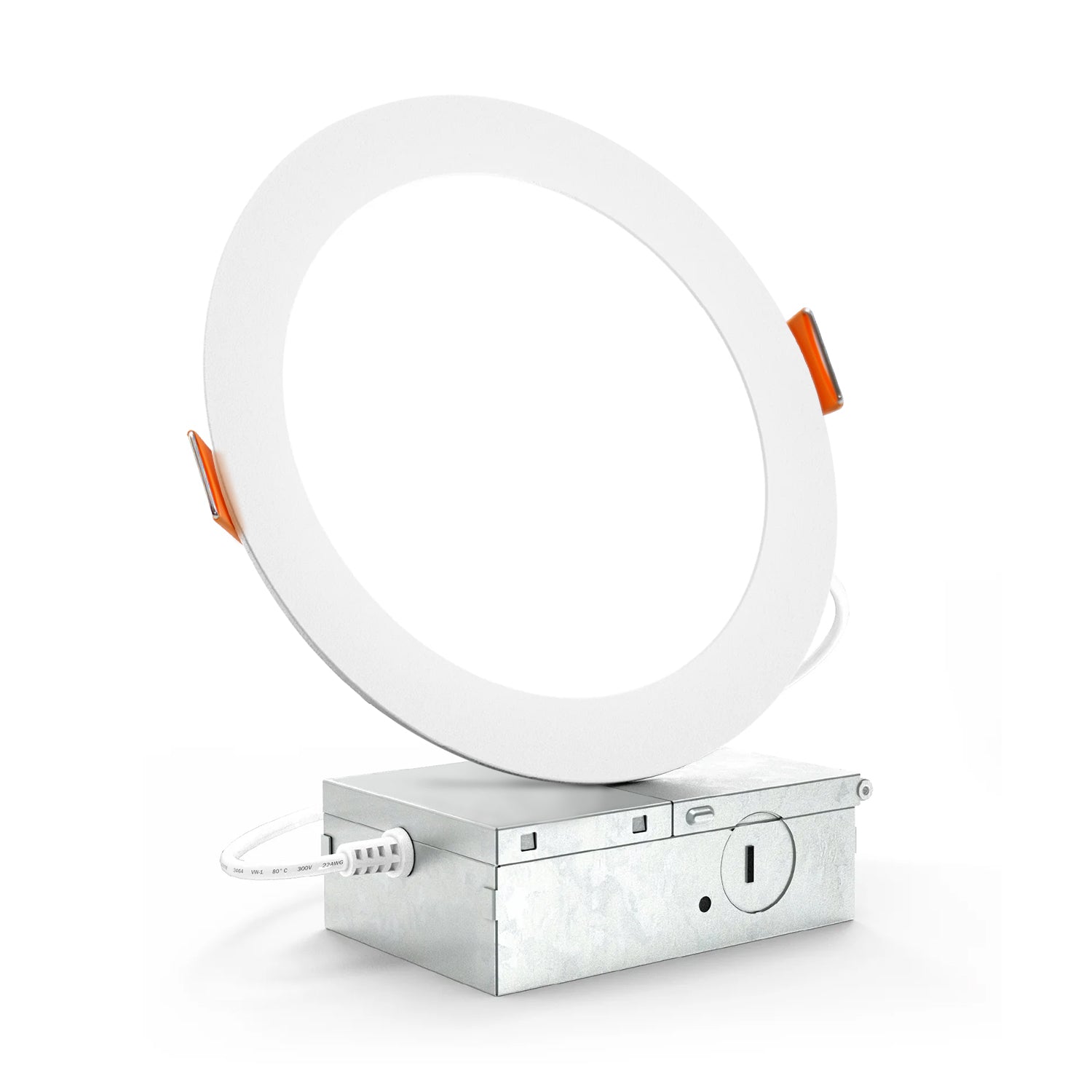

JEE 8in edge-lit slim recessed downlight with five selectable CCTs switched on the J-Box. Triac dimmable, instant on, no flicker.
- Edge-lit, no glare, no dark spots
- Five selectable CCTs on one SKU
- Triac dimming, continuous from 10%
- Instant on, no flicker
- ETL Listed and ENERGY STAR
- 5-year limited warranty
Specifications

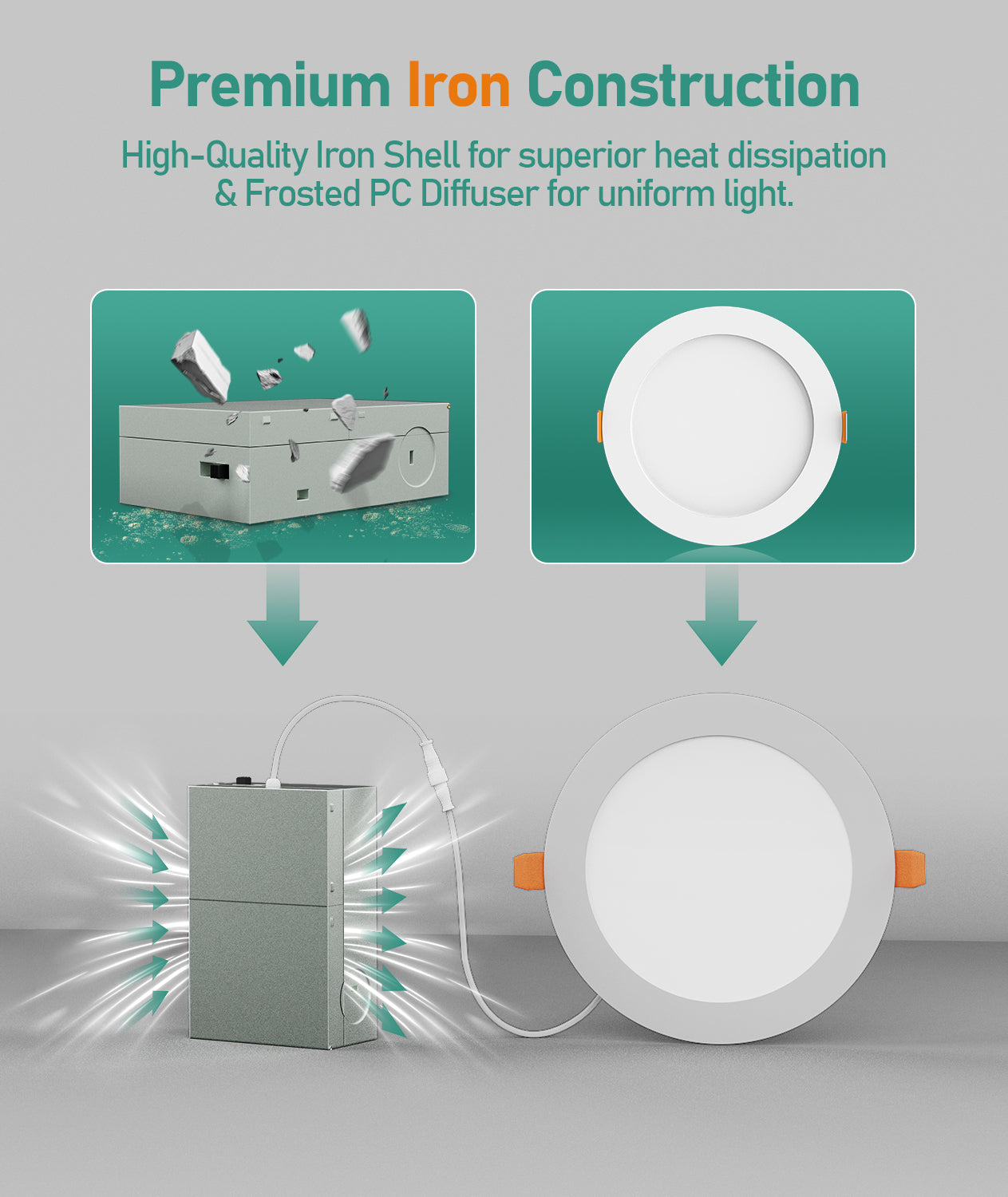

Construction
- Edge-lit technology, no glare or dark spots

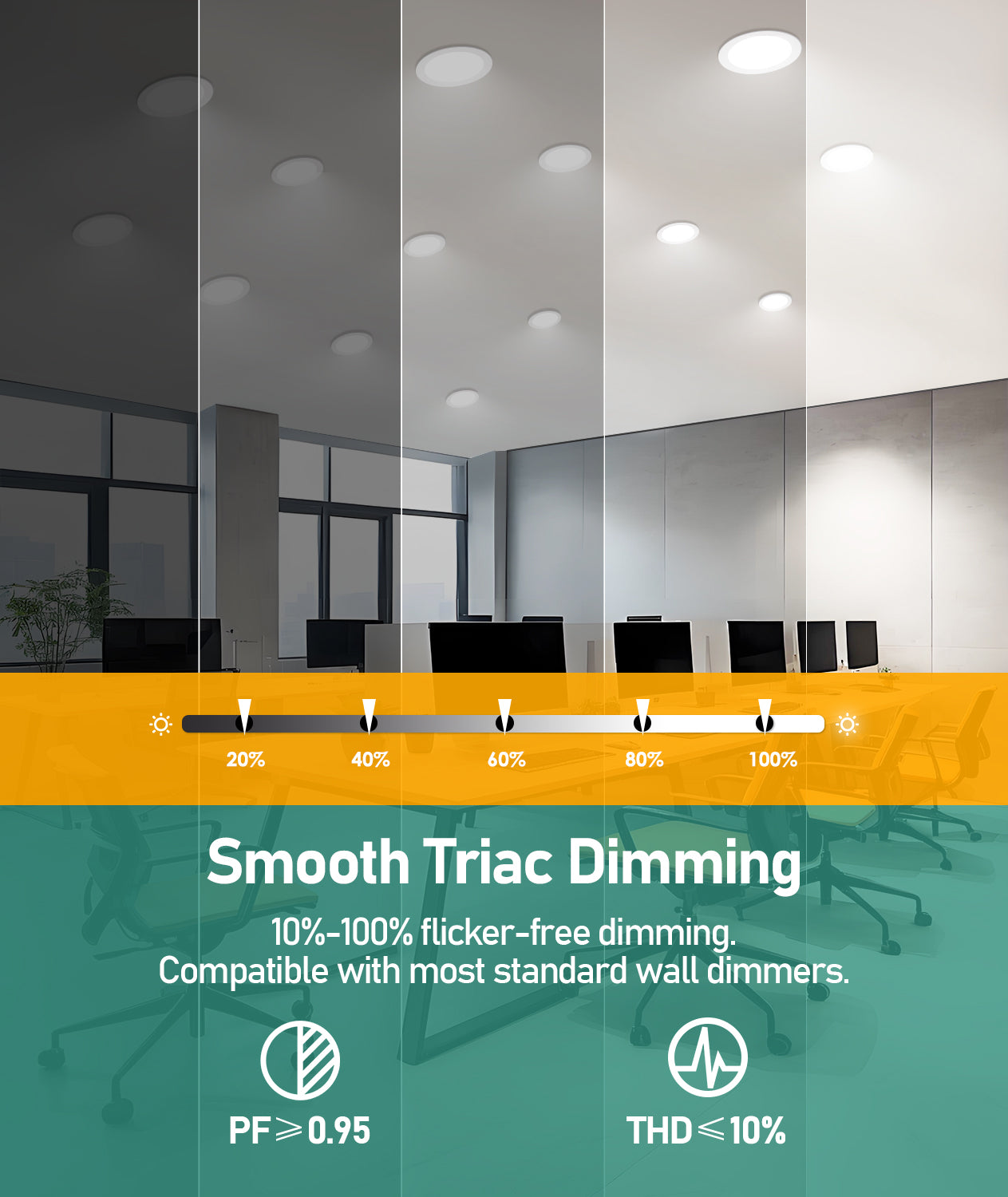

- Continuous dimming from 10% with many Triac dimmers
- Instant on
- No flicker
Electrical
- Input voltage AC120V 50/60Hz
- THD ≤ 10%, PF ≥ 0.95
- Triac dimming
Installation
- Recessed, spring-loaded clips pull the fixture flush
- J-Box inserts through the mounting hole and secures above the ceiling
- CCT selected with a switch on the J-Box
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
Downloads
Spec sheet (PDF): JEE-LED-Slim-Down-Light.pdf
Best uses
- Offices, retail, schools, restaurants, healthcare, residential and hospitality ceilings
- Ceilings where you want one downlight SKU that covers five colour temperatures
What's in the box
- One 8in slim downlight with spring-loaded clips
- Remote junction box with the CCT switch, connected to the fixture by a plug-in cable
Accessories you may need
- Cable clamps for the junction box knockouts (not included, per the installation steps)
- A Triac dimmer if you want dimming
- Spare junction box driver, connectors and a hole cutout card are listed as sold separately
Product FAQs
What size hole do I cut?
8 5/64 in (205mm).

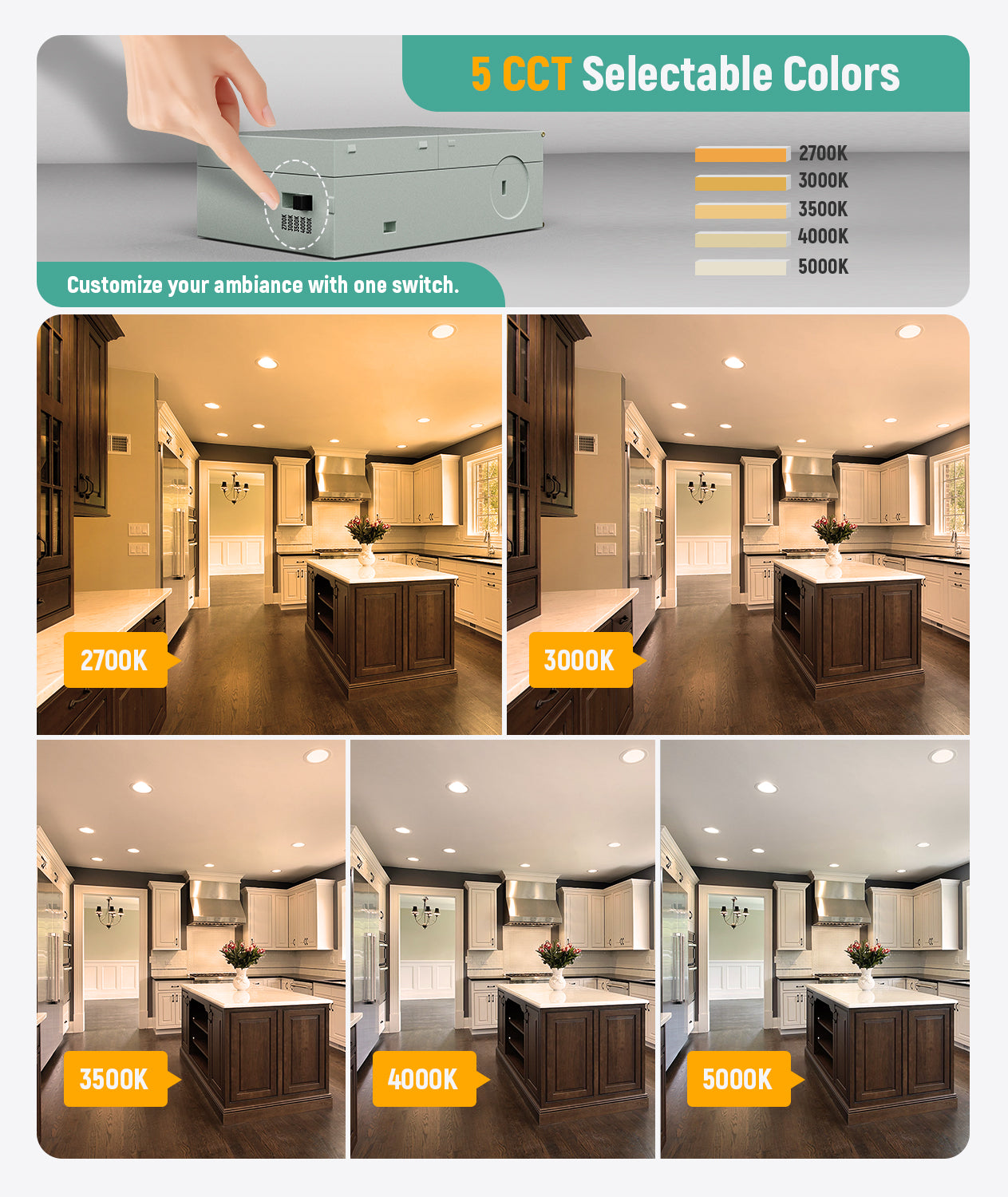

How do I change the colour temperature?
Flip the switch on the junction box: 2700K, 3000K, 3500K, 4000K or 5000K.
What voltage is it?
120V. Output is 18W and 1,504 lm.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 18 W. Color temperature: 2700K, 3000K, 3500K, 4000K, 5000K. Voltage: 120V.
Does it come with a sensor or controls?
It ships without built in controls.
What certifications does it have?
Listed by the manufacturer as: ETL.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
