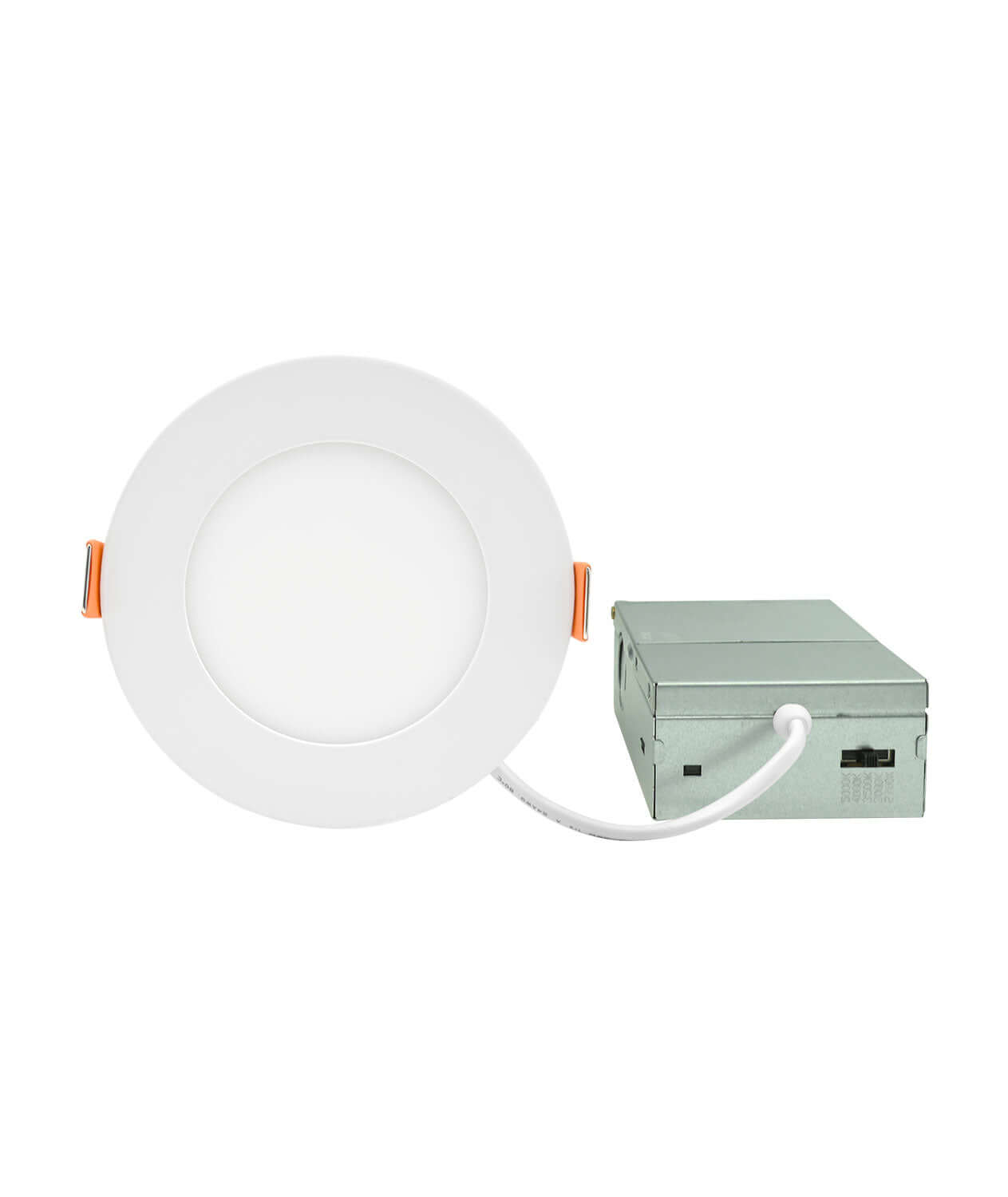

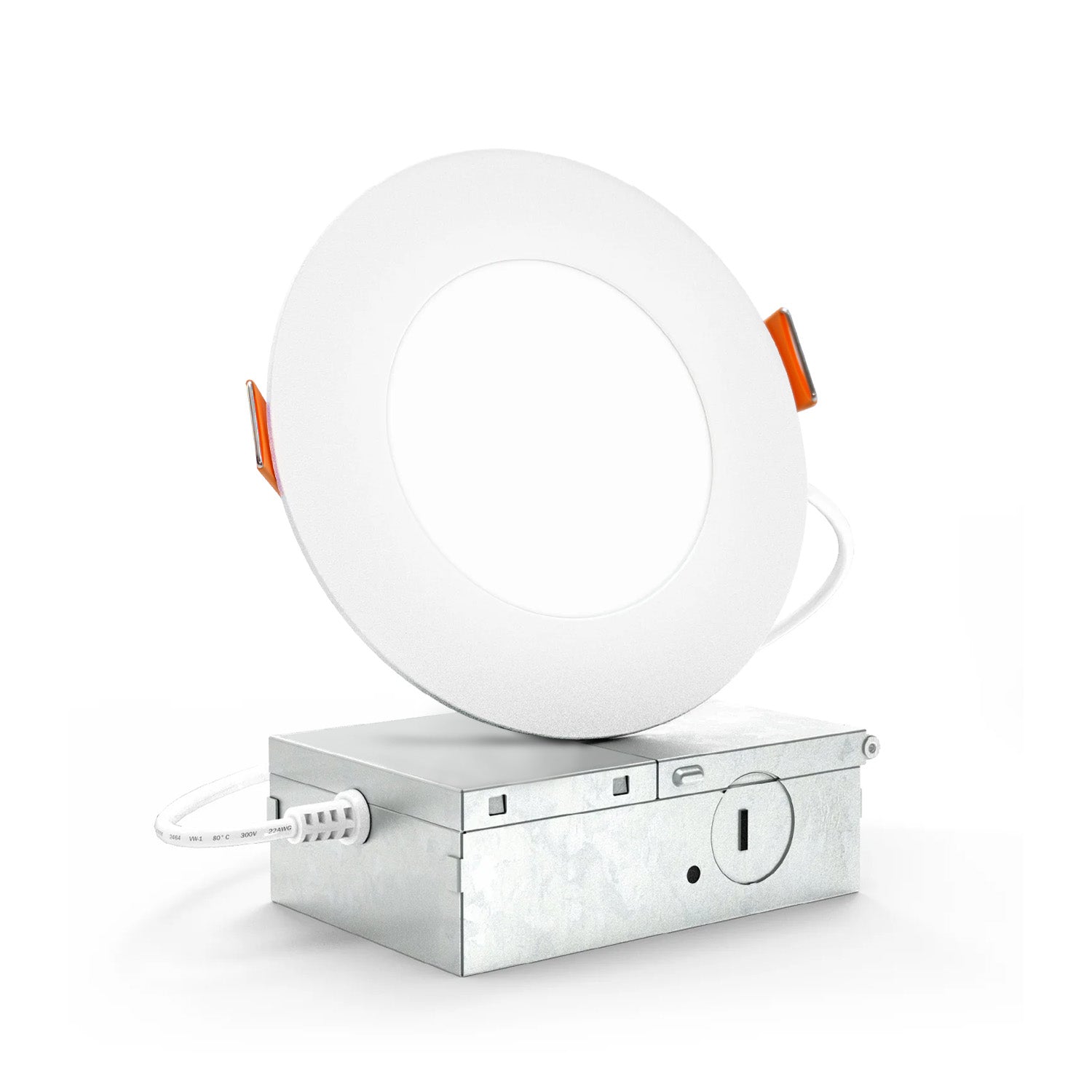

JEE 4in edge-lit slim recessed downlight with five selectable CCTs switched on the J-Box. Triac dimmable, instant on, no flicker.
- Edge-lit — no glare, no dark spots
- Five selectable CCTs on one SKU
- Triac dimming, continuous from 10%
- Instant on, no flicker
- ETL Listed and ENERGY STAR
- 5-year limited warranty
Specifications
Wattage
9 W
Lumens
752 lm
Efficacy
85 lm/W
Colour temperature
2700K / 3000K / 3500K / 4000K / 5000K
Voltage
120V
Dimming
Ø4.92" (125mm) x 0.39" deep
Warranty
5-year limited warranty
CRI
> 80
Ceiling cutout
4 21/64" (110mm)
Operating temp
-20°C to 45°C (-4°F to 113°F)
THD / PF
≤ 10% / ≥ 0.95
J-Box
3.94" x 2.68" x 1.34"
Minimum order
24 pcs

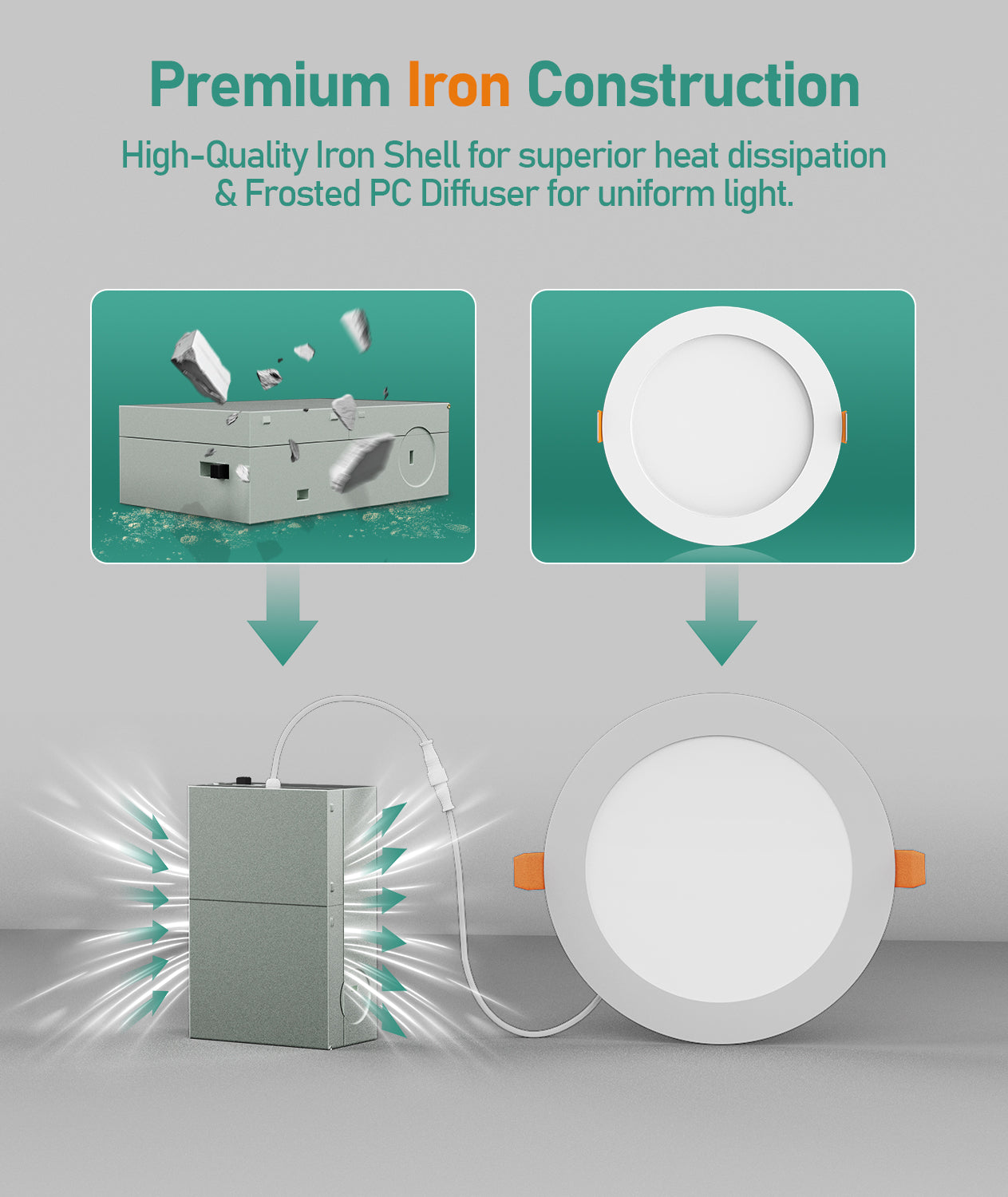

Construction
- Edge-lit technology, no glare or dark spots
- Continuous dimming from 10% with many Triac dimmers
- Instant on
- No flicker
Electrical
- Input voltage AC120V 50/60Hz
- THD ≤ 10%, PF ≥ 0.95
- Triac dimming
Installation
- Recessed, spring-loaded clips pull the fixture flush
- J-Box inserts through the mounting hole and secures above the ceiling
- CCT selected with a switch on the J-Box
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
