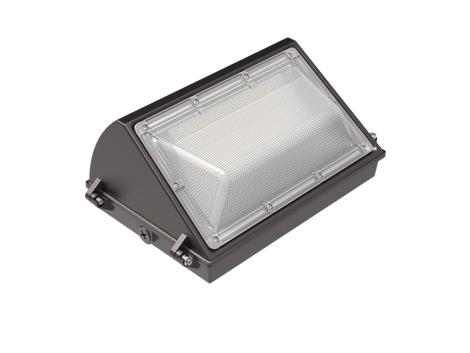

Gielight GL-WP4 LED Wall Pack 80-120W, Photocell
- UL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
Key specifications
| Manufacturer | Gielight |
|---|---|
| Model / part number | GL-WP4-120W-HY-5000K (WIth photocell) |
| Fixture type | Wall Packs |
| Family | Wall Pack |
| Color temperature (CCT) | 3000K, 4000K, 5000K |
| Input voltage | 120-277V |
| Controls | Photocell base |
| Certifications | UL, DLC |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
Die-cast wall pack with a photocell, three selectable wattages and three selectable CCTs on two DIP switches. Wall mount only, wet-location rated.
- 3 selectable wattages, 3 selectable CCTs on two DIP switches
- Photocell included
- UL Listed under file E503399
- DLC Premium
- Wet-location rated
- Rated life > 54,000 hours
- 5-year limited warranty
Specifications
Construction
- Die-cast aluminium body
- High-impact polycarbonate diffused lens
- 363.73 x 233.17 x 163mm
Electrical
- Input 120-277VAC
- PF > 0.95
- THD < 15% at full load
- Switch 1 sets CCT 3000/4000/5000K, Switch 2 sets power 80/100/120W
- 0-10V dimming
Installation
- Wall mount only
- Wet location rated
- Photocell fits the knockout beside the conduit plug
- Operating range -30°C to 40°C
Ideal applications
- Building facades
- Entryways
- Perimeter lighting
- Security
- Loading docks
Downloads
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 80 / 100 / 120 W. Color temperature: 3000K, 4000K, 5000K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Photocell base. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: UL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
