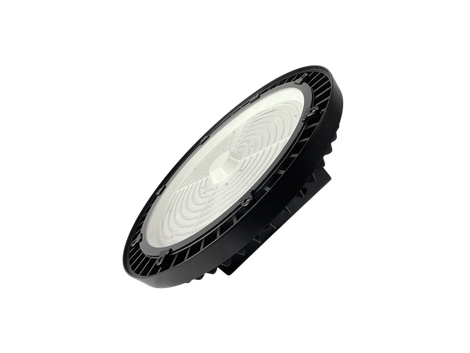

Gielight UFO-500 LED UFO High Bay 300-500W
- ETL Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
Key specifications
| Manufacturer | Gielight |
|---|---|
| Model / part number | UFO-500W-L-H-5000K |
| Fixture type | High Bays |
| Family | UFO High Bay |
| Color temperature (CCT) | 5000K |
| Input voltage | 120-277V |
| Certifications | ETL |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
500W-class LED UFO high bay with three selectable wattages and tempered glass over the PC lens, the highest output fixture in the Gielight line. It hangs from an eye hook and is built for very high ceilings in warehouses, distribution centers, manufacturing, gymnasiums and hangars. Important: it is rated IP50, so it is for indoor, dry locations only.
Key details
- Selectable 300, 400 or 500W by DIP switch, 45,000 to 75,000 lumens, up to 150 lm/W
- 5000K, CRI above 70
- 120 to 277V input, 0 to 10V dimming, power factor above 0.95
- Beam angle 92.4 degrees, tempered glass over PC lens
- IP50, indoor dry locations only; operating range -20°C to 40°C
- Eye-hook suspension
Specifications
Construction
- Die-cast radiator, powder coated, 2000-hour salt spray tested
- High-transmittance PC lens with tempered glass
- Large square driver box on top with an eye hook, two switch windows and two cable glands
Electrical
- Input 120-277VAC
- 0-10V dimming
- PF > 0.95 at full load
- Watt tunable 300/400/500W by DIP switch
Installation
- Eye-hook suspension
- IP50; indoor and dry locations only
- Operating range -20°C to 40°C
Ideal applications
- Warehouses
- Distribution centres
- Manufacturing
- Gymnasiums
- Hangars
- Big-box retail
Downloads
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 300 / 400 / 500 W. Color temperature: 5000K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls.
What certifications does it have?
Listed by the manufacturer as: ETL.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
