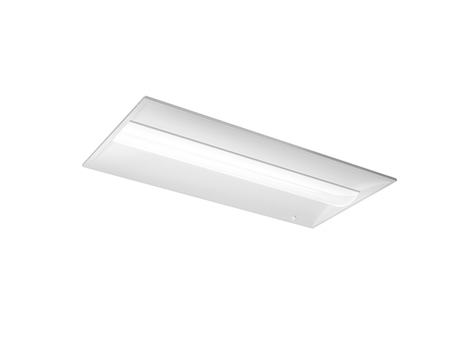

Gielight TTR5 2x4 LED Center Basket Troffer 30-72W
- ETL Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | Gielight |
|---|---|
| Model / part number | TTR5-24-72W-L-HY (with sensor base) |
| Fixture type | Panels & Center Baskets |
| Family | 2x4 Troffer |
| Size | 2x4 |
| Color temperature (CCT) | 3000K, 3500K, 4000K, 5000K, 6500K |
| Input voltage | 120-277V |
| Controls | Sensor base |
| Certifications | ETL |
| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
2x4 centre-basket troffer with five selectable wattages and five selectable CCTs on one SKU.
- 5 selectable wattages, 5 selectable CCTs on one SKU
- Centre-basket polycarbonate diffuser
- 0-10V dimming as standard
- PF > 0.95, THD < 20%
- Rated life > 54,000 hours
- 5-year limited warranty
Specifications
Construction
- White high-strength metal frame, seamless
- Polycarbonate centre-basket diffuser
- Centre basket softens the source and lifts the ceiling plane
Electrical
- Input 120-277VAC
- 0-10V dimming
- PF > 0.95, THD < 15% at full load
- 5 selectable wattages and 5 selectable CCTs on the driver
Installation
- Recessed into a conventional grid ceiling
- Surface mount kit available separately
- Operating range -30°C to 40°C (-22°F to 104°F)
Ideal applications
- Offices
- Schools
- Healthcare
- Retail
- Government
Downloads
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 30 / 40 / 50 / 60 / 72 W. Color temperature: 3000K, 3500K, 4000K, 5000K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Sensor base. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: ETL.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
