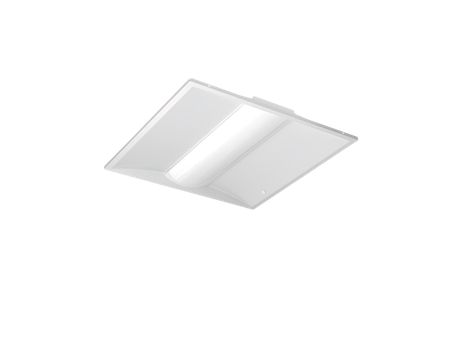

Gielight TTR5 2x2 LED Center Basket Troffer 20-40W, Sensor Base
Product Number:TTR5-22-40W-L-H (with sensor base)
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
2x2 centre-basket troffer with a factory sensor base. Built as a 2x2 on the -22 in the part number: the price list's size cell and its 30-72W wattage cell are both wrong for this SKU, so the wattages come from the TTR5 sheet's 2x2 tiers.
- 5 selectable wattages, 5 selectable CCTs on one SKU
- Factory sensor base fitted
- Centre-basket polycarbonate diffuser
- 0-10V dimming as standard
- 5-year limited warranty
Specifications
Wattage
20 / 25 / 30 / 35 / 40 W
Lumens
2,600 – 5,200 lm
Efficacy
up to 130 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
Ra ≥ 80
Power factor
> 0.95
THD
< 20% at full load
Rated life
> 54,000 hours
Size
Built as 2x2 on the -22 in the part number. The price list size cell reads 2x4 and its wattage cell reads 30-72W; both are wrong for this SKU.
Lumens
calculated from rated efficacy
Sensor jack
This fixture takes a PLUG & PLAY sensor module, not an audio-jack head. The spec sheet's options block calls for a Haisen HD-series microwave motion sensor with an infrared remote: remove the plastic plug and the module drops into the aligned base. Detection is 5.8GHz, installation height to 6m/19.68ft, detection distance 3m/9ft or more, and the module carries its own dusk/dawn photocell and daylight harvesting. The sheet prints HD08VR-MA-1 and HD05R; Gielight stocks this family under the part numbers listed here, so confirm the exact variant on your quote.
Construction
- White high-strength metal frame, seamless
- Polycarbonate centre-basket diffuser
- Centre basket softens the source and lifts the ceiling plane
Electrical
- Input 120-277VAC
- 0-10V dimming
- PF > 0.95, THD < 15% at full load
- 5 selectable wattages and 5 selectable CCTs on the driver
Installation
- Recessed into a conventional grid ceiling
- Surface mount kit available separately
- Operating range -30°C to 40°C (-22°F to 104°F)
Ideal applications
- Offices
- Schools
- Healthcare
- Retail
- Government
