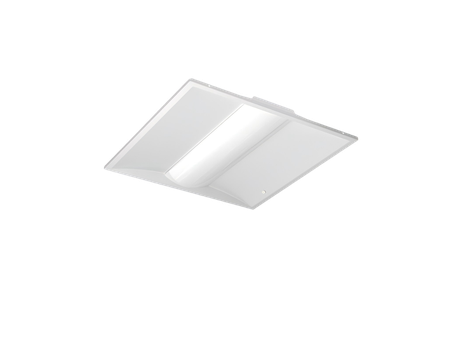

Gielight TTR5 2x2 LED Center Basket Troffer 20-40W
Product Number:TTR5-22-40W-L-H
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
2x2 centre-basket troffer with five selectable wattages and five selectable CCTs on one SKU.
- 5 selectable wattages, 5 selectable CCTs on one SKU
- Centre-basket polycarbonate diffuser
- 0-10V dimming as standard
- PF > 0.95, THD < 20%
- Rated life > 54,000 hours
- 5-year limited warranty
Specifications
Wattage
20 / 25 / 30 / 35 / 40 W
Lumens
2,600 – 5,200 lm
Efficacy
up to 130 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
Ra ≥ 80
Power factor
> 0.95
THD
< 20% at full load
Rated life
> 54,000 hours
Operating temp
-30°C to 40°C
Sheet photo
The TTR5 sheet prints a smooth dished diffuser. The product is a centre basket, as shown here — the sheet's specs are correct, its photo is not.
Lumens
calculated from rated efficacy
Sensor
This SKU has no sensor base. Gielight sells the same fixture with a factory sensor base under its own part number — order that version if you need occupancy or daylight control.
Construction
- White high-strength metal frame, seamless
- Polycarbonate centre-basket diffuser
- Centre basket softens the source and lifts the ceiling plane
Electrical
- Input 120-277VAC
- 0-10V dimming
- PF > 0.95, THD < 15% at full load
- 5 selectable wattages and 5 selectable CCTs on the driver
Installation
- Recessed into a conventional grid ceiling
- Surface mount kit available separately
- Operating range -30°C to 40°C (-22°F to 104°F)
Ideal applications
- Offices
- Schools
- Healthcare
- Retail
- Government
