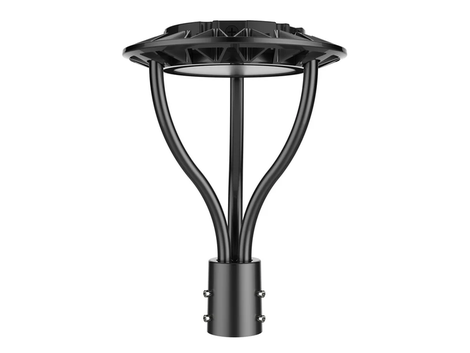

Gielight GL-SX4 LED Post Top 50-150W, Photocell
Product Number:GL-SX4-150W-H (WIth photocell)
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
Post top area light with a built-in light-sensor switch, five selectable wattages and three selectable CCTs. Sized for 3-6m poles on paths, parking lots, parks and yards.
- 5 selectable wattages, 3 selectable CCTs
- Built-in photocell switch — no separate sensor to buy
- UL Listed under file E503400
- DLC listed
- IP65, wet rated
- 5-year limited warranty
Specifications
Wattage
50 / 80 / 100 / 120 / 150 W
Lumens
7,500 – 22,500 lm
Efficacy
up to 150 lm/W
Colour temperature
3000K / 4000K / 5000K
Voltage
120–277V
Dimming
488.5mm x 361.5mm, 65mm deep
Warranty
5-year limited warranty
CRI
Ra > 70
Power factor
> 0.9
THD
< 20%
Working current
1.25A
IP rating
IP65
Dimensions
488.5 x 361.5 x 65mm
Lumens
calculated from rated efficacy
Construction
- Three curved S-type support rods into a round pole bracket
- 488.5 x 361.5 x 65mm body
Electrical
- Input AC120-277V
- Working current 1.25A
- PF > 0.9
- THD < 20%
- Watt tunable 50/80/100/120/150W, CCT tunable 3000/4000/5000K
Installation
- Fits 3-6m poles
- IP65, wet rated
- Built-in light sensor switch with an on/off toggle
Ideal applications
- Parking lots
- Parks
- Bicycle paths
- Yards
- Campuses
- Walkways
