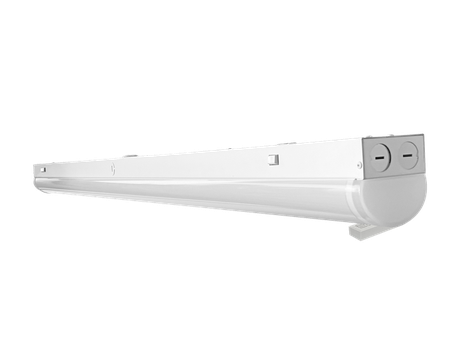

Gielight GL-ST01 4ft LED Linear Strip 30-70W, Sensor Base
Product Number:GL-ST01-70W-H-5000K （with sensor base）
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
4ft linear strip on the GL-ST01 build — same housing as the ST- series above, stepped up to five wattages, five CCTs and 150 lm/W on a UL file rather than ETL. Ships with the sensor base fitted; the sensor head is ordered separately.
- 5 selectable wattages, 5 selectable CCTs
- 150 lm/W — the highest-efficacy strip in the line
- UL Listed under file E503400
- 0-10V dimming as standard
- 5-year limited warranty
Specifications
Wattage
30 / 40 / 50 / 60 / 70 W
Lumens
4,500 – 10,500 lm
Efficacy
up to 150 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Dimming
48.03" x 2.95" x 2.99" (1220 x 75 x 76mm)
Warranty
5-year limited warranty
Power factor
> 0.9
Dimensions
48.03" x 2.95" x 2.99" (1220 x 75 x 76mm)
Housing
Identical to the ST- series; the two lines differ on efficacy, listing and wattage steps, not on the body
Lumens
calculated from rated efficacy
Sensor jack
This fixture takes 3.5mm-jack sensor heads. Only 3.5mm parts are offered here — a 2.5mm head will not seat in this base. The size comes from the models this fixture's own spec sheet names.
Construction
- Same housing as the ST- series — 2.95" x 2.99" (75 x 76mm) section
- 4FT overall 1220mm; 8FT overall 2438mm
- Frosted lens with a screw-free end cover
Electrical
- Input 120-277VAC
- 0-10V dimmable driver
- PF > 0.9
- Five selectable wattages and five selectable CCTs
Installation
- Surface mount, suspended, or recessed
- Sensor and Bluetooth modules can be fitted in the field
- Sensor base wiring: black and white VCC, pink GND, purple 0-10V
Ideal applications
- Warehouses
- Workshops
- Retail stockrooms
- Corridors
- Parking structures
- Utility rooms
Downloads
Spec sheet (PDF) — Gielight-LED-Linear-Strip-GL-ST01-ST03.pdf
