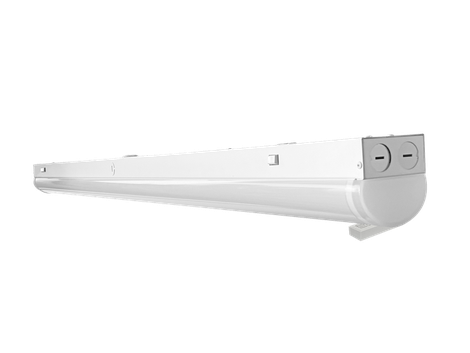

Gielight ST 8ft LED Linear Strip 60-80W, 8W Emergency Driver
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | Gielight |
|---|---|
| Model / part number | ST-8FT-80W-L-H with sensor base With 8W emergency driver |
| Fixture type | Strip Lights |
| Family | 8ft Linear Strip |
| Size | 8ft |
| Color temperature (CCT) | 3500K, 4000K, 5000K, 6500K |
| Input voltage | 120-277V |
| Controls | Sensor base; Emergency battery |
| Certifications | ETL, DLC |
| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
8ft linear strip on the ST- housing, three selectable wattages and four selectable CCTs. Sensor base fitted and a factory 8W emergency driver included.
- 3 selectable wattages, 4 selectable CCTs
- Surface, suspended or recessed mounting
- 0-10V dimming as standard
- DLC listed
- 5-year limited warranty
Specifications
Construction
- Steel housing, 2.95" x 2.99" (75 x 76mm) section
- 4FT overall 48.03" (1220mm); 8FT overall 95.98" (2438mm)
- Frosted lens with a screw-free end cover
Electrical
- Input 120-277VAC
- 0-10V dimmable driver
- PF > 0.9
- Power selectable by DIP; CCT selectable across five steps
Installation
- Surface mount, suspended, or recessed
- Sensor and Bluetooth modules can be fitted in the field
- Sensor base wiring: black and white VCC, pink GND, purple 0-10V
Ideal applications
- Warehouses
- Workshops
- Retail stockrooms
- Corridors
- Parking structures
- Utility rooms
Downloads
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 60 / 70 / 80 W. Color temperature: 3500K, 4000K, 5000K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Sensor base, Emergency battery. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
