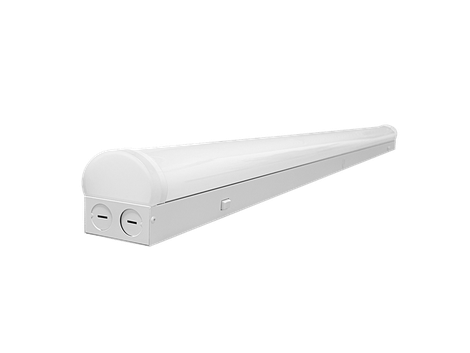

Gielight ST 8ft LED Linear Strip 60-80W, No Sensor Base
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | Gielight |
|---|---|
| Model / part number | ST-8FT-80W-L-H |
| Fixture type | Strip Lights |
| Family | 8ft Linear Strip |
| Size | 8ft |
| Color temperature (CCT) | 3500K, 4000K, 5000K, 6500K |
| Input voltage | 120-277V |
| Certifications | ETL, DLC |
| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
8ft linear strip on the ST- housing, three selectable wattages and four selectable CCTs.
- 3 selectable wattages, 4 selectable CCTs
- Surface, suspended or recessed mounting
- 0-10V dimming as standard
- DLC listed
- 5-year limited warranty
Specifications
Construction
- Steel housing, 2.95" x 2.99" (75 x 76mm) section
- 4FT overall 48.03" (1220mm); 8FT overall 95.98" (2438mm)
- Frosted lens with a screw-free end cover
Electrical
- Input 120-277VAC
- 0-10V dimmable driver
- PF > 0.9
- Power selectable by DIP; CCT selectable across five steps
Installation
- Surface mount, suspended, or recessed
- Sensor and Bluetooth modules can be fitted in the field
- Sensor base wiring: black and white VCC, pink GND, purple 0-10V
Ideal applications
- Warehouses
- Workshops
- Retail stockrooms
- Corridors
- Parking structures
- Utility rooms
Downloads
Spec sheet (PDF) — Gielight-LED-Linear-Strip-ST.pdf
Best uses
- Long runs of linear light where you want to choose the output and colour on site
- Surface, suspended or recessed installs
- Projects that do not need a sensor
What's in the box
- One 8ft linear strip, 95.98 x 2.95 x 2.99 in
- The spec sheet does not list included mounting hardware
Accessories you may need
- Mounting hardware for your method: anchors and screws for surface mount, or ceiling hooks and safety rope for suspension
- Connection bracket to join runs
- Optional emergency LED driver (100-347V)
- Need a sensor? Order the version with sensor base
Product FAQs
Can I set the wattage and colour on site?
Yes. Switch 1 selects 60, 70 or 80W and Switch 2 selects 3500K, 4000K, 5000K, 5700K or 6500K.
How can it be installed?
Surface mounted, suspended or recessed.
What voltage does it take?
120-277V with a 0-10V dimmable driver.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 60 / 70 / 80 W. Color temperature: 3500K, 4000K, 5000K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls. Compatible sensors and accessories are listed under Complete your setup on this page.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
