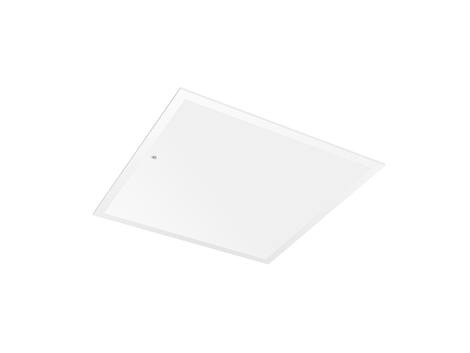

Gielight GL-PL05 2x2 LED Panel 30-72W, Sensor Base
Product Number:GL-PL05-72W-HY （with sensor base）
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
2x2 panel with a factory sensor base, five selectable wattages and five selectable CCTs. Built as a 2x2 because that is what the price list's size cell prints and the part number carries no size token. No GL-PL05 spec sheet exists.
- 5 selectable wattages, 5 selectable CCTs
- Factory sensor base fitted
- 0-10V dimming
- No spec sheet on file — figures as printed on the price list
Specifications
Wattage
30 / 40 / 50 / 60 / 72 W
Lumens
3,900 – 9,350 lm
Efficacy
up to 130 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Warranty
5-year limited warranty
Spec sheet
None on file
Wattage
The price list gives this 2x2 a 30-72W range, which is the range Gielight uses on its 2x4 panels — a 2x2 at 72W would be unusually high. Size follows the price list's size cell; confirm the wattage steps on your quote.
Sensor jack
This fixture takes a PLUG & PLAY sensor module, not an audio-jack head. The spec sheet's options block calls for a Haisen HD-series microwave motion sensor with an infrared remote: remove the plastic plug and the module drops into the aligned base. Detection is 5.8GHz, installation height to 6m/19.68ft, detection distance 3m/9ft or more, and the module carries its own dusk/dawn photocell and daylight harvesting. The sheet prints HD08VR-MA-1 and HD05R; Gielight stocks this family under the part numbers listed here, so confirm the exact variant on your quote.
Ideal applications
- Offices
- Schools
- Healthcare
- Retail
- Government
