Gielight GL-HB11 4ft LED Linear High Bay 255-300W
Product Number:GL-HB11-300W-L
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
4ft linear high bay, three selectable wattages from 255W to 300W. Integrated stamping build. Note this is a different fixture from the GL-HB11-320W-L despite the near-identical name — different wattage tiers, different driver efficiency, its own spec sheet.
- 3 selectable wattages (255/275/300W), 2 selectable CCTs
- UL Listed under file E503399
- LM79 and LM80 tested
- UGR < 28
- PF > 0.95, driver efficiency > 92%
- 5-year limited warranty
Specifications
Wattage
255 / 275 / 300 W
Lumens
35,700 – 42,000 lm
Efficacy
up to 140 lm/W
Colour temperature
4000K / 5000K
Voltage
120–277V
Dimming
47.76" x 11.02" x 1.89" (1213 x 280 x 48mm)
Warranty
5-year limited warranty
CRI
Ra > 80
Power factor
> 0.95
THD
< 20%
Driver efficiency
> 92%
Input current
2.5A
Dimensions
47.76" x 11.02" x 1.89" (1213 x 280 x 48mm)
Lumens
calculated from rated efficacy
Sensor jack
This fixture takes 3.5mm-jack sensor heads. Only 3.5mm parts are offered here — a 2.5mm head will not seat in this base. The size comes from the models this fixture's own spec sheet names.
Construction
- Integrated stamping design with a light-transmittance PC cover
- UGR < 28

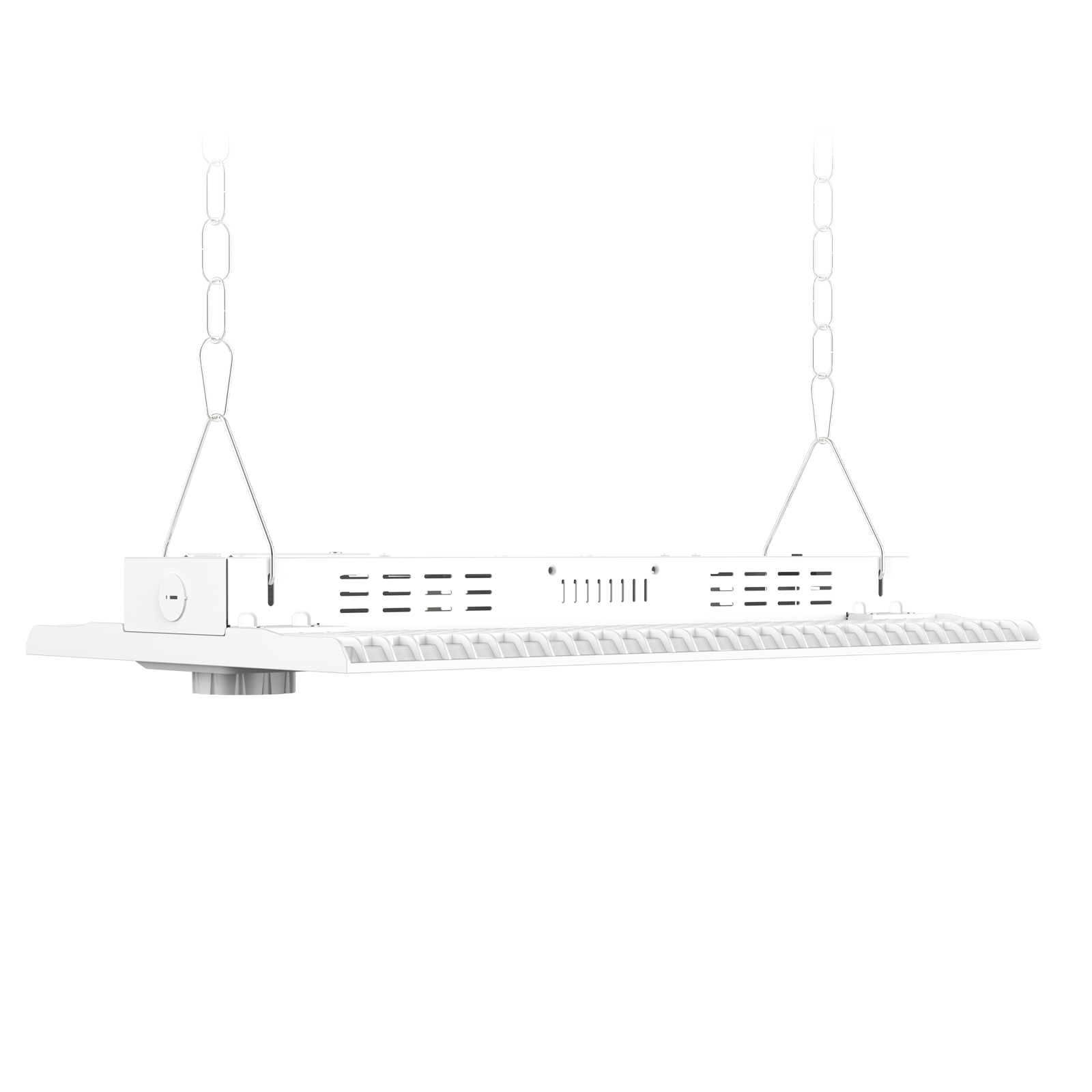

- Hanging installation on Y-shape stainless steel rope
Electrical
- 0-10V dimming, flicker free
- PF > 0.95, driver efficiency > 92%, THD < 20%
- Watt tunable on Switch 1, CCT tunable on Switch 2
Installation
- Suspended from ceiling hooks through the slotted holes
- Sensor fits under the dust-proof cover
- Emergency battery can be added at the factory
Ideal applications
- Warehouses
- Distribution centres
- Manufacturing
- Gymnasiums
- Hangars
- Big-box retail
