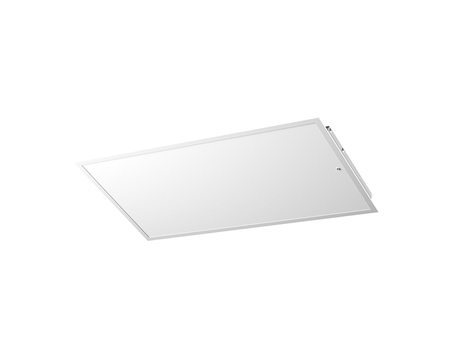

Gielight BPL5 2x4 Back-Lit LED Panel 30-72W
- ETL Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | Gielight |
|---|---|
| Model / part number | BPL5-24-72W-L-H (with sensor base) |
| Fixture type | Panels & Center Baskets |
| Family | 2x4 Panel |
| Size | 2x4 |
| Color temperature (CCT) | 3000K, 3500K, 4000K, 5000K, 6500K |
| Input voltage | 120-277V |
| Controls | Sensor base |
| Certifications | ETL |
| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
2x4 back-lit panel, five selectable wattages and five selectable CCTs on one SKU. Ships with the sensor base fitted; the sensor head is ordered separately.
- 5 selectable wattages, 5 selectable CCTs on one SKU
- Back-lit — no hot spots or dark bands
- 0-10V dimming as standard
- PF > 0.95, THD < 15%
- Rated life > 54,000 hours
- 5-year limited warranty
Specifications
Construction
- White high-strength metal frame, seamless
- PMMA lens with polystyrene diffuser — no hot spots, shadows or glare
- Back-lit construction for even output across the face
Electrical
- Input 120-277VAC
- 0-10V dimming
- PF > 0.95, THD < 15% at full load
- 5 selectable wattages and 5 selectable CCTs on the driver
Installation
- Recessed into a conventional grid ceiling
- Surface mount kit available separately
- Operating range -30°C to 40°C (-22°F to 104°F)
Ideal applications
- Offices
- Schools
- Healthcare
- Retail
- Government
Downloads
Spec sheet (PDF) — Gielight-Back-Lit-LED-Panel-BPL5.pdf
Best uses
- Education, healthcare and office ceilings
- Recessed installs in grid ceilings
- Spaces where you may want occupancy or daylight control later, using the sensor base
What's in the box
- One 2x4 back-lit panel with the sensor base fitted (sensor module not included)
Accessories you may need
- Plug and play sensor module from the spec sheet options: HD08VR-MA-1 microwave sensor or HD08VR-MB-1 app control sensor
- HD05R infrared remote for setting the sensor
- A 0-10V dimmer if you want dimming
Product FAQs
How do I add a sensor?
Remove the plastic plug on the sensor base and insert the sensor module.
Can I set the wattage and colour on site?
Yes. Wattage selects 30, 40, 50, 60 or 72W, and colour selects 3000K, 3500K, 4000K, 5000K or 6500K.
What voltage does it take?
120-277V with 0-10V dimming.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 30 / 40 / 50 / 60 / 72 W. Color temperature: 3000K, 3500K, 4000K, 5000K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Sensor base. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: ETL.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
