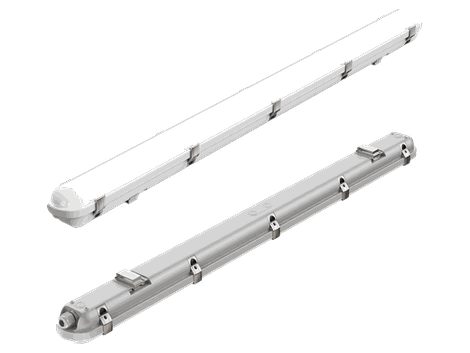

Vapor Tight G4 4ft 50W 150lm/W 7500lm Linear Ambient, Lowbay EM 8W
Product Number:EDI-VP-4FT50W-xxK G4 EM
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
Vapor Tight Sensor — HD027VCR
EDI-VP-HD027VCR
$10.00
Emergency Battery — 8W
EDI-VP-EM8W
$49.25
Vapor Tight G4 4ft 50W 150lm/W 7500lm Linear Ambient, Lowbay EM 8W
- IP65 rated
- 0-10V dimming
- Field-selectable CCT
Specifications
Wattage
20 / 25 / 35 / 40 / 50 W
Lumens
7,500 lm
Efficacy
150 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 5700K / 6500K
Voltage
120-277V
Dimming
0-10V Dimming
Rated life
L70 ≥ 50,000 hours
Warranty
5-year limited warranty
DLC Product ID
S-T6848R
S-G4M0YS
IP Rating
IP65
LED
- LEDs: LED system with a life rating of ≥50,000 hours at L70 @25°C. Luminaire efficacy >140lm/W
Construction
- Construction: Traditional design, narrow body, Vapor Tight fixture, suitable for rugged, demanding applications Item L×W×H (inch) IP rating: Ingress Protection rating of IP65 for dust and 2 ft. 23.62” x 4.33” x 3.15” water. 4 ft. 47.24” x 4.33” x 3.15”
Installation
- Mounting: Surface mounted and cable suspended 8 ft. 94.50” x 3.74” x 3.30” available
Electrical
- Electrical: 120-277V/347V, 0-10V Dimming PF ≥0.9, THD≤20%
- CCT: 1CCT/3CCT/5CCT Options
Optics
- Lens: UV-stabilized, injection-molded, impact-resistant polycarbonate lens
Downloads
Spec sheet (PDF) — EDIPAI-LED-Vapor-Tight-G4-FEB-27-2025.pdf
