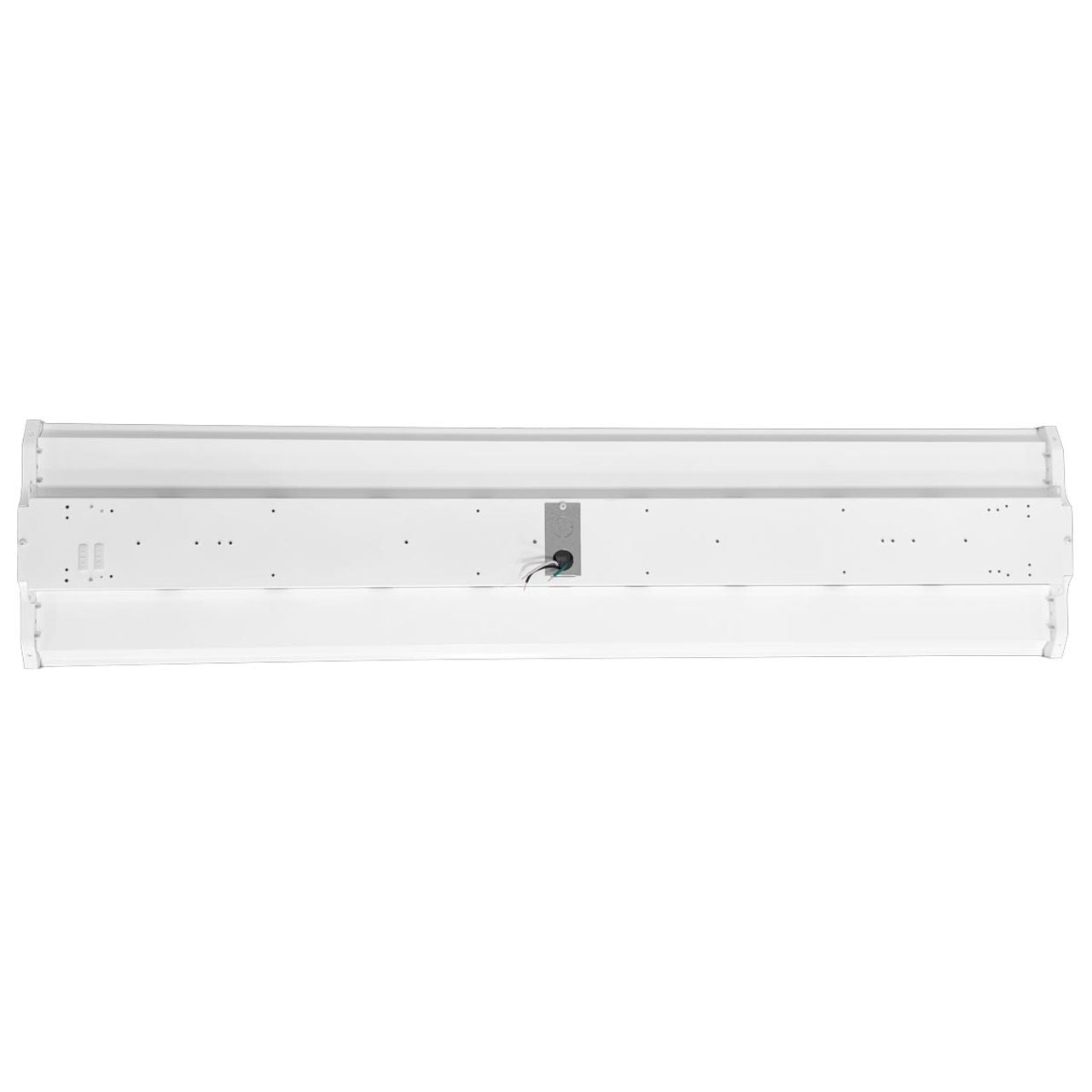

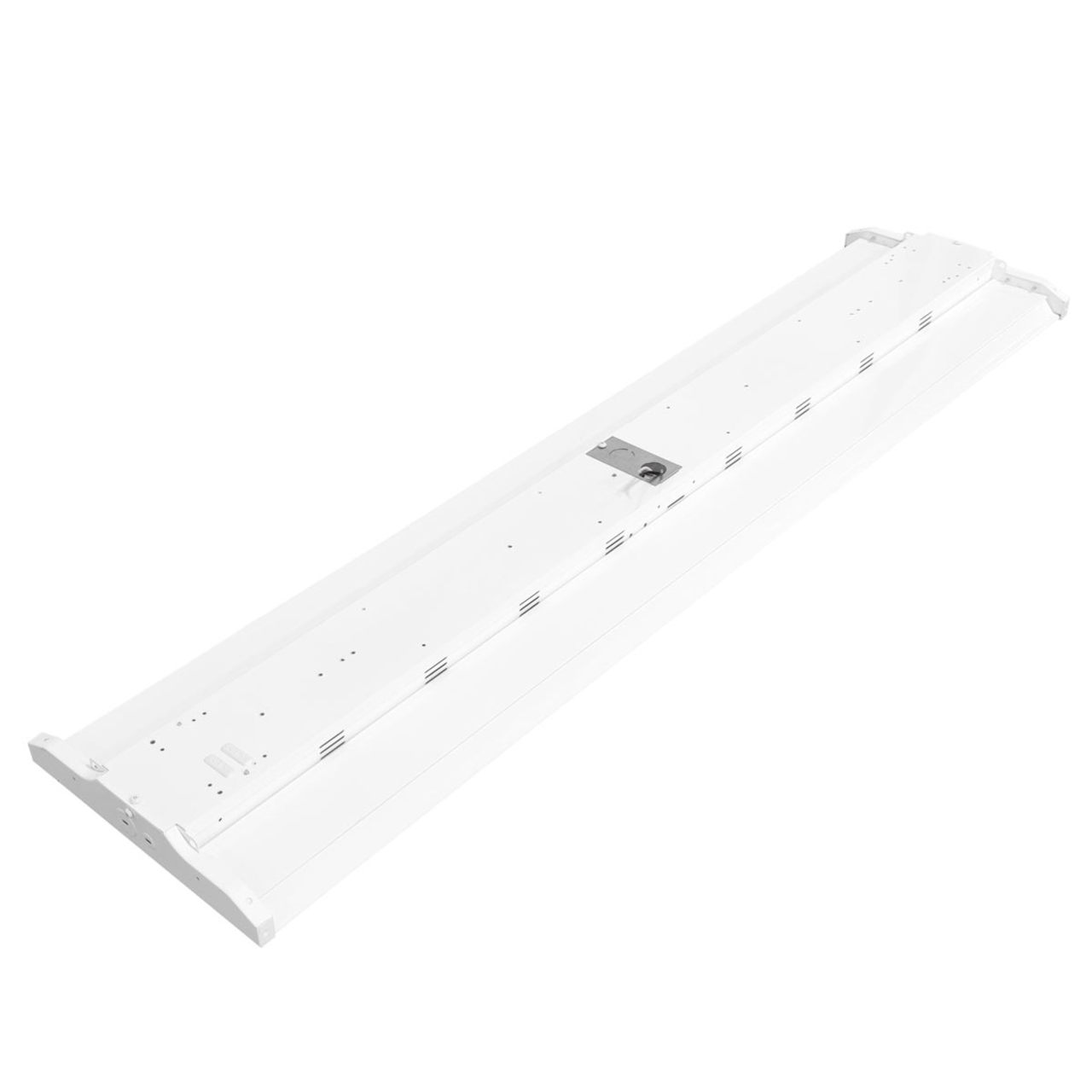

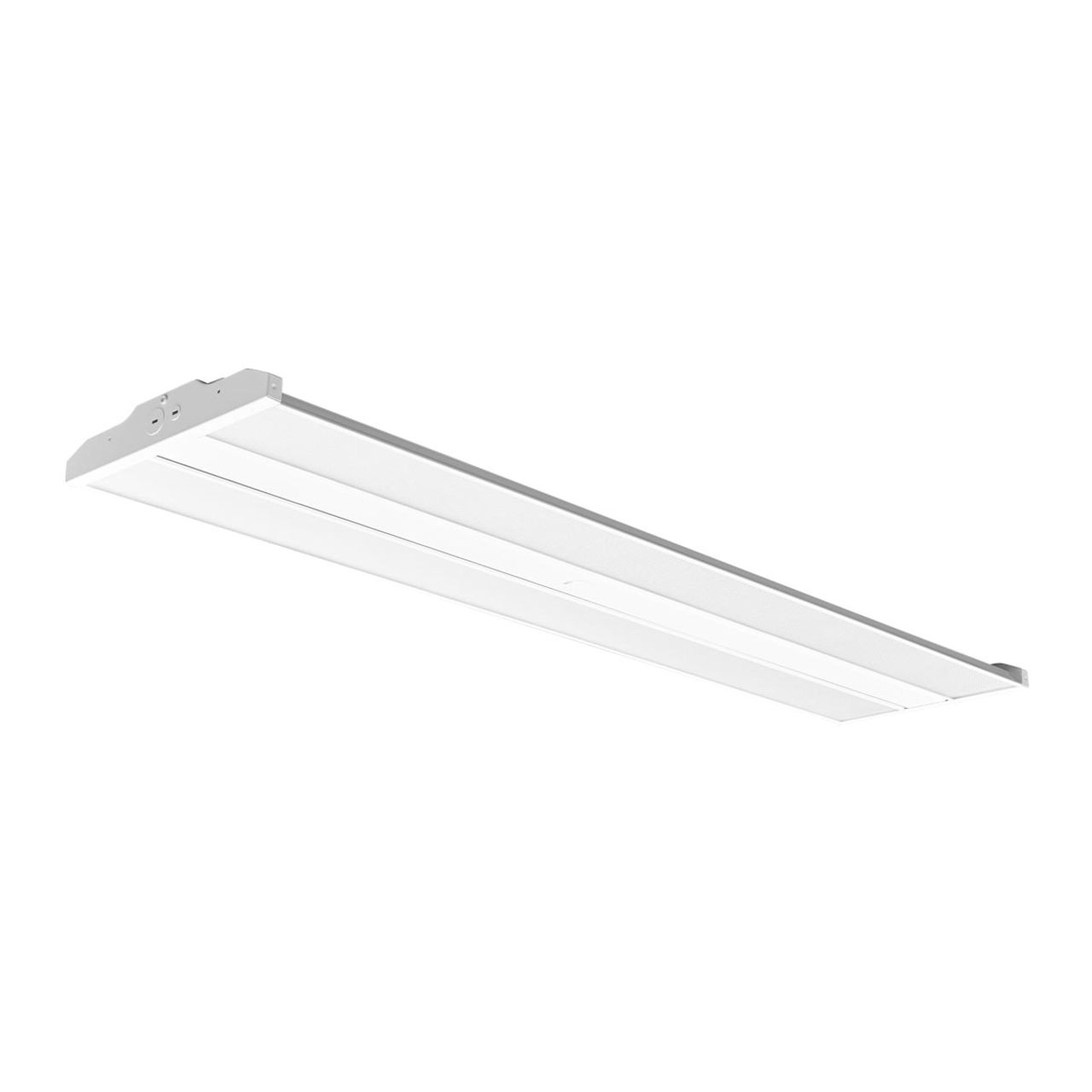

JEE LED Linear High Bay HB2 270-400W
Product Number:Jen-HB2-400/340/270-DIM-F
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
This item is priced on quote. Add any priced item to your quote and mention this part in the notes, or contact us and we will price it for you.
JEE linear high bay with switchable wattage and switchable CCT, 0-10V dimming and a choice of suspension or pendant mounting.
Specifications
Wattage
270 / 340 / 400 W
Lumens
41,580 – 60,400 lm
Efficacy
up to 155 lm/W
Colour temperature
4000K / 5000K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
> 80
Power factor
> 0.9
Rated life
50,000 hours (LM-80 / TM-21)
Operating temp
-20°C to 45°C
Construction
- Precision-designed optics
- Seoul 3528 LED chips
Electrical
- 120-277V
- Dimmable LED power supply
- THD < 20%, PF > 0.9
Ideal applications
- Warehouses
- Supermarkets
- Covered courts
- Utility areas
- Industrial
- Commercial
