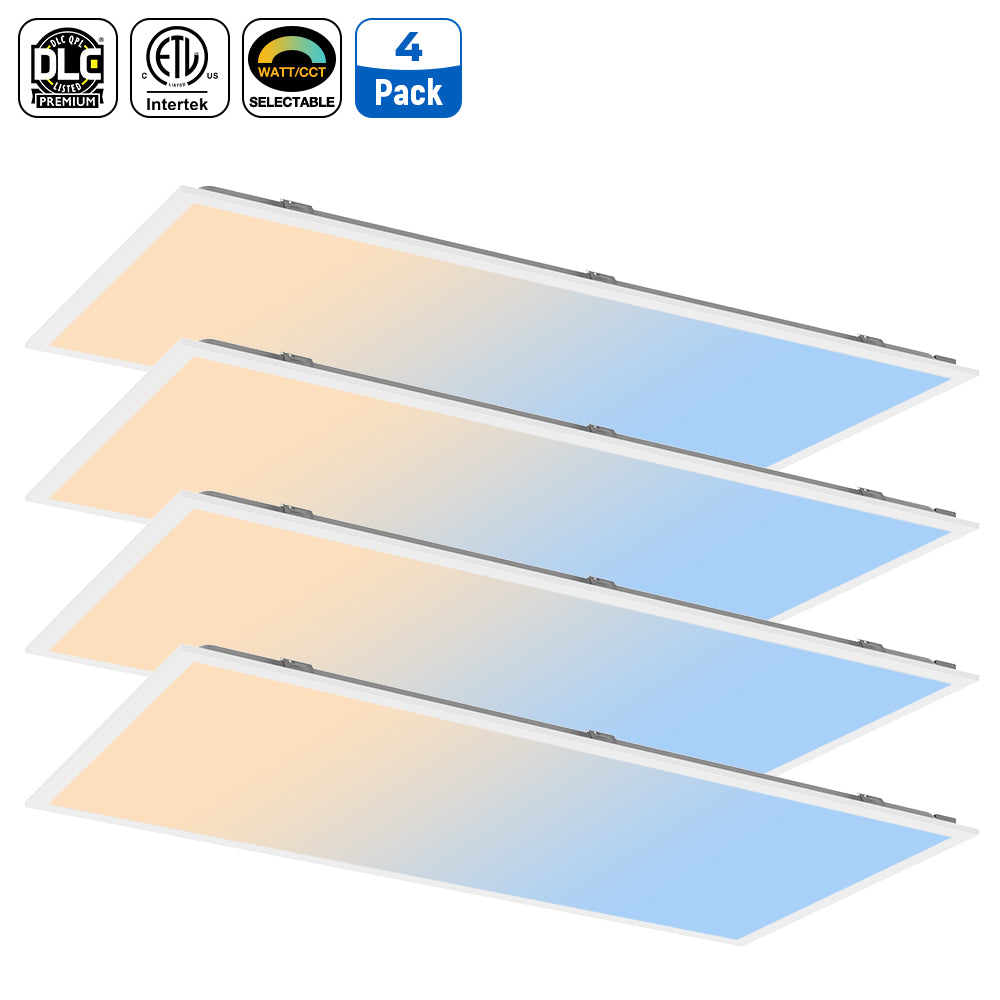

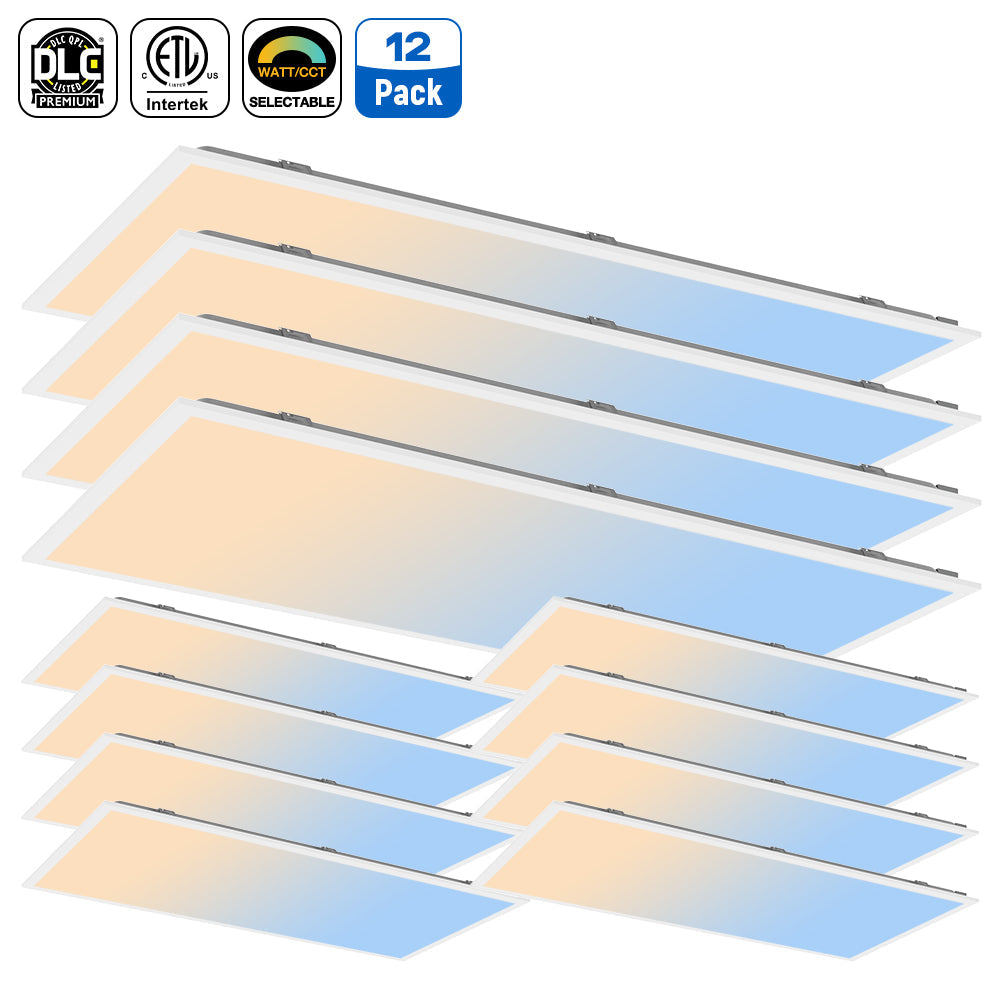

JEE 2x4 LED Panel 30-72W
Product Number:JEN-B4-S72-3065
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.

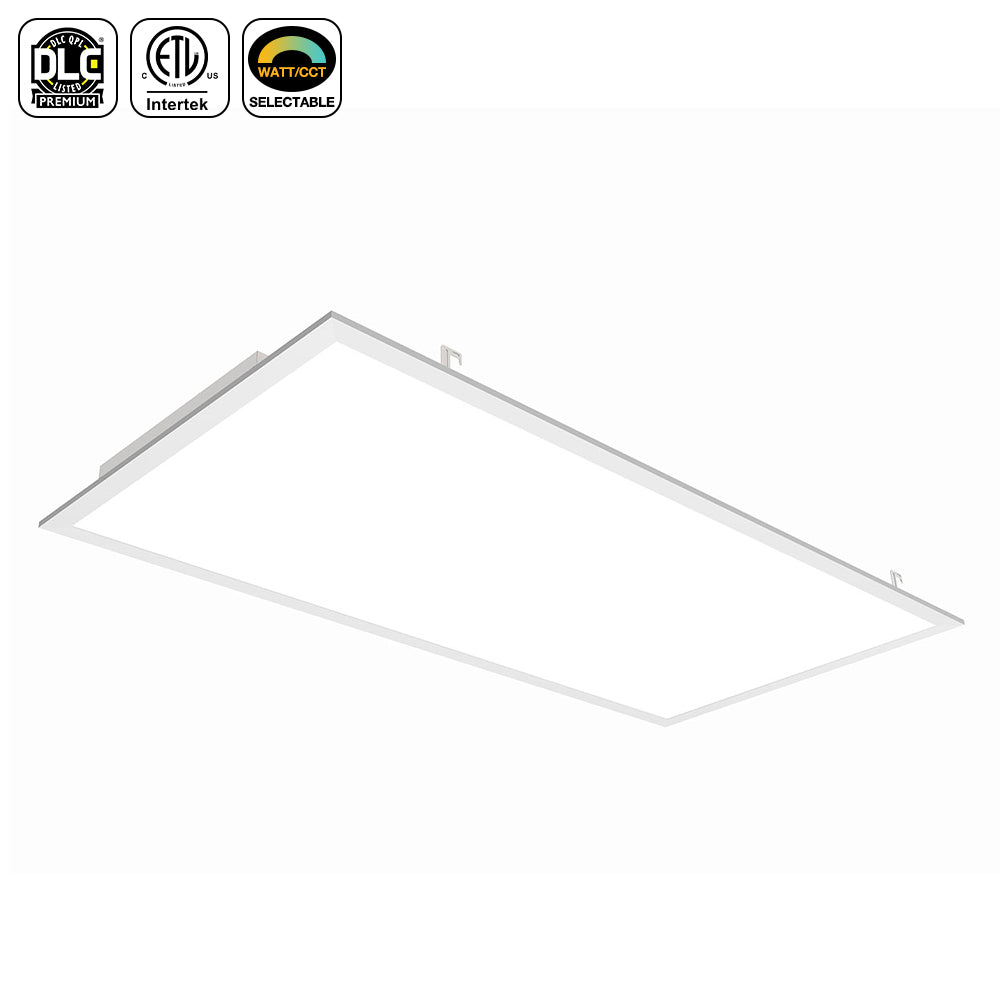

JEE 2x4 backlit LED panel, five selectable wattages and five selectable CCTs on one SKU. No sensor base; sensors cannot be fitted to this version.
- 5 selectable wattages and 5 selectable CCTs on one SKU
- Backlit technology for even, uniform output
- 0-10V dimming as standard
- ETL listed and suitable for damp location
- DLC 5.1 Premium
- 5-year limited warranty
Specifications
Wattage
30 / 40 / 50 / 60 / 72 W
Lumens
3,750 – 9,000 lm
Efficacy
up to 130 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Dimming
47.5" x 23.75" x 1.37"
Warranty
5-year limited warranty
CRI
≥ 80
Operating temp
-20°C to 45°C
THD / PF
≤ 10% / ≥ 0.95
Dimensions
47.5" x 23.75" x 1.37"

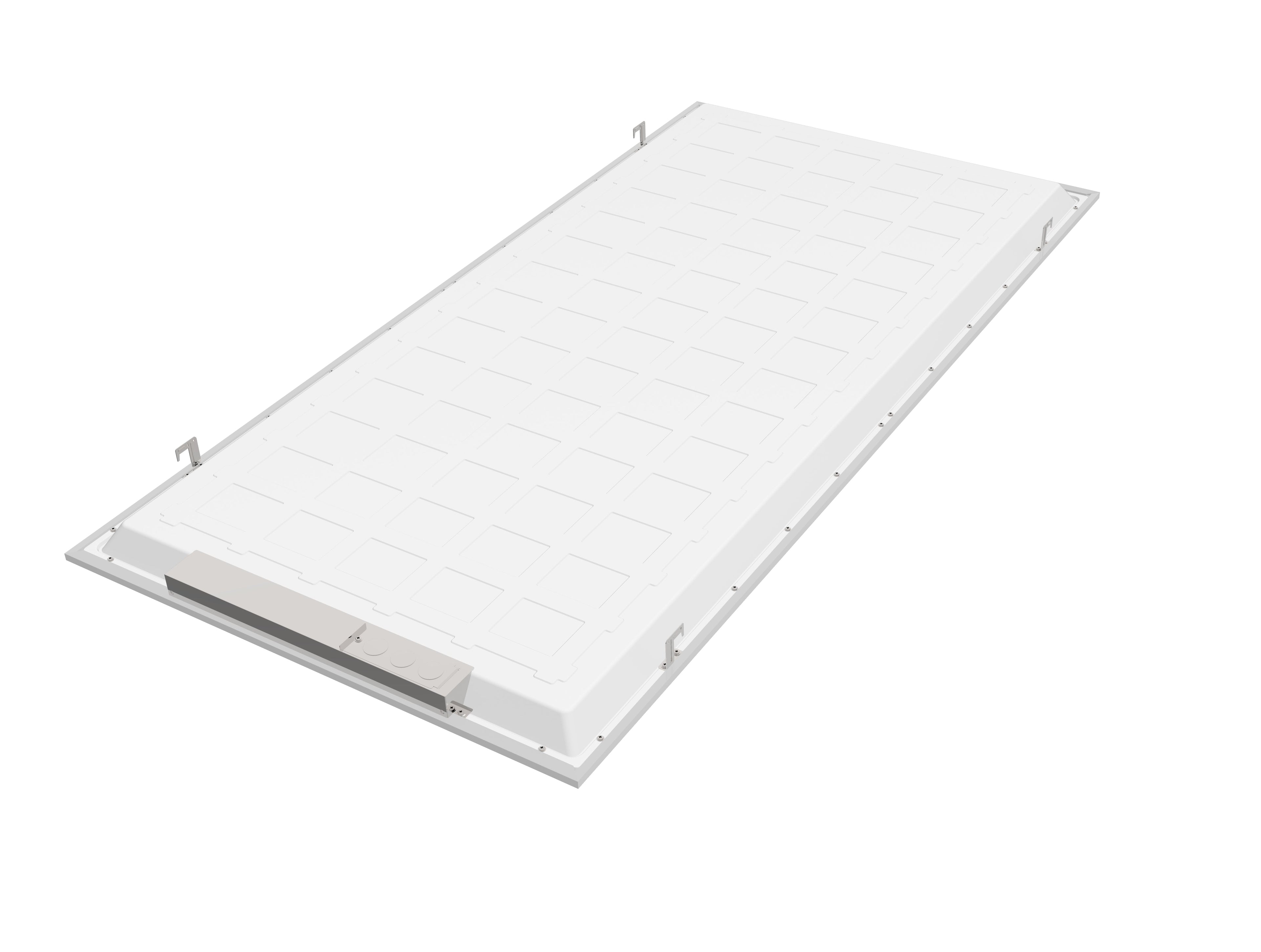

Construction

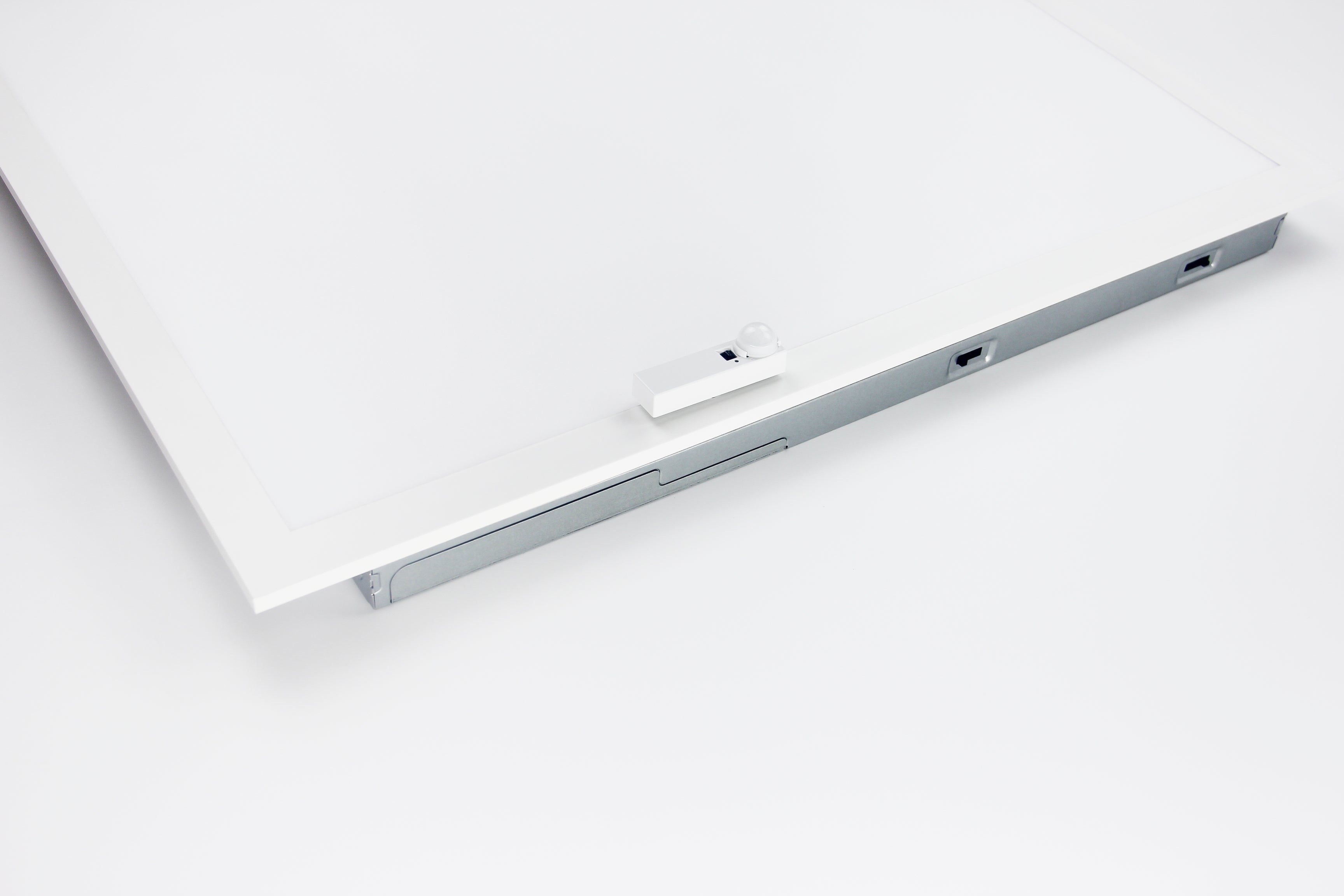

- Integrative aluminium frame provides a durable structure
- Sealed housing prevents dust and light leak
- 5 wattage and 5 CCT selectable switches integrated on the driver
- Minimise stock — 1 SKU covers a maximum of 25 models
Electrical
- Input voltage 120-277Vac 50/60Hz
- 0-10V dimmable
- THD ≤ 10%, PF ≥ 0.95
Installation
- Suitable for recessed mounting with T-bar
- Suspension and surface mounting accessories available
- Ambient temperature range -20°C to 45°C

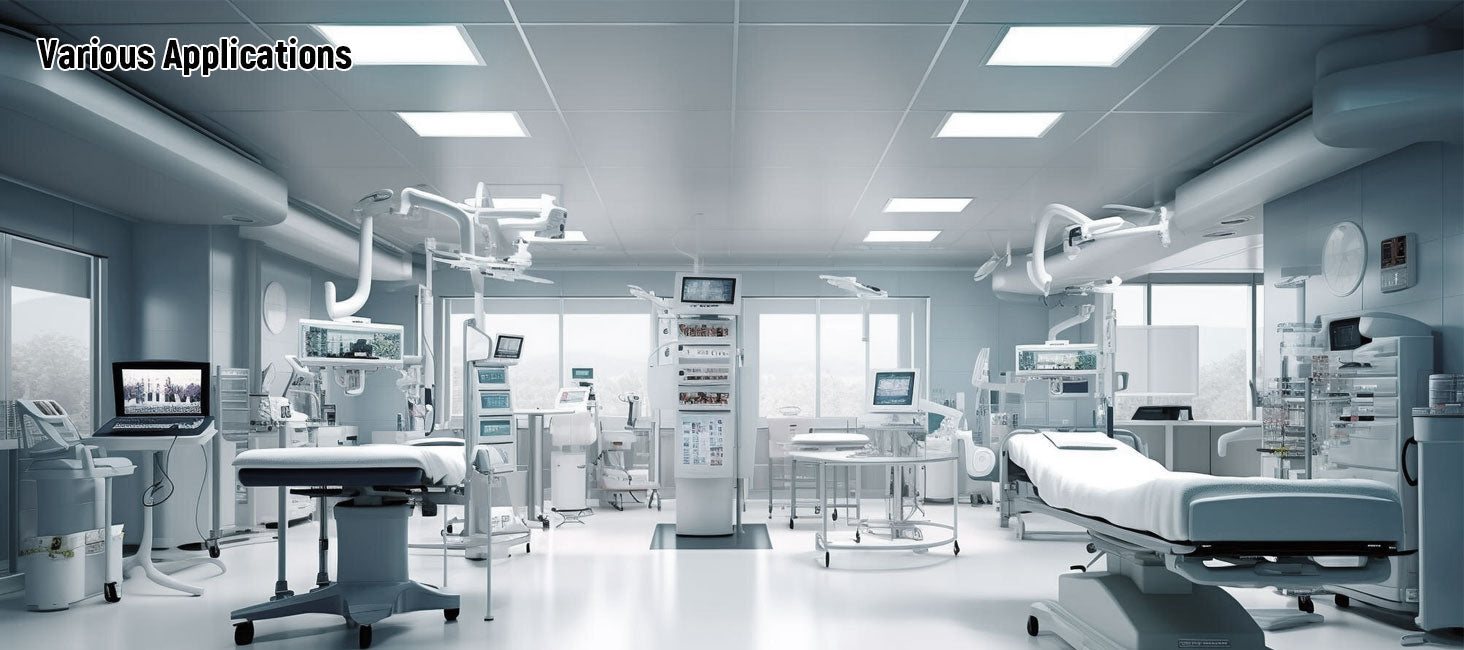

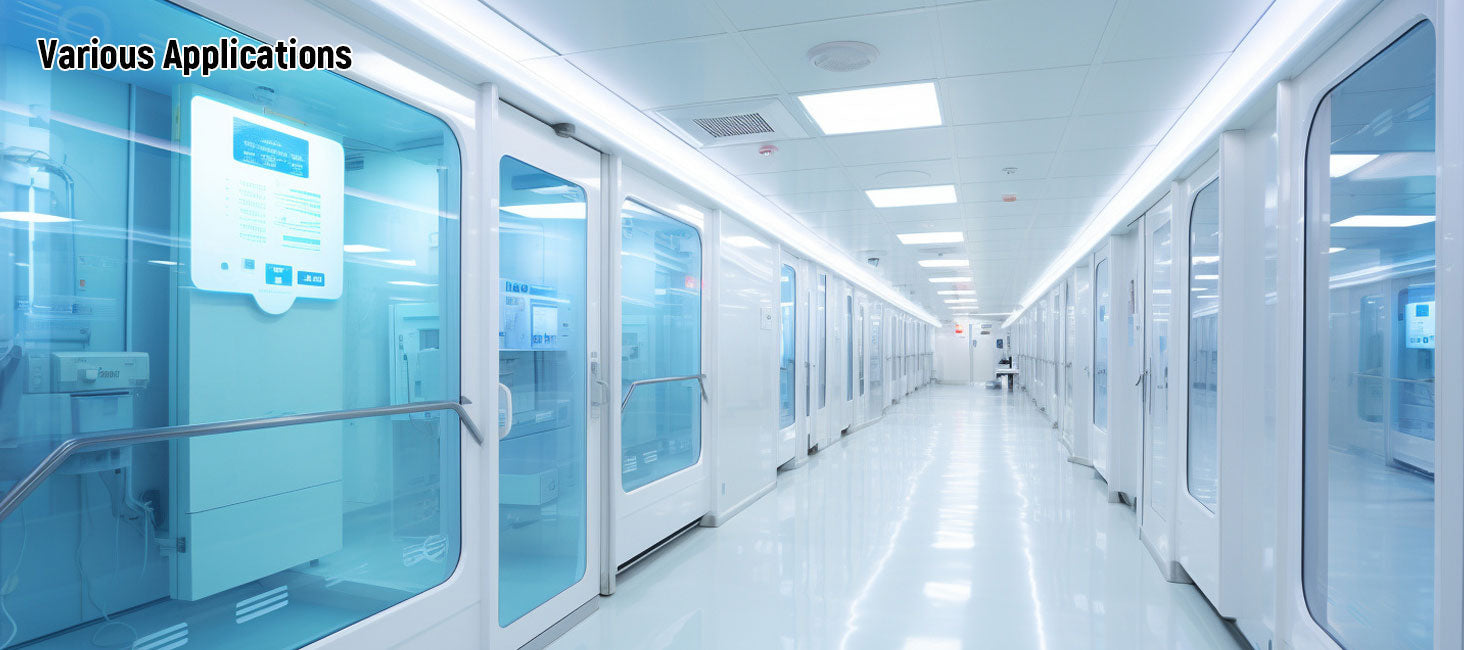

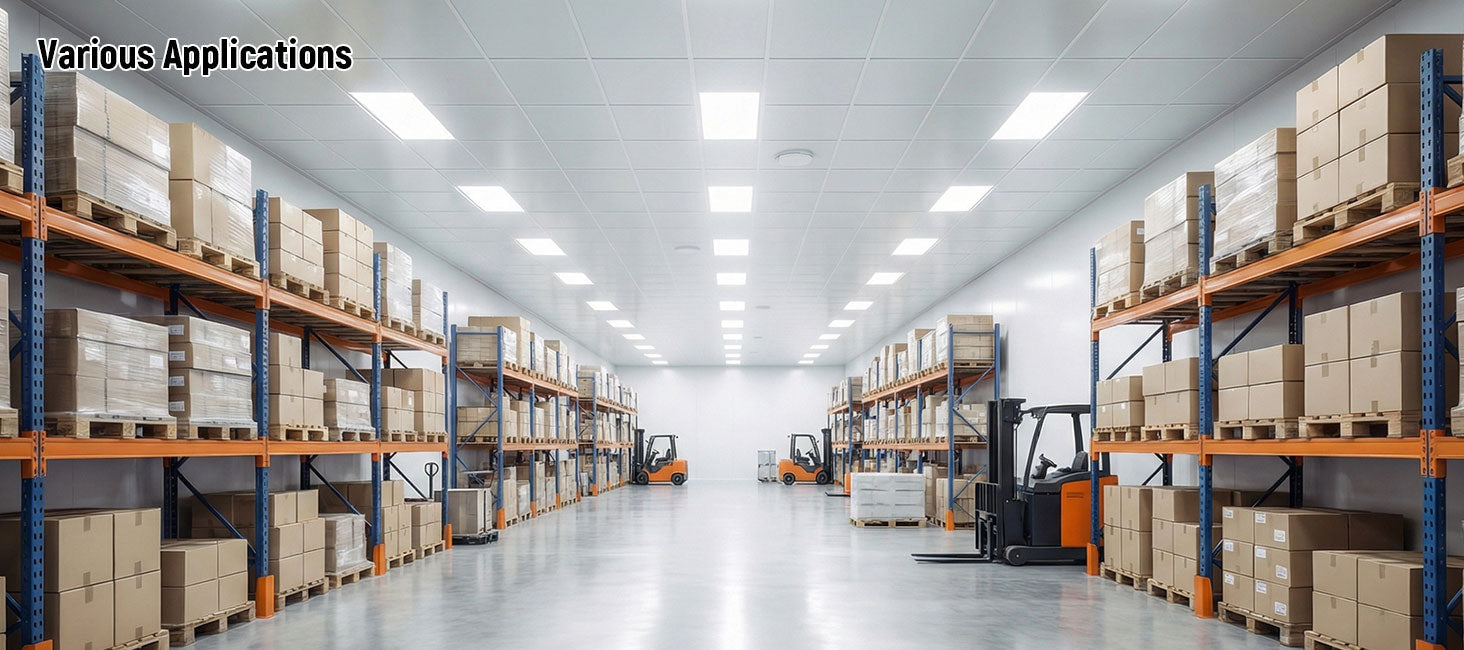

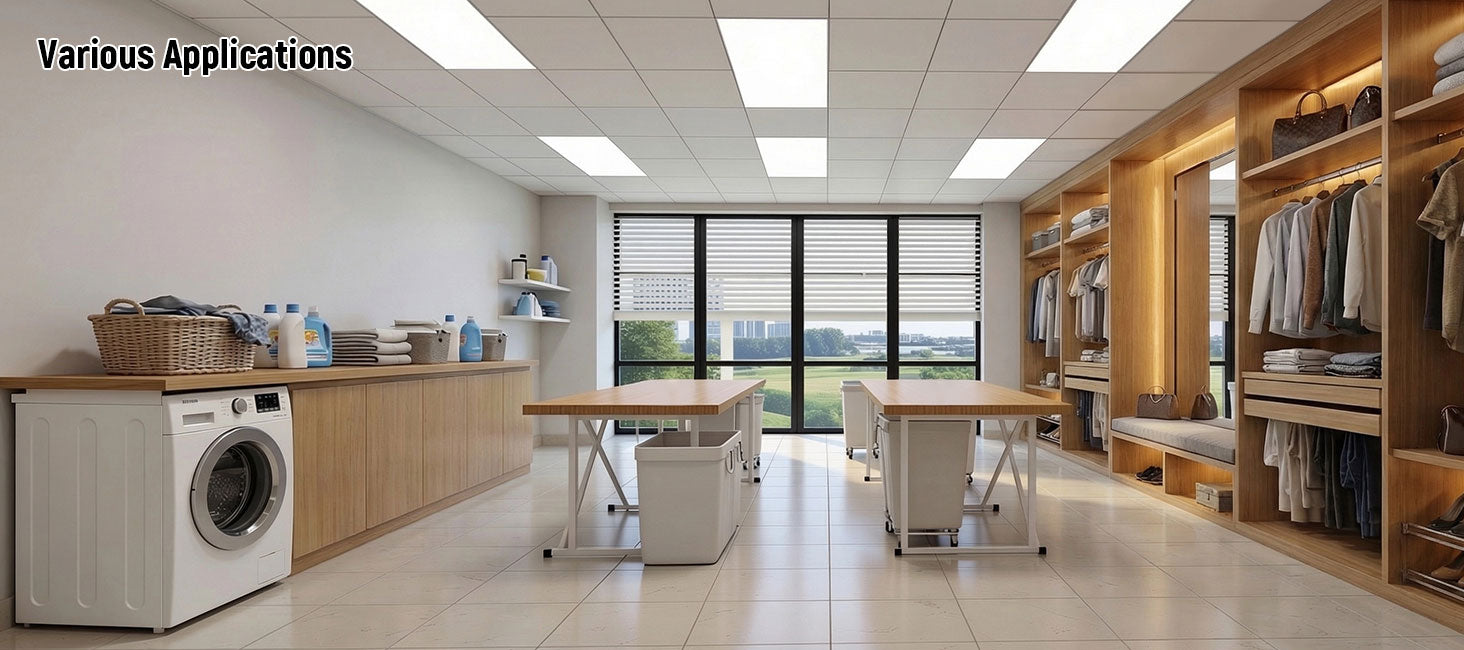

Ideal applications

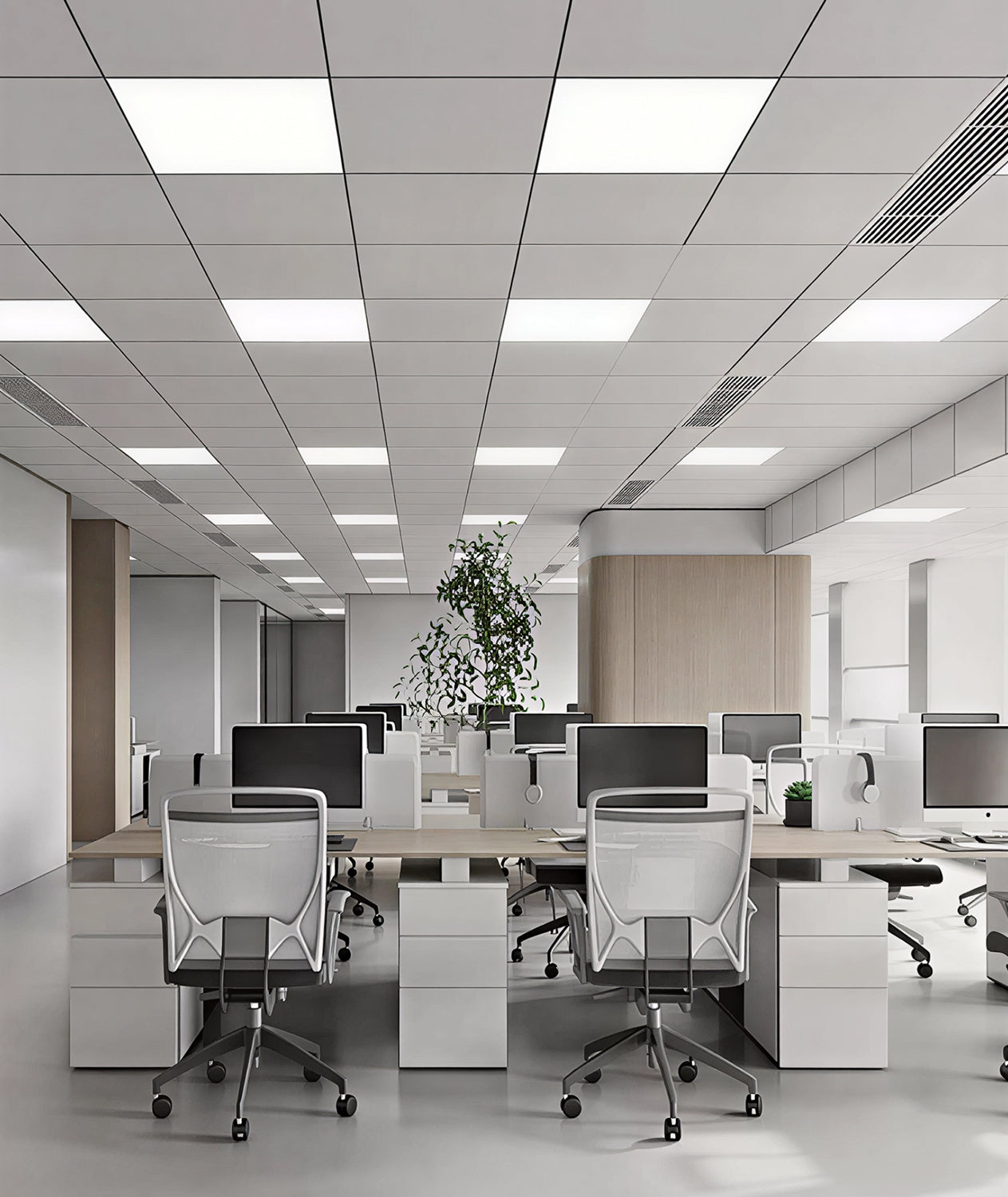

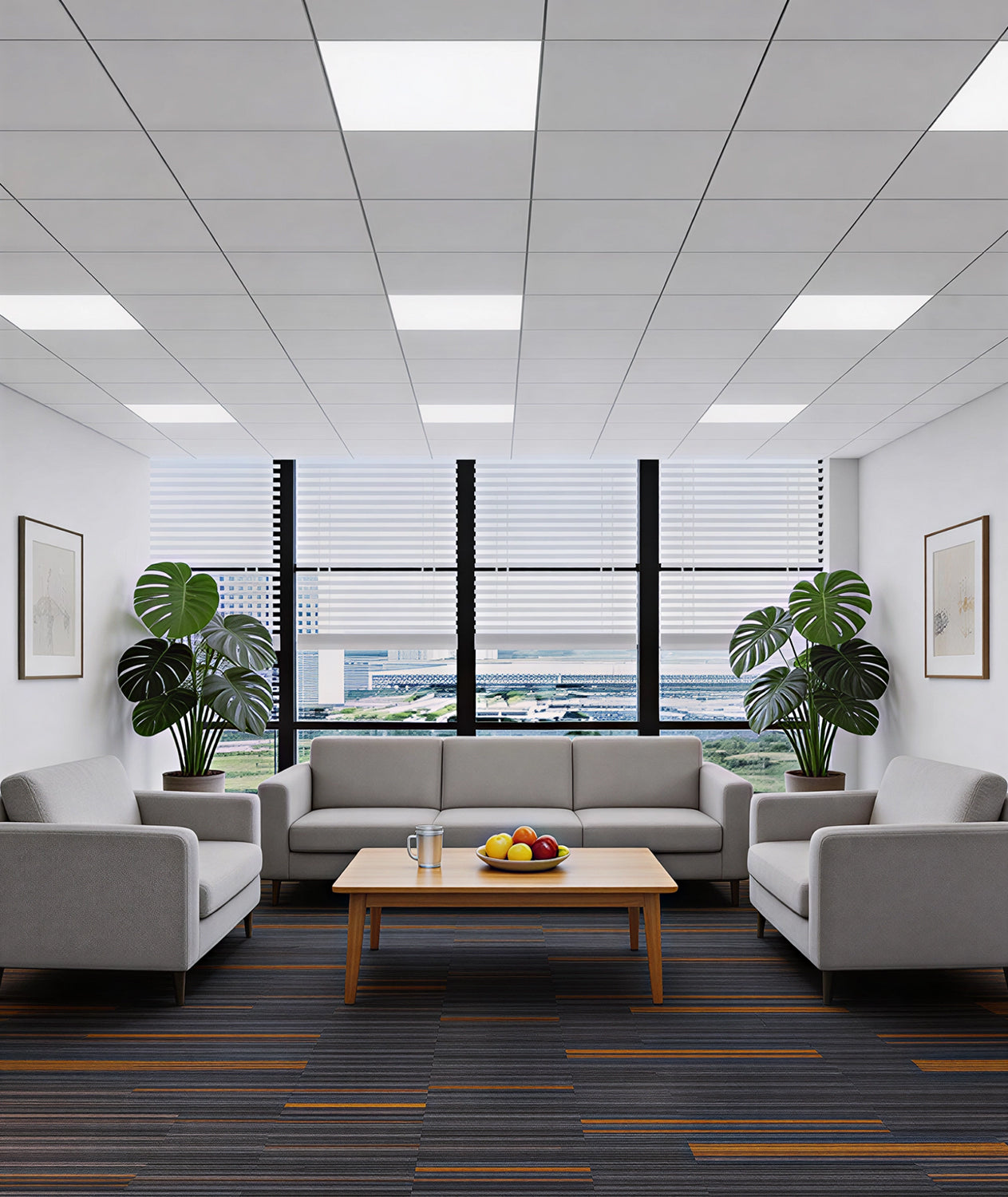

- Offices
- Retail
- Schools
- Restaurants
- Residential
