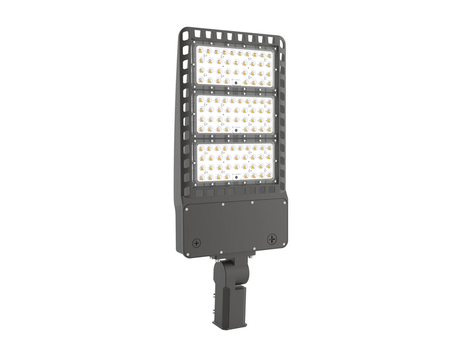

Gielight SXT LED Shoebox Area Light 300-400W
Product Number:SXT-400W-H-H-5000K
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
Square-shouldered shoebox area light, three selectable wattages on a wide AC120-347V input. Three LED modules in the 579mm body — the largest area light in the line.
- 3 selectable wattages (300/350/400W)
- AC120-347V wide input
- IP65, wet location
- 150 lm/W
- Type III / IV / V lens options
- Four mount types available
- 5-year limited warranty
Specifications
Wattage
300 / 350 / 400 W
Lumens
45,000 – 60,000 lm
Efficacy
up to 150 lm/W
Colour temperature
5000K
Voltage
120–347V
Dimming
22.80" body (579mm)
Warranty
5-year limited warranty
CRI
Ra 70
IP rating
IP65
Housing length
579mm
CCT
The sheet gives 4000-5700K; 5000K is what is stocked
Lumens
calculated from rated efficacy
Sensor jack
This fixture takes 3.5mm-jack sensor heads. Only 3.5mm parts are offered here — a 2.5mm head will not seat in this base. The size comes from the models this fixture's own spec sheet names.
Construction
- Die-cast aluminium fin-shape heat sink, free convection
- PC milky white mask, seamless — no water leakage path
- Housing length by output: 334mm at 200W, 455mm at 300W, 579mm at 400W
Electrical
- Wide input AC120-347V
- PF > 0.95
- Watt tunable by DIP switch
- 0-10V dimmers supported
Installation
- Slip fitter, rotatable round pole, square pole rotatable or trunnion mount
- IP65, wet location
- Type III, Type IV and Type V PC lenses available
Ideal applications
- Parking lots
- Car lots
- Yards
- Loading areas
- Campuses
