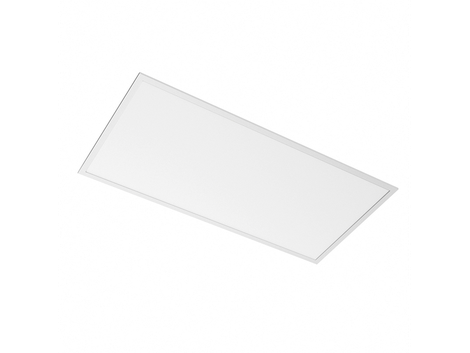

Gielight BPL5 2x4 Back-Lit LED Panel 30-72W, Sensor Base + 18W Emergency Driver
Product Number:BPL5-24-72W-L-H (With 18W emergency driver)
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
2x4 back-lit panel, five selectable wattages and five selectable CCTs on one SKU. Sensor base fitted and a factory 18W emergency driver included.
- 5 selectable wattages, 5 selectable CCTs on one SKU
- Back-lit — no hot spots or dark bands
- 0-10V dimming as standard
- PF > 0.95, THD < 15%
- Rated life > 54,000 hours
- 5-year limited warranty
Specifications
Wattage
30 / 40 / 50 / 60 / 72 W
Lumens
3,900 – 9,350 lm
Efficacy
up to 130 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
Ra ≥ 80
Power factor
> 0.95
THD
< 15% at full load
Rated life
> 54,000 hours
Operating temp
-30°C to 40°C
Lumens
calculated from rated efficacy
Emergency driver
The emergency driver data sheet rates the 8W unit for a load not over 50W and the 18W unit under 75W. This panel is power-tunable, so set the DIP to a compliant step — confirm on your quote.
Sensor jack
This fixture takes a PLUG & PLAY sensor module, not an audio-jack head. The spec sheet's options block calls for a Haisen HD-series microwave motion sensor with an infrared remote: remove the plastic plug and the module drops into the aligned base. Detection is 5.8GHz, installation height to 6m/19.68ft, detection distance 3m/9ft or more, and the module carries its own dusk/dawn photocell and daylight harvesting. The sheet prints HD08VR-MA-1 and HD05R; Gielight stocks this family under the part numbers listed here, so confirm the exact variant on your quote.
Construction
- White high-strength metal frame, seamless
- PMMA lens with polystyrene diffuser — no hot spots, shadows or glare
- Back-lit construction for even output across the face
Electrical
- Input 120-277VAC
- 0-10V dimming
- PF > 0.95, THD < 15% at full load
- 5 selectable wattages and 5 selectable CCTs on the driver
Installation
- Recessed into a conventional grid ceiling
- Surface mount kit available separately
- Operating range -30°C to 40°C (-22°F to 104°F)
Ideal applications
- Offices
- Schools
- Healthcare
- Retail
- Government
